Unable to ControlClick on menu item in Windows

[Adyan]

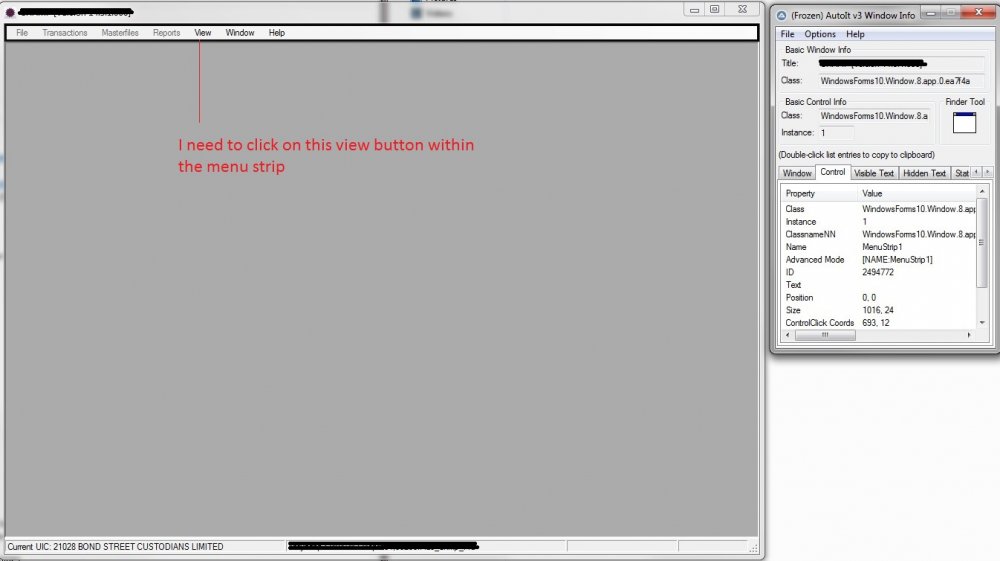

I need to write an AutoIt script which launches a windows application where I need to select a menu item to perform certain functions. I am using AutoIt windows info to identify all the controls. I am able to login to the application but I am not able to click on the menu item of the windows. Please see the screenshot below.

AutoIt Info is not able to recognize the menu item individually and maximum I get the control id of the whole menu strip.

I have tried the following:

1. Use WinActivate and then MouseClick. It runs fine till the machine is not locked. On a locked machine the script becomes unreliable.
2. Use WinMenuSelectItem to click the menu item but the menu item could not be clicked.
3. Used Windows Inspect to identify control name and tried clicking Control with that name but it did not work.

Please suggest what approach can I use to click the control reliably.



Edited August 28, 2018 by Adyan

[caramen]

Hello,

The way to start with is this function :

ControlClick





Regards.

Edited August 28, 2018 by caramen

[Adyan]

@caramen, I tried using ControlClick and I am able to click on the Menu item as below:

ControlFocus("[REGEXPTITLE:CHAMP(.*?); CLASS:WindowsForms10.Window.8.app.0.ea7f4a]", "", "[CLASS:WindowsForms10.Window.8.app.0.ea7f4a; INSTANCE:1]")
ControlClick("[REGEXPTITLE:CHAMP(.*?); CLASS:WindowsForms10.Window.8.app.0.ea7f4a]", "", "[CLASS:WindowsForms10.Window.8.app.0.ea7f4a; INSTANCE:1]", "Left", 1, 250, 11)

But I am stuck on how to click on the submenu (Comms Input Queue...)  item.

1. There is no control info available.
2. I cannot use MouseClick because it does not work when my screen is locked. Also my screen won't be active when script runs.
3. WinMenuSelectItem also does not help here.
4. Also I tried sending keystrokes but this also works on an active screen.

ControlSend("[REGEXPTITLE:CHAMP(.*?); CLASS:WindowsForms10.Window.8.app.0.ea7f4a]", "", "[CLASS:WindowsForms10.Window.8.app.0.ea7f4a; INSTANCE:1]", "{ALT}{V}{I}", 0)

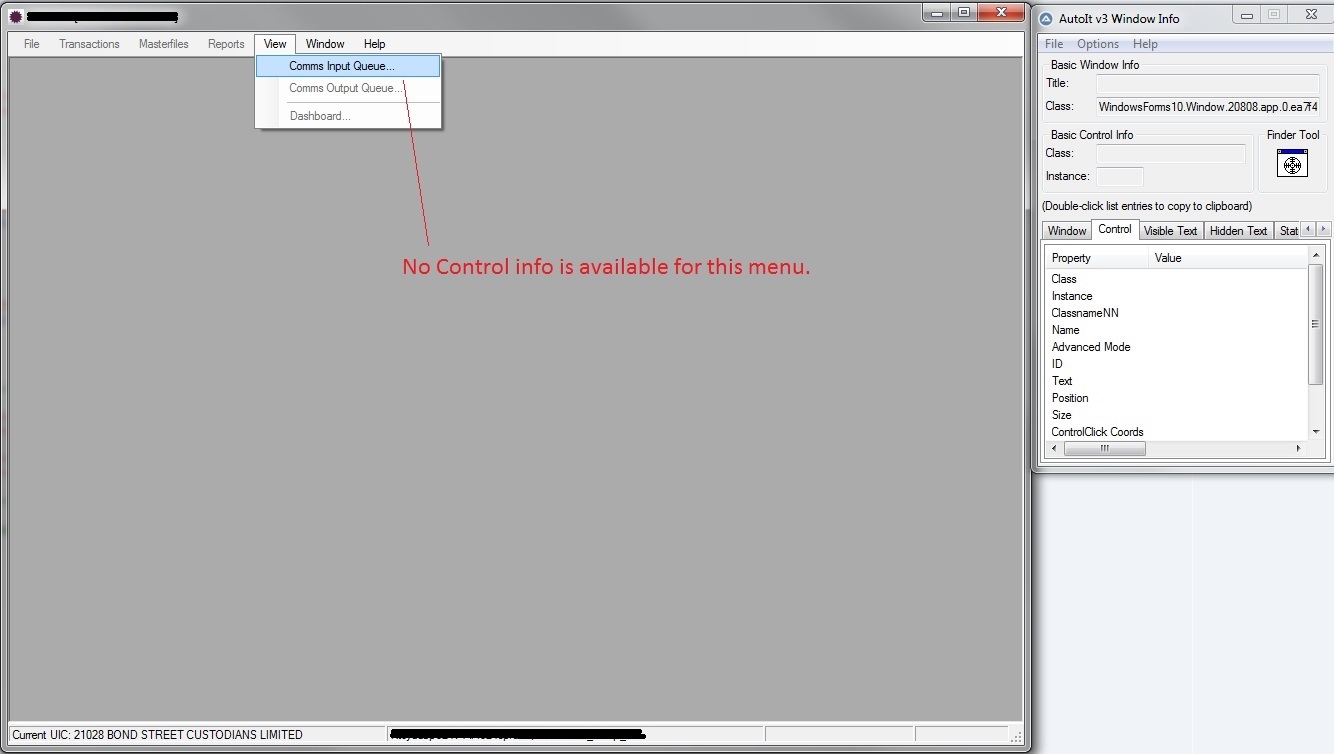

Please see the screenshot below.



[caramen]

Try use the SimpleSpy tool. It provide sometime more info about the current Control.

You can find it here. If you dont success with SimpleSpy you can try an other InfoTool there is some if you search in the forum.





[jdelaney]

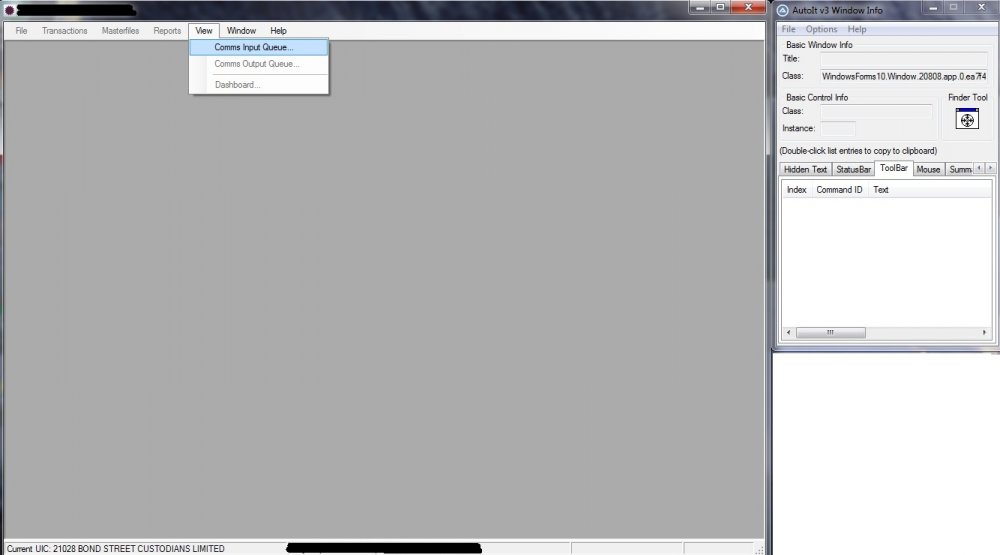

You might get lucky, and the 'Toolbar' tab of the Autoit Window Info tool will be populated when you focus on the control.  If it does, then you can use _guictrltoolbar* functions.



Edited August 30, 2018 by jdelaney

[Adyan]

Toolbar tab is not showing any info.



I tried using SimpleSpy tool but no info is displayed for the submenu item. I then used windows inspect tool and I can see some info of the control. But I am not sure how can I still use it to click the submenu item (Comms Input Queue) highlighted above. I have tried the following but it does not click the sub menu item.

ControlClick("[REGEXPTITLE:CHAMP(.*?); CLASS:WindowsForms10.Window.8.app.0.ea7f4a]", "", "[Name:View; INSTANCE:1]")
ControlClick("[REGEXPTITLE:CHAMP(.*?); CLASS:WindowsForms10.Window.8.app.0.ea7f4a]", "", "[CLASS:WindowsForms10.Window.8.app.0.ea7f4a; Name:Comms Input Queue...]")





I tried going through the link below but I am not sure which info I can assimilate to achieve the above objective to click on the submenu. Is there a way to iterate through the menu items and click it. Any info would be of great help.



[jdelaney]

I meant for the bar itself.   the sub toolbar looks like a context window, so you would need to get it's info from the window tab.

[Adyan]

The window tab only gives the class name but I cannot click the control using that info. Also ToolBar does not display any info for main menu and sub menu as well.

[Deye]

Hi Adyan,

Try Out WinMenuSelectItem: and see if it works with whatever that secret window is

Local $hWnd = WinGetHandle("[CLASS:SciTEWindow]")
WinMenuSelectItem($hWnd, "", "&Help", "&Help")
$hWnd = WinWaitActive("AutoIt Help", "", 3)
ControlSetText($hWnd, "", 3003, "WinMenuSelectItem")
ControlClick($hWnd, "", 3006, "left", 3)

Deye

Edited September 1, 2018 by Deye

[Adyan]

@Deye, As I mentioned above, WinMenuSelectItem does not work in this case. I have tried many ways such as:

Local $hWnd = WinGetHandle("[REGEXPTITLE:CHAMP(.*?); CLASS:WindowsForms10.Window.8.app.0.ea7f4a]")
WinMenuSelectItem($hWnd, "", "&View", "Comms &Input Queue...")

But nothing happens. Also I read that WinMenuSelectItem() will only work on standard menus.

[Adyan]

Any other pointers on what approach I can use to be able to click on the control without using WinActivate and MouseClick.

[Earthshine]

there is no assimilate with junkew's UDF. You use it or you don't, It's not for the faint at heart though. Simplespy actually generates usable code,

Edited September 4, 2018 by Earthshine

[junkew]

1. As inspect and simplespy recognize your control you can do the job with IUIAutomation UDF
2. Study the first 10 examples in the udf and you will understand how IUIAutomation works in general
3. Decide if you want to use my wrapper with _UIA_Action("your control identification", "click")
   Simplespy will give you the base code to do that
4. If you are not doing 3 you will have to understand the following algorithm with IUIAutomation
   1. Get main child window from desktop
   2. Understand your GUi hierarchy
   3. Use the findall function or condition filter of IUIAutomation to get your element
   4. Based on the x,y,w,h properties UIA will give you you can move the mouse and click



[Adyan]

Thanks @junkew

I will follow the steps in detail to solve the issue.
