As the Active Directory UDF - Help & Support thread has grown too big, I start a new one.
The original thread can be found here.

Edited by Jos

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (NEW 2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites
  • Replies 835
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

Could you please add the following function to your script and call _AD_ListDomainControllersEX instead of _AD_ListDomainControllers? The error should be gone. ; #FUNCTION# ==================

Fixed in the 1.5.0.1 version of the UDF which I uploaded today.

& stands for AND | stands for OR You are looking for groups whose name start with APZ_ OR APPL_ OR CPZ_PRD_. The syntax gets a bit more complex now: "(&(objectcategory=group)(|(na

Posted Images

I have absolutely no idea what goes on. Can we do it step by step?

First _AD_Open. On the workstation do you use the same user as on the connected PC?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (NEW 2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

For _AD_Open.  Variable:  $techusername, $techpassword are the same for all scenarios and input fields(User ID and password in the GUI) in _AD_Open.au3  All other fields also match what is being used (DNSDomain, HostServer, Confiuration) in the GUI and the AD_Open line of code.

If I use the stock script from your UDF:

- Domain machine:  Works fine.  I'm able to get the "Logon Was Successful" with the same username/password passed by $techusername, $techpassword

- Workgroup: Gives -2147352567 upon launch (expected since it doesn't know what the AD server name should be on the workgroup machine)

If I modify the line in _AD_Open.au3 from

_AD_Open()

to

_AD_Open($techusername, $techpassword, "DC=us,DC=XXXX,DC=com", "XXAD_serverXX.us.XXXX.com", "CN=Configuration,DC=XXXX,DC=com") ;to pass the technician username / password who has rights to AD and the AD variables

- Domain Machine: works fine.  I'm able to get the "Logon Was Successful" with the same username/password passed by $techusername, $techpassword

- Workgroup: Works fine, no error.  I'm able to get the "Logon Was Successful" with the same username/password passed by $techusername, $techpassword

(Result is the same with both "CN=Configuration,DC=XXXX,DC=com" and "CN=Configuration,DC=us,DC=XXXX,DC=com")

Edited by gonzo070777
Link to post
Share on other sites

Started playing around with scripts again... this was my first attempt, not sure if it's a config on my side or a bug.

Here's the script...

#include <AD.au3>

$sSam = @ComputerName & "$"
$sFQDN = _AD_SamAccountNameToFQDN($sSam)

#Region --- CodeWizard generated code Start ---
;MsgBox features: Title=Yes, Text=Yes, Buttons=OK, Icon=Info, Miscellaneous=Top-most attribute
MsgBox(262208,"Computer OU",$sFQDN)
#EndRegion --- CodeWizard generated code End ---

The script hangs in SciTE.  Using the latest version available.


Edited by dataspike
Link to post
Share on other sites

Welcome to AutoIt and the forum!

Before you can call any of the _AD_* functions you need to call _AD_Open to connect to AD.

See any of the example scripts provided with the UDF.

Edited by water

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (NEW 2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

Welcome to AutoIt and the forum!

Before you can call any of the _AD_* functions you need to call _AD_Open to connect to AD.

See any of the example scripts provided with the UDF.

Ah, figured it was something simple.   I found the sample code in another post, but you only the two strings were listed.

Thanks!

Link to post
Share on other sites

:)

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (NEW 2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites
  • 2 weeks later...

Version 1.4.1.0 (Bug fix) of the UDF has been released.

Only runs with AutoIt 3.3.10.2 and later.

Please test before using in production!

For download please see my signature.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (NEW 2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

I have a problem with _AD_MoveObject

I have the same error with the helpfile provided with the udf as in my script:

I get an error about the object doesn't exist, but "_AD_SamAccountNameToFQDN(@UserName)" seems to be the correct value. I double checked that value

while @username gives me error: Return code '-2147352567' from Active Directory

I am not getting an error about the ou, so this part seems to be oke.

what am I doing wrong?

edit: I am using the latest UDF with autoit 3.3.10.2

Edited by Jochem
Link to post
Share on other sites

Can you add

_AD_ErrorNotify(2)

at the top of your script so we get detailed error information?

-2147352567 (decimal) = 0x80020009 (hex) just means: General Error

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (NEW 2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

Can you please post the full _AD_MoveObject statement you use?

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (NEW 2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

#AutoIt3Wrapper_AU3Check_Parameters= -d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6

#AutoIt3Wrapper_AU3Check_Stop_OnWarning=Y

; *****************************************************************************

; Example 1

; Moves an AD object to another OU.

; *****************************************************************************

#include <AD.au3>

#include <ButtonConstants.au3>

#include <GUIConstantsEx.au3>

#include <WindowsConstants.au3>

_AD_ErrorNotify(2)

; Open Connection to the Active Directory

_AD_Open()

If @error Then Exit MsgBox(16, "Active Directory Example Skript", "Function _AD_Open encountered a problem. @error = " & @error & ", @extended = " & @extended)

Global $iReply = MsgBox(308, "Active Directory Functions - Example 1", "This script moves an object to another OU." & @CRLF & @CRLF & _

  "Are you sure you want to change the Active Directory?")

If $iReply <> 6 Then Exit

; Enter object to move and target OU

#region ### START Koda GUI section ### Form=

Global $Form1 = GUICreate("Active Directory Functions - Example 1", 814, 124)

GUICtrlCreateLabel("Object to move (FQDN or sAMAccountName):", 8, 10, 231, 17)

GUICtrlCreateLabel("OU where to move to (FQDN):", 8, 42, 231, 17)

Global $IObject = GUICtrlCreateInput(_AD_SamAccountNameToFQDN(@UserName), 241, 8, 559, 21)

;~ Global $IObject = GUICtrlCreateInput(@UserName, 241, 8, 559, 21)

Global $ITargetOU = GUICtrlCreateInput("", 241, 40, 559, 21)

Global $BOK = GUICtrlCreateButton("Move object", 8, 72, 130, 33)

Global $BCancel = GUICtrlCreateButton("Cancel", 728, 72, 73, 33, BitOR($GUI_SS_DEFAULT_BUTTON, $BS_DEFPUSHBUTTON))

GUISetState(@SW_SHOW)

#endregion ### END Koda GUI section ###

While 1

 Global $nMsg = GUIGetMsg()

 Switch $nMsg

  Case $GUI_EVENT_CLOSE, $BCancel

   Exit

  Case $BOK

   Global $sObject = GUICtrlRead($IObject)

   Global $sTargetOU = GUICtrlRead($ITargetOU)

   ExitLoop

 EndSwitch

WEnd

; Move object

Global $iValue = _AD_MoveObject($sTargetOU, $sObject)

If $iValue = 1 Then

 MsgBox(64, "Active Directory Functions - Example 1", "Object '" & $sObject & "' successfully moved to '" & $sTargetOU & "'")

ElseIf @error = 1 Then

 MsgBox(64, "Active Directory Functions - Example 1", "Target OU '" & $sTargetOU & "' does not exist")

ElseIf @error = 2 Then

 MsgBox(64, "Active Directory Functions - Example 1", "Object '" & $sObject & "' does not exist")

Else

 MsgBox(64, "Active Directory Functions - Example 1", "Return code '" & @error & "' from Active Directory")

EndIf

; Close Connection to the Active Directory

_AD_Close()

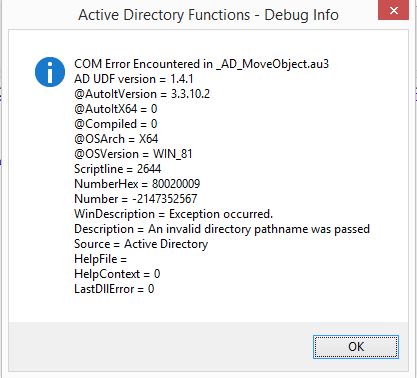

actually I use the help file now for testing purposes, this one gives the same error as my script.

I think it is a 2003 AD error with trailing slashes "/" in the FQGN

Edited by Jochem
Link to post
Share on other sites

Can you please post the data you enter into the GUI (mask company specific information if needed).

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (NEW 2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

Last thing I would try is to use the hex value. Means

$sobject = CN=Jochem xxxxxx \5Cxxxx,OU=medewerkers_CAD_Grafisch,OU=straat1,DC=xxxx,DC=nl

I this doesn't help then you need to install the hotfix.

For details about escaping characters see this site.

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (NEW 2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites

Thanks for the feedback.

As I'm always eager to improve the UDF I'm "glad" to hear that it is a MS bug ;)

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2022-02-19 - Version 1.6.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2017-07-21 - Version 0.4.0.1) - Download - General Help & Support - Example Scripts
OutlookEX (2021-11-16 - Version 1.7.0.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX_GUI (2021-04-13 - Version 1.4.0.0) - Download
Outlook Tools (2019-07-22 - Version 0.6.0.0) - Download - General Help & Support - Wiki
PowerPoint (2021-08-31 - Version 1.5.0.0) - Download - General Help & Support - Example Scripts - Wiki
Task Scheduler (NEW 2022-07-28 - Version 1.6.0.1) - Download - General Help & Support - Wiki

Standard UDFs:
Excel - Example Scripts - Wiki
Word - Wiki

Tutorials:
ADO - Wiki
WebDriver - Wiki



Link to post
Share on other sites
  • 3 weeks later...

These COM errors are really getting to me.


> Deleting user dramirez
COM Error Encountered in Get list of accounts going to be deleted.au3
AD UDF version = 1.4.0
@AutoItVersion = 3.3.8.1
@AutoItX64 = 0
@Compiled = 0
@OSArch = X86
@OSVersion = WIN_7
Scriptline = 640
NumberHex = 80020009
Number = -2147352567
WinDescription =
Description = The directory property cannot be found in the cache.
Source = Active Directory
HelpFile =
HelpContext = 0
LastDllError = 0
========================================================
>Exit code: 0    Time: 13.300



Full Code

#NoTrayIcon
#include <AD.au3>
#include <Date.au3>

Global $aUsers, $sUsername, $sLogin, $sModified, $iLogin, $iModified, $sAttribute, $aResult
Global $iStaffDays = 180 ; days
Global $iStudentDays = 90 ; days

_AD_Open() ; open connection to AD
$aUsers = _AD_GetObjectsInOU("OU=Purgatory,DC=ad,DC=domain,DC=org", "(objectCategory=user)") ; read users in purgatory into an array
For $i = 1 to UBound($aUsers) - 1
    $sUsername = $aUsers[$i]
    $sModified = StringRegExpReplace(_AD_GetObjectAttribute($sUsername, "whenChanged"), "(\d{4})(\d{2})(\d{2}).+", "$1/$2/$3") ; convert YYYYMMDDHHMMSS into YYYY/MM/DD
    $iModified = _DateDiff("D", $sModified, _NowCalcDate()) ; compare dates
    $sAttribute = _AD_GetObjectAttribute($sUsername, "extensionAttribute2")
    If @error Or $sAttribute = "" Then ExitLoop
    If $sAttribute <> "student" Then
        If $iModified >= $iStudentDays Then ; if last modified is more than X days
            ConsoleWrite("> Deleting user " & $sUsername & @CR)
            _ArrayAdd($aResult, $sUsername)
        EndIf
    Else
        If $iModified >= $iStaffDays Then ; if last modified is more than X days
            ConsoleWrite("> Deleting user " & $sUsername & @CR)
            _ArrayAdd($aResult, $sUsername)
        EndIf
    EndIf
Next
_AD_Close() ; close connection to AD
_ArrayDisplay($aResult)
Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By Kanashius
      This UDF can be used to draw at the Desktop Wallpaper (Windows 8+) with GDI+ without using files.
      The example runs with 60-120fps at my machine, so the speed is acceptable.
      When the script exits, the original wallpaper is restored.
      Have fun :).
      PS: The UDF uses the window between the background and the icons, so it could be used to add an own child window at the desktop. Just look at the begin of __Wallpaper_Startup ($hWorkerW).

      Example:

      WallpaperUDF.au3 WallpaperUDF Example.au3
    • By sandgre
      Wondering if you can help a teacher out.  For the last few years of remote, hybrid, and in-person teaching I've been using an AutoHotKey script that creates an inking toolbar to be used during a PowerPoint presentation.  (https://www.autohotkey.com/boards/viewtopic.php?t=79163) The annotation tools available through Ppt are woefully inadequate, and, on my machine at least, jump around all over the place - sometimes on the bottom, sometimes on the left, sometimes on the right.  It's a scavenger hunt every single time.  The inking tool is always available, and recent updates allowed for the addition of lots more colors, which I used for modeling phenomena with students. One tragic day I arrived to school to find that my district IT dep't took away access to AutoHotKey.  No more tool bar.
      I've been trying to resurrect some programming skills from a past life. I'm working through various tutorials and help files, with the goal of recreating the toolbar in AutoIt.  I'm really needing some help to move things along though.  I've been going through your PowerPoint UDF and all of your functions seem to just relate to editing the slides. Can you point me in the direction of how to create a toolbar that accesses the annotation tools that are available during the slideshow itself?

    • By kurtykurtyboy
      GuiFlatButton is a UDF to easily create regular buttons with different colors for background, foreground, border, hover, focus, etc..
      This started as an effort to change the background color of a button and eventually grew into a full UDF.
      If you've looked around forums for changing button background colors, you have probably noticed that each proposed workaround has its own set of issues/side-effects. The answers usually circle back to 'use ownerdrawn buttons' and 'not worth it'. Well, now it is possible for anyone to easily create ownerdrawn buttons - totally worth it!
      Some issues with other workarounds such as drawing with GDI+ or using a colored label as a 'button':
      Not 'real' buttons so you lose built-in functionality that windows gives to buttons Messy / inefficient code in the main while loop to check for mouse position Slow to respond to click, paint, etc... Having to deal with GUIRegisterMsg messages Not straight-forward to implement GuiFlatButton is not a workaround; it is a technique to respond to Windows' built-in owner-drawn button events.
      With minimal effort, we can now create true simple colored buttons.
      The idea is to create an owner-drawn button using GUICtrlCreateButton then subclass the GUI and controls to handle the button-specific events to paint it however we want.
      This UDF magically does all of this for us! No need to worry about event handling or main while loop logic.

      How to use
      It couldn't be any easier! Simply create a new button using the familiar syntax. This creates an ownerdrawn button with default colors.
      $mybutton1 = GuiFlatButton_Create("Button 1", 78, 20, 120, 40) If you want to change the background and text colors:
      GuiFlatButton_SetBkColor(-1, 0x5555FF) GuiFlatButton_SetColor(-1, 0xFFFFFF) Advanced Usage
      Set background/text/border all at once
      GuiFlatButton_SetColors(-1, 0x0000FF, 0xFFFFFF, 0x9999FF) Set ALL colors for ALL button states! (normal, focus, hover, selected)
      Local $aColorsEx = [0x0000FF, 0xFFFFFF, -2, 0x4444FF, 0xFFFFFF, 0xAAAAFF, 0x6666FF, 0xFFFFFF, 0xCCCCFF, 0x0000EE, 0xFFFFFF, 0x7777EE] GuiFlatButton_SetColorsEx(-1, $aColorsEx) Set default colors to apply to any future buttons
      ;set colors GuiFlatButton_SetDefaultColors(0x0000FF, 0xFFFFFF, 0x9999FF) ;create buttons $mybutton1 = GuiFlatButton_Create("Button 1", 12, 20, 120, 40) $mybutton2 = GuiFlatButton_Create("Button 2", 143, 20, 120, 40) Set ALL color defaults
      ;set colors Local $aColorsEx = [0x0000FF, 0xFFFFFF, -2, 0x4444FF, 0xFFFFFF, 0xAAAAFF, 0x6666FF, 0xFFFFFF, 0xCCCCFF, 0x0000EE, 0xFFFFFF, 0x7777EE] GuiFlatButton_SetDefaultColorsEx($aColorsEx) ;create buttons $mybutton1 = GuiFlatButton_Create("Button 1", 12, 20, 120, 40) $mybutton2 = GuiFlatButton_Create("Button 2", 143, 20, 120, 40)
      Available Functions

      Simple Example

      #include <GUIConstantsEx.au3> #include <MsgBoxConstants.au3> #include "GuiFlatButton.au3" Example() ;GUI with one button Func Example() Local $hGUI, $mybutton1 $hGUI = GUICreate("GuiFlatButton Ex0", 275, 120) GUISetBkColor(0x333333) $idLabel = GUICtrlCreateLabel("Click the button", 10, 100, 150, 30) GUICtrlSetColor(-1, 0xFFFFFF) ;create new button then set the background and foreground colors $mybutton1 = GuiFlatButton_Create("Button 1", 78, 20, 120, 40) GuiFlatButton_SetBkColor(-1, 0x5555FF) GuiFlatButton_SetColor(-1, 0xFFFFFF) GUISetState(@SW_SHOW, $hGUI) Local $i = 0 Local $iMsg While 1 $iMsg = GUIGetMsg() Switch $iMsg Case $GUI_EVENT_CLOSE ExitLoop Case $mybutton1 $i += 1 GUICtrlSetData($idLabel, $i) ConsoleWrite($i & @CRLF) EndSwitch Sleep(10) WEnd GUIDelete() EndFunc ;==>Example
      Menu/Toolbar Example

      #include <GUIConstantsEx.au3> #include <MsgBoxConstants.au3> #include "GuiFlatButton.au3" Example() ;Example GUI with toolbar Func Example() Local $hGUI, $idLabel, $aButtons, $iTbSize $hGUI = GUICreate("GuiFlatButton Ex2", 300, 200) GUISetBkColor(0x444444) $idLabel = GUICtrlCreateLabel("Click a button", 10, 180, 150, 30) GUICtrlSetColor(-1, 0xFFFFFF) $aButtons = createToolbar() $iTbSize = UBound($aButtons) GUISetState(@SW_SHOW, $hGUI) Local $i = 0 Local $iMsg While 1 $iMsg = GUIGetMsg() Switch $iMsg Case $GUI_EVENT_CLOSE ExitLoop Case $aButtons[0] To $aButtons[$iTbSize - 1] ConsoleWrite("1") GUICtrlSetData($idLabel, GuiFlatButton_Read($iMsg)) EndSwitch Sleep(10) WEnd GUIDelete() EndFunc ;==>Example Func createToolbar() Local $aButtons[6] Local $bkColor = 0x777777 Local $textColor = 0xFFFFFF Local $borderColor = 0x999999 Local $aBtnClrs[12] = [0x777777, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT, 0x888888, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT, 0x999999, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT, 0x666666, 0xFFFFFF, $GUI_BKCOLOR_TRANSPARENT] For $i = 0 To UBound($aButtons) - 1 $aButtons[$i] = GuiFlatButton_Create("B" & $i, $i * 50, 0, 50, 17) GuiFlatButton_SetColorsEx($aButtons[$i], $aBtnClrs) Next Return $aButtons EndFunc ;==>createToolbar
      Icon Example
      You can even easily add icons to your buttons -- just create a new button and send it an icon!

      #include <GDIPlus.au3> #include "GuiFlatButton.au3" Example() ;buttons with Icon images Func Example() ;get images for demonstration _GDIPlus_Startup() ;initialize GDI+ Local $hIcon = _WinAPI_ShellExtractIcon(@SystemDir & '\shell32.dll', 258, 24, 24) ;extract the 'Save' icon Local $hBitmap = _GDIPlus_BitmapCreateFromHICON($hIcon) ;Create Bitmap from Icon (for demonstration) Local $hHBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hBitmap) ;Create HBitmap from Bitmap _GDIPlus_BitmapDispose($hBitmap) ;dispose the bitmap _GDIPlus_Shutdown() ;done with GDI+ Local $hGUI = GUICreate("GuiFlatButton Ex5", 255, 400) GUISetBkColor(0xEEEEEE) ;set default colors of future buttons Local $aColorsEx = _ [0xE2E5E8, 0X000000, 0x888888, _ ; normal : Background, Text, Border 0xE2E5E8, 0X000000, 0x333333, _ ; focus : Background, Text, Border 0xE8E8E8, 0X000000, 0x666666, _ ; hover : Background, Text, Border 0xDDDDDD, 0X000000, 0xAAAAAA] ; selected : Background, Text, Border GuiFlatButton_SetDefaultColorsEx($aColorsEx) ;normal button with icon $label1 = GUICtrlCreateLabel( "$BS_TOOLBUTTON -->", 5, 10) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) Local $mybutton1 = GuiFlatButton_Create("Save", 130, 5, 50, 48, $BS_TOOLBUTTON) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybutton1), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align top Local $mybuttonT = GuiFlatButton_Create("Top", 5, 65, 120, 55, $BS_TOP) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonT), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align top-left Local $mybuttonTL = GuiFlatButton_Create("Top-Left", 5, 125, 120, 55, BITOR($BS_TOP, $BS_LEFT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonTL), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align top-right Local $mybuttonTR = GuiFlatButton_Create("Top-Right", 5, 185, 120, 55, BITOR($BS_TOP, $BS_RIGHT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonTR), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align left Local $mybuttonL = GuiFlatButton_Create("Left", 5, 245, 120, 55, $BS_LEFT) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonL), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align bottom Local $mybuttonB = GuiFlatButton_Create("Bottom", 130, 65, 120, 55, $BS_BOTTOM) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonB), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align bottom-left Local $mybuttonBL = GuiFlatButton_Create("Bottom-Left", 130, 125, 120, 55, BITOR($BS_BOTTOM, $BS_LEFT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonBL), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align bottom-right Local $mybuttonBR = GuiFlatButton_Create("Bottom-Right", 130, 185, 120, 55, BITOR($BS_BOTTOM, $BS_RIGHT)) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonBR), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) ;align right Local $mybuttonR = GuiFlatButton_Create("Right", 130, 245, 120, 55, $BS_RIGHT) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonR), $BM_SETIMAGE, $IMAGE_ICON, $hIcon)) GuiFlatButton_SetState($mybuttonR, $GUI_DISABLE ) ;disabled Local $mybuttonDisable = GuiFlatButton_Create("Disabled", 130, 310, 120, 55, $BS_TOOLBUTTON) _WinAPI_DeleteObject(_SendMessage(GUICtrlGetHandle($mybuttonDisable), $BM_SETIMAGE, $IMAGE_BITMAP, $hHBitmap)) GuiFlatButton_SetState($mybuttonDisable, $GUI_DISABLE ) ;clean up! _WinAPI_DestroyIcon( $hIcon ) _WinAPI_DeleteObject( $hHBitmap ) GUISetState(@SW_SHOW, $hGUI) Local $iMsg While 1 $iMsg = GUIGetMsg() Switch $iMsg Case $GUI_EVENT_CLOSE ExitLoop EndSwitch Sleep(10) WEnd GUIDelete() EndFunc ;==>Example
      I'm sure there are some use-cases I've forgotten, so feedback is welcome!

      Download the latest UDF and several more examples:
      Update 2022-05-25
      GuiFlatButton_20220525.zip
      Fixed issue, buttons disappear when a GUI containing a child window with WS_EX_MDICHILD extended style is moved
      Update 2022-05-24
      Fixed issue releasing subclassing when GUI is deleted but program is not closed
      Fixed occasional white background flicker
      Added function GuiFlatButton_GetPos
      Update 2021-01-02
      Fixed bug, not drawing correctly after deleting GUI with GUIDelete()
      Fixed bug, changing default colors changed all buttons, even previously created buttons
      Made some internal functions more efficient
      Update 2019-04-14
      Fixed bug, not showing pressed down state when clicking rapidly
      Added Icon/Bitmap support!
      Added function GuiFlatButton_SetPos to change the position and/or size of a button
      Update 2019-02-09
      Added 2 new functions to set the button colors globally for all future buttons.
      GuiFlatButton_SetDefaultColors
      GuiFlatButton_SetDefaultColorsEx

      Credits to:
      Melba23 (UDF template)
      LarsJ (general subclassing code)
      4ggr35510n (TrackMouseEvent example)
      binhnx (disable dragging with $WS_EX_CONTROLPARENT)
      GUIRegisterMsg in AutoIt Help (owner-draw button example)
      funkey (_WinAPI_DrawState example)
      GuiFlatButton_20190414.zip GuiFlatButton20210102.zip
      GuiFlatButton_20220524.zip
    • By Hermes
      Hi, I am struggling in setting the value of a textarea based on the value of clipboard (that contains a long web page source codes). If I use _WD_SetElementValue, it freezes after some time, or appears to be pressing tab and goes out of focus. I can also use send keys but i need the script to run in the background.
      Here is the full script:
      #Include "Chrome.au3" #Include "wd_core.au3" #Include "wd_helper.au3" #Include "WinHttp.au3" #include <MsgBoxConstants.au3> #include <WinAPIFiles.au3> #include <Array.au3> #include <AutoItConstants.au3> #include <WinAPIFiles.au3> #include <GDIPlus.au3> #include <Excel.au3> Local $sDesiredCapabilities, $sSession SetupChrome() _WD_Startup() $sSession = _WD_CreateSession($sDesiredCapabilities) _WD_LoadWait($sSession) _WD_Navigate($sSession, "http://demo.borland.com/testsite/stadyn_largepagewithimages.html") _WD_LoadWait($sSession) Global $sSource = _WD_GetSource($sSession) Local $Paste = ClipPut($sSource) Local $sData = ClipGet() Local $aArray = 0, _ $iOffset = 1 While 1 $aArray = StringRegExp($sData, '(?s)<p>.*</p>', $STR_REGEXPARRAYMATCH, $iOffset) If @error Then ExitLoop $iOffset = @extended For $i = 0 To UBound($aArray) - 1 Local $Paste = ClipPut($aArray[$i]) Local $sRegExData = ClipGet() ;MsgBox(0, "", "$sRegExData = " & $sRegExData) Next WEnd _WD_Navigate($sSession, "https://www.w3schools.com/tags/tryit.asp?filename=tryhtml5_textarea_placeholder") _WD_WaitElement($sSession, $_WD_LOCATOR_ByCSSSelector, "iframe#iframeResult") Local $sElement1 = _WD_FindElement($sSession, $_WD_LOCATOR_ByCSSSelector, "iframe#iframeResult") _WD_FrameEnter($sSession, $sElement1) _WD_WaitElement($sSession, $_WD_LOCATOR_ByXPath, "//html/body/textarea") $textarea = _WD_FindElement($sSession, $_WD_LOCATOR_ByXPath, "//html/body/textarea") _WD_ElementAction($sSession, $textarea, 'click') ;WD SetElementValue(SsSession, Stextarea, $sRegExData) <-- I can do this but the focus goes out, or the browser freezes _WD_FrameLeave($sSession) sleep(2000) Send("^v") _WD_LoadWait($sSession) _WD_Shutdown() Func SetupChrome() _WD_Option('Driver', 'chromedriver.exe') _WD_Option('Port', 9515) _WD_Option('DriverParams', '--log-path="' & @ScriptDir & '\chrome.log"') $sDesiredCapabilities = '{"capabilities": {"alwaysMatch": {"goog:chromeOptions": {"w3c": true, "args":["start-maximized","disable-infobars"]}}}}' EndFunc ;==>SetupChrome Can someone help me please, or re-direct me to the right path? TIA!
    • By Hermes
      Hi, I am trying to select elements in print page (dialog window) for a specific web page. But when trying to do so, it looks like it does not allow me to do it.
      So far, this is what I have:
      _WD_WaitElement($sSession, $_WD_LOCATOR_ByCSSSelector, "body") Local $mainpagebody = _WD_FindElement($sSession, $_WD_LOCATOR_ByCSSSelector, "body") _WD_HighlightElement($sSession, $mainpagebody, 2) _WD_WaitElement($sSession, $_WD_LOCATOR_ByCSSSelector, "img.print-button") Local $printbutton = _WD_FindElement($sSession, $_WD_LOCATOR_ByCSSSelector, "img.print-button") _WD_ElementAction($sSession, $printbutton, 'click') _WD_LoadWait($sSession) Sleep(3000) _WD_WaitElement($sSession, $_WD_LOCATOR_ByCSSSelector, "body") Local $printpagebody = _WD_FindElement($sSession, $_WD_LOCATOR_ByCSSSelector, "body") _WD_HighlightElement($sSession, $printpagebody, 2) The script above highlights the main web page "body" element, then clicks a tag to print a specific part of the page, then it will open a print page window where i am trying to highlight the body of that print page - but it looks like it is dropping from the session because it opens up another chrome page chrome://print.

      Below is the output log:
      __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"body"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}} _WD_WaitElement ==> Success __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"body"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}} __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/execute/sync; $sData={"script":"arguments[0].style='background: #FFFF66; border-radius: 5px; padding-left: 3px;'; return true;", "args":[{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}]} __WD_Post: StatusCode=200; ResponseText={"value":true}... _WD_ExecuteScript: {"value":true}... __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"img.print-link"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}} _WD_WaitElement ==> Success __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"img.print-link"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}} __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element/eb9e4673-4dec-4d4c-be6a-b7967743394b/click; $sData={"id":"eb9e4673-4dec-4d4c-be6a-b7967743394b"} __WD_Post: StatusCode=200; ResponseText={"value":null}... _WD_ElementAction: {"value":null}... __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/execute/sync; $sData={"script":"arguments[0].style='background: #FFFF66; border-radius: 5px; padding-left: 3px;'; return true;", "args":[{"element-6066-11e4-a52e-4f735466cecf":"eb9e4673-4dec-4d4c-be6a-b7967743394b"}]} __WD_Post: StatusCode=200; ResponseText={"value":true}... _WD_ExecuteScript: {"value":true}... __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/execute/sync; $sData={"script":"return document.readyState", "args":[]} __WD_Post: StatusCode=500; ResponseText={"value":{"error":"script timeout","message":"script timeout\n (Session info: chrome=92.0.4515.107)... __WD_Post ==> Webdriver Exception: {"value":{"error":"script timeout","message":"script timeout\n (Session info: chrome=92.0.4515.107)","stacktrace":"Backtrace:\n\tOrdinal0 [0x00C63733+2504499]\n\tOrdinal0 [0x00BFC401+2081793]\n\tOrdinal0 [0x00B024F0+1058032]\n\tOrdinal0 [0x00B55685+1398405]\n\tOrdinal0 [0x00B45E83+1334915]\n\tOrdinal0 [0x00B54CDB+1395931]\n\tOrdinal0 [0x00B45D4B+1334603]\n\tOrdinal0 [0x00B222B4+1188532]\n\tOrdinal0 [0x00B23149+1192265]\n\tGetHandleVerifier [0x00DDFB8C+1512252]\n\tGetHandleVerifier [0x00E8B0DF+2214031]\n\tGetHandleVerifier [0x00CE4BC3+484211]\n\tGetHandleVerifier [0x00CE3E69+480793]\n\tOrdinal0 [0x00C0218D+2105741]\n\tOrdinal0 [0x00C066E8+2123496]\n\tOrdinal0 [0x00C06827+2123815]\n\tOrdinal0 [0x00C0FB73+2161523]\n\tBaseThreadInitThunk [0x75EB62C4+36]\n\tRtlSubscribeWnfStateChangeNotification [0x77C11B69+1081]\n\tRtlSubscribeWnfStateChangeNotification [0x77C11B34+1028]\n"}} _WD_ExecuteScript: {"value":{"error":"script timeout","message":"script timeout\n (Session info: chrome=92.0.4515.107)... _WD_ExecuteScript ==> Webdriver Exception: HTTP status = 500 _WD_LoadWait ==> Webdriver Exception __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"body"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}} _WD_WaitElement ==> Success __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/element; $sData={"using":"css selector","value":"body"} __WD_Post: StatusCode=200; ResponseText={"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}}... _WD_FindElement: {"value":{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}} __WD_Post: URL=HTTP://127.0.0.1:9515/session/cd08704233a965ccbaf9292e8692c3e4/execute/sync; $sData={"script":"arguments[0].style='background: #FFFF66; border-radius: 5px; padding-left: 3px;'; return true;", "args":[{"element-6066-11e4-a52e-4f735466cecf":"91a394f0-004c-480d-aedf-52e2b30233c6"}]} __WD_Post: StatusCode=200; ResponseText={"value":true}... _WD_ExecuteScript: {"value":true}...
      Is it even possible to select elements in print page?

×
×
  • Create New...
