Changing text on a control that only shows up when you click in it

[Lycan]

Hi all!

I'm trying to set up some basic automation / load-testing scripts for one of our vendor supplied apps and am stumbling over something I hope you can help with.

So the app pulls up many windows, one of which is a diagram window.  I can identify the window ok I need to zoom out on this window.  There is a nice little textbox area along the bottom that allows you to select the zoom level which  I hope to make use of but I am having difficulty selecting this and changing its text.  The default zoom is 0.910 value and I would like to change that value to 0.050

When I run the GetAllWindowControls function supplied by another member on this forum (apologies I can't find the member whose post I found it from), it shows me 2 different sets of controls based upon if I click directly in the textbox or if I click anywhere else along the status bar.  See below.

When clicking in the textbox:

Func=[GetAllWindowsControls]: ControlCounter=[  1] ControlID=[6554636] Handle=[0x0064040C] ClassNN=[WindowsForms10.EDIT.app.0.232467a_r13_ad11] XPos=[ 177] YPos=[1558] Width=[  40] Height=[  14] IsVisible=[1] Text=[0.910].
Func=[GetAllWindowsControls]: ControlCounter=[  2] ControlID=[1706344] Handle=[0x001A0968] ClassNN=[WindowsForms10.Window.8.app.0.232467a_r13_ad11] XPos=[   0] YPos=[  93] Width=[2560] Height=[1458] IsVisible=[1] Text=[splitContainerControl2].
Func=[GetAllWindowsControls]: ControlCounter=[  3] ControlID=[3738006] Handle=[0x00390996] ClassNN=[WindowsForms10.Window.8.app.0.232467a_r13_ad12] XPos=[   0] YPos=[  93] Width=[2560] Height=[1458] IsVisible=[1] Text=[Panel1].
Func=[GetAllWindowsControls]: ControlCounter=[  4] ControlID=[1182288] Handle=[0x00120A50] ClassNN=[WindowsForms10.Window.8.app.0.232467a_r13_ad13] XPos=[   0] YPos=[  93] Width=[2560] Height=[1458] IsVisible=[1] Text=[].
...

When clicking anywhere else along the status bar:

Func=[GetAllWindowsControls]: ControlCounter=[  1] ControlID=[1706344] Handle=[0x001A0968] ClassNN=[WindowsForms10.Window.8.app.0.232467a_r13_ad11] XPos=[   0] YPos=[  93] Width=[2560] Height=[1458] IsVisible=[1] Text=[splitContainerControl2].
Func=[GetAllWindowsControls]: ControlCounter=[  2] ControlID=[3738006] Handle=[0x00390996] ClassNN=[WindowsForms10.Window.8.app.0.232467a_r13_ad12] XPos=[   0] YPos=[  93] Width=[2560] Height=[1458] IsVisible=[1] Text=[Panel1].
Func=[GetAllWindowsControls]: ControlCounter=[  3] ControlID=[1182288] Handle=[0x00120A50] ClassNN=[WindowsForms10.Window.8.app.0.232467a_r13_ad13] XPos=[   0] YPos=[  93] Width=[2560] Height=[1458] IsVisible=[1] Text=[].
Func=[GetAllWindowsControls]: ControlCounter=[  4] ControlID=[4785560] Handle=[0x00490598] ClassNN=[WindowsForms10.Window.8.app.0.232467a_r13_ad14] XPos=[   0] YPos=[  93] Width=[2560] Height=[1458] IsVisible=[1] Text=[].


Some of the various methods I have tried are as follows:

ControlClick

ControlSetText

ControlSend

MouseClick

Send

All to no avail, I can't even get the cursor to select the text box area.

Here is some snippets of the relevant code I have tried:

-

; Change the magnification level to 0.500
WinActivate($DispHwnd)
$WinLoc = WinGetPos($DispHwnd)
WinWaitActive($DispHwnd)
WinSetOnTop($DispHwnd,"",1)
WinSetState($DispHwnd,"",@SW_MAXIMIZE)
MouseMove($WinLoc[0]+($WinLoc[2]/2),$WinLoc[1]+($WinLoc[3]/2),20)
; ControlSend($DispHwnd, "", "[CLASS:WindowsForms10.EDIT.app.0.232467a_r13_ad1; INSTANCE:1]", "0.050")
Local $ZoomCtrl = ControlGetHandle($DispHwnd, "", "[WindowsForms10.EDIT.app.0.232467a_r13_ad11]")
ControlSetText($DispHwnd, "", "[CLASS:WindowsForms10.EDIT.app.0.232467a_r13_ad1; INSTANCE:1]", "0.050")

-

ControlClick($DispHwnd, "", "[NAME:diagram]", "Left",1,210,1045)
Opt("MouseCoordMode", 0)
MouseClick("Left",1,210,1045)
Opt("MouseCoordMode", 1)

-

Opt("MouseCoordMode", 0)
;WinActivate($DispHwnd)
;WinWaitActive($DispHwnd)
MouseClick("left","31", "5",1,"")
ControlSetText($DispHwnd, "", $ZoomCtrl, "0.050")
MouseClick("left","76", "720",2,"")
Opt("MouseCoordMode", 1)

According to UISpy, the elements details are as follows:

Treeview Element                                    Button: 1.000

Element Properties (identification)
$UIA_ControlTypePropertyId                          $UIA_ButtonControlTypeId
$UIA_NamePropertyId                                 1.000

Element Properties (information)
$UIA_BoundingRectanglePropertyId                    l=2729,t=1389,w=70,h=22
$UIA_HasKeyboardFocusPropertyId                     False
$UIA_IsContentElementPropertyId                     True
$UIA_IsControlElementPropertyId                     True
$UIA_IsDataValidForFormPropertyId                   False
$UIA_IsEnabledPropertyId                            True
$UIA_IsKeyboardFocusablePropertyId                  True
$UIA_IsOffscreenPropertyId                          False
$UIA_IsPasswordPropertyId                           False
$UIA_IsRequiredForFormPropertyId                    False
$UIA_LocalizedControlTypePropertyId                 button
$UIA_ProcessIdPropertyId                            856
$UIA_ProviderDescriptionPropertyId                  [pid:856,hwnd:0x0 Main(parent link):Microsoft: MSAA Proxy (unmanaged:uiautomationcore.dll)]

Control Patterns (element actions)
$UIA_IsInvokePatternAvailablePropertyId             True
$UIA_IsLegacyIAccessiblePatternAvailablePropertyId  True

Control Pattern Properties
$UIA_LegacyIAccessibleChildIdPropertyId             0
$UIA_LegacyIAccessibleDefaultActionPropertyId       Edit
$UIA_LegacyIAccessibleDescriptionPropertyId         Current Scale
$UIA_LegacyIAccessibleHelpPropertyId
$UIA_LegacyIAccessibleKeyboardShortcutPropertyId
$UIA_LegacyIAccessibleNamePropertyId                1.000
$UIA_LegacyIAccessibleRolePropertyId                43
$UIA_LegacyIAccessibleStatePropertyId               1048576
$UIA_LegacyIAccessibleValuePropertyId

Parents from Desktop                                Pane: Desktop
                                                    Window: Network Display
                                                    Pane: Dock Bottom
                                                    StatusBar: Status Bar

Parent to child index                               2


Any assistance would be appreciated.



[Lycan]

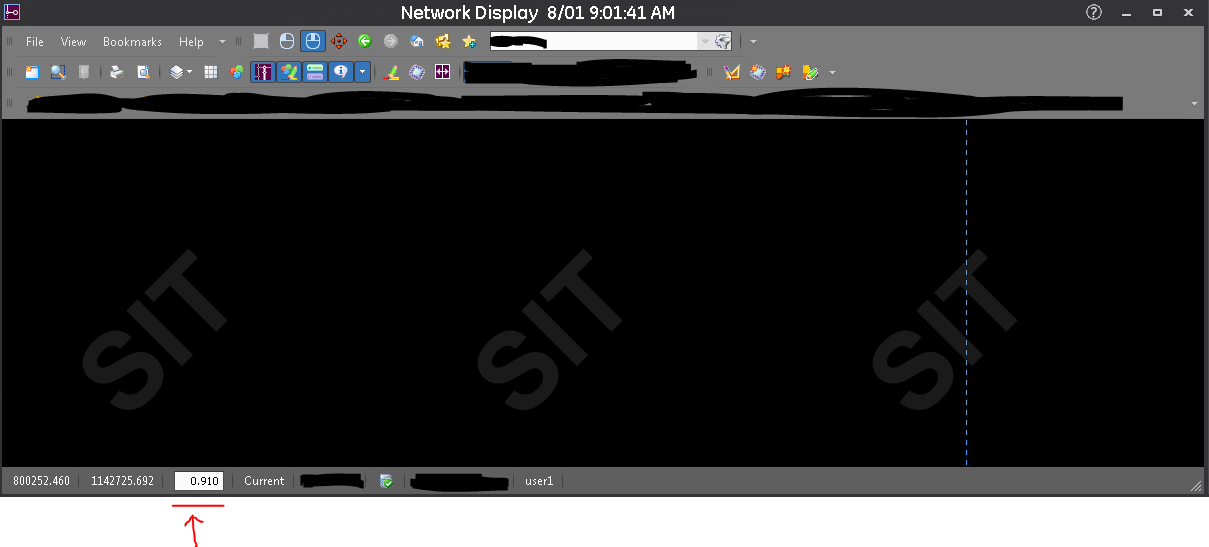

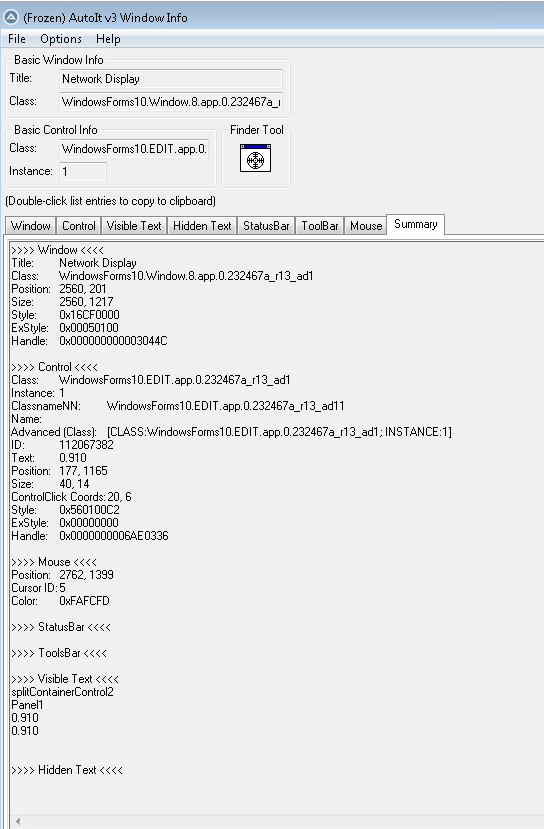

Please excuse the redaction, I have underlined in red the appropriate area/section I wish to change.

[Lycan]

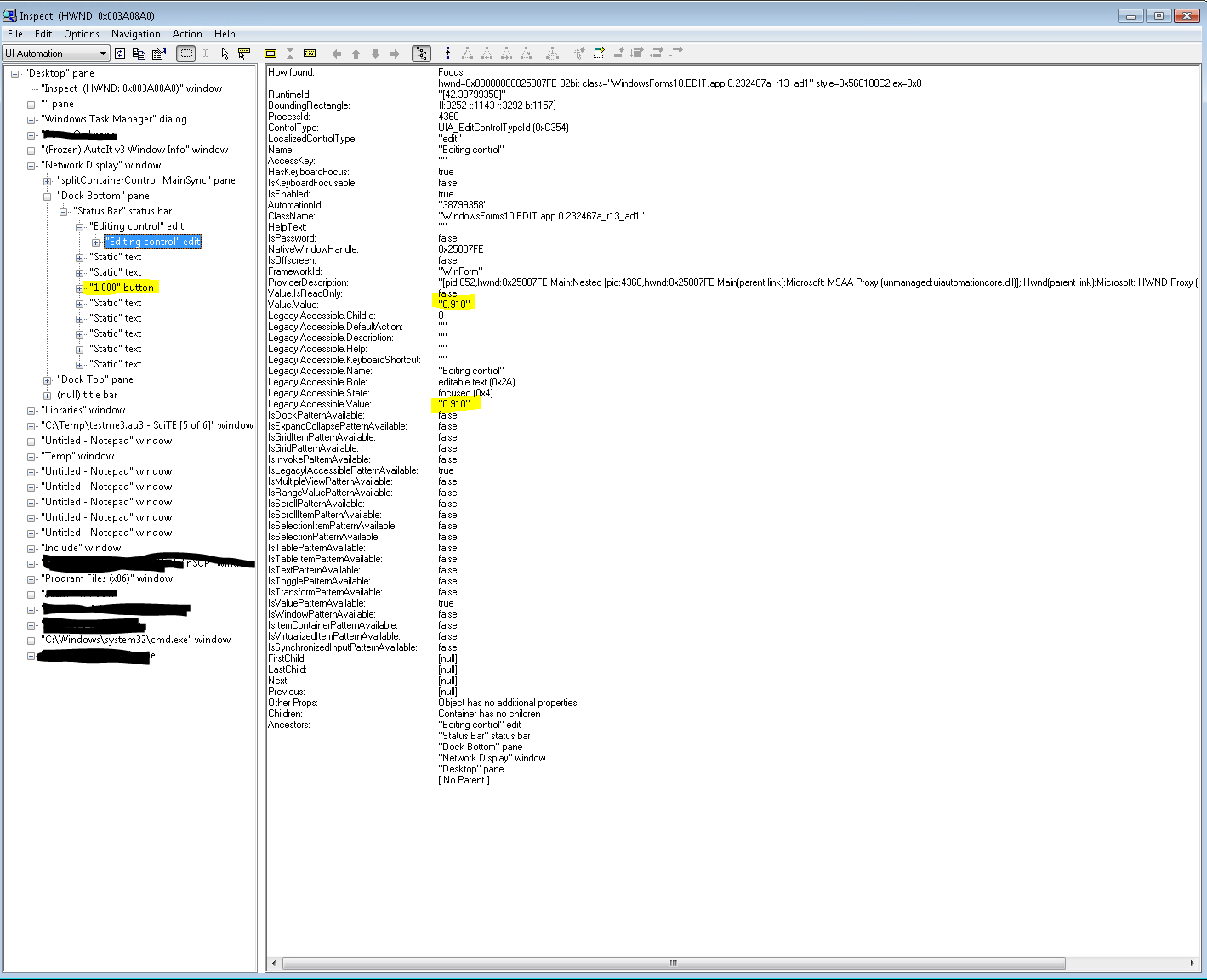

So a bit more information.  I have downloaded and run inspect.exe (this is running on Windows 7 SP1 x64) and that little textbox is actually a button entitled "1.000".

When you click on the button, an "Editing control" => "Editing control" submenu becomes visible in which is the value I wish to change (0.910).  This "Editing control" => "Editing control" is completely not visible until you click on the 1.000 button (which would explain why my treesearches aren't working).

See attached screenshots.

[Lycan]

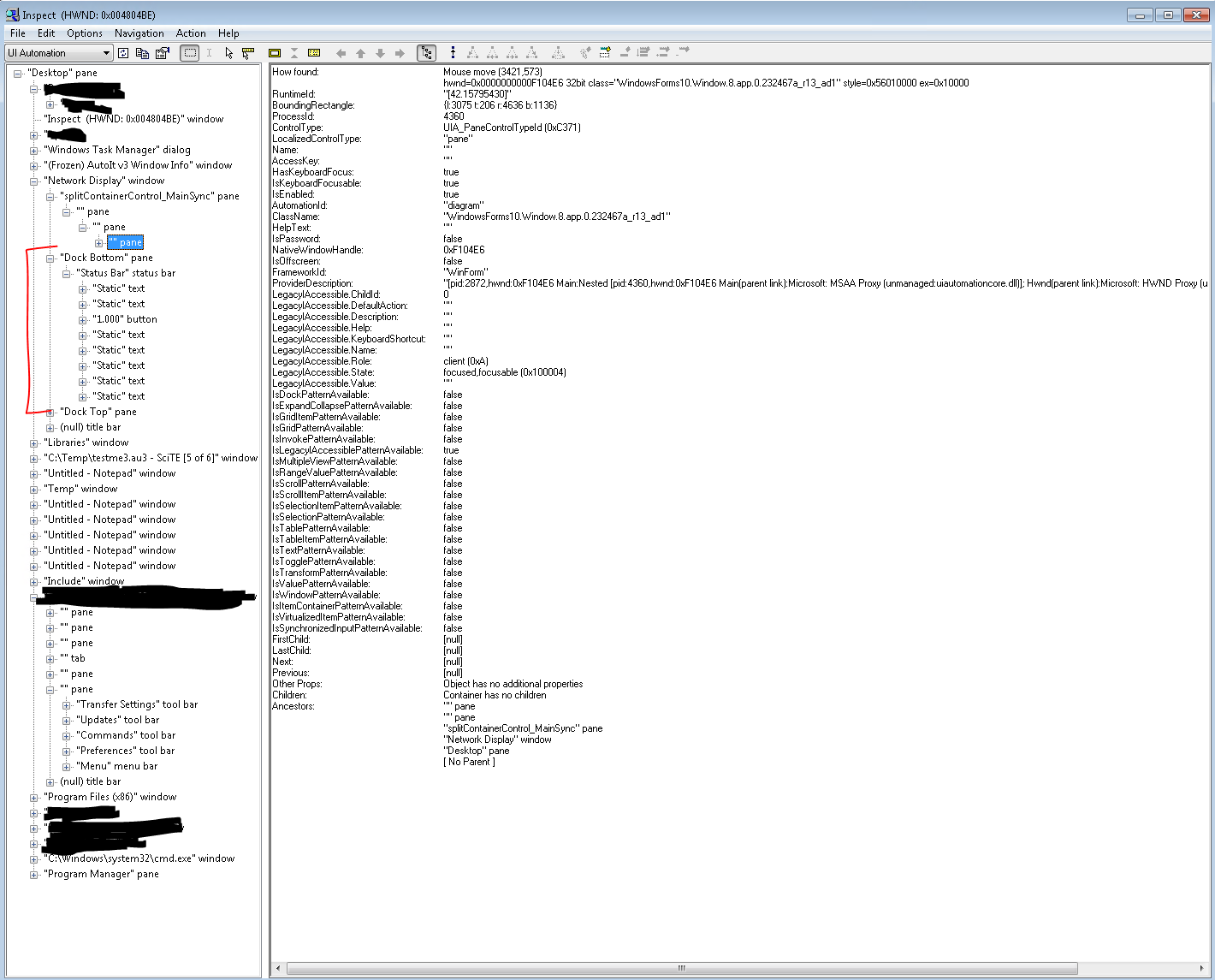

As can be seen here, before clicking on/in the "1.000" button there is no "Editing control" tree item.



[LarsJ]

This means that you need to use a 2-step procedure to set the value in the edit control:
1. Click "1,000" button
2. Set edit value

You can try this code:

expandcollapse popup

#AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 -w 7

;#AutoIt3Wrapper_UseX64=y ; If Network Display is running as a 64 bit application
;#AutoIt3Wrapper_UseX64=n ; If Network Display is running as a 32 bit application

Opt( "MustDeclareVars", 1 )

#include "CUIAutomation2.au3"

Example()

Func Example()
  ; Create UI Automation object
  Local $oUIAutomation = ObjCreateInterface( $sCLSID_CUIAutomation, $sIID_IUIAutomation, $dtagIUIAutomation )
  If Not IsObj( $oUIAutomation ) Then Return ConsoleWrite( "$oUIAutomation ERR" & @CRLF )
  ConsoleWrite( "$oUIAutomation OK" & @CRLF )

  ; Get Desktop element
  Local $pDesktop, $oDesktop
  $oUIAutomation.GetRootElement( $pDesktop )
  $oDesktop = ObjCreateInterface( $pDesktop, $sIID_IUIAutomationElement, $dtagIUIAutomationElement )
  If Not IsObj( $oDesktop ) Then Return ConsoleWrite( "$oDesktop ERR" & @CRLF )
  ConsoleWrite( "$oDesktop OK" & @CRLF )

  ; --- Network Display window ---

  ConsoleWrite( "--- Network Display window ---" & @CRLF )

  Local $pCondition ; $UIA_NamePropertyId is LOCALIZED and maybe CASE SENSITIVE
  $oUIAutomation.CreatePropertyCondition( $UIA_NamePropertyId, "Network Display", $pCondition )
  If Not $pCondition Then Return ConsoleWrite( "$pCondition ERR" & @CRLF )
  ConsoleWrite( "$pCondition OK" & @CRLF )

  Local $pNetworkDisplay, $oNetworkDisplay
  $oDesktop.FindFirst( $TreeScope_Descendants, $pCondition, $pNetworkDisplay )
  $oNetworkDisplay = ObjCreateInterface( $pNetworkDisplay, $sIID_IUIAutomationElement, $dtagIUIAutomationElement )
  If Not IsObj( $oNetworkDisplay ) Then Return ConsoleWrite( "$oNetworkDisplay ERR" & @CRLF )
  ConsoleWrite( "$oNetworkDisplay OK" & @CRLF )

  ; Window handle
  Local $hHandle
  $oNetworkDisplay.GetCurrentPropertyValue( $UIA_NativeWindowHandlePropertyId, $hHandle )
  ConsoleWrite( "$hHandle = " & Ptr( $hHandle ) & @CRLF )

  ; --- Click "1.000" button ---

  ConsoleWrite( "--- Click ""1.000"" button ---" & @CRLF )

  Local $pCondition1
  $oUIAutomation.CreatePropertyCondition( $UIA_ControlTypePropertyId, $UIA_ButtonControlTypeId, $pCondition1 )
  If Not $pCondition1 Then Return ConsoleWrite( "$pCondition1 ERR" & @CRLF )
  ConsoleWrite( "$pCondition1 OK" & @CRLF )

  Local $pCondition2 ; $UIA_NamePropertyId is LOCALIZED and maybe CASE SENSITIVE
  $oUIAutomation.CreatePropertyCondition( $UIA_NamePropertyId, "1.000", $pCondition2 )
  If Not $pCondition2 Then Return ConsoleWrite( "$pCondition2 ERR" & @CRLF )
  ConsoleWrite( "$pCondition2 OK" & @CRLF )

  ; And condition
  $oUIAutomation.CreateAndCondition( $pCondition1, $pCondition2, $pCondition )
  If Not $pCondition Then Return ConsoleWrite( "$pCondition ERR" & @CRLF )
  ConsoleWrite( "$pCondition OK" & @CRLF )

  Local $pButton, $oButton
  $oNetworkDisplay.FindFirst( $TreeScope_Descendants, $pCondition, $pButton )
  $oButton = ObjCreateInterface( $pButton, $sIID_IUIAutomationElement, $dtagIUIAutomationElement )
  If Not IsObj( $oButton ) Then Return ConsoleWrite( "$oButton ERR" & @CRLF )
  ConsoleWrite( "$oButton OK" & @CRLF )

  Local $pInvoke, $oInvoke
  $oButton.GetCurrentPattern( $UIA_InvokePatternId, $pInvoke )
  $oInvoke = ObjCreateInterface( $pInvoke, $sIID_IUIAutomationInvokePattern, $dtagIUIAutomationInvokePattern )
  If Not IsObj( $oInvoke ) Then Return ConsoleWrite( "$oInvoke ERR" & @CRLF )
  ConsoleWrite( "$oInvoke OK" & @CRLF )
  $oInvoke.Invoke()
  Sleep( 1000 )

  ; --- Set Edit value ---

  ConsoleWrite( "--- Set Edit value ---" & @CRLF )

  $oUIAutomation.CreatePropertyCondition( $UIA_ControlTypePropertyId, $UIA_EditControlTypeId, $pCondition1 )
  If Not $pCondition1 Then Return ConsoleWrite( "$pCondition1 ERR" & @CRLF )
  ConsoleWrite( "$pCondition1 OK" & @CRLF )

  $oUIAutomation.CreatePropertyCondition( $UIA_NamePropertyId, "Editing control", $pCondition2 )
  If Not $pCondition2 Then Return ConsoleWrite( "$pCondition2 ERR" & @CRLF )
  ConsoleWrite( "$pCondition2 OK" & @CRLF )

  ; And condition
  $oUIAutomation.CreateAndCondition( $pCondition1, $pCondition2, $pCondition )
  If Not $pCondition Then Return ConsoleWrite( "$pCondition ERR" & @CRLF )
  ConsoleWrite( "$pCondition OK" & @CRLF )

  Local $pEdit, $oEdit
  $oNetworkDisplay.FindFirst( $TreeScope_Descendants, $pCondition, $pEdit )
  $oEdit = ObjCreateInterface( $pEdit, $sIID_IUIAutomationElement, $dtagIUIAutomationElement )
  If Not IsObj( $oEdit ) Then Return ConsoleWrite( "$oEdit ERR" & @CRLF )
  ConsoleWrite( "$oEdit OK" & @CRLF )

  Local $pValue, $oValue
  $oEdit.GetCurrentPattern( $UIA_ValuePatternId, $pValue )
  $oValue = ObjCreateInterface( $pValue, $sIID_IUIAutomationValuePattern, $dtagIUIAutomationValuePattern )
  If Not IsObj( $oValue ) Then Return ConsoleWrite( "$oValue ERR" & @CRLF )
  ConsoleWrite( "$oValue OK" & @CRLF )
  $oValue.SetValue( "0.500" )
EndFunc



[Lycan]

Wow thanks LarsJ, I would never have got such detailed code :-o

Would you believe I got it to work just before I left work - though very rough and nothing quite as elegant (as you can see, code modified from SimpleSpy):


Local $oP3=_UIA_getObjectByFindAll($UIA_oDesktop, "Title:=Network Display;controltype:=UIA_WindowControlTypeId;class:=WindowsForms10.Window.8.app.0.232467a_r13_ad1", $treescope_children)
;_UIA_Action($oP2,"setfocus")
Local $oP2=_UIA_getObjectByFindAll($oP3, "Title:=Dock Bottom;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.232467a_r13_ad1", $treescope_children)
;_UIA_Action($oP1,"setfocus")
Local $oP1=_UIA_getObjectByFindAll($oP2, "Title:=Status Bar;class:=WindowsForms10.Window.8.app.0.232467a_r13_ad1", $treescope_children)

Local $oP0=_UIA_getObjectByFindAll($oP1, "Title:=1.000;ControlType:=button", $treescope_children)
;_UIA_Action($oP0,"invoke")
if not isObj($oP0) Then ConsoleWriteError("Error with oP0" & @CRLF)
_UIA_Action($oP0,"click")
Send("^a")
Send("0.015")
Send("{ENTER}")

Once I've clicked in the controlI found I could just "send" the commands.

My apologies for not updating the thread earlier but I had to run out of work to catch the train as I had stayed back a few extra minutes trying to get the code to work (which it did)  and didn't have a chance to update this thread.  Typical though, work on something for days (yes, sad I know, days) and finally post on the support forum only to figure something working out a few hours later.

[Lycan]

ok I thought I'd use your code because it's too elegant to waste :-)

Just a small glitch though, it changes the value but doesn't hit ENTER so the diagram doesn't change.. is there an elegant way of doing that?

Then on to my next problem (another post) - detecting when the zoom finishes by finding if a another progress bar "button"/control is visible/enabled.. *sigh*

[Lycan]

hmmmmm actually I just need to click anywhere outside of the control to get it to change the zoom... might use something less elegant to achieve that goal :-)

[Lycan]

ok, pretty simple when you look at it.  Just added a send("ENTER") after the setvalue.  Not as elegant as your solution but does the trick :-)

Thanks again LarsJ
