Hello everybody,

I download the GUIListViewEx.au3 by Melba23 in order to move up or down my items from a listview.

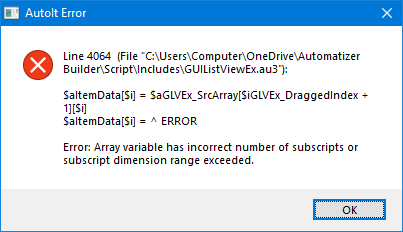

Everything it's looking good in script but when I move an item it will crash.

Any suggestions?

Thank you!


Share this post


Link to post
Share on other sites

Slipk,

Please post the code you use (see here how to do it) and an explanation of exactly what you do to get the error- without that how on earth do you expect me to debug?

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

I understand, the code it's too long to post it here and with too many includes.

I will try to fix and do some testing and come back with details.

Share this post


Link to post
Share on other sites

I tried absolutely anything I could. Please help me, I can't provide the code as it's too big for that like (100scripts+) with too many includes.

Do you know anything that could cause that error?



With a simple script that I created it's working. I tried to put before/after @SW_SHOW , that's some part of code below :

;TOP
#include <GUIListViewEx.au3>

;UP
$Form_Menu_Script = GUICtrlCreateListView("Example|Value 1|Value 2|Value 3|Value 4", 225, 0, $var1, $var2)
GUICtrlSendMsg($ListView1, $LVM_SETCOLUMNWIDTH, 0, 250)
GUICtrlSendMsg($ListView1, $LVM_SETCOLUMNWIDTH, 1, 150)
GUICtrlSendMsg($ListView1, $LVM_SETCOLUMNWIDTH, 2, 150)
GUICtrlSendMsg($ListView1, $LVM_SETCOLUMNWIDTH, 3, 150)
GUICtrlSendMsg($ListView1, $LVM_SETCOLUMNWIDTH, 4, 150)

;THIS BEFORE @SW_SHOW

_GUIListViewEx_Init($ListView1, "", 0, 0, True, 64)
_GUIListViewEx_MsgRegister()

Another thing I want to precise is that I use dynamic listview items, they don't have variable, also they use right click menu. (;GUICtrlCreateContextMenu)

I run as admin, I'm using AutoItSetOption("GuiOnEventMode", 1).



Any, at least one suggestion?

Thank you for your help.


Share this post


Link to post
Share on other sites

PROBLEM SOLVED***

If you create from the GUI the listviewitems you have to reinitialize the UDF Functions.

;example

        Case $Button1
            GUICtrlCreateListViewItem("example", $ListView1)
            _GUIListViewEx_Close()
            _GUIListViewEx_Init($ListView1, "", 0, 0, True, 64)
            _GUIListViewEx_MsgRegister()



Share this post


Link to post
Share on other sites

Slipk,

The UDF uses its own internal array to hold and manipulate the ListView data - one way to get an error like that is to add/subtract items from the ListView other than by using the UDF functions, which causes a mismatch between the displayed control and the internal array. Could that be the problem?

I am afraid that I cannot offer more than that SWAG* without some working code that demonstrates the error.

M23

* SWAG - Scientific Wild Ass Guess, better than a straight WAG, but not by much!




Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Slipk,

I see you found the solution - which is explained in the "User Guide" document in the UDF zip:

Quote

Closure and Reloading:

If you delete the ListView, then it is recommended to use _GUIListViewEx_Close to free the memory used by the UDF.

If you wish to reload the ListView with new data, you will need to clear the current content using _GUICtrlListView_DeleteAllItems, close it within the UDF using _GUIListViewEx_Close, reload the ListView with the new data and then reinitialise it using _GUIListViewEx_Init. Otherwise the UDF will become confused about the current content and errors will certainly occur.

M23

Edit; And my SWAG was correct!

Edited by Melba23
