Populating Listview from array

marko001
 Share
Go to solution Solved by Nine,

Recommended Posts

marko001 Universalist

marko001

Posted
Posted (edited)

Hi all,

I have an array $htags[13][3] where

  • x,0 is a list of html tags divided by "|" (i.e. tag1|tag2|tag3|...)
  • x,1 is 1 or 0 (1 if tag is available in HTML, otherwise 0)
  • x,2 is a string (H1, H2, H3,H4,H5, H6, Title, Keywords, Description, Paragraphs, Anchors, Div, LI)

Then I have a Listview:


$iLVStyle = BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS)
$iLVExtStyle = BitOR($WS_EX_CLIENTEDGE, $LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT)

$hListView_Tags = GUICtrlCreateListView("H1|H2|H3|H4|H5|H6|Title|Keywords|Description|Paragraphs|Anchors|DIV|LI", 96, 576, 818, 262, $iLVStyle, $iLVExtStyle)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 0, 65)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 1, 65)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 2, 65)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 3, 65)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 4, 65)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 5, 65)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 6, 65)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 7, 65)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 8, 65)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 9, 65)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 10, 65)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 11, 65)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 12, 65)

It appears like that.


I need to fill every columns of the listview with equivalent Tag as in column 2 of $htags

This achieved by splitting

$aTags = StringSplit($htags[$i][0], "|", 2)

I tried this:

Func _fillListview($hTags, $hListView_Tags)
    For $i = 0 To UBound($htags) - 1
        ; Split the tags in $htags[$i][0]
        Local $aTags = StringSplit($htags[$i][0], "|", 2)
        ; Add a new item to the ListView
        GUICtrlCreateListViewItem("", $hListView_Tags)
        ; Loop through the tags and set the corresponding subitem in the ListView
        For $j = 1 To UBound($aTags) - 1
            _GUICtrlListView_SetItem($hListView_Tags, $aTags[$j], $i, $j - 1)
        Next
        ; Set the other columns in the ListView
        _GUICtrlListView_SetItem($hListView_Tags, $htags[$i][1], $i, UBound($aTags) - 1)
    Next
EndFunc

But it doesn't work properly.

Can someone help me to sort it out?

Thanks in advance,

Marco











Edited by marko001
Link to comment
Share on other sites
marko001 Universalist

marko001

Posted
  • Author
Posted (edited)
3 hours ago, CYCho said:

Once you have a listview and an array you can use _GUICtrlListView_AddArray() function.

Can you provide me an example? I tried but without luck:

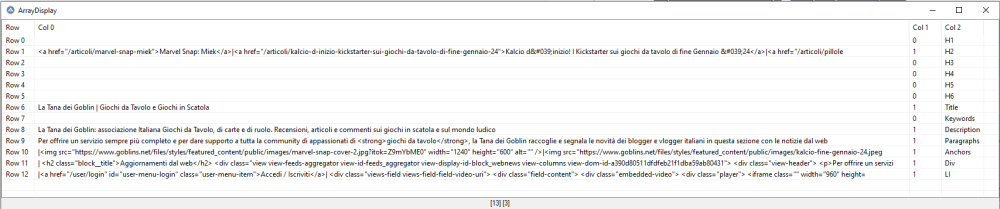

Given this array:


If I use _GUICtrlListView_AddArray($hListView_Tags,$hTags)

It fills in this way




In this case, as example, I shoulfd see in column Title the following columns:

0 - La Tana dei Goblin

1 - Giochi da Tavolo e Giochi in Scatola

Because $htags[6][2] = "Title" and the two titles are stringsplit($htags[6][0],2). These titles must be filled in proper listview column (i.e. TITLE one)

Edited by marko001
Link to comment
Share on other sites
ioa747 Universalist

ioa747

Posted
Posted (edited)
#include <GUIConstantsEx.au3>
#include <GuiListView.au3>
#include <WindowsConstants.au3>
#include <Array.au3>

;Example Array
Local $aTags = "H1|H2|H3|H4|H5|H6|Title|Keywords|Description|Paragraphs|Anchors|DIV|LI"
$aTags = StringSplit($aTags, "|", 2)
_ArrayColInsert($aTags, 0)
_ArrayColInsert($aTags, 0)
For $i = 0 To UBound($aTags) - 1
    $aTags[$i][1] = Random(0, 1, 1)
    If $aTags[$i][1] = 1 Then $aTags[$i][0] = "text" & $i
Next
;~  _ArrayDisplay($aTags)


_fillListview($aTags)

; Loop until the user exits.
Do
Until GUIGetMsg() = $GUI_EVENT_CLOSE
GUIDelete()

;--------------------------------------------------------------------------------------------------------------------------------
Func _fillListview($aTags)

    _ArrayTranspose($aTags)
    _ArraySort($aTags, 1)

    Local $iCnt = UBound($aTags, 2) ; columns count
    Local $iColWidth = 65           ; columns width

    ; Create GUI
    $hGUI = GUICreate("ListView Tags", ($iColWidth * $iCnt) + 30, 300)

    ; Create ListView
    $iLVStyle = BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS)
    $iLVExtStyle = BitOR($WS_EX_CLIENTEDGE, $LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT)
    Local $hListView_Tags = GUICtrlCreateListView("", 2, 2, ($iColWidth * $iCnt) + 25, 268, $iLVStyle, $iLVExtStyle)
    GUISetState(@SW_SHOW)

    ; Add columns
    For $i = 0 To $iCnt -1
        _GUICtrlListView_AddColumn($hListView_Tags, $aTags[0][$i], $iColWidth)
    Next

    _ArrayDelete($aTags, 0)
    _GUICtrlListView_AddArray($hListView_Tags, $aTags)

EndFunc   ;==>_fillListview



Edited by ioa747
re-corection

I know that I know nothing

Link to comment
Share on other sites
marko001 Universalist

marko001

Posted
  • Author
Posted
1 hour ago, ioa747 said:
#include <GUIConstantsEx.au3>
#include <GuiListView.au3>
#include <WindowsConstants.au3>
#include <Array.au3>

;Example Array
Local $aTags = "H1|H2|H3|H4|H5|H6|Title|Keywords|Description|Paragraphs|Anchors|DIV|LI"
$aTags = StringSplit($aTags, "|", 2)
_ArrayColInsert($aTags, 0)
_ArrayColInsert($aTags, 0)
For $i = 0 To UBound($aTags) - 1
    $aTags[$i][1] = Random(0, 1, 1)
    If $aTags[$i][1] = 1 Then $aTags[$i][0] = "text" & $i
Next
;~  _ArrayDisplay($aTags)


_fillListview($aTags)

; Loop until the user exits.
Do
Until GUIGetMsg() = $GUI_EVENT_CLOSE
GUIDelete()

;--------------------------------------------------------------------------------------------------------------------------------
Func _fillListview($aTags)

    _ArrayTranspose($aTags)
    _ArraySort($aTags, 1)

    Local $iCnt = UBound($aTags, 2) ; columns count
    Local $iColWidth = 65           ; columns width

    ; Create GUI
    $hGUI = GUICreate("ListView Tags", ($iColWidth * $iCnt) + 30, 300)

    ; Create ListView
    $iLVStyle = BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS)
    $iLVExtStyle = BitOR($WS_EX_CLIENTEDGE, $LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT)
    Local $hListView_Tags = GUICtrlCreateListView("", 2, 2, ($iColWidth * $iCnt) + 25, 268, $iLVStyle, $iLVExtStyle)
    GUISetState(@SW_SHOW)

    ; Add columns
    For $i = 0 To $iCnt -1
        _GUICtrlListView_AddColumn($hListView_Tags, $aTags[0][$i], $iColWidth)
    Next

    _ArrayDelete($aTags, 0)
    _GUICtrlListView_AddArray($hListView_Tags, $aTags)

EndFunc   ;==>_fillListview



@ioa747 First of all thanks for your support.

This doesn't solve completely.

first column may contain  several H1 tags (and several H2, Titles, ... tags) written with pipe division

I.e.:


$hTag[0][2] = "H1"
$hTag[0][0] = "First Tag|Second Tag|Third Tag|"
$hTag[6][2] = "Title"
$hTag[6][0] = "First Title"
$hTag[9][2] = "Paragraphs"
$hTag[0][0] = "First Paragraph|Second Paragraph|"

So the Filelist should be something like:

H1         |H2           |H3|H4|H5|H6|Title       |Keywords|Description|Paragraphs         |...
-----------+-------------+--+--+--+--+------------+--------+-----------+-------------------+---
First Tag  |             |  |  |  |  |First Title |        |           | First Paragraph   |
Second Tag |             |  |  |  |  |            |        |           | Second Paragraph  |
Third Tag  |             |  |  |  |  |            |        |           |                   |

That means the listview should be filled with all these tags "stringsplitted"



Link to comment
Share on other sites
ioa747 Universalist

ioa747

Posted
Posted (edited)
#include <GUIConstantsEx.au3>
#include <GuiListView.au3>
#include <WindowsConstants.au3>

;Example Array
Local $aTags = "H1|H2|H3|H4|H5|H6|Title|Keywords|Description|Paragraphs|Anchors|DIV|LI"
$aTags = StringSplit($aTags, "|", 2)
_ArrayColInsert($aTags, 0)
_ArrayColInsert($aTags, 0)
For $i = 0 To UBound($aTags) - 1
    $aTags[$i][1] = 1
    If $aTags[$i][1] = 1 Then $aTags[$i][0] = "zz|kk|uu|gg|text" & $i
Next

_fillListview($aTags)

; Loop until the user exits.
Do
Until GUIGetMsg() = $GUI_EVENT_CLOSE
GUIDelete()

;--------------------------------------------------------------------------------------------------------------------------------
Func _fillListview($aTags)

    Local $aColumns = "H1|H2|H3|H4|H5|H6|Title|Keywords|Description|Paragraphs|Anchors|DIV|LI"
    $aColumns = StringSplit($aColumns, "|", 2)
    Local $iCnt = UBound($aColumns)  ; columns count
    Local $iColWidth = 65               ; columns width

    ; Create GUI
    $hGUI = GUICreate("ListView Tags", ($iColWidth * $iCnt) + 30, 300)

    ; Create ListView
    $iLVStyle = BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS)
    $iLVExtStyle = BitOR($WS_EX_CLIENTEDGE, $LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT)
    Local $hListView_Tags = GUICtrlCreateListView("", 2, 2, ($iColWidth * $iCnt) + 25, 268, $iLVStyle, $iLVExtStyle)
    GUISetState(@SW_SHOW)

    ; Add columns
    For $i = 0 To $iCnt - 1
        _GUICtrlListView_AddColumn($hListView_Tags, $aColumns[$i], $iColWidth)
    Next

    _ArrayColDelete($aTags, 1)
    _ArrayColDelete($aTags, 1)

    Local $aSplit, $iDif
    For $R = 0 To UBound($aTags) - 1
        $aSplit = StringSplit($aTags[$R][0], "|", 2)
        $iDif = UBound($aSplit) - UBound($aTags, 2)
        If $iDif > 0 Then
            For $z = 1 To $iDif
                _ArrayColInsert($aTags, UBound($aTags, 2))
            Next
        EndIf

        For $C = 0 To UBound($aSplit) - 1
            $aTags[$R][$C] = $aSplit[$C]
        Next
    Next

    _ArrayTranspose($aTags)
    _GUICtrlListView_AddArray($hListView_Tags, $aTags)
;~  _ArrayDisplay($aTags)
EndFunc   ;==>_fillListview



Edited by ioa747
optimize

I know that I know nothing

Link to comment
Share on other sites
  • Solution
Nine Universalist

Nine

Posted
  • Solution
Posted (edited)

Another approach :

#include <Constants.au3>
#include <GUIConstants.au3>
#include <GuiListView.au3>

Local $hTag[13][3]
$hTag[0][2] = "H1"
$hTag[0][0] = "First Tag|Second Tag|Third Tag|"
$hTag[6][2] = "Title"
$hTag[6][0] = "First Title"
$hTag[9][2] = "Paragraphs"
$hTag[9][0] = "First Paragraph|Second Paragraph|"
Local $sTags = "H1|H2|H3|H4|H5|H6|Title|Keywords|Description|Paragraphs|Anchors|DIV|LI"
Local $aTags = StringSplit($sTags, "|", 2)

Local $hGUI = GUICreate("ListView Tags", 1000, 300)

Local $iLVStyle = BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS)
Local $iLVExtStyle = BitOR($WS_EX_CLIENTEDGE, $LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT)

Local $hListView_Tags = GUICtrlCreateListView($sTags, 5, 5, 980, 260, $iLVStyle, $iLVExtStyle)
For $i = 0 To UBound($aTags) - 1
  GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, $i, 75)
Next
For $i = 1 To 10
  _GUICtrlListView_AddItem($hListView_Tags, "")
Next

GUISetState()

Local $aTmp, $iCol

For $i = 0 To UBound($hTag) - 1
  If Not $hTag[$i][2] Then ContinueLoop
  $aTmp = StringSplit($hTag[$i][0], "|", $STR_NOCOUNT)
  $iCol = _ArraySearch($aTags, $hTag[$i][2])
  For $j = 0 To UBound($aTmp) - 1
    _GUICtrlListView_SetItemText($hListView_Tags, $j, $aTmp[$j], $iCol)
  Next
Next

Do
Until GUIGetMsg() = $GUI_EVENT_CLOSE

ps. you don't have to do an _ArraySearch if first index of $hTag is always equal to the right column

Edited by Nine

“They did not know it was impossible, so they did it” ― Mark Twain

Spoiler

Block all input without UAC

Save/Retrieve Images to/from Text

 Monitor Management (VCP commands)

Tool to search in text (au3) files

Date Range Picker

 Virtual Desktop Manager

Sudoku Game 2020

Overlapped Named Pipe IPC

 HotString 2.0 - Hot keys with string

x64 Bitwise Operations

Multi-keyboards HotKeySet

 Recursive Array Display

Fast and simple WCD IPC

Multiple Folders Selector

 Printer Manager

GIF Animation (cached)



Screen Scraping



 Multi-Threading Made Easy





Link to comment
Share on other sites
CYCho Universalist

CYCho

Posted
Posted (edited)
5 hours ago, marko001 said:

Can you provide me an example? I tried but without luck:

Your original array($htags) is the raw data. You should turn it into another array (say $aListView) with columns filled as you want to appear in the listview, and then use _GUICtrlListView_AddArray($hListView_Tags, $aListView).

Edited by CYCho

zPlayer - A Small Audio and Video Player     Time Sync + SystemTimeAdjustment

Link to comment
Share on other sites
marko001 Universalist

marko001

Posted
  • Author
Posted
21 minutes ago, Nine said:

Another approach :

#include <Constants.au3>
#include <GUIConstants.au3>
#include <GuiListView.au3>

Local $hTag[13][3]
$hTag[0][2] = "H1"
$hTag[0][0] = "First Tag|Second Tag|Third Tag|"
$hTag[6][2] = "Title"
$hTag[6][0] = "First Title"
$hTag[9][2] = "Paragraphs"
$hTag[9][0] = "First Paragraph|Second Paragraph|"
Local $sTags = "H1|H2|H3|H4|H5|H6|Title|Keywords|Description|Paragraphs|Anchors|DIV|LI"
Local $aTags = StringSplit($sTags, "|", 2)

Local $hGUI = GUICreate("ListView Tags", 1000, 300)

Local $iLVStyle = BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS)
Local $iLVExtStyle = BitOR($WS_EX_CLIENTEDGE, $LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT)

Local $hListView_Tags = GUICtrlCreateListView($sTags, 5, 5, 980, 260, $iLVStyle, $iLVExtStyle)
For $i = 0 To UBound($aTags) - 1
  GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, $i, 75)
Next
For $i = 1 To 10
  _GUICtrlListView_AddItem($hListView_Tags, "")
Next

GUISetState()

Local $aTmp, $iCol

For $i = 0 To UBound($hTag) - 1
  If Not $hTag[$i][2] Then ContinueLoop
  $aTmp = StringSplit($hTag[$i][0], "|", $STR_NOCOUNT)
  $iCol = _ArraySearch($aTags, $hTag[$i][2])
  For $j = 0 To UBound($aTmp) - 1
    _GUICtrlListView_SetItemText($hListView_Tags, $j, $aTmp[$j], $iCol)
  Next
Next

Do
Until GUIGetMsg() = $GUI_EVENT_CLOSE



PERFECT!


Thanks all guys!



Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share
Go to topic listing
×
×
  • Create New...
