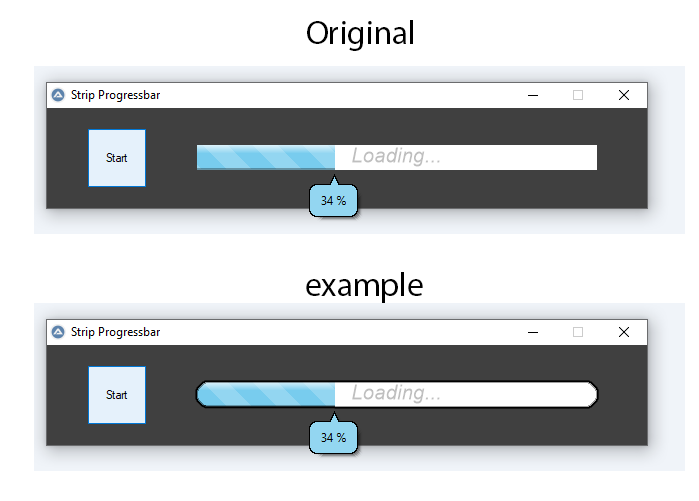

TanerJames Posted December 14, 2020 Posted December 14, 2020 (edited) Hi, I don't know GDI plus Can we make the corners of the progress bar ellipse and outer contours? Thanks. expandcollapse popup;coded by UEZ build 2013-08-15 #include <WindowsConstants.au3> #include <GUIConstantsEx.au3> #include <WinAPISys.au3> #include <GDIPlus.au3> _GDIPlus_Startup() Global Const $STM_SETIMAGE = 0x0172; $IMAGE_BITMAP = 0 Global $iW = 400, $iH = 25, $iBGColor = 0xFFFFFF Global Const $hGUI = GUICreate("Strip Progressbar", 600, 100) GUISetBkColor(0x404040) Global Const $iPic = GUICtrlCreatePic("", 150, 37, $iW, $iH) GUICtrlSetState(-1, $GUI_DISABLE) Global $iBtn = GUICtrlCreateButton("Start", 40, 20, 60, 60) GUISetState() Global $hHBmp_BG, $hB, $iSleep = 30 Global $fPerc, $fPercPrev, $iLoop, $aPos, $iPosX, $iPosY Global $aColors[7][2] = [[0xFFEE5F5B, 0xFFF07673],[0xFFABCC04, 0xFFBBD636],[0xFF78CCEE, 0xFF93D6F1],[0xFFFFBB58, 0xFFFFC97A],[0xFFFF6677, 0xFFFF8795],[0xFF78CCEE, 0xFFFFC97A],[0xFF78CCEE, 0xe8e5d9]] Global $iRandom, $iColorTP, $hTooltip _Init() Global $iDeltaX = _WinAPI_GetSystemMetrics(7) Global $iDeltaY = _WinAPI_GetSystemMetrics(4) + _WinAPI_GetSystemMetrics(33) Do Switch GUIGetMsg() Case $GUI_EVENT_CLOSE ToolTip("") GUIRegisterMsg($WM_TIMER, "") _WinAPI_DeleteObject($hHBmp_BG) _GDIPlus_Shutdown() GUIDelete() Exit Case $iBtn $fPerc = 0 $iRandom = Random(0, UBound($aColors) - 1, 1) $iColorTP = BitShift(BitAND(BitAND(0x00FFFFFF, $aColors[$iRandom][1]), 0xFF), -16) + BitAND(0x0000FF00, $aColors[$iRandom][1]) + BitShift(BitAND(BitAND(0x00FFFFFF, $aColors[$iRandom][1]), 0xFF0000), 16) ;convert to BGR GUIRegisterMsg($WM_TIMER, "PlayAnim") DllCall("user32.dll", "int", "SetTimer", "hwnd", $hGUI, "int", 0, "int", $iSleep, "int", 0) EndSwitch Until False Func _Init() $hHBmp_BG = _GDIPlus_StripProgressbar(0, $iW, $iH, 0xFF000000 + $iBGColor, $aColors[$iRandom][0], $aColors[$iRandom][1], "") $hB = GUICtrlSendMsg($iPic, $STM_SETIMAGE, $IMAGE_BITMAP, $hHBmp_BG) If $hB Then _WinAPI_DeleteObject($hB) _WinAPI_DeleteObject($hHBmp_BG) EndFunc ;==>_Init Func PlayAnim() Local $sText = "Loading...", $i, $iCalc1, $iCalc2 $fPerc += 0.5 If $fPerc >= 100.5 Then GUIRegisterMsg($WM_TIMER, "") $sText = "Done" EndIf $iLoop = $fPerc - $fPercPrev $fPercPrev = $fPerc For $i = $iLoop To 0 Step - 1 $iCalc1 = ($fPerc - $i) $hHBmp_BG = _GDIPlus_StripProgressbar($iCalc1, $iW, $iH, 0xFF000000 + $iBGColor, $aColors[$iRandom][0], $aColors[$iRandom][1], $sText) $hB = GUICtrlSendMsg($iPic, $STM_SETIMAGE, $IMAGE_BITMAP, $hHBmp_BG) If $hB Then _WinAPI_DeleteObject($hB) _WinAPI_DeleteObject($hHBmp_BG) $aPosCtrl = ControlGetPos($hGUI, 0, $iPic) $aPosGUI = WinGetPos($hGUI) $iPosX = $aPosCtrl[0] + $aPosGUI[0] + $iDeltaX $iPosY = $aPosCtrl[1] + $aPosGUI[1] + $aPosCtrl[3] + $iDeltaY - 2 If $iCalc1 >= 100.5 Then $iCalc1 = 100 $iCalc2 = $iPosX + ($fPerc - $i) / 100 * $iW - 1 If $iCalc2 >= $iPosX + $iW Then $iCalc2 = $iPosX + $iW ToolTip(StringFormat("%02d %", $iCalc1), $iCalc2, $iPosY, "", "", 3) $hTooltip = WinGetHandle(StringFormat("%02d %", ($fPerc - $i))) DllCall("UxTheme.dll", "int", "SetWindowTheme", "hwnd", $hTooltip, "wstr", "", "wstr", "") DllCall("user32.dll", "int", "SendMessage", "hwnd", $hTooltip, "int", 1043, "int", $iColorTP, "int", 0) Next If $fPerc >= 100.5 Then Sleep(750) ToolTip("") EndIf EndFunc ;==>PlayAnim Func _GDIPlus_StripProgressbar($fPerc, $iW, $iH, $iBgColorGui = 0xFFF0F0F0, $iFgColor = 0xFFEE5F5B, $iBGColor = 0xFFF07673, $sText = "Loading...", $iTextColor = 0x000000, $iDir = -1, $iSpeed = 1, $sFont = "Arial", $bFlip = False, $bHBitmap = True) If $fPerc < 0 Then $fPerc = 0 If $fPerc > 100 Then $fPerc = 100 Local $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH) Local Const $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap) _GDIPlus_GraphicsSetPixelOffsetMode($hCtxt, $GDIP_PIXELOFFSETMODE_HIGHQUALITY) _GDIPlus_GraphicsClear($hCtxt, $iBgColorGui) Local $iWidth = $iH * 2, $iLen = $iWidth / 2, $iY Local $hBmp = _GDIPlus_BitmapCreateFromScan0($iWidth, $iH) Local Const $hCtxt_Bmp = _GDIPlus_ImageGetGraphicsContext($hBmp) _GDIPlus_GraphicsSetPixelOffsetMode($hCtxt_Bmp, $GDIP_PIXELOFFSETMODE_HIGHQUALITY) Local $hPen = _GDIPlus_PenCreate($iFgColor), $iPenSize = Int($iH / 12) Local $hPen2 = _GDIPlus_PenCreate(0x50000000, $iPenSize) _GDIPlus_GraphicsClear($hCtxt_Bmp, $iBGColor) Local Static $iX = 0 For $iY = 0 To $iH - 1 Switch $iDir Case 1 _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, $iX + $iY, $iY, $iX + $iY + $iLen, $iY, $hPen) _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, $iX + $iY - 2 * $iLen, $iY, $iX + $iY - 1 * $iLen, $iY, $hPen) Case Else _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, -$iX + $iY, $iY, -$iX + $iY + $iLen, $iY, $hPen) _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, -$iX + $iY + 2 * $iLen, $iY, -$iX + $iY + 3 * $iLen, $iY, $hPen) EndSwitch Next Local $tPoint1 = DllStructCreate("float;float") Local $tPoint2 = DllStructCreate("float;float") DllStructSetData($tPoint1, 1, $iW / 2) ;x1 DllStructSetData($tPoint2, 1, $iW / 2) ;x2 Local $hLineBrush If $bFlip Then _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, 0, 0, $iWidth, 0, $hPen2) DllStructSetData($tPoint1, 2, $iH / 3) ;y1 DllStructSetData($tPoint2, 2, $iH * 2 / 3) ;y2 $hLineBrush = DllCall($__g_hGDIPDll, "uint", "GdipCreateLineBrush", "struct*", $tPoint1, "struct*", $tPoint2, "uint", 0x00FFFFFF, "uint", 0xB0FFFFFF, "int", 0, "int*", 0) $hLineBrush = $hLineBrush[6] _GDIPlus_GraphicsFillRect($hCtxt_Bmp, 0, $iH * 2 / 3 + 1, $iW, $iH / 3, $hLineBrush) Else _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, 0, $iH - $iPenSize / 2, $iWidth, $iH - $iPenSize / 2, $hPen2) DllStructSetData($tPoint1, 2, 0) ;y1 DllStructSetData($tPoint2, 2, $iH / 3) ;y2 $hLineBrush = DllCall($__g_hGDIPDll, "uint", "GdipCreateLineBrush", "struct*", $tPoint1, "struct*", $tPoint2, "uint", 0xB0FFFFFF, "uint", 0x00FFFFFF, "int", 0, "int*", 0) $hLineBrush = $hLineBrush[6] _GDIPlus_GraphicsFillRect($hCtxt_Bmp, 0, 0, $iW, $iH / 3, $hLineBrush) EndIf $iX = Mod($iX + $iSpeed, $iWidth) Local $hTextureBrush = _GDIPlus_TextureCreate($hBmp) _GDIPlus_GraphicsFillRect($hCtxt, 0, 0, $fPerc / 100 * $iW, $iH, $hTextureBrush) If $bFlip Then _GDIPlus_ImageRotateFlip($hBitmap, 6) _GDIPlus_GraphicsSetTextRenderingHint($hCtxt, 4) Local $hBrush = _GDIPlus_BrushCreateSolid(0x40000000 + $iTextColor) Local $hFormat = _GDIPlus_StringFormatCreate() Local $hFamily = _GDIPlus_FontFamilyCreate($sFont) Local $hFont = _GDIPlus_FontCreate($hFamily, $iH * 3 / 5, 2) Local $tLayout = _GDIPlus_RectFCreate(0, 0, $iW, $iH) _GDIPlus_StringFormatSetAlign($hFormat, 1) _GDIPlus_GraphicsDrawStringEx($hCtxt, $sText, $hFont, $tLayout, $hFormat, $hBrush) _GDIPlus_FontDispose($hFont) _GDIPlus_FontFamilyDispose($hFamily) _GDIPlus_StringFormatDispose($hFormat) _GDIPlus_BrushDispose($hBrush) _GDIPlus_PenDispose($hPen) _GDIPlus_PenDispose($hPen2) _GDIPlus_GraphicsDispose($hCtxt) _GDIPlus_GraphicsDispose($hCtxt_Bmp) _GDIPlus_BitmapDispose($hBmp) _GDIPlus_BrushDispose($hTextureBrush) _GDIPlus_BrushDispose($hLineBrush) If $bHBitmap Then Local $hHBITMAP = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hBitmap) _GDIPlus_BitmapDispose($hBitmap) Return $hHBITMAP EndIf Return $hBitmap EndFunc ;==>_GDIPlus_StripProgressbar;coded by UEZ build 2013-08-15 Edited December 16, 2020 by TanerJames mLipok 1
funkey Posted December 16, 2020 Posted December 16, 2020 (edited) Easy way around without GDIPlus: expandcollapse popup;coded by UEZ build 2013-08-15 #include <WindowsConstants.au3> #include <GUIConstantsEx.au3> #include <WinAPISys.au3> #include <GDIPlus.au3> _GDIPlus_Startup() Global Const $STM_SETIMAGE = 0x0172; $IMAGE_BITMAP = 0 Global $iW = 400, $iH = 25, $iBGColor = 0xFFFFFF Global Const $hGUI = GUICreate("Strip Progressbar", 600, 100) GUISetBkColor(0x404040) Global $iBtn = GUICtrlCreateButton("Start", 40, 20, 60, 60) #Region new from funkey Global Const $hHelp = GUICreate("", $iW, $iH, 150, 37, $WS_CHILD, 0, $hGui) Global Const $iPic = GUICtrlCreatePic("", 0, 0, $iW, $iH) _WinAPI_SetParent($hHelp, $hGui) Global $hRgn = _WinAPI_CreateRoundRectRgn(0, 0, $iW, $iH, 20, 20) _WinAPI_SetWindowRgn($hHelp, $hRgn) #EndRegion GUICtrlSetState(-1, $GUI_DISABLE) GUISetState(@SW_SHOW, $hHelp) GUISetState(@SW_SHOW, $hGUI) Global $hHBmp_BG, $hB, $iSleep = 30 Global $fPerc, $fPercPrev, $iLoop, $aPos, $iPosX, $iPosY Global $aColors[7][2] = [[0xFFEE5F5B, 0xFFF07673],[0xFFABCC04, 0xFFBBD636],[0xFF78CCEE, 0xFF93D6F1],[0xFFFFBB58, 0xFFFFC97A],[0xFFFF6677, 0xFFFF8795],[0xFF78CCEE, 0xFFFFC97A],[0xFF78CCEE, 0xe8e5d9]] Global $iRandom, $iColorTP, $hTooltip _Init() Global $iDeltaX = _WinAPI_GetSystemMetrics(7) Global $iDeltaY = _WinAPI_GetSystemMetrics(4) + _WinAPI_GetSystemMetrics(33) Do Switch GUIGetMsg() Case $GUI_EVENT_CLOSE ToolTip("") GUIRegisterMsg($WM_TIMER, "") _WinAPI_DeleteObject($hHBmp_BG) _GDIPlus_Shutdown() GUIDelete() Exit Case $iBtn $fPerc = 0 $iRandom = Random(0, UBound($aColors) - 1, 1) $iColorTP = BitShift(BitAND(BitAND(0x00FFFFFF, $aColors[$iRandom][1]), 0xFF), -16) + BitAND(0x0000FF00, $aColors[$iRandom][1]) + BitShift(BitAND(BitAND(0x00FFFFFF, $aColors[$iRandom][1]), 0xFF0000), 16) ;convert to BGR GUIRegisterMsg($WM_TIMER, "PlayAnim") DllCall("user32.dll", "int", "SetTimer", "hwnd", $hGUI, "int", 0, "int", $iSleep, "int", 0) EndSwitch Until False Func _Init() $hHBmp_BG = _GDIPlus_StripProgressbar(0, $iW, $iH, 0xFF000000 + $iBGColor, $aColors[$iRandom][0], $aColors[$iRandom][1], "") $hB = GUICtrlSendMsg($iPic, $STM_SETIMAGE, $IMAGE_BITMAP, $hHBmp_BG) If $hB Then _WinAPI_DeleteObject($hB) _WinAPI_DeleteObject($hHBmp_BG) EndFunc ;==>_Init Func PlayAnim() Local $sText = "Loading...", $i, $iCalc1, $iCalc2 $fPerc += 0.5 If $fPerc >= 100.5 Then GUIRegisterMsg($WM_TIMER, "") $sText = "Done" EndIf $iLoop = $fPerc - $fPercPrev $fPercPrev = $fPerc For $i = $iLoop To 0 Step - 1 $iCalc1 = ($fPerc - $i) $hHBmp_BG = _GDIPlus_StripProgressbar($iCalc1, $iW, $iH, 0xFF000000 + $iBGColor, $aColors[$iRandom][0], $aColors[$iRandom][1], $sText) $hB = GUICtrlSendMsg($iPic, $STM_SETIMAGE, $IMAGE_BITMAP, $hHBmp_BG) If $hB Then _WinAPI_DeleteObject($hB) _WinAPI_DeleteObject($hHBmp_BG) $aPosCtrl = ControlGetPos($hGUI, 0, $iPic) $aPosGUI = WinGetPos($hGUI) $iPosX = $aPosCtrl[0] + $aPosGUI[0] + $iDeltaX $iPosY = $aPosCtrl[1] + $aPosGUI[1] + $aPosCtrl[3] + $iDeltaY - 2 If $iCalc1 >= 100.5 Then $iCalc1 = 100 $iCalc2 = $iPosX + ($fPerc - $i) / 100 * $iW - 1 If $iCalc2 >= $iPosX + $iW Then $iCalc2 = $iPosX + $iW ToolTip(StringFormat("%02d %", $iCalc1), $iCalc2, $iPosY, "", "", 3) $hTooltip = WinGetHandle(StringFormat("%02d %", ($fPerc - $i))) DllCall("UxTheme.dll", "int", "SetWindowTheme", "hwnd", $hTooltip, "wstr", "", "wstr", "") DllCall("user32.dll", "int", "SendMessage", "hwnd", $hTooltip, "int", 1043, "int", $iColorTP, "int", 0) Next If $fPerc >= 100.5 Then Sleep(750) ToolTip("") EndIf EndFunc ;==>PlayAnim Func _GDIPlus_StripProgressbar($fPerc, $iW, $iH, $iBgColorGui = 0xFFF0F0F0, $iFgColor = 0xFFEE5F5B, $iBGColor = 0xFFF07673, $sText = "Loading...", $iTextColor = 0x000000, $iDir = -1, $iSpeed = 1, $sFont = "Arial", $bFlip = False, $bHBitmap = True) If $fPerc < 0 Then $fPerc = 0 If $fPerc > 100 Then $fPerc = 100 Local $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH) Local Const $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap) _GDIPlus_GraphicsSetPixelOffsetMode($hCtxt, $GDIP_PIXELOFFSETMODE_HIGHQUALITY) _GDIPlus_GraphicsClear($hCtxt, $iBgColorGui) Local $iWidth = $iH * 2, $iLen = $iWidth / 2, $iY Local $hBmp = _GDIPlus_BitmapCreateFromScan0($iWidth, $iH) Local Const $hCtxt_Bmp = _GDIPlus_ImageGetGraphicsContext($hBmp) _GDIPlus_GraphicsSetPixelOffsetMode($hCtxt_Bmp, $GDIP_PIXELOFFSETMODE_HIGHQUALITY) Local $hPen = _GDIPlus_PenCreate($iFgColor), $iPenSize = Int($iH / 12) Local $hPen2 = _GDIPlus_PenCreate(0x50000000, $iPenSize) _GDIPlus_GraphicsClear($hCtxt_Bmp, $iBGColor) Local Static $iX = 0 For $iY = 0 To $iH - 1 Switch $iDir Case 1 _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, $iX + $iY, $iY, $iX + $iY + $iLen, $iY, $hPen) _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, $iX + $iY - 2 * $iLen, $iY, $iX + $iY - 1 * $iLen, $iY, $hPen) Case Else _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, -$iX + $iY, $iY, -$iX + $iY + $iLen, $iY, $hPen) _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, -$iX + $iY + 2 * $iLen, $iY, -$iX + $iY + 3 * $iLen, $iY, $hPen) EndSwitch Next Local $tPoint1 = DllStructCreate("float;float") Local $tPoint2 = DllStructCreate("float;float") DllStructSetData($tPoint1, 1, $iW / 2) ;x1 DllStructSetData($tPoint2, 1, $iW / 2) ;x2 Local $hLineBrush If $bFlip Then _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, 0, 0, $iWidth, 0, $hPen2) DllStructSetData($tPoint1, 2, $iH / 3) ;y1 DllStructSetData($tPoint2, 2, $iH * 2 / 3) ;y2 $hLineBrush = DllCall($__g_hGDIPDll, "uint", "GdipCreateLineBrush", "struct*", $tPoint1, "struct*", $tPoint2, "uint", 0x00FFFFFF, "uint", 0xB0FFFFFF, "int", 0, "int*", 0) $hLineBrush = $hLineBrush[6] _GDIPlus_GraphicsFillRect($hCtxt_Bmp, 0, $iH * 2 / 3 + 1, $iW, $iH / 3, $hLineBrush) Else _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, 0, $iH - $iPenSize / 2, $iWidth, $iH - $iPenSize / 2, $hPen2) DllStructSetData($tPoint1, 2, 0) ;y1 DllStructSetData($tPoint2, 2, $iH / 3) ;y2 $hLineBrush = DllCall($__g_hGDIPDll, "uint", "GdipCreateLineBrush", "struct*", $tPoint1, "struct*", $tPoint2, "uint", 0xB0FFFFFF, "uint", 0x00FFFFFF, "int", 0, "int*", 0) $hLineBrush = $hLineBrush[6] _GDIPlus_GraphicsFillRect($hCtxt_Bmp, 0, 0, $iW, $iH / 3, $hLineBrush) EndIf $iX = Mod($iX + $iSpeed, $iWidth) Local $hTextureBrush = _GDIPlus_TextureCreate($hBmp) _GDIPlus_GraphicsFillRect($hCtxt, 0, 0, $fPerc / 100 * $iW, $iH, $hTextureBrush) If $bFlip Then _GDIPlus_ImageRotateFlip($hBitmap, 6) _GDIPlus_GraphicsSetTextRenderingHint($hCtxt, 4) Local $hBrush = _GDIPlus_BrushCreateSolid(0x40000000 + $iTextColor) Local $hFormat = _GDIPlus_StringFormatCreate() Local $hFamily = _GDIPlus_FontFamilyCreate($sFont) Local $hFont = _GDIPlus_FontCreate($hFamily, $iH * 3 / 5, 2) Local $tLayout = _GDIPlus_RectFCreate(0, 0, $iW, $iH) _GDIPlus_StringFormatSetAlign($hFormat, 1) ;Center text _GDIPlus_GraphicsDrawStringEx($hCtxt, $sText, $hFont, $tLayout, $hFormat, $hBrush) ;Loading text _GDIPlus_FontDispose($hFont) _GDIPlus_FontFamilyDispose($hFamily) _GDIPlus_StringFormatDispose($hFormat) _GDIPlus_BrushDispose($hBrush) _GDIPlus_PenDispose($hPen) _GDIPlus_PenDispose($hPen2) _GDIPlus_GraphicsDispose($hCtxt) _GDIPlus_GraphicsDispose($hCtxt_Bmp) _GDIPlus_BitmapDispose($hBmp) _GDIPlus_BrushDispose($hTextureBrush) _GDIPlus_BrushDispose($hLineBrush) If $bHBitmap Then Local $hHBITMAP = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hBitmap) _GDIPlus_BitmapDispose($hBitmap) Return $hHBITMAP EndIf Return $hBitmap EndFunc ;==>_GDIPlus_StripProgressbar;coded by UEZ build 2013-08-15 Not ideal code part for border: #Region new from funkey Global Const $hHelp = GUICreate("", $iW + 16, $iH + 7, 150, 47, $WS_CHILD, 0, $hGui) GUISetBkColor(0x000000) Global Const $iPic = GUICtrlCreatePic("", 8, 3, $iW , $iH) _WinAPI_SetParent($hHelp, $hGui) Global $hRgn = _WinAPI_CreateRoundRectRgn(0, 0, $iW + 16, $iH + 7, 20, 20) _WinAPI_SetWindowRgn($hHelp, $hRgn) #EndRegion Better solution for border: #Region new from funkey Global Const $hHelp1 = GUICreate("", $iW + 6, $iH + 6, 150, 47, $WS_CHILD, 0, $hGui) _WinAPI_SetParent($hHelp1, $hGui) GUISetBkColor(0x000000) Global Const $hHelp2 = GUICreate("", $iW, $iH, 3, 3, $WS_CHILD, 0, $hHelp1) _WinAPI_SetParent($hHelp2, $hHelp1) Global Const $iPic = GUICtrlCreatePic("", 0, 0, $iW , $iH) Global $hRgn1 = _WinAPI_CreateRoundRectRgn(0, 0, $iW + 6, $iH + 6, 25, 25) Global $hRgn2 = _WinAPI_CreateRoundRectRgn(0, 0, $iW, $iH, 20, 20) _WinAPI_SetWindowRgn($hHelp1, $hRgn1) _WinAPI_SetWindowRgn($hHelp2, $hRgn2) #EndRegion Edited December 16, 2020 by funkey added code for border version Aelc and mLipok 1 1 Programming today is a race between software engineers striving tobuild bigger and better idiot-proof programs, and the Universetrying to produce bigger and better idiots.So far, the Universe is winning.
TanerJames Posted December 16, 2020 Author Posted December 16, 2020 On 12/16/2020 at 8:15 AM, funkey said: Easy way around without GDIPlus: expandcollapse popup;coded by UEZ build 2013-08-15 #include <WindowsConstants.au3> #include <GUIConstantsEx.au3> #include <WinAPISys.au3> #include <GDIPlus.au3> _GDIPlus_Startup() Global Const $STM_SETIMAGE = 0x0172; $IMAGE_BITMAP = 0 Global $iW = 400, $iH = 25, $iBGColor = 0xFFFFFF Global Const $hGUI = GUICreate("Strip Progressbar", 600, 100) GUISetBkColor(0x404040) Global $iBtn = GUICtrlCreateButton("Start", 40, 20, 60, 60) #Region new from funkey Global Const $hHelp = GUICreate("", $iW, $iH, 150, 37, $WS_CHILD, 0, $hGui) Global Const $iPic = GUICtrlCreatePic("", 0, 0, $iW, $iH) _WinAPI_SetParent($hHelp, $hGui) Global $hRgn = _WinAPI_CreateRoundRectRgn(0, 0, $iW, $iH, 20, 20) _WinAPI_SetWindowRgn($hHelp, $hRgn) #EndRegion GUICtrlSetState(-1, $GUI_DISABLE) GUISetState(@SW_SHOW, $hHelp) GUISetState(@SW_SHOW, $hGUI) Global $hHBmp_BG, $hB, $iSleep = 30 Global $fPerc, $fPercPrev, $iLoop, $aPos, $iPosX, $iPosY Global $aColors[7][2] = [[0xFFEE5F5B, 0xFFF07673],[0xFFABCC04, 0xFFBBD636],[0xFF78CCEE, 0xFF93D6F1],[0xFFFFBB58, 0xFFFFC97A],[0xFFFF6677, 0xFFFF8795],[0xFF78CCEE, 0xFFFFC97A],[0xFF78CCEE, 0xe8e5d9]] Global $iRandom, $iColorTP, $hTooltip _Init() Global $iDeltaX = _WinAPI_GetSystemMetrics(7) Global $iDeltaY = _WinAPI_GetSystemMetrics(4) + _WinAPI_GetSystemMetrics(33) Do Switch GUIGetMsg() Case $GUI_EVENT_CLOSE ToolTip("") GUIRegisterMsg($WM_TIMER, "") _WinAPI_DeleteObject($hHBmp_BG) _GDIPlus_Shutdown() GUIDelete() Exit Case $iBtn $fPerc = 0 $iRandom = Random(0, UBound($aColors) - 1, 1) $iColorTP = BitShift(BitAND(BitAND(0x00FFFFFF, $aColors[$iRandom][1]), 0xFF), -16) + BitAND(0x0000FF00, $aColors[$iRandom][1]) + BitShift(BitAND(BitAND(0x00FFFFFF, $aColors[$iRandom][1]), 0xFF0000), 16) ;convert to BGR GUIRegisterMsg($WM_TIMER, "PlayAnim") DllCall("user32.dll", "int", "SetTimer", "hwnd", $hGUI, "int", 0, "int", $iSleep, "int", 0) EndSwitch Until False Func _Init() $hHBmp_BG = _GDIPlus_StripProgressbar(0, $iW, $iH, 0xFF000000 + $iBGColor, $aColors[$iRandom][0], $aColors[$iRandom][1], "") $hB = GUICtrlSendMsg($iPic, $STM_SETIMAGE, $IMAGE_BITMAP, $hHBmp_BG) If $hB Then _WinAPI_DeleteObject($hB) _WinAPI_DeleteObject($hHBmp_BG) EndFunc ;==>_Init Func PlayAnim() Local $sText = "Loading...", $i, $iCalc1, $iCalc2 $fPerc += 0.5 If $fPerc >= 100.5 Then GUIRegisterMsg($WM_TIMER, "") $sText = "Done" EndIf $iLoop = $fPerc - $fPercPrev $fPercPrev = $fPerc For $i = $iLoop To 0 Step - 1 $iCalc1 = ($fPerc - $i) $hHBmp_BG = _GDIPlus_StripProgressbar($iCalc1, $iW, $iH, 0xFF000000 + $iBGColor, $aColors[$iRandom][0], $aColors[$iRandom][1], $sText) $hB = GUICtrlSendMsg($iPic, $STM_SETIMAGE, $IMAGE_BITMAP, $hHBmp_BG) If $hB Then _WinAPI_DeleteObject($hB) _WinAPI_DeleteObject($hHBmp_BG) $aPosCtrl = ControlGetPos($hGUI, 0, $iPic) $aPosGUI = WinGetPos($hGUI) $iPosX = $aPosCtrl[0] + $aPosGUI[0] + $iDeltaX $iPosY = $aPosCtrl[1] + $aPosGUI[1] + $aPosCtrl[3] + $iDeltaY - 2 If $iCalc1 >= 100.5 Then $iCalc1 = 100 $iCalc2 = $iPosX + ($fPerc - $i) / 100 * $iW - 1 If $iCalc2 >= $iPosX + $iW Then $iCalc2 = $iPosX + $iW ToolTip(StringFormat("%02d %", $iCalc1), $iCalc2, $iPosY, "", "", 3) $hTooltip = WinGetHandle(StringFormat("%02d %", ($fPerc - $i))) DllCall("UxTheme.dll", "int", "SetWindowTheme", "hwnd", $hTooltip, "wstr", "", "wstr", "") DllCall("user32.dll", "int", "SendMessage", "hwnd", $hTooltip, "int", 1043, "int", $iColorTP, "int", 0) Next If $fPerc >= 100.5 Then Sleep(750) ToolTip("") EndIf EndFunc ;==>PlayAnim Func _GDIPlus_StripProgressbar($fPerc, $iW, $iH, $iBgColorGui = 0xFFF0F0F0, $iFgColor = 0xFFEE5F5B, $iBGColor = 0xFFF07673, $sText = "Loading...", $iTextColor = 0x000000, $iDir = -1, $iSpeed = 1, $sFont = "Arial", $bFlip = False, $bHBitmap = True) If $fPerc < 0 Then $fPerc = 0 If $fPerc > 100 Then $fPerc = 100 Local $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH) Local Const $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap) _GDIPlus_GraphicsSetPixelOffsetMode($hCtxt, $GDIP_PIXELOFFSETMODE_HIGHQUALITY) _GDIPlus_GraphicsClear($hCtxt, $iBgColorGui) Local $iWidth = $iH * 2, $iLen = $iWidth / 2, $iY Local $hBmp = _GDIPlus_BitmapCreateFromScan0($iWidth, $iH) Local Const $hCtxt_Bmp = _GDIPlus_ImageGetGraphicsContext($hBmp) _GDIPlus_GraphicsSetPixelOffsetMode($hCtxt_Bmp, $GDIP_PIXELOFFSETMODE_HIGHQUALITY) Local $hPen = _GDIPlus_PenCreate($iFgColor), $iPenSize = Int($iH / 12) Local $hPen2 = _GDIPlus_PenCreate(0x50000000, $iPenSize) _GDIPlus_GraphicsClear($hCtxt_Bmp, $iBGColor) Local Static $iX = 0 For $iY = 0 To $iH - 1 Switch $iDir Case 1 _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, $iX + $iY, $iY, $iX + $iY + $iLen, $iY, $hPen) _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, $iX + $iY - 2 * $iLen, $iY, $iX + $iY - 1 * $iLen, $iY, $hPen) Case Else _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, -$iX + $iY, $iY, -$iX + $iY + $iLen, $iY, $hPen) _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, -$iX + $iY + 2 * $iLen, $iY, -$iX + $iY + 3 * $iLen, $iY, $hPen) EndSwitch Next Local $tPoint1 = DllStructCreate("float;float") Local $tPoint2 = DllStructCreate("float;float") DllStructSetData($tPoint1, 1, $iW / 2) ;x1 DllStructSetData($tPoint2, 1, $iW / 2) ;x2 Local $hLineBrush If $bFlip Then _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, 0, 0, $iWidth, 0, $hPen2) DllStructSetData($tPoint1, 2, $iH / 3) ;y1 DllStructSetData($tPoint2, 2, $iH * 2 / 3) ;y2 $hLineBrush = DllCall($__g_hGDIPDll, "uint", "GdipCreateLineBrush", "struct*", $tPoint1, "struct*", $tPoint2, "uint", 0x00FFFFFF, "uint", 0xB0FFFFFF, "int", 0, "int*", 0) $hLineBrush = $hLineBrush[6] _GDIPlus_GraphicsFillRect($hCtxt_Bmp, 0, $iH * 2 / 3 + 1, $iW, $iH / 3, $hLineBrush) Else _GDIPlus_GraphicsDrawLine($hCtxt_Bmp, 0, $iH - $iPenSize / 2, $iWidth, $iH - $iPenSize / 2, $hPen2) DllStructSetData($tPoint1, 2, 0) ;y1 DllStructSetData($tPoint2, 2, $iH / 3) ;y2 $hLineBrush = DllCall($__g_hGDIPDll, "uint", "GdipCreateLineBrush", "struct*", $tPoint1, "struct*", $tPoint2, "uint", 0xB0FFFFFF, "uint", 0x00FFFFFF, "int", 0, "int*", 0) $hLineBrush = $hLineBrush[6] _GDIPlus_GraphicsFillRect($hCtxt_Bmp, 0, 0, $iW, $iH / 3, $hLineBrush) EndIf $iX = Mod($iX + $iSpeed, $iWidth) Local $hTextureBrush = _GDIPlus_TextureCreate($hBmp) _GDIPlus_GraphicsFillRect($hCtxt, 0, 0, $fPerc / 100 * $iW, $iH, $hTextureBrush) If $bFlip Then _GDIPlus_ImageRotateFlip($hBitmap, 6) _GDIPlus_GraphicsSetTextRenderingHint($hCtxt, 4) Local $hBrush = _GDIPlus_BrushCreateSolid(0x40000000 + $iTextColor) Local $hFormat = _GDIPlus_StringFormatCreate() Local $hFamily = _GDIPlus_FontFamilyCreate($sFont) Local $hFont = _GDIPlus_FontCreate($hFamily, $iH * 3 / 5, 2) Local $tLayout = _GDIPlus_RectFCreate(0, 0, $iW, $iH) _GDIPlus_StringFormatSetAlign($hFormat, 1) ;Center text _GDIPlus_GraphicsDrawStringEx($hCtxt, $sText, $hFont, $tLayout, $hFormat, $hBrush) ;Loading text _GDIPlus_FontDispose($hFont) _GDIPlus_FontFamilyDispose($hFamily) _GDIPlus_StringFormatDispose($hFormat) _GDIPlus_BrushDispose($hBrush) _GDIPlus_PenDispose($hPen) _GDIPlus_PenDispose($hPen2) _GDIPlus_GraphicsDispose($hCtxt) _GDIPlus_GraphicsDispose($hCtxt_Bmp) _GDIPlus_BitmapDispose($hBmp) _GDIPlus_BrushDispose($hTextureBrush) _GDIPlus_BrushDispose($hLineBrush) If $bHBitmap Then Local $hHBITMAP = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hBitmap) _GDIPlus_BitmapDispose($hBitmap) Return $hHBITMAP EndIf Return $hBitmap EndFunc ;==>_GDIPlus_StripProgressbar;coded by UEZ build 2013-08-15 Not ideal code part for border: #Region new from funkey Global Const $hHelp = GUICreate("", $iW + 16, $iH + 7, 150, 47, $WS_CHILD, 0, $hGui) GUISetBkColor(0x000000) Global Const $iPic = GUICtrlCreatePic("", 8, 3, $iW , $iH) _WinAPI_SetParent($hHelp, $hGui) Global $hRgn = _WinAPI_CreateRoundRectRgn(0, 0, $iW + 16, $iH + 7, 20, 20) _WinAPI_SetWindowRgn($hHelp, $hRgn) #EndRegion Better solution for border: #Region new from funkey Global Const $hHelp1 = GUICreate("", $iW + 6, $iH + 6, 150, 47, $WS_CHILD, 0, $hGui) _WinAPI_SetParent($hHelp1, $hGui) GUISetBkColor(0x000000) Global Const $hHelp2 = GUICreate("", $iW, $iH, 3, 3, $WS_CHILD, 0, $hHelp1) _WinAPI_SetParent($hHelp2, $hHelp1) Global Const $iPic = GUICtrlCreatePic("", 0, 0, $iW , $iH) Global $hRgn1 = _WinAPI_CreateRoundRectRgn(0, 0, $iW + 6, $iH + 6, 25, 25) Global $hRgn2 = _WinAPI_CreateRoundRectRgn(0, 0, $iW, $iH, 20, 20) _WinAPI_SetWindowRgn($hHelp1, $hRgn1) _WinAPI_SetWindowRgn($hHelp2, $hRgn2) #EndRegion Expand 👍 Thanks.
