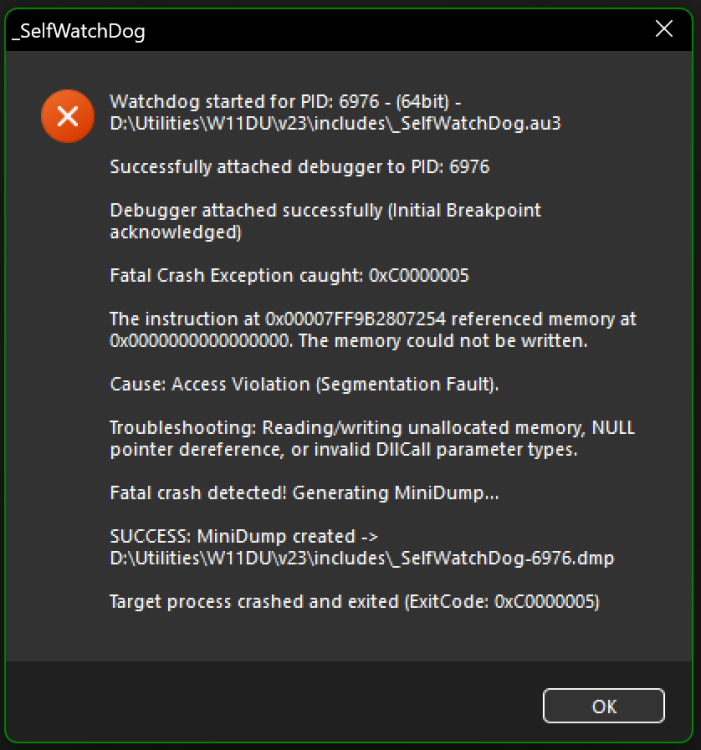

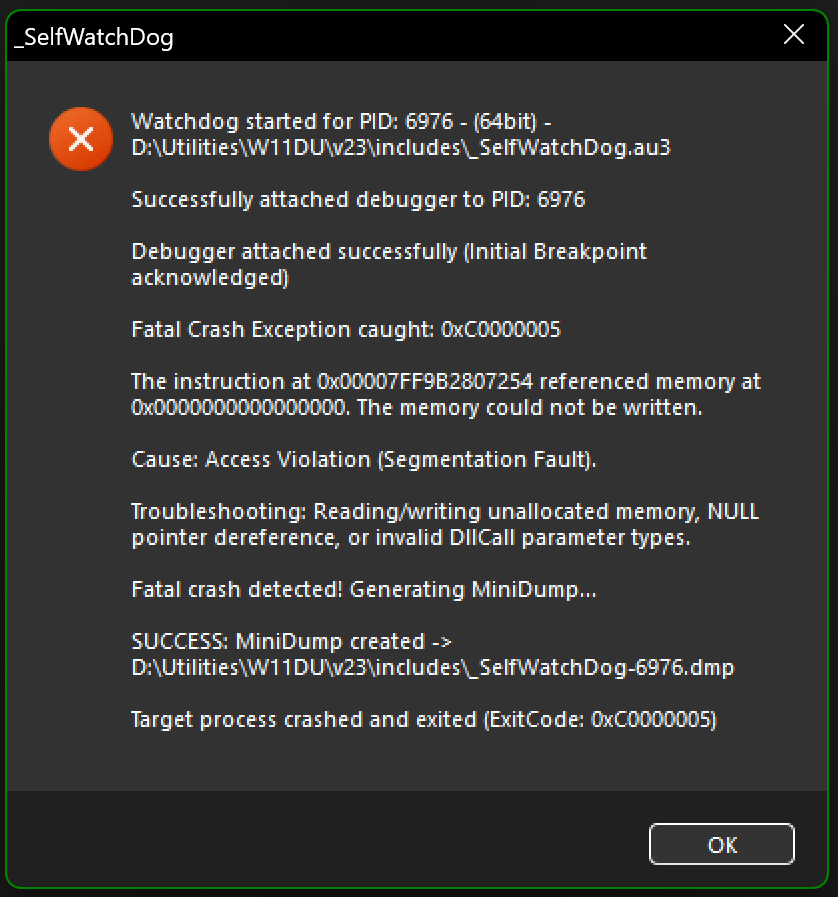

argumentum Posted 17 hours ago Posted 17 hours ago (edited) ...when your code goes caca ( like "AutoIt3 ended. rc:-1073741819" or "AutoIt3 ended. rc:-1073740771" ), and you would like more info and/or already compiled, you can now see the dump (.dmp) generated by the UDF with WinDbg or your favorite debugger. expandcollapse popup#include-once ; #include <_SelfWatchDog.au3> ;~ #AutoIt3Wrapper_AU3Check_Parameters=-q -d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 -w 7 #include <Date.au3> #include <WinAPI.au3> #include <WinAPISys.au3> #include <WinAPIError.au3> ; #INDEX# ==================================================================================================================== ; Title .........: SelfWatchDog ; AutoIt Version : 3.3.16.1+ ; Language ......: English ; Description ...: A self-contained process watchdog UDF that attaches as a lightweight debugger to capture unhandled ; exceptions and generate crash minidumps (.dmp) for post-mortem analysis. ; Author(s) .....: argumentum ; Link ..........: https://www.autoitscript.com/forum/topic/213815-_selfwatchdogau3-debug-minidump-udf/ ; ============================================================================================================================ ; #GLOBAL VARIABLES# ========================================================================================================= Global $__g_SelfWatchDog_Version = "0.2026.07.30" Global $__g_SelfWatchDog_LogsFolder = @ScriptDir Global $__g_SelfWatchDog_CreateDbgDmp = True Global $__g_SelfWatchDog_WriteLogOnNonZeroExit = False Global $__g_SelfWatchDog_MsgBox = False ; silent gathering of developer debug info, or not. ; ============================================================================================================================ ;~ _SelfWatchDog_MyLoader() ; this would go in your script, not here. Func _SelfWatchDog_MyLoader() ; this is an example ; set these before running "_SelfWatchDog_Load()" if you wanna change the defaults ;~ ConsoleWrite('- UDF ( SelfWatchDog ) version: ' & _SelfWatchDog_Version() & @CRLF) ; Uncomment to test ;~ _SelfWatchDog_LogsFolder(@ScriptDir) ; Default = @ScriptDir ; Uncomment to test ;~ _SelfWatchDog_LogsFolder("") ; Default = @ScriptDir ; ( disable creating .log and .dmp ) Uncomment to test ;~ _SelfWatchDog_WriteLogOnNonZeroExit(True) ; Default = False ; Uncomment to test ;~ _SelfWatchDog_CreateDbgDmp(False) ; Default = True ; ( disable creating .dmp ) Uncomment to test ;~ _SelfWatchDog_MsgBox(True) ; Default = False ; Uncomment to test ;~ _SelfWatchDog_Load() ; Uncomment to test ; or comment it out and load it in your script at your leasure ; but should be loaded before it crashes as otherwise we're too late to attach the debugger. ; FYI: ..can only attach one debbuger to a process. ; --- TEST CRASH (Uncomment to test) --- ;~ DllCall("ntdll.dll", "none", "RtlMoveMemory", "ptr", 0, "str", "Crash", "ulong", 4) ;0xC0000005; Uncomment to test ;~ Exit 1234 ; Uncomment to test EndFunc ;==>_SelfWatchDog_MyLoader ; =================================================================== ; SelfWatchDog Initialization / Auto-Launcher ( if you load _SelfWatchDog_Load() from the UDF ) ; =================================================================== ; #FUNCTION# ==================================================================================================================== ; Name ..........: _SelfWatchDog_Load ; Description ...: Initializes the SelfWatchDog system. If run as main script, spawns and waits for watchdog stub attachment. ; If spawned as watchdog stub, attaches debugger to target process and monitors execution. ; Syntax ........: _SelfWatchDog_Load() ; Parameters ....: None ; Return values .: True on successful parent startup and debugger attach, or exits process if acting as watchdog stub. ; Returns False and sets @error on launch or attachment failure. ; Author ........: argumentum ; changed in "0.2026.07.30" ; Related .......: _SelfWatchDog_WaitForDebugger, _SelfWatchDog_MonitorProcess ; ============================================================================================================================ Func _SelfWatchDog_Load() If $CmdLine[0] And StringInStr($CmdLine[1], "/SelfWatchDog*") Then Local $aArray = StringSplit($CmdLine[1], "*", 0) If $aArray[0] >= 3 Then _SelfWatchDog_WriteLogOnNonZeroExit(Int($aArray[3])) If $aArray[0] >= 4 Then _SelfWatchDog_LogsFolder(String($aArray[4])) If $aArray[0] >= 5 Then _SelfWatchDog_MsgBox(Int($aArray[5])) If $aArray[0] >= 6 Then _SelfWatchDog_CreateDbgDmp(Int($aArray[6])) Local $iTargetPID = Int($aArray[2]) AutoItWinSetTitle(StringTrimRight(@ScriptName, 4) & "-STUB-SelfWatchDog_PID:" & $iTargetPID) _SelfWatchDog_MonitorProcess($iTargetPID) Exit Else AutoItWinSetTitle(StringTrimRight(@ScriptName, 4) & "-STUB") ; meh, ..easier to find in ControlViewer Local $sCmdArgs = ' "/SelfWatchDog*' & @AutoItPID & _ '*' & Int(_SelfWatchDog_WriteLogOnNonZeroExit()) & _ '*' & String(_SelfWatchDog_LogsFolder()) & _ '*' & Int(_SelfWatchDog_MsgBox()) & _ '*' & Int(_SelfWatchDog_CreateDbgDmp()) & _ '*"' ; don't need the extra asterix, but I like it. Local $iWatchDogPID = ShellExecute(@AutoItExe, _ (@AutoItExe = @ScriptFullPath ? '' : '"' & @ScriptFullPath & '"') & $sCmdArgs) If Not $iWatchDogPID Or Not ProcessWait($iWatchDogPID, 10) Then Return SetError(1, 0, False) ; Failed to launch watchdog process EndIf If Not _SelfWatchDog_WaitForDebugger(5000) Then ; Block/wait until the spawned watchdog actually attaches Return SetError(2, 0, False) ; Watchdog process launched, but failed to attach within 5 seconds EndIf Return True EndIf EndFunc ;==>_SelfWatchDog_Load ; #FUNCTION# ==================================================================================================================== ; Name ..........: _SelfWatchDog_WaitForDebugger ; Description ...: Pauses execution until a watchdog or debugger attaches to the current process. ; Syntax ........: _SelfWatchDog_WaitForDebugger([$iTimeoutMs = 3000]) ; Parameters ....: $iTimeoutMs - [optional] Max time to wait in milliseconds. Default is 3000 (3 seconds). ; Return values .: Success: Returns True when debugger is detected. ; Failure: Returns False and sets @error = 1 if timed out. ; Author ........: argumentum ; new in "0.2026.07.30" ; ============================================================================================================================ Func _SelfWatchDog_WaitForDebugger($iTimeoutMs = 3000) Local $aResult, $hTimer = TimerInit() While 1 $aResult = DllCall("kernel32.dll", "bool", "IsDebuggerPresent") If Not @error And $aResult[0] Then Return True ; Query Windows PEB BeingDebugged flag If TimerDiff($hTimer) > $iTimeoutMs Then Return SetError(1, 0, False) Sleep(10) WEnd EndFunc ;==>_SelfWatchDog_WaitForDebugger ; #INTERNAL_USE_ONLY# ========================================================================================================= ; Name ..........: _SelfWatchDog_MonitorProcess ; Description ...: Attaches to the target process via Win32 Debug API and loops waiting for exception debug events. ; Syntax ........: _SelfWatchDog_MonitorProcess($iTargetPID) ; Parameters ....: $iTargetPID - Process ID (PID) of the application to monitor. ; Return values .: True on normal process exit, False on attach failure. ; Author ........: argumentum ; changed in "0.2026.07.30" ; ============================================================================================================================ Func _SelfWatchDog_MonitorProcess($iTargetPID) Local $iCounter = 0, $sDumpPath = _SelfWatchDog_LogsFolder() & "\" & StringTrimRight(@ScriptName, 4) & "-" & $iTargetPID & ".dmp" If _SelfWatchDog_LogsFolder() = "" Then $sDumpPath = "" Else If FileExists($sDumpPath) Then Do $iCounter += 1 ; hope you have a flawless script or clean up after yourself 😅 $sDumpPath = _SelfWatchDog_LogsFolder() & "\" & StringTrimRight(@ScriptName, 4) & "-" & $iTargetPID & "[" & $iCounter & "].dmp" Until Not FileExists($sDumpPath) EndIf EndIf Local $sLogPath = _SelfWatchDog_LogsFolder() & "\" & StringTrimRight(@ScriptName, 4) & "-WatchDog.log" _SelfWatchDog_Log($sLogPath, "Watchdog started for PID: " & $iTargetPID & ' - (' & (@AutoItX64 ? "64bit" : "32bit") & ') - ' & @ScriptFullPath) _SelfWatchDog_EnableDebugPrivilege() ; Attempt to enable SeDebugPrivilege (ignored safely if non-Admin) Local $aRet = DllCall("kernel32.dll", "bool", "DebugActiveProcess", "dword", $iTargetPID) If @error Or Not $aRet[0] Then ; Attach as lightweight debugger _SelfWatchDog_Log($sLogPath, "DebugActiveProcess failed! Error: " & _WinAPI_GetLastError()) _SelfWatchDog_Log() Return False EndIf _SelfWatchDog_Log($sLogPath, "Successfully attached debugger to PID: " & $iTargetPID) Local $iUnionOffset = @AutoItX64 ? 16 : 12 Local $iFirstChanceOffset = @AutoItX64 ? 168 : 92 Local $tDebugEvent = DllStructCreate("byte Data[256]") Local $pDebugEvent = DllStructGetPtr($tDebugEvent) Local $DBG_CONTINUE = 0x00010002 Local $DBG_EXCEPTION_NOT_HANDLED = 0x80010001 Local $sHexCodeWas, $tHeader, $aCont, $bDumpWritten = False, $bOops = False, $bInitialBpLogged = False, $iExitCode = 0 Local $iEventCode, $iPID, $iTID, $iStatus, $tFile, $hFile, $tException, $iExCode, $sHexCode, $tFirstChance, $bFirstChance While ProcessExists($iTargetPID) $aRet = DllCall("kernel32.dll", "bool", "WaitForDebugEvent", "ptr", $pDebugEvent, "dword", 500) If @error Or Not $aRet[0] Then ContinueLoop ; Poll for debug events (500ms timeout) $tHeader = DllStructCreate("dword EventCode;dword PID;dword TID", $pDebugEvent) $iEventCode = DllStructGetData($tHeader, "EventCode") ; Parse Debug Event Header (EventCode = 0..3, PID = 4..7, TID = 8..11) $iPID = DllStructGetData($tHeader, "PID") $iTID = DllStructGetData($tHeader, "TID") $iStatus = $DBG_CONTINUE If $iEventCode = 3 Or $iEventCode = 6 Then ; Event 3 = CREATE_PROCESS_DEBUG_EVENT, Event 6 = LOAD_DLL_DEBUG_EVENT $tFile = DllStructCreate("handle hFile", $pDebugEvent + $iUnionOffset) $hFile = DllStructGetData($tFile, "hFile") If $hFile Then DllCall("kernel32.dll", "bool", "CloseHandle", "handle", $hFile) ElseIf $iEventCode = 1 Then ; Event 1 = EXCEPTION_DEBUG_EVENT $tException = DllStructCreate("dword ExceptionCode", $pDebugEvent + $iUnionOffset) $iExCode = DllStructGetData($tException, "ExceptionCode") $sHexCode = "0x" & Hex($iExCode, 8) $tFirstChance = DllStructCreate("dword FirstChance", $pDebugEvent + $iFirstChanceOffset) $bFirstChance = (DllStructGetData($tFirstChance, "FirstChance") <> 0) If $sHexCode = "0x80000003" Or $sHexCode = "0x4000001F" Or $sHexCode = "0x40010006" Then If Not $bInitialBpLogged Then ; Breakpoint & Informational Signals (0x80000003, 0x4000001F, 0x40010006, etc.) _SelfWatchDog_Log($sLogPath, "Debugger attached successfully (Initial Breakpoint acknowledged)") $bInitialBpLogged = True EndIf $iStatus = $DBG_CONTINUE ElseIf $bFirstChance Then ; First-Chance Exception ; Pass back to OS so internal SEH/VEH/__try/__except blocks can handle it $iStatus = $DBG_EXCEPTION_NOT_HANDLED Else ; Second-Chance Exception (True Unhandled Fatal Crash) If $sHexCodeWas <> $sHexCode Then _SelfWatchDog_Log($sLogPath, "Fatal Crash Exception caught: " & $sHexCode) _SelfWatchDog_Log($sLogPath, _SelfWatchDog_ExplainExitCode($iExCode, $pDebugEvent)) EndIf $sHexCodeWas = $sHexCode $bOops = True If _SelfWatchDog_IsFatalCode($sHexCode) And Not $bDumpWritten Then If $sDumpPath <> "" Then If _SelfWatchDog_CreateDbgDmp() Then _SelfWatchDog_Log($sLogPath, "Fatal crash detected! Generating MiniDump...") Local $sErrorDetails = "" If _SelfWatchDog_WriteMiniDump($iTargetPID, $sDumpPath, $sErrorDetails) Then If $sDumpPath <> "" Then _SelfWatchDog_Log($sLogPath, "SUCCESS: MiniDump created -> " & $sDumpPath) Else If $sDumpPath <> "" Then _SelfWatchDog_Log($sLogPath, "ERROR: MiniDump creation failed! Details: " & $sErrorDetails) EndIf EndIf EndIf $bDumpWritten = True EndIf Local $aHProc = DllCall("kernel32.dll", "handle", "OpenProcess", "dword", 0x0001, "bool", False, "dword", $iTargetPID) If Not @error And $aHProc[0] Then ; Terminate the crashed process so it doesn't spin in an infinite re-fault loop DllCall("kernel32.dll", "bool", "TerminateProcess", "handle", $aHProc[0], "uint", $iExCode) DllCall("kernel32.dll", "bool", "CloseHandle", "handle", $aHProc[0]) EndIf $iStatus = $DBG_CONTINUE EndIf ElseIf $iEventCode = 5 Then ; Event 5 = EXIT_PROCESS_DEBUG_EVENT Local $tExitInfo = DllStructCreate("dword ExitCode", $pDebugEvent + $iUnionOffset) $iExitCode = DllStructGetData($tExitInfo, "ExitCode") Local $sHexExit = "0x" & Hex($iExitCode, 8) If $bDumpWritten Then _SelfWatchDog_Log($sLogPath, "Target process crashed and exited (ExitCode: " & $sHexExit & ")") ElseIf $iExitCode = 0 Then _SelfWatchDog_Log($sLogPath, "Target process exited cleanly (ExitCode: 0x00000000)") Else _SelfWatchDog_Log($sLogPath, "Target process exited with return code: " & $iExitCode & " (" & $sHexExit & ")") EndIf DllCall("kernel32.dll", "bool", "ContinueDebugEvent", "dword", $iPID, "dword", $iTID, "dword", $DBG_CONTINUE) ExitLoop EndIf $aCont = DllCall("kernel32.dll", "bool", "ContinueDebugEvent", "dword", $iPID, "dword", $iTID, "dword", $iStatus) If @error Or Not $aCont[0] Then ; Dispatch continue status to unfreeze the target thread _SelfWatchDog_Log($sLogPath, "ContinueDebugEvent failed! Error: " & _WinAPI_GetLastError()) EndIf WEnd DllCall("kernel32.dll", "bool", "DebugActiveProcessStop", "dword", $iTargetPID) If $bOops Or ($__g_SelfWatchDog_WriteLogOnNonZeroExit And $iExitCode) Then _SelfWatchDog_Log() EndFunc ;==>_SelfWatchDog_MonitorProcess ; #INTERNAL_USE_ONLY# ========================================================================================================= ; Name ..........: _SelfWatchDog_WriteMiniDump ; Description ...: Calls dbghelp.dll!MiniDumpWriteDump to generate a memory crash dump file. ; Syntax ........: _SelfWatchDog_WriteMiniDump($iPID, $sDumpPath, ByRef $sErrorDetails) ; Parameters ....: $iPID - Target Process ID. ; $sDumpPath - Full output file path for the .dmp file. ; $sErrorDetails - [ByRef] String variable receiving error diagnostics on failure. ; Return values .: Success - True ; Failure - False and sets $sErrorDetails. ; Author ........: argumentum ; Remarks .......: Tries MiniDumpWithFullMemory first, falling back to PrivateReadWriteMemory and MiniDumpNormal. ; If $sDumpPath = "" then it's skipped. ; ============================================================================================================================ Func _SelfWatchDog_WriteMiniDump($iPID, $sDumpPath, ByRef $sErrorDetails) If $sDumpPath = "" Then Return SetError(0, 1, True) Local $hProcess = _WinAPI_OpenProcess(0x0458, False, $iPID) If Not $hProcess Then ; Open target process: QUERY_INFORMATION (0x0400) | VM_READ (0x0010) | DUP_HANDLE (0x0040) | VM_OPERATION (0x0008) $sErrorDetails = "OpenProcess failed (Error " & _WinAPI_GetLastError() & ")" Return False EndIf Local $aFileCall = DllCall("kernel32.dll", "handle", "CreateFileW", _ "wstr", $sDumpPath, "dword", 0x40000000, _ ; GENERIC_WRITE (0x40000000), FILE_SHARE_READ (1), CREATE_ALWAYS (2) "dword", 1, "ptr", 0, "dword", 2, "dword", 0x80, _ ; FILE_ATTRIBUTE_NORMAL "ptr", 0) Local $hFile = @error ? 0 : $aFileCall[0] If Not $hFile Or $hFile = -1 Then $sErrorDetails = "CreateFileW failed (Error " & _WinAPI_GetLastError() & ")" _WinAPI_CloseHandle($hProcess) Return False EndIf Local $iDumpType = 0x00000002 ; Try dumping: MiniDumpWithFullMemory (0x00000002) Local $aResult = DllCall("dbghelp.dll", "bool", "MiniDumpWriteDump", _ "handle", $hProcess, "dword", $iPID, "handle", $hFile, "int", $iDumpType, _ "ptr", 0, "ptr", 0, "ptr", 0) Local $iWinErr = _WinAPI_GetLastError() If @error Or Not $aResult[0] Then $iDumpType = 0x00000235 ; Fallback 1: PrivateReadWriteMemory (0x00000235) $aResult = DllCall("dbghelp.dll", "bool", "MiniDumpWriteDump", _ "handle", $hProcess, "dword", $iPID, "handle", $hFile, "int", $iDumpType, _ "ptr", 0, "ptr", 0, "ptr", 0) $iWinErr = _WinAPI_GetLastError() EndIf If @error Or Not $aResult[0] Then $iDumpType = 0x00000000 ; Fallback 2: MiniDumpNormal (0x00000000) $aResult = DllCall("dbghelp.dll", "bool", "MiniDumpWriteDump", _ "handle", $hProcess, "dword", $iPID, "handle", $hFile, "int", $iDumpType, _ "ptr", 0, "ptr", 0, "ptr", 0) $iWinErr = _WinAPI_GetLastError() EndIf Local $bSuccess = (Not @error And $aResult[0]) If Not $bSuccess Then $sErrorDetails = "MiniDumpWriteDump API Error: " & $iWinErr DllCall("kernel32.dll", "bool", "CloseHandle", "handle", $hFile) _WinAPI_CloseHandle($hProcess) Return $bSuccess EndFunc ;==>_SelfWatchDog_WriteMiniDump ; #INTERNAL_USE_ONLY# ========================================================================================================= ; Name ..........: _SelfWatchDog_IsFatalCode ; Description ...: Determines if an exception code represents a severe/fatal crash across Native, C++, .NET, and Delphi. ; Syntax ........: _SelfWatchDog_IsFatalCode($sHexCode) ; Parameters ....: $sHexCode - Hexadecimal string (e.g. "0xC0000005"). ; Return values .: True if fatal crash code, False otherwise. ; Author ........: argumentum ; Note ..........: capture crash minidumps for virtually any Windows executable, regardless of whether it ; was written in C, C++, C#, AutoIt, or Delphi!. But *you* thinker with that =) ; ============================================================================================================================ Func _SelfWatchDog_IsFatalCode($sHexCode) Local $sPrefix = StringLeft($sHexCode, 3) ; 1. 0xC... = Windows Native Kernel/Process Errors (Access Violation, Stack Overflow, Division by Zero, etc.) ; 2. 0xE... = Managed/Runtime Exceptions (MSVC C++ 0xE06D7363, .NET CLR 0xE0434352) ; 3. 0x0EEDFACE = Delphi / VCL Exceptions If $sPrefix = "0xC" Or $sPrefix = "0xE" Or $sHexCode = "0x0EEDFACE" Then Return True Return False EndFunc ;==>_SelfWatchDog_IsFatalCode ; #INTERNAL_USE_ONLY# ========================================================================================================= ; Name ..........: _SelfWatchDog_EnableDebugPrivilege ; Description ...: Enables SeDebugPrivilege in the current process access token using advapi32.dll. ; Syntax ........: _SelfWatchDog_EnableDebugPrivilege() ; Parameters ....: None ; Return values .: Success - True ; Failure - False (e.g., non-admin rights) ; Author ........: argumentum ; ============================================================================================================================ Func _SelfWatchDog_EnableDebugPrivilege() Local $aCall = DllCall("kernel32.dll", "handle", "GetCurrentProcess") If @error Or Not $aCall[0] Then Return False Local $hProcess = $aCall[0] $aCall = DllCall("advapi32.dll", "bool", "OpenProcessToken", "handle", $hProcess, "dword", 0x0028, "handle*", 0) If @error Or Not $aCall[0] Then Return False Local $hToken = $aCall[3] Local $tLUID = DllStructCreate("dword LowPart;long HighPart") $aCall = DllCall("advapi32.dll", "bool", "LookupPrivilegeValueW", "ptr", 0, "wstr", "SeDebugPrivilege", "ptr", DllStructGetPtr($tLUID)) If Not @error And $aCall[0] Then Local $tTokenPrivileges = DllStructCreate("dword Count;dword LowPart;long HighPart;dword Attributes") DllStructSetData($tTokenPrivileges, "Count", 1) DllStructSetData($tTokenPrivileges, "LowPart", DllStructGetData($tLUID, "LowPart")) DllStructSetData($tTokenPrivileges, "HighPart", DllStructGetData($tLUID, "HighPart")) DllStructSetData($tTokenPrivileges, "Attributes", 0x0002) ; SE_PRIVILEGE_ENABLED DllCall("advapi32.dll", "bool", "AdjustTokenPrivileges", "handle", $hToken, "bool", False, "ptr", DllStructGetPtr($tTokenPrivileges), "dword", DllStructGetSize($tTokenPrivileges), "ptr", 0, "ptr", 0) EndIf _WinAPI_CloseHandle($hToken) Return True EndFunc ;==>_SelfWatchDog_EnableDebugPrivilege ; #INTERNAL_USE_ONLY# ========================================================================================================= ; Name ..........: _SelfWatchDog_Log ; Description ...: Writes a timestamped log line to the specified log path. ; Syntax ........: _SelfWatchDog_Log($sLogPath, $sMessage) ; Parameters ....: $sLogPath - Target log file path. ; $sMessage - Message text to log. ; Return values .: True on FileWriteLine success. ; Author ........: argumentum ; changed in "0.2026.07.30" ; Remarks .......: if $sLogPath = "" then $sLogPath = @ScriptDir ; ============================================================================================================================ Func _SelfWatchDog_Log($sLogPath = Default, $sMessage = "") Local Static $_sStr = @CRLF, $_sMsg = "", $_sLogPath = $sLogPath If IsKeyword($sLogPath) Then $_sStr = StringReplace($_sStr, @CRLF & @CRLF, @CRLF) If $_sLogPath = "" Then $_sLogPath = @ScriptDir FileWriteLine($_sLogPath, $_sStr & @CRLF) If $__g_SelfWatchDog_MsgBox Then MsgBox(16 + 262144, StringTrimRight(@ScriptName, 4), $_sMsg, 600) EndIf $_sStr &= _NowCalc() & " | " & $sMessage & @CRLF $_sMsg &= StringReplace($sMessage, @CRLF, @LF) & @LF & @LF EndFunc ;==>_SelfWatchDog_Log ; #FUNCTION# ==================================================================================================================== ; Name ..........: _SelfWatchDog_LogsFolder ; Description ...: Gets or sets the global output directory for created crash minidumps and logs. ; Syntax ........: _SelfWatchDog_LogsFolder([$sFullPath = Default]) ; Parameters ....: $sFullPath - [optional] Directory path to set as default output location. Default is @ScriptDir ; $sFullPath = "" will disable creating *.dmp and *.log files ; Return values .: Returns the current dump folder path string. ; Author ........: argumentum ; Related .......: _SelfWatchDog_Load ; Remarks .......: ..the idea is to have a dump file but if all you want to do is catch errors while coding then ; set the $sFullPath = "" and skip the creation of files because you may not want to delete countless files. ; On the other hand, if the crash is sporadic, then do collect as much info as you can. ; That is my train of thought at the moment of coding this. ; ============================================================================================================================ Func _SelfWatchDog_LogsFolder($sFullPath = Default) If Not IsKeyword($sFullPath) And (FileExists($sFullPath) Or $sFullPath = "") Then $__g_SelfWatchDog_LogsFolder = $sFullPath Return $__g_SelfWatchDog_LogsFolder EndFunc ;==>_SelfWatchDog_LogsFolder ; #FUNCTION# ==================================================================================================================== ; Name ..........: _SelfWatchDog_CreateDbgDmp ; Description ...: Sets or retrieves the flag that controls whether mini-dump (.dmp) files are generated on crash. ; Syntax ........: _SelfWatchDog_CreateDbgDmp([$bYesNo = Default]) ; Parameters ....: $bYesNo - [optional] True to enable dump file creation, False to disable. ; Default is return setting. ; Return values .: Current boolean state of dump file creation (True = Enabled, False = Disabled). ; Author ........: argumentum ; Related .......: _SelfWatchDog_LogsFolder, _SelfWatchDog_WriteMiniDump, _SelfWatchDog_MonitorProcess ; Remarks .......: You may want to write logs but not the dumps. ; ============================================================================================================================ Func _SelfWatchDog_CreateDbgDmp($bYesNo = Default) If Not IsKeyword($bYesNo) Then $__g_SelfWatchDog_CreateDbgDmp = Not Not $bYesNo Return $__g_SelfWatchDog_CreateDbgDmp EndFunc ;==>_SelfWatchDog_CreateDbgDmp ; #FUNCTION# ==================================================================================================================== ; Name ..........: _SelfWatchDog_WriteLogOnNonZeroExit ; Description ...: Gets or sets whether the watchdog should write a log entry when the target process exits with a custom non-zero code. ; Syntax ........: _SelfWatchDog_WriteLogOnNonZeroExit([$bYesNo = Default]) ; Parameters ....: $bYesNo - [optional] Boolean flag (True/False) to enable or disable logging non-zero exits. Default is False ; Return values .: Returns the current boolean setting state (True or False). ; Author ........: argumentum ; Related .......: _SelfWatchDog_LogsFolder, _SelfWatchDog_Load ; ============================================================================================================================ Func _SelfWatchDog_WriteLogOnNonZeroExit($bYesNo = Default) If Not IsKeyword($bYesNo) Then $__g_SelfWatchDog_WriteLogOnNonZeroExit = Not Not $bYesNo Return $__g_SelfWatchDog_WriteLogOnNonZeroExit EndFunc ;==>_SelfWatchDog_WriteLogOnNonZeroExit ; #FUNCTION# ==================================================================================================================== ; Name ..........: _SelfWatchDog_MsgBox ; Description ...: Gets or sets whether the watchdog displays a graphical notification dialog when a process crashes. ; Syntax ........: _SelfWatchDog_MsgBox([$bYesNo = Default]) ; Parameters ....: $bYesNo - [optional] Boolean flag (True/False) to enable or disable crash alert popups. Default is False. ; Return values .: Returns the current boolean setting state (True or False). ; Author ........: argumentum ; Related .......: _SelfWatchDog_ExplainExitCode, _SelfWatchDog_LogsFolder ; ============================================================================================================================ Func _SelfWatchDog_MsgBox($bYesNo = Default) If Not IsKeyword($bYesNo) Then $__g_SelfWatchDog_MsgBox = Not Not $bYesNo Return $__g_SelfWatchDog_MsgBox EndFunc ;==>_SelfWatchDog_MsgBox ; #FUNCTION# ==================================================================================================================== ; Name ..........: _SelfWatchDog_Version ; Description ...: Returns the current version string of the SelfWatchDog UDF. ; Syntax ........: _SelfWatchDog_Version() ; Parameters ....: None ; Return values .: String containing the UDF version number. ; Author ........: argumentum ; Related .......: _SelfWatchDog_Load ; ============================================================================================================================ Func _SelfWatchDog_Version() Return $__g_SelfWatchDog_Version EndFunc ;==>_SelfWatchDog_Version ; #FUNCTION# ==================================================================================================================== ; Name ..........: _SelfWatchDog_ExplainExitCode ; Description ...: Translates a process exit or crash code into human-readable system text and actionable developer explanations. ; Syntax ........: _SelfWatchDog_ExplainExitCode($iExitCode[, $pDebugEvent = 0]) ; Parameters ....: $iExitCode - Process exit code or NTSTATUS crash code (32-bit integer). ; $pDebugEvent - [optional] Pointer to DEBUG_EVENT struct for live access violation pointer extraction. ; Return values .: String containing the formatted hex code, live memory instruction details, system status, and dev notes. ; Author ........: argumentum ; Related .......: _SelfWatchDog_GetNTStatusText, _SelfWatchDog_GetAccessViolationText ; Link ..........: https://learn.microsoft.com/en-us/openspecs/windows_protocols/ms-erref/596a1078-e883-4972-9bbc-49e60bebca55 ; ============================================================================================================================ Func _SelfWatchDog_ExplainExitCode($iExitCode, $pDebugEvent = 0) Local $sDynamicDetail = "", $sHexCode = "0x" & Hex($iExitCode, 8) If $iExitCode = 0 Then Return "[0x00000000] Process completed successfully." Local $sSysMessage = _SelfWatchDog_GetNTStatusText($iExitCode) If $sSysMessage = "" Then $sSysMessage = "Unknown Exception / Exit Code" Local $sDevNote = "" Switch $sHexCode ; --- Native Memory & Pointer Violations --- Case "0xC0000005" If $pDebugEvent Then $sDynamicDetail = _SelfWatchDog_GetAccessViolationText($pDebugEvent) $sDevNote = "Cause: Access Violation (Segmentation Fault)." & @CRLF & @CRLF & _ "Troubleshooting: Reading/writing unallocated memory, NULL pointer dereference, or invalid DllCall parameter types." Case "0xC0000008" $sDevNote = "Cause: Invalid Handle." & @CRLF & @CRLF & _ "Troubleshooting: Operation performed on a closed, uninitialized, or corrupt Win32 handle." Case "0xC0000374" $sDevNote = "Cause: Heap Corruption." & @CRLF & @CRLF & _ "Troubleshooting: Memory buffer overflow, double-freeing pointers, or struct size mismatch in DllCall/DllStructCreate." Case "0xC0000017" $sDevNote = "Cause: Out of Memory (STATUS_NO_MEMORY)." & @CRLF & @CRLF & _ "Troubleshooting: Process exhausted physical RAM or commit limit during allocation." ; --- Stack & Control Flow Faults --- Case "0xC00000FD" $sDevNote = "Cause: Stack Overflow." & @CRLF & @CRLF & _ "Troubleshooting: Infinite recursive function loop or allocating excessively large local variables." Case "0xC0000409" $sDevNote = "Cause: Stack Buffer Overrun (/GS fast-fail)." & @CRLF & @CRLF & _ "Troubleshooting: Windows Security hard-terminated process due to memory buffer boundary corruption." Case "0xC000001D" $sDevNote = "Cause: Illegal Instruction." & @CRLF & @CRLF & _ "Troubleshooting: CPU executed invalid machine code, corrupt memory, or unsupported instruction set (e.g., AVX2 on legacy CPU)." Case "0xC000041D" $sDevNote = "Cause: Unhandled Exception in User Callback." & @CRLF & @CRLF & _ "Troubleshooting: A crash occurred inside a Window Procedure (WndProc) or low-level Windows hook callback." ; --- Dependency & DLL Loading Failures --- Case "0xC0000135" $sDevNote = "Cause: Dependent DLL Not Found." & @CRLF & @CRLF & _ "Troubleshooting: A required third-party or system .dll is missing from system path." Case "0xC0000138" $sDevNote = "Cause: Ordinal Not Found." & @CRLF & @CRLF & _ "Troubleshooting: Target DLL exists, but the requested function ordinal/index was missing." Case "0xC0000139" $sDevNote = "Cause: Entry Point Not Found." & @CRLF & @CRLF & _ "Troubleshooting: Target DLL exists, but the specific function export name was not found." Case "0xC0000142" $sDevNote = "Cause: DLL Initialization Failed." & @CRLF & @CRLF & _ "Troubleshooting: Required DLL loaded, but its DllMain entry point returned FALSE or crashed on startup." ; --- Arithmetic & Hardware Exceptions --- Case "0xC000008C", "0xC0000094" $sDevNote = "Cause: Integer Division by Zero or Overflow." & @CRLF & @CRLF & _ "Troubleshooting: Math calculation attempted a division by zero or integer overflow." Case "0xC0000096" $sDevNote = "Cause: Privileged Instruction." & @CRLF & @CRLF & _ "Troubleshooting: Assembly executed Ring 0/kernel privileged code from user space." Case "0x80000002" $sDevNote = "Cause: Datatype Misalignment." & @CRLF & @CRLF & _ "Troubleshooting: CPU read/write operation targeted an unaligned memory offset." ; --- High-Level Runtimes & Framework Exceptions --- Case "0xE06D7363" $sDevNote = "Cause: Unhandled MSVC C++ Exception." & @CRLF & @CRLF & _ "Troubleshooting: An unhandled C++ 'throw' exception bubbled up from a compiled C++ DLL." Case "0xE0434352" $sDevNote = "Cause: Unhandled .NET CLR Exception." & @CRLF & @CRLF & _ "Troubleshooting: An unhandled Managed C#/VB.NET exception occurred inside a loaded .NET assembly." Case "0x0EEDFACE", "0x0EEDFADE" $sDevNote = "Cause: Unhandled Delphi/VCL Runtime Exception." & @CRLF & @CRLF & _ "Troubleshooting: An unhandled Object Pascal runtime exception occurred in a Delphi DLL or executable." ; --- Process Environment & Interruption --- Case "0xC0000006" $sDevNote = "Cause: In-Page I/O Error." & @CRLF & @CRLF & _ "Troubleshooting: Executable or DLL dropped connection while paging code from a network drive or USB flash drive." Case "0xC000013A" $sDevNote = "Cause: Control-C Exit." & @CRLF & @CRLF & _ "Troubleshooting: Application was killed abruptly via console terminate, user logout, or CTRL+C signal." Case "0x80000003" $sDevNote = "Cause: Breakpoint Hit." & @CRLF & @CRLF & _ "Troubleshooting: A debug breakpoint (INT 3) was encountered with no attached debugger to handle it." EndSwitch Local $sOutput = $sSysMessage If $sDynamicDetail <> "" Then $sOutput = $sDynamicDetail If $sDevNote <> "" Then $sOutput &= @CRLF & @CRLF & $sDevNote Return $sOutput EndFunc ;==>_SelfWatchDog_ExplainExitCode ; #INTERNAL_USE_ONLY# ========================================================================================================= ; Name ..........: _SelfWatchDog_GetAccessViolationText ; Description ...: Extracts instruction and memory pointers from an EXCEPTION_DEBUG_EVENT for Access Violations (0xC0000005). ; Syntax ........: _SelfWatchDog_GetAccessViolationText($pDebugEvent) ; Parameters ....: $pDebugEvent - Pointer or DllStruct to the DEBUG_EVENT structure. ; Return values .: Formatted string with memory address, instruction pointer, and operation type (read/written/executed). ; Author ........: argumentum ; new in "0.2026.07.30" ; Related .......: _SelfWatchDog_ExplainExitCode ; ============================================================================================================================ Func _SelfWatchDog_GetAccessViolationText($pDebugEvent) Local $pBase = $pDebugEvent ; just in case ; am not experienced with these If IsDllStruct($pBase) Then $pBase = DllStructGetPtr($pBase) If Not IsPtr($pBase) Then $pBase = Ptr($pBase) Local $iCodeOffset = @AutoItX64 ? 16 : 12 Local $tRecord, $pRecord = Ptr($pBase + $iCodeOffset) If @AutoItX64 Then $tRecord = DllStructCreate("dword Code;dword Flags;uint64 Record;uint64 Address;dword NumParams;dword Pad;uint64 Info[15]", $pRecord) Else $tRecord = DllStructCreate("dword Code;dword Flags;ptr Record;ptr Address;dword NumParams;ulong_ptr Info[15]", $pRecord) EndIf Local $pInstruction = DllStructGetData($tRecord, "Address") Local $iNumParams = DllStructGetData($tRecord, "NumParams") Local $iHexLen = @AutoItX64 ? 16 : 8 Local $sInstHex = "0x" & Hex($pInstruction, $iHexLen) If $iNumParams < 2 Then ; If parameters aren't populated yet, fallback Return StringFormat("The instruction at %s referenced memory at an unknown address.", $sInstHex) EndIf Local $iOpType = DllStructGetData($tRecord, "Info", 1) ; Index 1 = Info[0] (0 = Read, 1 = Write, 8 = Execute) Local $pTargetMem = DllStructGetData($tRecord, "Info", 2) ; Index 2 = Info[1] (Faulting Memory Address) Local $sOpText, $sMemHex = "0x" & Hex($pTargetMem, $iHexLen) Select Case $iOpType = 0 $sOpText = "read" Case $iOpType = 1 $sOpText = "written" Case $iOpType = 8 $sOpText = "executed" Case Else $sOpText = "accessed" EndSelect Return StringFormat("The instruction at %s referenced memory at %s. The memory could not be %s.", $sInstHex, $sMemHex, $sOpText) EndFunc ;==>_SelfWatchDog_GetAccessViolationText ; #INTERNAL_USE_ONLY# ========================================================================================================= ; Name ..........: _SelfWatchDog_GetNTStatusText ; Description ...: Formats an NTSTATUS or Win32 status code into its official system error message using ntdll.dll. ; Syntax ........: _SelfWatchDog_GetNTStatusText($iStatus) ; Parameters ....: $iStatus - The NTSTATUS / Win32 integer code. ; Return values .: Success - String message extracted from ntdll.dll message resources. ; Failure - Empty string. ; Author ........: argumentum ; Related .......: _SelfWatchDog_ExplainExitCode ; ============================================================================================================================ Func _SelfWatchDog_GetNTStatusText($iStatus) Local $hNtDll = _WinAPI_GetModuleHandle("ntdll.dll") Local $aResult = DllCall("kernel32.dll", "dword", "FormatMessageW", _ "dword", 0x0B00, _ ; FORMAT_MESSAGE_ALLOCATE_BUFFER (0x100) | FORMAT_MESSAGE_FROM_HMODULE (0x800) | FORMAT_MESSAGE_IGNORE_INSERTS (0x200) "ptr", $hNtDll, "dword", $iStatus, "dword", 0, "ptr*", 0, "dword", 0, "ptr", 0) If @error Or Not $aResult[0] Or Not $aResult[5] Then Return "" Local $sMsg = DllStructGetData(DllStructCreate("wchar[" & $aResult[0] & "]", $aResult[5]), 1) DllCall("kernel32.dll", "ptr", "LocalFree", "ptr", $aResult[5]) Return StringStripWS($sMsg, 3) EndFunc ;==>_SelfWatchDog_GetNTStatusText The code has a build in example of "oops" and the functions available, are right there close to the top. OnDebugMsgBox.au3 catches the "AutoIt error", but not this type of error because It'd need to have a debugger running before the oops, hence another UDF. This is for the "advanced" type of script. Commonly there's no use for this, but if needed, here we have it. The default for _SelfWatchDog_MsgBox() is false ( don't popup ) by default. But you can turn it on or off. Since you're not going to use code that's broken, and if it has these type of errors surely will not affect the user while using your script, you may just want to ntfy yourself about it, or make a web site, or go figure. Anywho, you can set it as you please. Version 0.2026.07.30 is here today. The future is now Edited 8 hours ago by argumentum update ioa747, ahmet and WildByDesign 3 Follow the link to my code contribution ( and other things too ). FAQ - Please Read Before Posting
