taotao878

some problems about TreeViewItem

10 posts in this topic

#1 ·  Posted (edited)

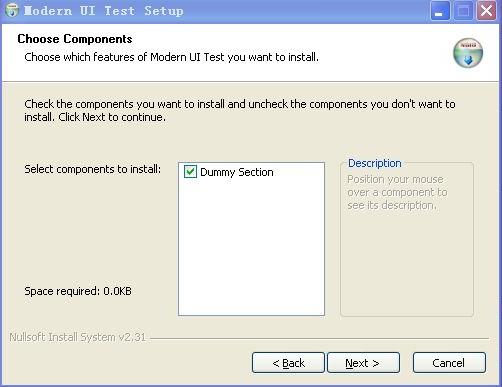

How do I create one TreeView as NSIS ?

NSIS's TreeView has tip, when your mouse is hovered over the the TreeView's Item and subitem, the Tip text will be displayed in the Label.

e.g. Manage Current Attachments (1)


Edited by taotao878

Share this post


Link to post
Share on other sites



Thank you very much!

I try it at once.

Share this post


Link to post
Share on other sites

This topic may also help. I will see about getting an example done for you <_<

Sorry, I try it, but I can not solve this problem

Please help me!

Share this post


Link to post
Share on other sites

I have just tried, yet alas, It doesn't work. I am afraid I don't know what else can be done by me. I'll leave it to someone smarter to tell you a fix... If they are willing. <_<

Share this post


Link to post
Share on other sites

Did you look at

GUICtrlSetTip

--------------------------------------------------------------------------------

Sets the tip text associated with a control.

GUICtrlSetTip ( controlID, tiptext [, "title" [, icon [, options]]]]] )

Share this post


Link to post
Share on other sites

#8 ·  Posted (edited)

The actual display on hover is pretty easy, it's harder to come up with a nice way to keep the whole thing (items, text, descriptions) organized. Which is something that I feel the example below is somewhat lacking, but it works.

Using GuiTreeView UDF from latest beta.

#include <GuiTreeView.au3>

Opt("GUIOnEventMode", 1)

$sTitle = "Treeview item descriptions"

$hGui = GUICreate($sTitle, 400, 300, -1, -1, -1, -1)
GUISetOnEvent($GUI_EVENT_CLOSE, "SysEvents")
GUISetOnEvent($GUI_EVENT_MOUSEMOVE, "SysEvents")

Global $aTreeItemText[6][2] = [["Item 1", "This is item 1"], _
                                ["Item 1A", "This is item 1A"], _
                                ["Item 1B", "This is item 1B"], _
                                ["Item 2", "This is item 2"], _
                                ["Item 2A", "This is item 2A"], _
                                ["Item 2B", "This is item 2B"]]

$cTree = GUICtrlCreateTreeView(10,50,200,200, -1, $WS_EX_CLIENTEDGE)
$cTreeItem_1 = GUICtrlCreateTreeViewItem($aTreeItemText[0][0], $cTree)
$cTreeItem_1A = GUICtrlCreateTreeViewItem($aTreeItemText[1][0], $cTreeItem_1)
$cTreeItem_1B = GUICtrlCreateTreeViewItem($aTreeItemText[2][0], $cTreeItem_1)
$cTreeItem_2 = GUICtrlCreateTreeViewItem($aTreeItemText[3][0], $cTree)
$cTreeItem_2A = GUICtrlCreateTreeViewItem($aTreeItemText[4][0], $cTreeItem_2)
$cTreeItem_2B = GUICtrlCreateTreeViewItem($aTreeItemText[5][0], $cTreeItem_2)
Global $hTree = GUICtrlGetHandle($cTree)

GUICtrlCreateGroup(" Description: ", 220, 50, 170, 200)
$cInfoLabel = GUICtrlCreateLabel("", 230, 70, 150, 170)
GUICtrlCreateGroup ("",-99,-99,1,1)

GUISetState()

While 1
    Sleep(1000)
WEnd

Func SysEvents()
    Switch @GUI_CtrlId
        Case $GUI_EVENT_CLOSE
            Exit
        Case $GUI_EVENT_MOUSEMOVE
            ;
            $aHwnd = DllCall("user32.dll", "hwnd", "WindowFromPoint", "uint", MouseGetPos(0), "uint", MouseGetPos(1))
            If (IsDeclared("hTree") = 0) Or ($aHwnd[0] <> $hTree) Then ContinueCase
            $hItem = TreeItemFromPoint($hTree)
            If $hItem = 0 Then
                GUICtrlSetData($cInfoLabel, "")
            Else
                $sTitle = _GUICtrlTreeView_GetText($hTree, $hItem)
                $sDesc = ""
                For $i = 0 To UBound($aTreeItemText)-1
                    If $aTreeItemText[$i][0] = $sTitle Then
                        $sDesc = $aTreeItemText[$i][1]
                        ExitLoop
                    EndIf
                Next
                GUICtrlSetData($cInfoLabel, $sDesc)
            EndIf
    EndSwitch
EndFunc
;Returns handle of tree item under mouse:
Func TreeItemFromPoint($hWnd)
    Local $tMPos = _WinAPI_GetMousePos(True, $hWnd)
    Return _GUICtrlTreeView_HitTestItem($hWnd, DllStructGetData($tMPos, 1), DllStructGetData($tMPos, 2))
EndFunc
Edited by Siao

"be smart, drink your wine"

Share this post


Link to post
Share on other sites

Thank you very much !

I try it, and my problem has been solved.

<_<

Thank again.

Share this post


Link to post
Share on other sites

This great stuff. Thx big time. :)
