dzony91

Simple toolbar gui

9 posts in this topic

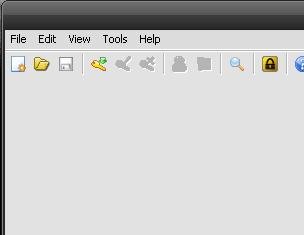

Hi, i want to make gui with toolbar like this, with custom icons...


Share this post


Link to post
Share on other sites



You could please do just a small search? This has been asked so many times, and very recent.

Share this post


Link to post
Share on other sites

I searched but not found :)

Share this post


Link to post
Share on other sites

Latest release or Beta look in the help for:

_GUICtrlReBar_Create

_GUICtrlToolBar_Create


SciTE for AutoItDirections for Submitting Standard UDFs



Don't argue with an idiot; people watching may not be able to tell the difference.



Share this post


Link to post
Share on other sites

Latest release or Beta look in the help for:

_GUICtrlReBar_Create

_GUICtrlToolBar_Create

I looked at these functions and also at _GUICtrlToolbar_AddButton()

but in helpfile are only examples using standard New/Open/Save buttons.

I would like to see also some simple example for custom buttons/images on the toolbar if somebody has created such one already.

Share this post


Link to post
Share on other sites

#8 ·  Posted (edited)

Great example, but look this, i have this example and listle is buges :S

toolbar and menu is litlle discrete :S

#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_icon=sdf.ico
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****
;AutoIt3 v3.2.10.0 or higher
#include <GuiConstantsEx.au3>
#include <GuiToolbar.au3>
#include <GuiToolTip.au3>
#Include <GuiRebar.au3>
#Include <GuiImageList.au3>

Opt('MustDeclareVars', 1)

Global $iItem ; Command identifier of the button associated with the notification.
Global $hGUI, $hToolbar, $hToolTip, $hReBar, $iMemo, $aStrings[5], $i = 0
Global Enum $id1 = 1000, $id2, $id3, $id4, $id5 ; ID's for each ToolBar button

    Local $hToolBarImageListNorm, $hToolBarImageListDisabled, $hToolBarImageListHot, $aSize
    $hGUI = GUICreate("Toolbar", 400, 300)

    $hReBar = _GUICtrlReBar_Create($hGUI, BitOR($RBS_VARHEIGHT, $RBS_AUTOSIZE, $RBS_BANDBORDERS))
    $hToolbar = _GUICtrlToolbar_Create($hGUI)

    $aSize = _GUICtrlToolbar_GetMaxSize($hToolbar)
    ; Create ToolTip
    $hToolTip = _GUIToolTip_Create($hToolbar, $TTS_ALWAYSTIP)
    _GUICtrlToolbar_SetToolTips($hToolbar, $hToolTip)

    ; Add Icons from system DLL shell32.dll to ImageList
    $hToolBarImageListNorm = _GUIImageList_Create(16, 16, 5, 3)
    _GUIImageList_AddIcon($hToolBarImageListNorm, @SystemDir & "\shell32.dll", 110)
    _GUIImageList_AddIcon($hToolBarImageListNorm, @SystemDir & "\shell32.dll", 131)
    _GUIImageList_AddIcon($hToolBarImageListNorm, @SystemDir & "\shell32.dll", 165)
    _GUIImageList_AddIcon($hToolBarImageListNorm, @SystemDir & "\shell32.dll", 168)
    _GUIImageList_AddIcon($hToolBarImageListNorm, @SystemDir & "\shell32.dll", 137)
    _GUIImageList_AddIcon($hToolBarImageListNorm, @SystemDir & "\shell32.dll", 146)

    ; add AutoIt icon from exe internal resources or icon added at compile time by compiler directives
    _GUIImageList_AddIcon($hToolBarImageListNorm, @AutoItExe, 0) ; AutoIt icon if run in Scite or compiled
    _GUICtrlToolbar_SetImageList($hToolbar, $hToolBarImageListNorm)

    ; Add buttons

    _GUICtrlToolbar_AddButton($hToolbar, $id1, 0, $aStrings[0]) ; Index 0
    _GUICtrlToolbar_AddButton($hToolbar, $id2, 1, $aStrings[1]) ; Index 1
    _GUICtrlToolbar_AddButton($hToolbar, $id3, 2, $aStrings[2]) ; Index 2
    _GUICtrlToolbar_AddButtonSep($hToolbar) ; Index 3 - separators have index values
    _GUICtrlToolbar_AddButton($hToolbar, $id4, 3, $aStrings[3]) ; Index 4
    _GUICtrlToolbar_AddButtonSep($hToolbar) ; Index 5 - separators have index values
    _GUICtrlToolbar_AddButton($hToolbar, $id5, 6, $aStrings[4]) ; Index 6

    _GUICtrlReBar_AddToolBarBand($hReBar, $hToolbar, "", 0)
GuiCtrlCreateMenu ("Help")
    ; Remove
    GUISetState()
    GUIRegisterMsg($WM_NOTIFY, "_WM_NOTIFY")
    ; /Remove

    ; Loop until user exits
    Do
        Sleep(10)
    Until GUIGetMsg() = $GUI_EVENT_CLOSE

; WM_NOTIFY event handler for Toolbar button press events and tooltips
Func _WM_NOTIFY($hWndGUI, $MsgID, $wParam, $lParam)
    #forceref $hWndGUI, $MsgID, $wParam
    Local $hwndFrom, $code, $index
    Local $tNMTOOLBAR, $tInfo, $iID

    $tNMTOOLBAR = DllStructCreate($tagNMTOOLBAR, $lParam)
    $tInfo = DllStructCreate($tagNMTTDISPINFO, $lParam)
    $hwndFrom = DllStructGetData($tNMTOOLBAR, "hWndFrom")
    $code = DllStructGetData($tNMTOOLBAR, "Code")
    $iItem = DllStructGetData($tNMTOOLBAR, "iItem")

    Switch $hwndFrom
        Case $hToolbar
            Switch $code
                Case $TBN_BEGINDRAG
                    $index = _GUICtrlToolbar_CommandToIndex($hToolbar, $iItem)
                    ; Remove
                    ;------------------------------------------------------------------
                    ;------------------------------------------------------------------
                    ; /Remove
                    Switch _GUICtrlToolbar_IsButtonEnabled($hToolbar, $iItem)
                        Case True
                            Switch $index
                                Case 0
                                    Beep(1000, 5)
                                Case 1
                                    Beep(1500, 5)
                                    Exit
                                Case 2
                                    Beep(2000, 5)
                                    ; Disable / Enable Button 4 - Button 3 Is Checked when button 4 is disabled
                                    If _GUICtrlToolbar_IsButtonEnabled($hToolbar, $id4) Then
                                        _GUICtrlToolbar_EnableButton($hToolbar, $id4, False)
                                        _GUICtrlToolbar_CheckButton($hToolbar, $id3, True)
                                    Else
                                        _GUICtrlToolbar_EnableButton($hToolbar, $id4, True)
                                        _GUICtrlToolbar_CheckButton($hToolbar, $id3, False)
                                    EndIf
                                Case 4
                                    Beep(2500, 5)
                                Case 6
                                    Beep(3000, 5)
                                    SoundPlay(@WindowsDir & "\media\tada.wav", 0)
                            EndSwitch
                    EndSwitch
            EndSwitch
        Case $hToolTip
            Switch $code ; Toolbar Button Tooltips
                Case $TTN_GETDISPINFO
                    $iID = DllStructGetData($tInfo, "IDFrom")
                    Switch $iID
                        Case $id1
                            DllStructSetData($tInfo, "aText", "Open")
                        Case $id2
                            DllStructSetData($tInfo, "aText", "Exit")
                        Case $id3
                            DllStructSetData($tInfo, "aText", "Options")
                        Case $id4
                            DllStructSetData($tInfo, "aText", "Tunes")
                        Case $id5
                            DllStructSetData($tInfo, "aText", "AutoIt")
                    EndSwitch
            EndSwitch
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>_WM_NOTIFY
Edited by dzony91

Share this post


Link to post
Share on other sites

Anyone know ? ? ?

Share this post


Link to post
Share on other sites
