RedAware

_IENavigate in a frameset

10 posts in this topic

I wanna use the function _IENavigate in a frameset but it doesn't works. In my case I use IE 11 and the frameset is stored locally.

#include <IE.au3>

Local $oIE = _IE_Example("frameset")
Local $oFrame = 0

$oFrame = _IEFrameGetCollection($oIE,2)

_IENavigate($oFrame, "http://www.autoitscript.com/")

MsgBox(0, "Test", "Done")

_IEQuit($oIE)

This is just a example.

Can someone explain me why the navigation works but you never see the MsgBox?

Thanks

Sullivan

Share this post


Link to post
Share on other sites



#include <IE.au3>

Local $oIE = _IE_Example("frameset")

_IENavigate($oIE, "http://www.autoitscript.com/")

MsgBox(0, "Test", "Done")

_IEQuit($oIE)

works for me, and shows MsgBox ;)


Snips & Scripts


My Snips: graphCPUTemp ~ getENVvars
My Scripts: Short-Order Encrypter - message and file encryption V1.6.1 ~ AuPad - Notepad written entirely in AutoIt V1.9.4

Feel free to use any of my code for your own use.                                                                                                                                                           Forum FAQ



Share this post


Link to post
Share on other sites

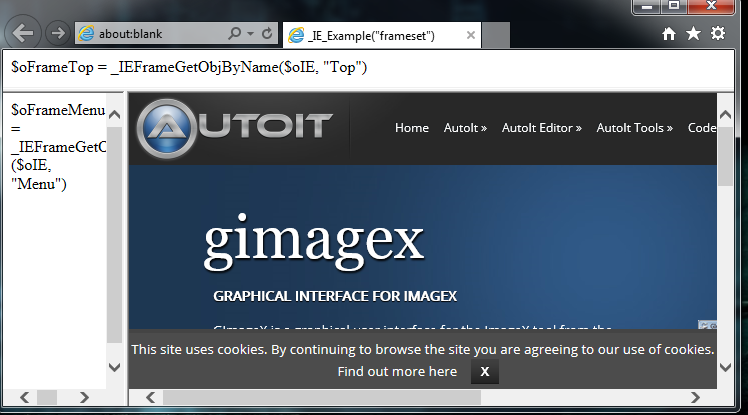

Yes, I know but I want to show the page inside the frame. Look at the attachment.

post-87462-0-26381800-1411368790_thumb.p

Share this post


Link to post
Share on other sites

#4 ·  Posted (edited)

In your original script change:

$oFrame = _IEFrameGetCollection($oIE,2)

with:

$oFrame = _IEFrameGetObjByName($oIE, "Main")

Obviously it works only for that specific page, anyway you need to know the frame name to work with it

Edited by j0kky

Share this post


Link to post
Share on other sites
On my computer it doesn't work. Doesn't matter if I use _IEFrameGetCollection or _IEFrameGetObjByName.
Both functions work well because it navigate to http://www.autoitscript.com in the correct frame.

But never shows Msgbox.

Share this post


Link to post
Share on other sites

#6 ·  Posted (edited)

#include <IE.au3>

Local $oIE = _IE_Example("frameset")
$oFrame = _IEFrameGetObjByName($oIE, "Main")
_IENavigate($oFrame, "http://www.autoitscript.com/", 0)
Sleep(1500)
MsgBox(0, "Test", "Done")
_IEQuit($oIE)

Edited by j0kky

Share this post


Link to post
Share on other sites

Yes, I know but I want to show the page inside the frame. Look at the attachment.



My apologies :sweating:


Snips & Scripts


My Snips: graphCPUTemp ~ getENVvars
My Scripts: Short-Order Encrypter - message and file encryption V1.6.1 ~ AuPad - Notepad written entirely in AutoIt V1.9.4

Feel free to use any of my code for your own use.                                                                                                                                                           Forum FAQ



Share this post


Link to post
Share on other sites

?

#include <IE.au3>

Local $oIE = _IE_Example("frameset")
Local $oFrame = _IEFrameGetCollection($oIE,2)

_IENavigate($oFrame, "http://www.autoitscript.com/", 0)

While $oIE.Busy
  Sleep(10)
Wend

MsgBox(0, "Test", "Done")

_IEQuit($oIE)





#include <IE.au3>

Local $oIE = _IE_Example("frameset")
$oFrame = _IEFrameGetObjByName($oIE, "Main")
_IENavigate($oFrame, "http://www.autoitscript.com/", 0)
Sleep(1500)
MsgBox(0, "Test", "Done")
_IEQuit($oIE)



Both of them shows the MsgBox but doesn't wait until the page is full loaded. I also have tested this with another page.

After that I have to submit a form.

I always receiving the following error msg from _IEFormGetCollection

"C:\Program Files (x86)\AutoIt3\Include\IE.au3" (896) : ==> Variable must be of type "Object".:
Case $iIndex > -1 And $iIndex < $oTemp.forms.length
Case $iIndex > -1 And $iIndex < $oTemp^ ERROR

Without frames It works well. Does anyone know why?

Share this post


Link to post
Share on other sites

_IENavigate with the final parameter set to 0 will return immediately, if you leave it at the default (1) it will wait until the page has loaded before returning.
