faustf

queston about GUICtrlCreateGraphic

Recommended Posts

faustf

hi guy

how  is possible set  on top   a  line  created with GUICtrlCreateGraphic ?

i used GUICtrlSetState(-1 ,$GUI_ONTOP)  but  stay on top only  is  you not  use  nothing  over the  gui , if   you put  them a  inputbox or  edit box , the line  go down  the  inputbox or  edit

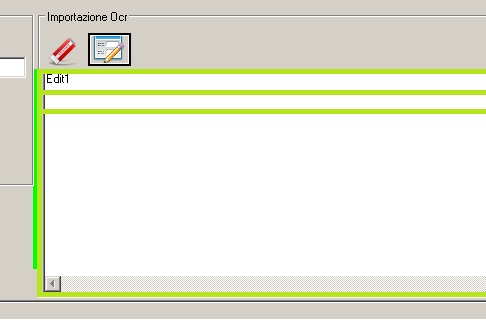

i wanna create  somthing like  this  (foto in attach) ,  how  is possible to do ???




Share this post


Link to post
Share on other sites
Danyfirex

Hi. You can do something like this (its not the best way, but do the trick). need to be cleaned and free resource....

#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <WinAPI.au3>
#include <WindowsConstants.au3>
Global $hDC, $hPen, $o_Orig
#Region ### START Koda GUI section ### Form=
Global $hGUI = GUICreate("Form1", 603, 348, 192, 124)
Global $iLeft = 20, $iTop = 32
Global $Edit1 = GUICtrlCreateEdit("", $iLeft, $iTop, 561, 289)


$hDC = _WinAPI_GetWindowDC(GUICtrlGetHandle($Edit1)) ; DC of entire screen (desktop)
$hPen = _WinAPI_CreatePen($PS_SOLID, 2, 0xFF)
$o_Orig = _WinAPI_SelectObject($hDC, $hPen)


GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###


Local $nMsg = 0
While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

    EndSwitch
    Draw()
WEnd

Func Draw()
    Local $aSize = 0
    _WinAPI_RedrawWindow($hGUI, 0, 0, $RDW_UPDATENOW) ; force redraw of Gui (Rect=0 Region=0)
    $aSize = ControlGetPos($hGUI, "", $Edit1)
    If Not IsArray($aSize) Then Return
    $aSize[0] = $aSize[0] - $iLeft
    $aSize[1] = $aSize[1] - $iTop
    _WinAPI_DrawLine($hDC, $aSize[0], $aSize[1] + 1, $aSize[2], $aSize[1] + 1)
    _WinAPI_DrawLine($hDC, $aSize[0], $aSize[1] + 1 + 20, $aSize[2] + 1, $aSize[1] + 20)
    _WinAPI_DrawLine($hDC, $aSize[0], $aSize[1] + 1 + 40, $aSize[2] + 1, $aSize[1] + 40)
    _WinAPI_DrawLine($hDC, $aSize[0] + 1, $aSize[1], $aSize[0] + 1, $aSize[3])
    _WinAPI_DrawLine($hDC, $aSize[2] - 1, $aSize[1], $aSize[2] - 1, $aSize[2])
    _WinAPI_DrawLine($hDC, $aSize[0], $aSize[3] - 1, $aSize[2], $aSize[3] - 1)
    _WinAPI_RedrawWindow($hGUI, 0, 0, $RDW_VALIDATE) ; then force no-redraw of Gui
EndFunc   ;==>Draw

Saludos

Edited by Danyfirex
  • Like 1

Share this post


Link to post
Share on other sites
faustf

but  how  is  possible  cancel the   rectangle???



Share this post


Link to post
Share on other sites
faustf

i answer me  destroy  eedit  and recreate :)  simply   :)
