Hello guys,
I need to be able to make a mouse click on a program.
Via Windows AutoIT info I managed to recover the data that are needed me but I can not make him do the left click.

$gat = WinGetHandle("[TITLE:GAT.crm [DIST ]; CLASS:OMain; INSTANCE:1]", "")
ControlClick($gat, "", "PAUSA")

did I do something wrong? :'(

windows info.png

Share this post


Link to post
Share on other sites



OMain is the Class for the entire window, whereas MsoCommandBar Instance 1 would be the class info for the Control itself. Which are you trying to click on?


√-1 2^3 ∑ π, and it was delicious!

Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

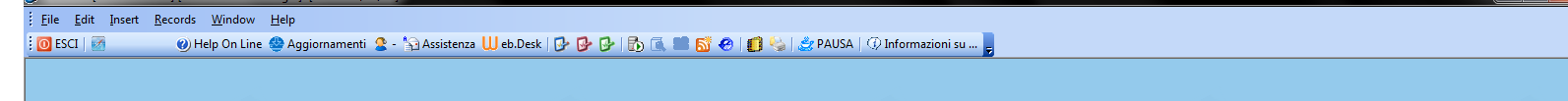

button.pngI'm trying to do a control-click on the "PAUSA" button, I am attaching the screen.



Edited by PINTO1927

Share this post


Link to post
Share on other sites


Share this post


Link to post
Share on other sites
6 hours ago, PINTO1927 said:

I'm trying to do a control-click on the "PAUSA" button, I am attaching the screen.

and why didn't use the controlid?

Share this post


Link to post
Share on other sites

AutoIT Windows Info section Control ID does not show me any results.
That code would you feel?

Share this post


Link to post
Share on other sites

This is a result that brings me:

>>>> Window <<<<
Title:  GAT.crm [DIST ]
Class:  OMain
Position:   -8, -8
Size:   1616, 876
Style:  0x17CF0000
ExStyle:    0x00000100
Handle: 0x0000000000420676

>>>> Control <<<<
Class:  MsoCommandBar
Instance:   1
ClassnameNN:    MsoCommandBar1
Name:
Advanced (Class):   [CLASS:MsoCommandBar; INSTANCE:1]
ID:
Text:   Main
Position:   0, 25
Size:   986, 26
ControlClick Coords:    816, 18
Style:  0x56000000
ExStyle:    0x00000000
Handle: 0x00000000003E037A

>>>> Mouse <<<<
Position:   816, 65
Cursor ID:  0
Color:  0xA9C7F0

>>>> StatusBar <<<<

>>>> ToolsBar <<<<

>>>> Visible Text <<<<
MsoDockLeft
MsoDockRight
MsoDockTop
Main
Menu Bar
MsoDockBottom
Menu Principale


>>>> Hidden Text <<<<
Gat-enterprise : Project - DIST (Access 2000 file format)
MSO Generic Control Container



Share this post


Link to post
Share on other sites

#8 ·  Posted (edited)

With this code I was able to push the desired button by cordinates, but if I change resolution rightly does not work.

$services = "GAT.crm [DIST"

_WinWaitActivate("GAT.crm [DIST","")
Sleep(1000)
ControlClick($services, "", "MsoCommandBar1", "Left", 1, 807, 10)

Since AutoIT Windows Info does not provide me the info ControlID, there is the possibility to intercept the button text, in this case "PAUSA"?

Edited by PINTO1927

Share this post


Link to post
Share on other sites

You can test if Controlcommand gives you the ID:

Quote

"SendCommandID", Command ID Simulates the WM_COMMAND message. Usually used for ToolbarWindow32 controls - use the ToolBar tab of Au3Info to get the Command ID.



Share this post


Link to post
Share on other sites

the toolbar tab does not show me anything ..

Share this post


Link to post
Share on other sites
