I am in need of your guidance once again. I searched the forums for clicking in span, clicking by class, clicking without an ID or Name, etc., but I am unable to find a solution for my problem.

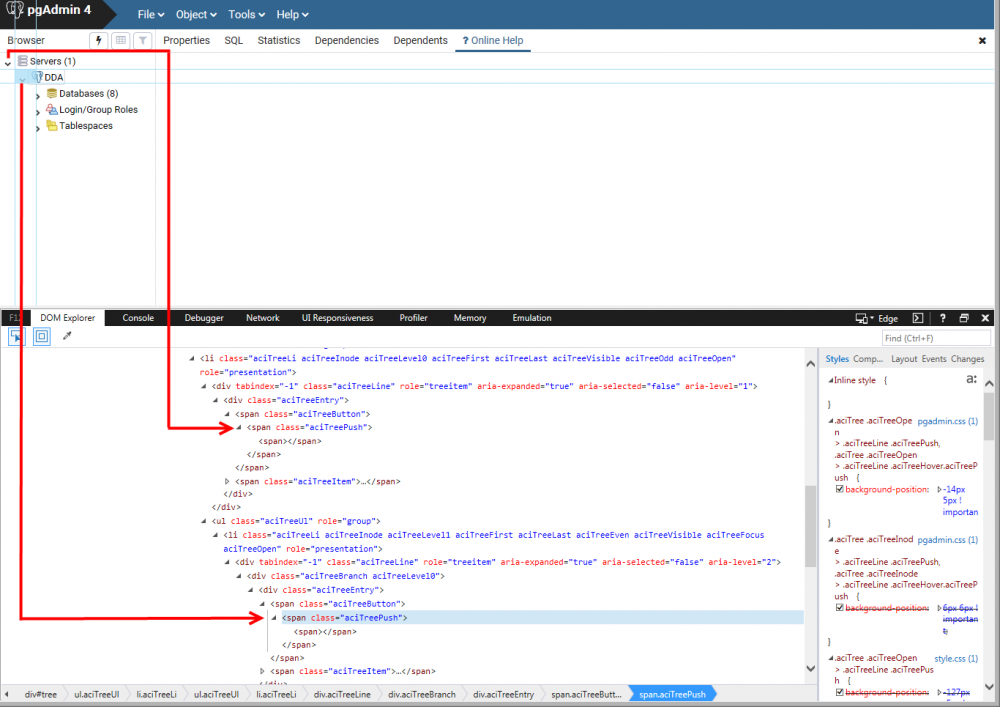

I am trying to expand this tree in IE. There is an arrow ( > ) that i need to click, but I can't find a way to do it :no:. Alternatively, I can double-click the text "Servers", but that seems to be even more troublesome. I will have to do this 2-3 more times as the tree expands.

There appears to be an ID for the tree, simply called "tree", but that isn't working when I send a click to it.


;Open an IE session and navigate to pgAdmin.
Global $oIE = _IECreate($pgAdmin)

;Maximize the IE window.
WinSetState(_IEPropertyGet($oIE, "hwnd"), "", @SW_MAXIMIZE)


;Expand the tree
$oTree = _IEGetObjById($oIE, "tree")
_IEAction($oTree, "click")

Any ideas?  :poke:

Edited by XinYoung
Took a better screenshot
Link to post
Share on other sites

hmm, maybe with .nextElementSibling Property or .firstElementChild Property, not sure...try

If $oSpan.className = 'aciTreePush' Then
    _IEAction ($oSpan, "click")
    Sleep (750)
    _IEAction ($oSpan.nextElementSibling, "click")


Link to post
Share on other sites

Hmm it's not working (or maybe I implemented the $var wrong). I also tried putting it in there multiple times just in case there are more instances of 'aciTreePush'  but that didn't help.

;Open an IE session and navigate to pgAdmin.
Global $oIE = _IECreate($pgAdmin)

;Maximize the IE window.
WinSetState(_IEPropertyGet($oIE, "hwnd"), "", @SW_MAXIMIZE)

;Collect the span tags
Local $oSpans = _IETagNameGetCollection($oIE, "span")

;Click the Servers expand arrow
For $oSpan In $oSpans
    If $oSpan.className = 'aciTreePush' Then
        _IEAction($oSpan, "click")

        ;Click the DDA expand arrow
        Local $var = $ospan.nextElementSibling
        _IEAction($var, "click")


Link to post
Share on other sites

I see...Try

Local $oSpans, $Count

For $i = 1 to 2
  $oSpans= _IETagNameGetCollection($oIE, "span")
  $Count = 0
  For $oSpan In $oSpans
    If $oSpan.className = 'aciTreePush' Then
      $Count += 1
      if $Count = $i then
        _IEAction ($oSpan, "click")
        Sleep (1000)


Link to post
