Screen Capture sometimes get blank webpage

Recommended Posts

abdulrahmanok

hi brothers,

I'm trying to take screenshot from webpage and if found code that could take screenshot even when window is minimized but sometimes i get image like Image Attached I'm trying for 4 hours ago to know where is the problem ...

Notice: for some reason I'm need to run site minimized :)



ScreenShot CaptureTest.jpg

The Code:


;coded by UEZ 2012
#include <Array.au3>
#include <Constants.au3>
#include <WindowsConstants.au3>
#include <GDIPlus.au3>
#include <IE.au3>
Opt("WinTitleMatchMode", 2)
    Local $oIE = _IECreate("https://mybanner.qu.edu.qa/PROD/twbkwbis.P_WWWLogin")
         opt('winwaitdelay', 0)  ;to make it run a little bit faster
            WinWait("User Login")
                $handle = WinMove("User Login - Internet Explorer","",0,0,877, 516)
            WinSetState("User Login","",@SW_SHOWMINIMIZED)
        _IELoadWait($oIE)
        Sleep(2000)

WinSetState("User Login","",@SW_SHOWDEFAULT)

$aWinlist = GetAllWindow()
$handle = WinMove("Student Employment Time Attendance","",0,0,877, 516)
$MyWindow=WinGetHandle("[Class:IEFrame]")
ConsoleWrite($MyWindow)
For $i = 0 To UBound($aWinlist) - 1
    $hWnd = $aWinlist[$i][1]

    If Not WinActive($hWnd) Then ExitLoop
Next
If $i = UBound($aWinlist) Then Exit MsgBox(0, "Info", "No inactive window found", 10)

_GDIPlus_Startup()
$hBitmap = Capture_Window($MyWindow, 877, 516)
_GDIPlus_ImageSaveToFile($hBitmap, @ScriptDir & "Test.jpg")
_GDIPlus_BitmapDispose($hBitmap)
ShellExecute(@ScriptDir & "Test.jpg")
_GDIPlus_Shutdown()
Exit

Func Capture_Window($hWnd, $w, $h)
    Local $hDC_Capture = _WinAPI_GetWindowDC($hWnd)
    Local $hMemDC = _WinAPI_CreateCompatibleDC($hDC_Capture)
    Local $hHBitmap = _WinAPI_CreateCompatibleBitmap($hDC_Capture, $w, $h)
    Local $hObject = _WinAPI_SelectObject($hMemDC, $hHBitmap)
    DllCall("user32.dll", "int", "PrintWindow", "hwnd", $hWnd, "handle", $hMemDC, "int", 0)
    _WinAPI_DeleteDC($hMemDC)
;    Local $hObject = _WinAPI_SelectObject($hMemDC, $hObject)
    _WinAPI_ReleaseDC($hWnd, $hDC_Capture)
    Local $hBmp = _GDIPlus_BitmapCreateFromHBITMAP($hHBitmap)
    _WinAPI_DeleteObject($hHBitmap)
    Return $hBmp
EndFunc   ;==>Capture_Window

Func GetAllWindow() ;code by Authenticity - modified by UEZ
    Local $aWin = WinList(), $aWindows[1][4]
    Local $iStyle, $iEx_Style, $iCounter = 0
    Local $i, $hWnd_state, $aWinPos

    For $i = 1 To $aWin[0][0]
        $iEx_Style = BitAND(_WinAPI_GetWindowLong($aWin[$i][1], $GWL_EXSTYLE), $WS_EX_TOOLWINDOW)
        $iStyle = BitAND(WinGetState($aWin[$i][1]), 2)
        If $iEx_Style <> -1 And Not $iEx_Style And $iStyle Then
            $aWinPos = WinGetPos($aWin[$i][1])
            If $aWinPos[2] > 1 And $aWinPos[3] > 1 Then
                $aWindows[$iCounter][0] = $aWin[$i][0]
                $aWindows[$iCounter][1] = $aWin[$i][1]
                $aWindows[$iCounter][2] = $aWinPos[2]
                $aWindows[$iCounter][3] = $aWinPos[3]
                $iCounter += 1
            EndIf
            ReDim $aWindows[$iCounter + 1][4]
        EndIf
    Next
    ReDim $aWindows[$iCounter][4]
    Return $aWindows
EndFunc   ;==>GetAllWindow



Edited by abdulrahmanok
Forgot to add code..

Share this post


Link to post
Share on other sites
abdulrahmanok

any Idea?

Share this post


Link to post
Share on other sites
JLogan3o13

@abdulrahmanok you have been around long enough to know better than, and have in fact been warned about, bumping your posts without waiting 24 hours. This may be the most important thing in the world to you, but you need to show some patience.


√-1 2^3 ∑ π, and it was delicious!

Share this post


Link to post
Share on other sites
anthonyjr2

What if you just tried using the built-in window capture UDF instead of an external function?

#include <ScreenCapture.au3>

_GDIPlus_Startup()
;$hBitmap = Capture_Window($MyWindow, 877, 516)
$hBitmap = _ScreenCapture_CaptureWnd(@ScriptDir & "\Test.jpg", $myWindow) ;<=======ADDED this line
;_GDIPlus_ImageSaveToFile($hBitmap, @ScriptDir & "Test.jpg")
_GDIPlus_BitmapDispose($hBitmap)
ShellExecute(@ScriptDir & "Test.jpg")
_GDIPlus_Shutdown()

If you want to tweak the bounds you can do so with extra parameters after the window handle.


UHJvZmVzc2lvbmFsIENvbXB1dGVyZXI=

Share this post


Link to post
Share on other sites
Jos
4 hours ago, abdulrahmanok said:

_GDIPlus_ImageSaveToFile($hBitmap, @ScriptDir & "Test.jpg")

Looks like you are missing a slash (/) in that line.

Jos


Visit the SciTE4AutoIt3 Download page for the latest versions  - Beta files                                How to post scriptsource        Forum Rules

Live for the present,
Dream of the future,
Learn from the past.
  :)

Share this post


Link to post
Share on other sites
UEZ

Try this:

;coded by UEZ 2012
#include <Array.au3>
#include <Constants.au3>
#include <WindowsConstants.au3>
#include <GDIPlus.au3>
#include <IE.au3>
Opt("WinTitleMatchMode", 2)
    Local $oIE = _IECreate("https://mybanner.qu.edu.qa/PROD/twbkwbis.P_WWWLogin")
         opt('winwaitdelay', 0)  ;to make it run a little bit faster
            WinWait("User Login")
                $handle = WinMove("User Login - Internet Explorer","",0,0,877, 516)
            WinSetState("User Login","",@SW_SHOWMINIMIZED)
        _IELoadWait($oIE)
        Sleep(2000)

WinSetState("User Login","",@SW_SHOWDEFAULT)

$aWinlist = GetAllWindow()
$handle = WinMove("Student Employment Time Attendance","",0,0,877, 516)
$MyWindow=WinGetHandle("[Class:IEFrame]")
ConsoleWrite($MyWindow)
For $i = 0 To UBound($aWinlist) - 1
    $hWnd = $aWinlist[$i][1]
    If Not WinActive($hWnd) Then ExitLoop
Next
If $i = UBound($aWinlist) Then Exit MsgBox(0, "Info", "No inactive window found", 10)
Sleep(1000)
_GDIPlus_Startup()
$hBitmap = Capture_Window($MyWindow, 877, 516)
_GDIPlus_ImageSaveToFile($hBitmap, @ScriptDir & "\Test.jpg")
_GDIPlus_BitmapDispose($hBitmap)
ShellExecute(@ScriptDir & "\Test.jpg")
_GDIPlus_Shutdown()
Exit

Func Capture_Window($hWnd, $w, $h)
    Local $hDC_Capture = _WinAPI_GetWindowDC($hWnd)
    Local $hMemDC = _WinAPI_CreateCompatibleDC($hDC_Capture)
    Local $hHBitmap = _WinAPI_CreateCompatibleBitmap($hDC_Capture, $w, $h)
    Local $hObject = _WinAPI_SelectObject($hMemDC, $hHBitmap)
    DllCall("user32.dll", "int", "PrintWindow", "hwnd", $hWnd, "handle", $hMemDC, "int", 0)
    _WinAPI_DeleteDC($hMemDC)
;    Local $hObject = _WinAPI_SelectObject($hMemDC, $hObject)
    _WinAPI_ReleaseDC($hWnd, $hDC_Capture)
    Local $hBmp = _GDIPlus_BitmapCreateFromHBITMAP($hHBitmap)
    _WinAPI_DeleteObject($hHBitmap)
    Return $hBmp
EndFunc   ;==>Capture_Window

Func GetAllWindow() ;code by Authenticity - modified by UEZ
    Local $aWin = WinList(), $aWindows[1][4]
    Local $iStyle, $iEx_Style, $iCounter = 0
    Local $i, $hWnd_state, $aWinPos

    For $i = 1 To $aWin[0][0]
        $iEx_Style = BitAND(_WinAPI_GetWindowLong($aWin[$i][1], $GWL_EXSTYLE), $WS_EX_TOOLWINDOW)
        $iStyle = BitAND(WinGetState($aWin[$i][1]), 2)
        If $iEx_Style <> -1 And Not $iEx_Style And $iStyle Then
            $aWinPos = WinGetPos($aWin[$i][1])
            If $aWinPos[2] > 1 And $aWinPos[3] > 1 Then
                $aWindows[$iCounter][0] = $aWin[$i][0]
                $aWindows[$iCounter][1] = $aWin[$i][1]
                $aWindows[$iCounter][2] = $aWinPos[2]
                $aWindows[$iCounter][3] = $aWinPos[3]
                $iCounter += 1
            EndIf
            ReDim $aWindows[$iCounter + 1][4]
        EndIf
    Next
    ReDim $aWindows[$iCounter][4]
    Return $aWindows
EndFunc   ;==>GetAllWindow




Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
abdulrahmanok

sorry I have tried all same Issue :(



Share this post


Link to post
Share on other sites
abdulrahmanok
1 hour ago, Jos said:

Looks like you are missing a slash (/) in that line.

Jos

slash should be (/) Or (\) ?

@UEZ

did you changed only slash which @Jos mentioned?

Edited by abdulrahmanok

Share this post


Link to post
Share on other sites
UEZ

I added 2x "\" and additionally a Sleep(1000) line.



Does it work now for you?


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
abdulrahmanok

unfortunately no , sometimes get the true screen and sometimes capture blank image

Share this post


Link to post
Share on other sites
abdulrahmanok

false assumption

Edited by abdulrahmanok

Share this post


Link to post
Share on other sites
abdulrahmanok

Is there is any alternate way to screenshot selective window?

Share this post


Link to post
Share on other sites
junkew

I assume you can do a save as html/pdf with IE.AU3 library. So print to a file
https://msdn.microsoft.com/en-us/library/ms970457.aspx

$oIE.ExecWB did do this in the past not used it for a long time (google is your friend)

https://win32com.goermezer.de/microsoft/internet-explorer/printing-webpages-from-internet-explorer-with-python.html

  • dont make it minimized just make it 1 * 1 pixel or 10 * 10 and move it behind your startbar
Edited by junkew
dont make it minimized just make it 1 * 1 pixel or 10 * 10

Share this post


Link to post
Share on other sites
UEZ

Try Ward's nice piece of code:




Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
abdulrahmanok

Thanks for your reply but I have no experiance with c++ codes and I couldn't find  $oIE.ExecWB Autoit code expamles  (after google it)
whatever I searched also about "autoit save page as pdf" but most of codes doesn't work or it doesn't do what is want.

Share this post


Link to post
Share on other sites
abdulrahmanok

@UEZ Thank you for mention to this great way but unfortunately after many tries I known that this way can run by load ULR in separate GUI and then capture it  and in my case it will fails to get page when I use site need to login for example capture some pages after already login to my college page or take screen shot of Autoit account details page.

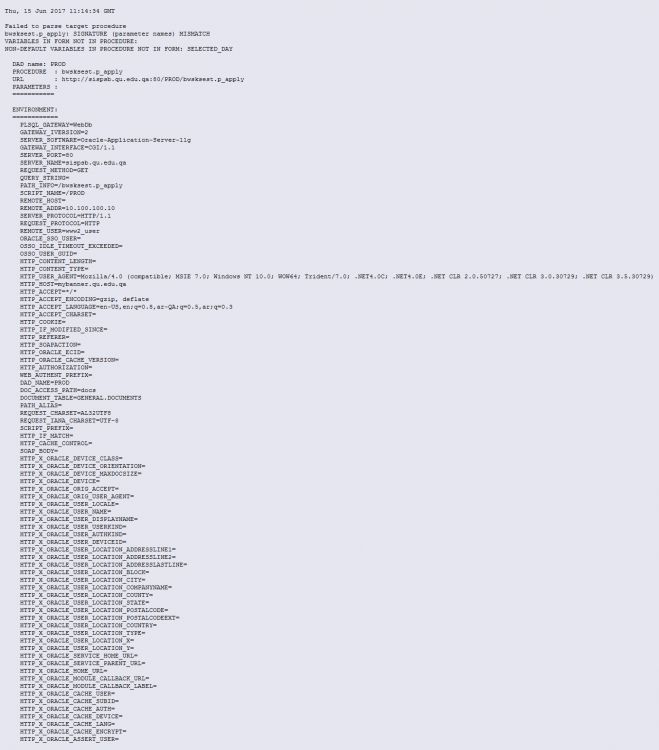

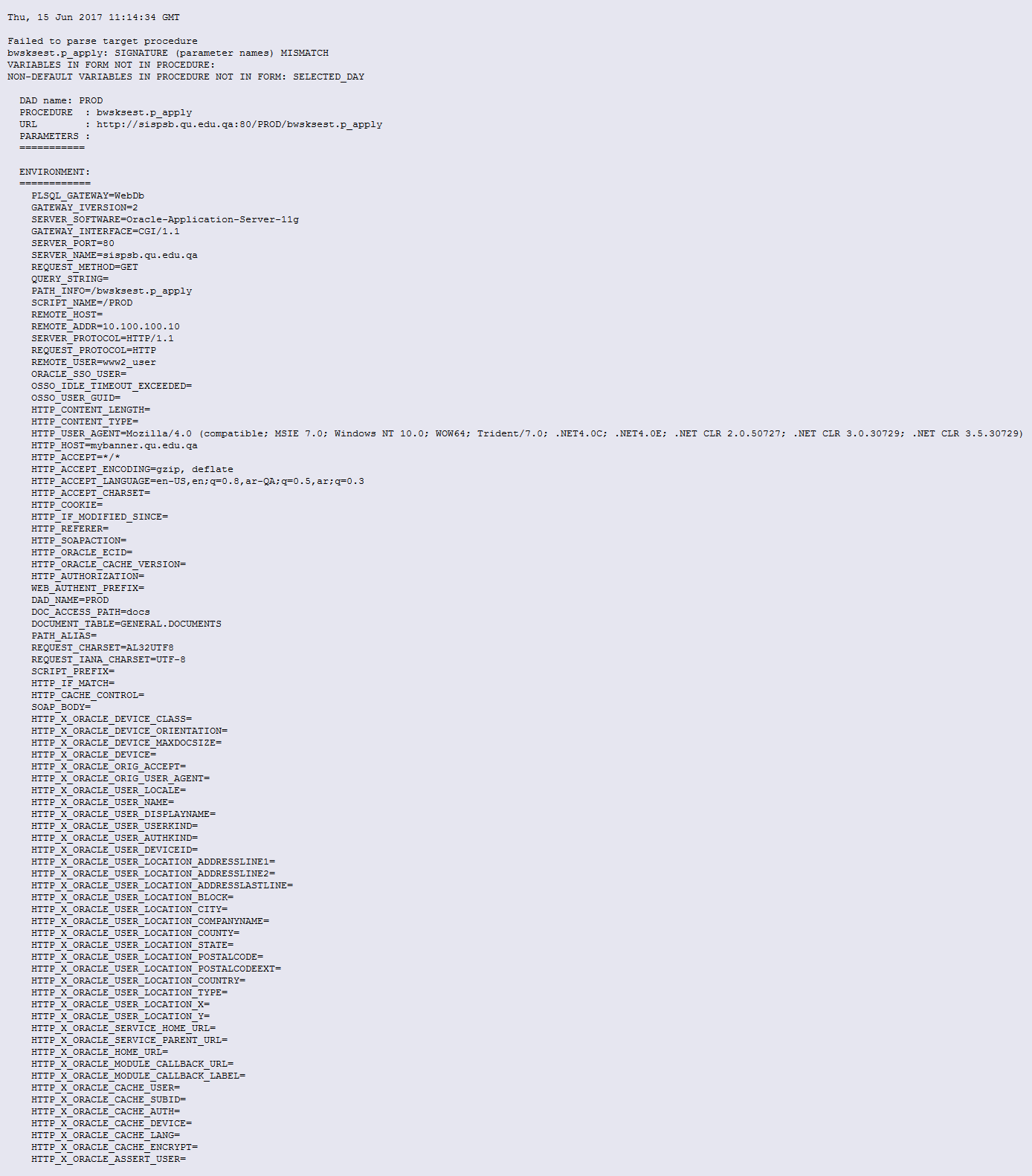

Result of current captured page:



Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Similar Content

    • jantograaf
      By jantograaf
      Hi all,
      I'm having some trouble restoring a program which uses a normal AutoIT-GUI and is used as a ToolKit for our customers to open different (external) tools, check their network connections or ping different destinations. Almost all customers are running this script on Win7 x64.
      What do I want to do?
      When the program is already running and the user tries to start it for a second time, it should exit the second instance after activating/restoring the first instance.
      What did I do to integrate this?
      I used a little piece of script found on the forums to prevent opening a second instance and modified it as follows:
      $g_szVersion = "VSOL ToolKit" If WinExists($g_szVersion) Then Local $gState = WinGetState($g_szVersion) MsgBox(0,"","gState = " & $gState) ;For debugging purposes WinSetState($g_szVersion,"",@SW_SHOW) MsgBox(0,"","gState = " & $gState) ;For debugging purposes WinSetState($g_szVersion,"",@SW_RESTORE) MsgBox(0,"","gState = " & $gState) ;For debugging purposes WinActivate($g_szVersion) Exit EndIf AutoItWinSetTitle($g_szVersion) I have tried it with only the @SW_SHOW, only the @SW_RESTORE, both of them in a different order, same difference, it doesn't work.
      What does happen then?
      It detects the current state (when it's minimized) as '5', which means enabled and hidden. After setting the state to show, the state changes to 7. Restoring doesn't change the state. But what is really odd, is that the window doesn't appear but AutoIt seems to create a néw window with the same title as the existing one.

      It doesn't matter if the window was originally minimized by clicking the minimize button in the GUI or by a line of code in my script. For example, when users open a software package from within my script, a similar function to this one will be called:
      Func VSOL_FFTOOLS_SHOW_DOWNLOADS() GUISetState(@SW_MINIMIZE,$VSOL_BACKEND) ShellExecute(@UserProfileDir & "\Downloads") EndFunc The only thing that does work, is when the window is running in a non-minimized state (somewhere behind the current window), it gets activated and receives the focus when trying to start the second instance.
      If anyone could help me out with this one, I'd be forever thankful :-)
      Thanks in advance!
      Kind regards,
      Jan Geurts
    • SteveStrop
      By SteveStrop
      Hi

      I'm trying to:
      1) Open a hidden browser session
      2) Do some stuff in the background
      3)  Make the hidden window visible

      This is my code:

      Opt("WinTitleMatchMode", 2) ;1=start, 2=subStr, 3=exact, 4=advanced, -1 to -4=Nocase $oIE = _IECreate("https://www.google.co.uk/",0,0) $oSearchBox = _IEGetObjById($oIE, "lst-ib") $oSearchBox.innertext = "AutoIT" $oForm = _IEFormGetObjByName($oIE,"f") _IEFormSubmit($oForm) WinSetState("Google","",@SW_SHOW)
      It dosen't work
      The last line does make the window visible but it is an empty greyed out box that disappears as soon as I click on it.
      I have a sort of workaround that hides the browser window as soon as I have created it which works fine:
      $oIE = _IECreate("https://www.google.co.uk/") WinSetState("Google","",@SW_HIDE) . . . WinSetState("Google","",@SW_SHOW) But this looks a bit pants as the newly created window flashes on then off of the screen.
      Am I using the wrong method to make the browser window visible?
      Thanks


    • FrancescoDiMuro
      By FrancescoDiMuro
      Good morning
      I would like to know if I can use the Excel UDF to manipulating a .csv file without having Office installed on the PC I'm going to work...
      I read somewhere that it could be done, but I'm here to ask and be sure of what I remember...
      I'd like to post another question...
      How can I retrieve the handle of a windows from a PID of an .exe?
      I have my script that does a ShellExecute ( which returns the PID of the .exe ), and then, switching a parameter read from a .ini file, adapt the Window on the screen ( Maximize, Minimize, On Top )...
      I tried, but without having success with this:

      #Region ;**** Directives created by AutoIt3Wrapper_GUI **** #AutoIt3Wrapper_Outfile_x64=prova.exe #EndRegion ;**** Directives created by AutoIt3Wrapper_GUI **** #include <ButtonConstants.au3> #include <GUIConstantsEx.au3> #include <StaticConstants.au3> #include <WindowsConstants.au3> #include <MsgBoxConstants.au3> #include <AutoItConstants.au3> #include <WinAPIEx.au3> #include <Array.au3> Local $sFileConfigurazione = @ScriptDir & "\configurazione_exe.ini" If(FileExists($sFileConfigurazione)) Then Local $aSezioniIni = IniReadSection($sFileConfigurazione, "CONFIGURAZIONE_EXE") If @error Then MsgBox($MB_ICONERROR, "Errore!", "Errore durante l'apertura del file: " & @CRLF & $sFileConfigurazione & @CRLF & "Errore: " & @error) Else ; Lancio dell'applicativo indicato nel file di configurazione Local $iPID = ShellExecute($aSezioniIni[1][1]) Local $hWnd If($iPID <> 0) Then Local $aWinList = WinList() For $i = 1 To $aWinList[0][0] If(WinGetProcess($aWinList[$i][1] = $iPID)) Then $hWnd = $aWinList[$i][1] EndIf Next Switch($aSezioniIni[2][1]) Case $aSezioniIni[2][1] = "MIN" WinSetState($hWnd, "", @SW_MINIMIZE) Case $aSezioniIni[2][1] = "MAX" WinSetState($hWnd, "", @SW_MAXIMIZE) Case $aSezioniIni[2][1] = "TOP" WinSetOnTop($hWnd, "", $WINDOWS_ONTOP) EndSwitch EndIf EndIf EndIf It just set on top the .exe I'm launching...
      Thanks
    • computergroove
      By computergroove
      #include <IE.au3> _IECreate("www.google.com") Sleep(5000) WinSetState("Google - Internet Explorer","",@SW_MAXIMIZE) The browser window opens and it goes to google.com but it will not maximize. I have also tried:
      #include <IE.au3> Local $Browser = _IECreate("www.google.com") Sleep(5000) WinSetState($Browser,"",@SW_MAXIMIZE) Also doesn't work. I'm running windows 8.1 x64 and internet explorer 11.0.9600.16384. Help!
    • badapple89
      By badapple89
      Hi guys,
      I have a program that when minimised to task-bar an using WinGetState returns 37. Maximised, enabled and exists?
      Using WinSetState ("[CLASS:TfrmDesktop]", "", @SW_MAXIMIZE) returns 39. Maximised, enabled and exists and visible?
      But will not maximise the window.
      However 39 is what it normally is  when maximised and using the program
      Just using @SW_RESTORE = 7 but does not open window (obviously)
      and using @SW_RESTORE then  @SW_MAXIMIZE = 39 but then cant minimize.
      and using @SW_RESTORE then  @SW_MAXIMIZE then @SW_ENABLE = 39 but then cant minimize.
      Tried this and nothing WinMove("[CLASS:TfrmDesktop]",0,0,@Desktopwidth, @DesktopHeight)
      Really strange as not sure what else to try.
      Thanks guys
×
