CaptainBeardsEyesBeard

How would I find out if a tick box is already ticked? ?

Recommended Posts

CaptainBeardsEyesBeard

Hey guys

I have this tick box and on my test if it's already ticked I want to do nothing but if it's not ticked I want to tick it

I do this via a mouse click which is fine.

However the problem I have is the test needs to run 30+ times and the tickbox remains ticked if it was ticked the last time

I suppose I could tick it once then leave it however it'd be nice if there was  a way to tell if the tick box was ticked instead of relying on MouseClicks









Share this post


Link to post
Share on other sites
KickStarter15
Posted (edited)

@CaptainBeardsEyesBeard,

Can you post your code with issue so we can further see what you want. And if the tick box you mean is a check box, maybe $GUI_CHECKED and $GUI_UNCHECKED is the one you are looking for. Or maybe not.^_^

Edited by KickStarter15

Programming is "To make it so simple that there are obviously no deficiencies" or "To make it so complicated that there are no obvious deficiencies" by C.A.R. Hoare.

Share this post


Link to post
Share on other sites
CaptainBeardsEyesBeard

Sure...

I'm not sure how to use it correctly and it doesn't seem to work right now





Local $IsChecked
If $IsChecked = GuiCtrlRead("ThunderRT6CheckBox") = $GUI_CHECKED Then
   Navigation_Click_Billing_Manager_ProformaEdit_InfoOnlyProforma_OverrideProformaTemplateField()
Else


EndIf



Share this post


Link to post
Share on other sites
RTFC
If GuiCtrlRead("ThunderRT6CheckBox")=$GUI_CHECKED Then
   Navigation_Click_Billing_Manager_ProformaEdit_InfoOnlyProforma_OverrideProformaTemplateField()
Else

EndIf



Share this post


Link to post
Share on other sites
CaptainBeardsEyesBeard
Posted (edited)

Hmm I tried that. However it stills seems to click the tickbox regardless? Is there a better command for clicking a tickbox rather than using MouseClicks?



Local $Gui_Checked = false

If GuiCtrlRead("ThunderRT6CheckBox")= $Gui_Checked Then
   Navigation_Click_Billing_Manager_ProformaEdit_InfoOnlyProforma_UseBillTemplate()
Else

EndIf

Navigation_Click_Billing_Manager_ProformaEdit_InfoOnlyProforma_OverrideProformaTemplateField()



Edited by CaptainBeardsEyesBeard

Share this post


Link to post
Share on other sites
Xandy
Posted (edited)

GUICtrlRead($idControl) only reads GUI controls written from your AutoIt script.

To read the state of the 3rd party checkbox, maybe something like this?

$isChecked = ControlCommand("[CLASS:#32770]", "", "[CLASS:Button; INSTANCE:4]", "IsChecked"))

Ref Link

You'll need to replace parameters with your control specifications.

Edited by Xandy

Share this post


Link to post
Share on other sites
Xandy
Posted (edited)

You asked about ticking checkboxs.  ControlCommand() above with a different Command parameter, or ControlSend(), ControlClick(), there are other methods that I have forgotten about.

Edited by Xandy

Share this post


Link to post
Share on other sites
Skeletor

@CaptainBeardsEyesBeard is this what you are looking for?



What I have done is wrap the If...Then into a Function. This allows for fluid checking of the box. Each time the box is ticked, you get notified.

To understand this better, each time you click on the check box, A status which the GuiCtrlRead collects, is inserted into the Func (Function).
The Func (Function) then parsing this information into the If...Then...Else "query" which entails sets off an action. In this case, changes the label.



Code below:



#include <ButtonConstants.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#Region ### START Koda GUI section ### Form=
$Form1 = GUICreate("Form1", 210, 220, 192, 124)
$Checkbox1 = GUICtrlCreateCheckbox("", 40, 112, 97, 17)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $Checkbox1
            $Read = GUICtrlRead($Checkbox1)
            Marker()

    EndSwitch
WEnd


Func Marker()
    If $Read = $GUI_CHECKED Then
        GUICtrlSetData($Checkbox1, "It is checked")
    Else
        GUICtrlSetData($Checkbox1, "It is empty")
    EndIf
EndFunc   ;==>Marker






Kind Regards
Skeletor

"I need coffee to turn me back to a human"

Microsoft Office Splash Screen | Basic Notepad Program (Beginner) | Wondering who uses AutoIt and what it can be used for ?



Share this post


Link to post
Share on other sites
KickStarter15

@CaptainBeardsEyesBeard,

You are asking on how to ticked and unticked these checkboxes, so it would be this way (example from help file)::)

#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>

Example()

Func Example()
    ; Create a GUI with various controls.
    Local $hGUI = GUICreate("Example", 300, 200)

    ; Create a checkbox control.
    Local $idCheckbox = GUICtrlCreateCheckbox("Standard Checkbox", 10, 10, 185, 25)
    Local $idClose = GUICtrlCreateButton("Close", 210, 170, 85, 25)

    ; Display the GUI.
    GUISetState(@SW_SHOW, $hGUI)

    ; Loop until the user exits.
    While 1
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE, $idClose
                ExitLoop

            Case $idCheckbox
                If _IsChecked($idCheckbox) Then
                    MsgBox($MB_SYSTEMMODAL, "", "The checkbox is checked.", 0, $hGUI)
                Else
                    MsgBox($MB_SYSTEMMODAL, "", "The checkbox is not checked.", 0, $hGUI)
                EndIf

        EndSwitch
    WEnd

    ; Delete the previous GUI and all controls.
    GUIDelete($hGUI)
EndFunc   ;==>Example

Func _IsChecked($idControlID)
    Return BitAND(GUICtrlRead($idControlID), $GUI_CHECKED) = $GUI_CHECKED
EndFunc   ;==>_IsChecked

Now if you want something aside from ticking these checkboxes, please elaborate more on your concern so that we can provide more suggestions and if possible to help you more.^_^



  • Like 1

Programming is "To make it so simple that there are obviously no deficiencies" or "To make it so complicated that there are no obvious deficiencies" by C.A.R. Hoare.

Share this post


Link to post
Share on other sites
TheDcoder

I think we are confusing ourselves if OP wants to check if a checkbox is ticked in the GUI created by his script or if he is trying to automate another application. It looks like the latter but to just make sure:

@CaptainBeardsEyesBeard Are you trying to automate a program or are you working with your own GUI?

  • Like 2

AutoIt.4.Life Clubrooms - Life is like a Donut (secret key)

Spoiler

My contributions to the AutoIt Community

If I have hurt or offended you in anyway, Please accept my apologies, I never (regardless of the situation) mean to do that to anybody!!!


PLEASE JOIN ##AutoIt AND HELP THE IRC AUTOIT COMMUNITY!

Share this post


Link to post
Share on other sites
Skeletor

@TheDcoder, You right... The OP wants to make a program that will click a handle. The handle been a check box...

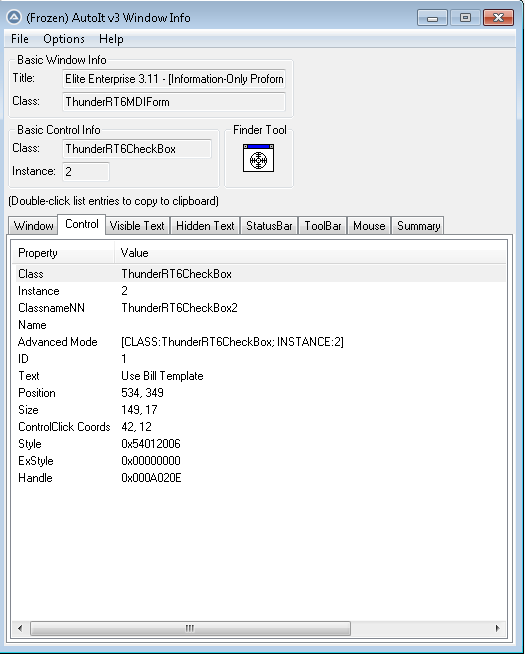

Hmmm. I think the OP will need to look more into the AU3Info, tell Autoit to bring that to the for-front and execute the command to find the checkboxes...

I think!


Kind Regards
Skeletor

"I need coffee to turn me back to a human"

Microsoft Office Splash Screen | Basic Notepad Program (Beginner) | Wondering who uses AutoIt and what it can be used for ?



Share this post


Link to post
Share on other sites
BrewManNH
15 hours ago, TheDcoder said:

I think we are confusing ourselves if OP wants to check if a checkbox is ticked in the GUI created by his script or if he is trying to automate another application. It looks like the latter but to just make sure:

AutoIt doesn't produce windows with that type of class shown in the original post, so it's certain it's not an AutoIt program being automated. Seeing as how the checkbox has an ID of ThunderRT6CheckBox, there's no way to use GUICtrlRead on it either, so lets stop posting code using it.


If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.
Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag Gude
How to ask questions the smart way!

I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from.

Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays.  -  ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script.  -  Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label.  -  _FileGetProperty - Retrieve the properties of a file  -  SciTE Toolbar - A toolbar demo for use with the SciTE editor  -  GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI.  -   Latin Square password generator

Share this post


Link to post
Share on other sites
Skeletor

A quick Google search shows this question has been appearing in many forums... most common in the Visual Studio forum.
Weird... wonder what form or application is this ThunderRT6CheckBox belonging to for it to have so many posts and all relating to "ticking the box".


Kind Regards
Skeletor

"I need coffee to turn me back to a human"

Microsoft Office Splash Screen | Basic Notepad Program (Beginner) | Wondering who uses AutoIt and what it can be used for ?



Share this post


Link to post
Share on other sites
BrewManNH

That type of gui and control are created by visual basic if I remember correctly.

Use the following to see if it helps.





  • Like 1

If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.
Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag Gude
How to ask questions the smart way!

I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from.

Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays.  -  ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script.  -  Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label.  -  _FileGetProperty - Retrieve the properties of a file  -  SciTE Toolbar - A toolbar demo for use with the SciTE editor  -  GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI.  -   Latin Square password generator

Share this post


Link to post
Share on other sites
AdamUL

I have worked with applications that use Thunder Forms.  You can use ControlCommand to work with them.  Give this code sample a try.

Global Const $sDialogTitle = "[CLASS:ThunderRT6MDIForm]"
Global Const $sDialogText = ""
Global Const $sControlUseBillTemplate = "[CLASS:ThunderRT6CheckBox; TEXT:Use Bill Template]"

If ControlCommand($sDialogTitle, $sDialogText, $sControlUseBillTemplate, "IsChecked", "") Then
    ControlCommand($sDialogTitle, $sDialogText, $sControlUseBillTemplate, "UnCheck", "")

    MsgBox(0, "Test", ControlCommand($sDialogTitle, $sDialogText, $sControlUseBillTemplate, "IsChecked", ""))
EndIf



Adam



  • Like 1
