UIAutomation - Can't get the value of a Text control in a ListItem

Recommended Posts

Good afternoon everyone :)
Third day into learning UIAutomation and I am struggling a bit to read the value of a Text control which is contained by a ListItem control.
I am trying to learn UIAutomation following @LarsJ's UIAutomation tutorial, so I'd be very happy to get some advices without mixing this approach with the @junkew's one.

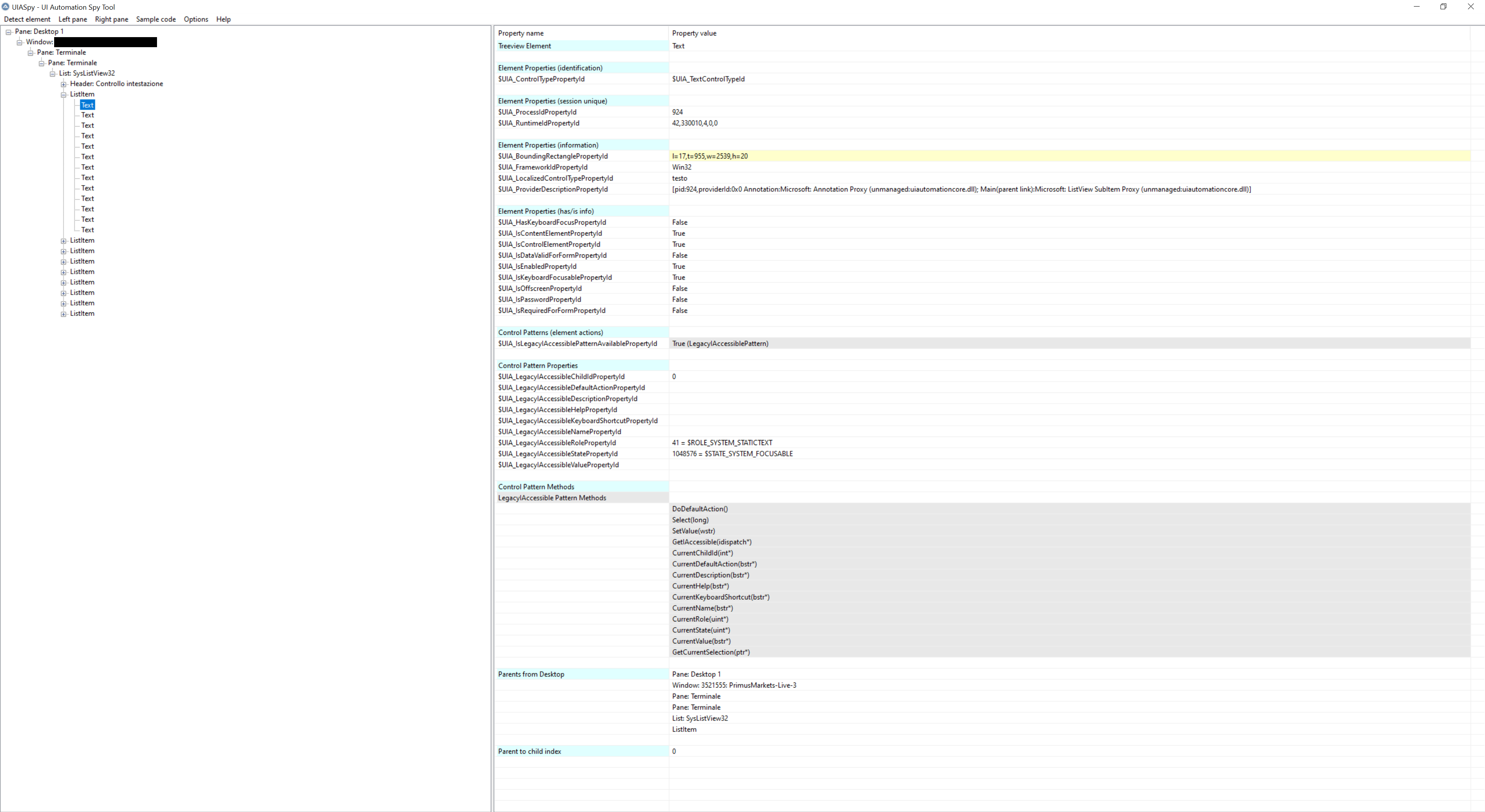

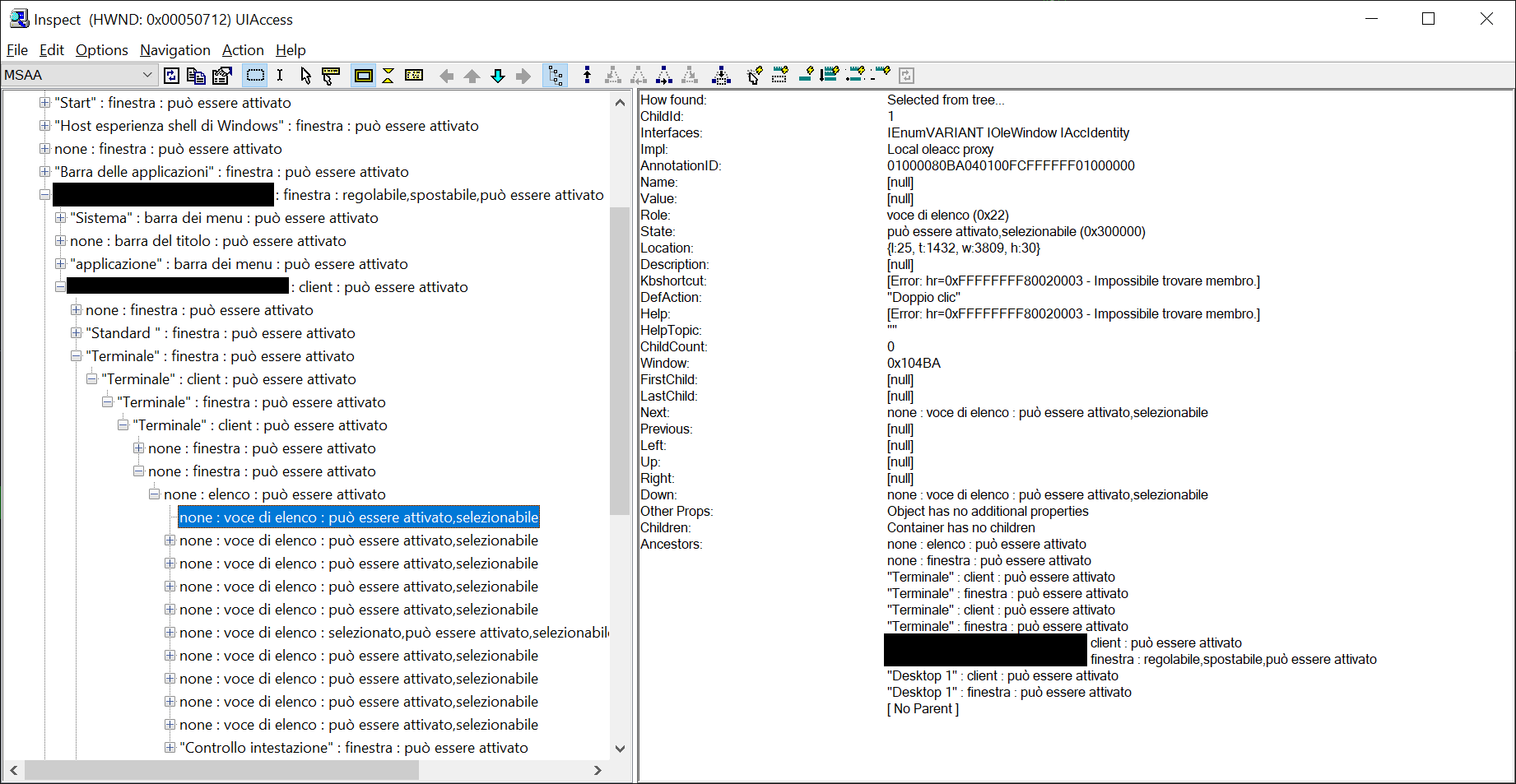

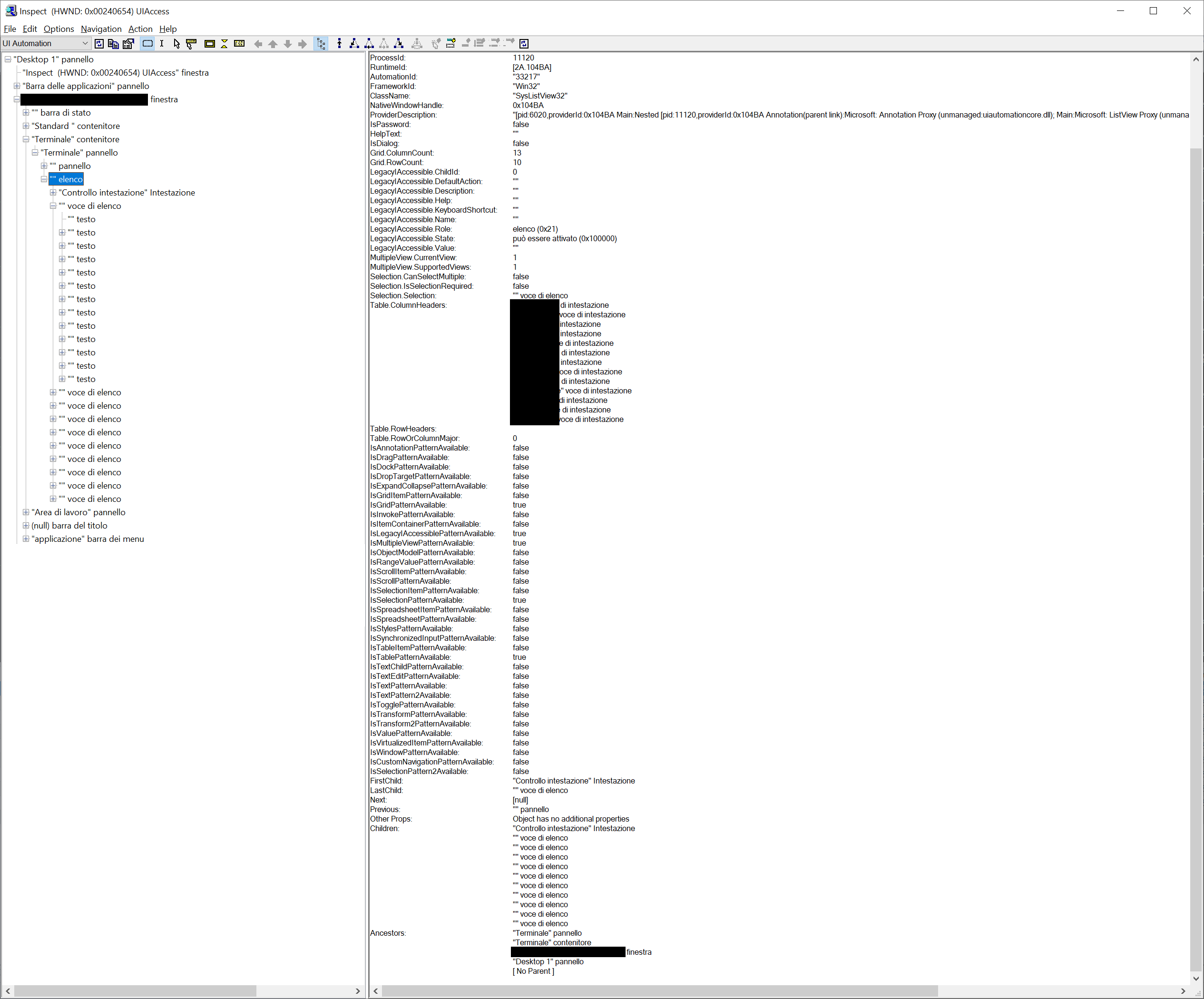

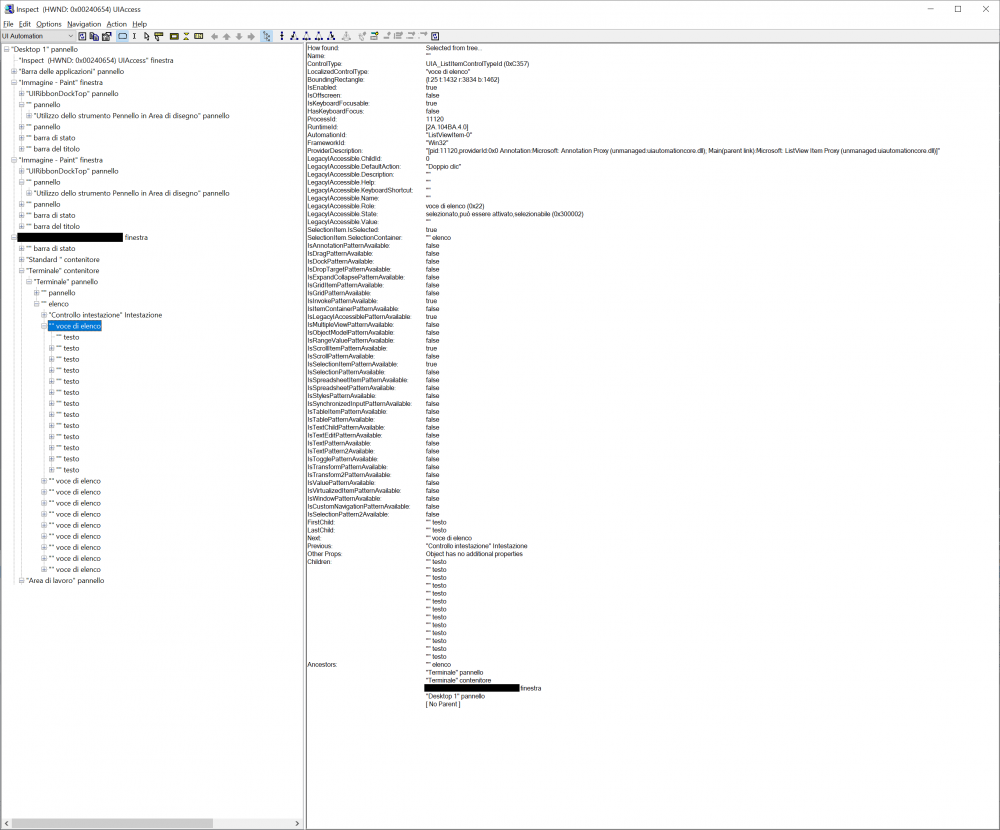

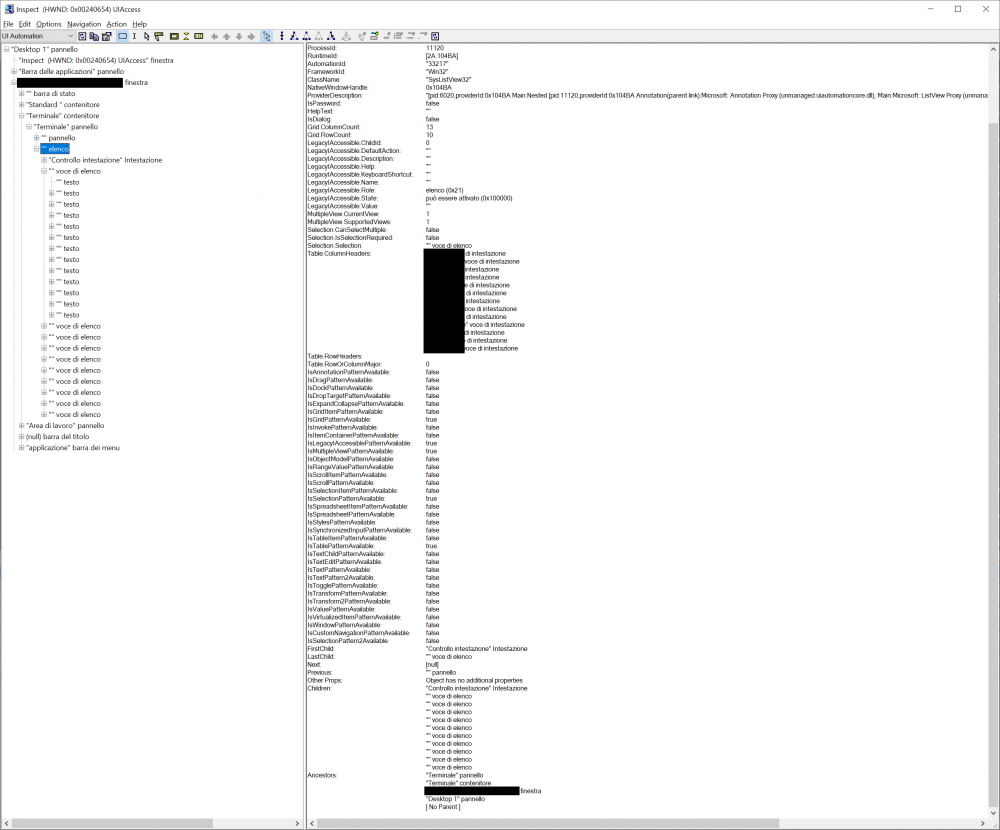

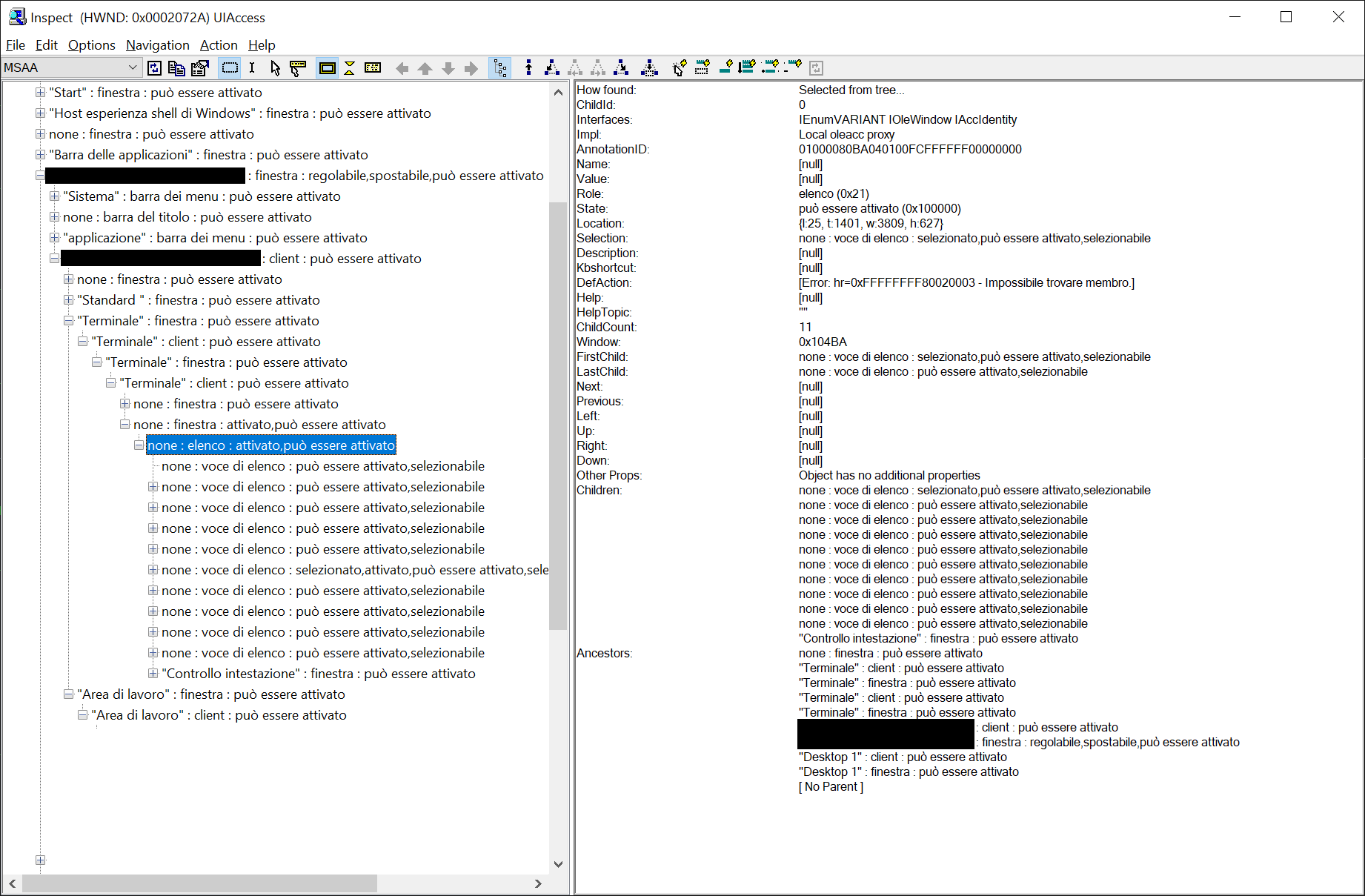

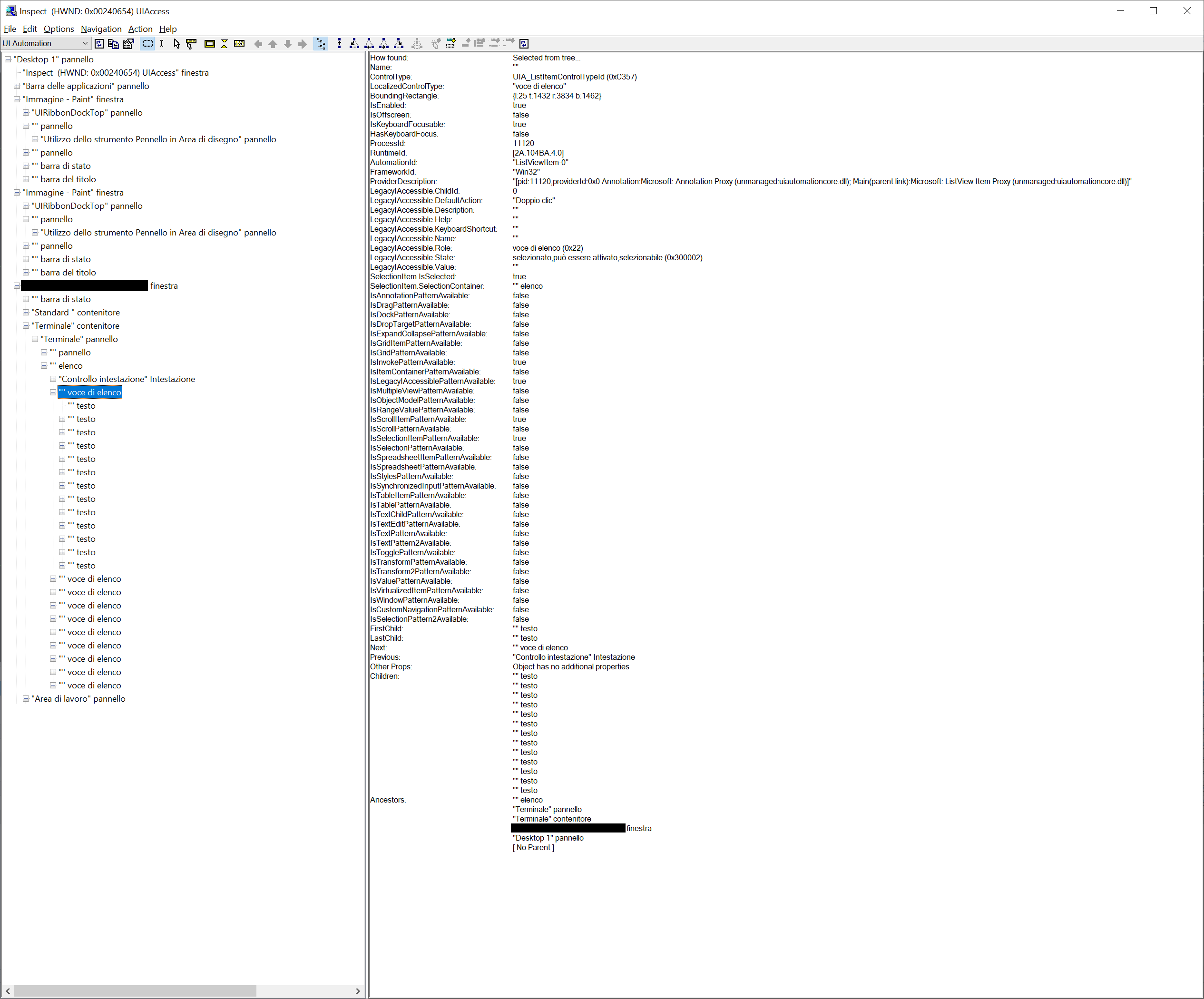

Below, there are the ListItem and the Text control inspected with UIASpy.

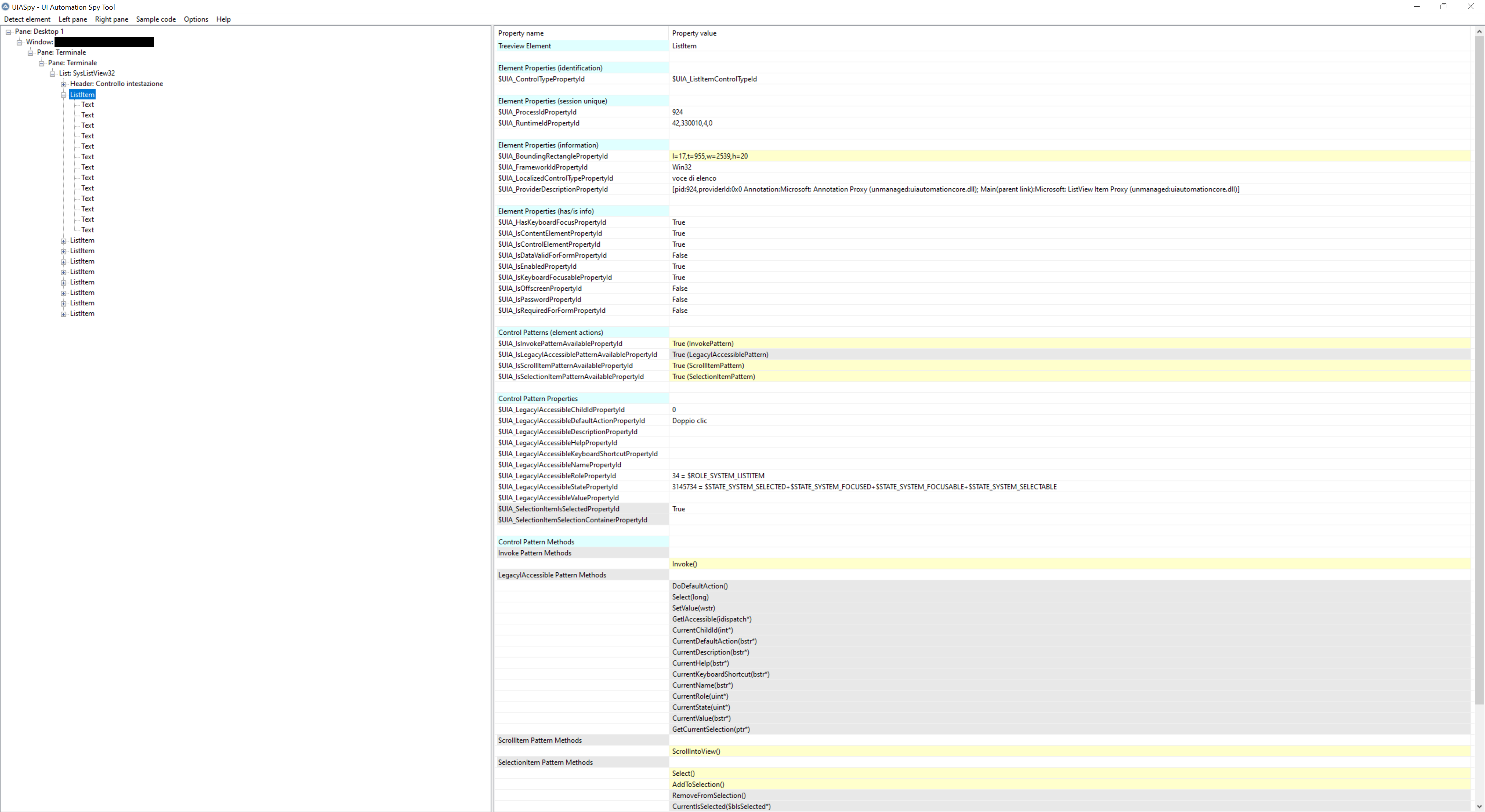

ListItem control:

Spoiler

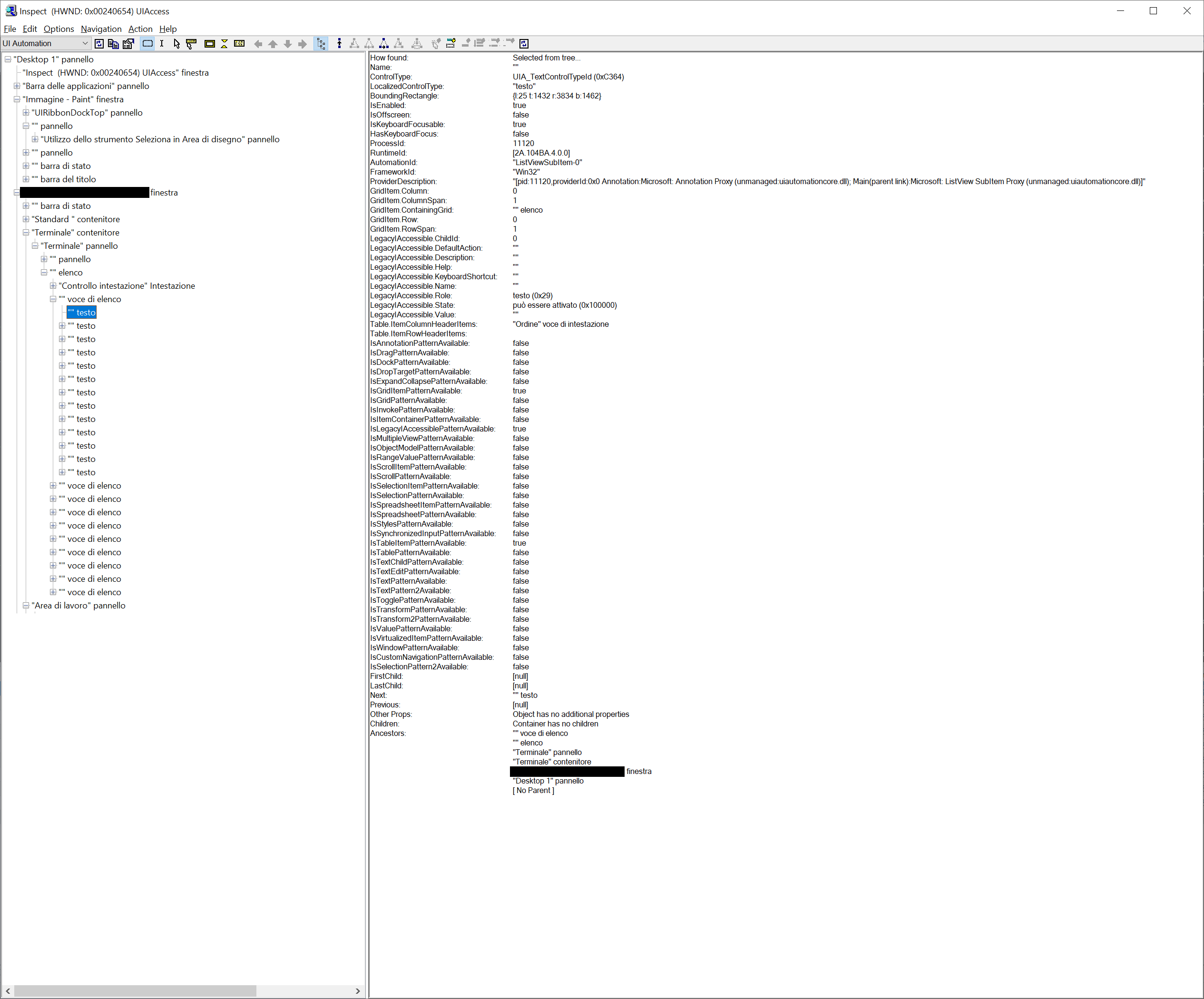

Text control:

Spoiler



This is the code I'm using to read the various Text controls:

Spoiler
#include "CUIAutomation2.au3"
#include <GuiListView.au3>

Opt("MustDeclareVars", 1)

Test()

Func Test()

    Local $oUIAutomation, _
          $pDesktop, _
          $oDesktop, _
          $pWindow, _
          $oWindow, _
          $pCondition, _
          $pPane1, _
          $oPane1, _
          $pPane2, _
          $oPane2, _
          $pListView, _
          $oListView, _
          $pListItems, _
          $oListItems, _
          $iListItems, _
          $pListItem, _
          $oListItem, _
          $pTextControls, _
          $oTextControls, _
          $iTextControls, _
          $pText, _
          $oText, _
          $sText, _
          $oValue, _
          $pValue

    ConsoleWrite(@CRLF & "----- UIAutomation Object -----" & @CRLF)

    ; Create UI Automation object
    $oUIAutomation = ObjCreateInterface($sCLSID_CUIAutomation, $sIID_IUIAutomation, $dtagIUIAutomation)
    If Not IsObj($oUIAutomation) Then Return ConsoleWrite("$oUIAutomation ERR" & @CRLF)
    ConsoleWrite("$oUIAutomation OK" & @CRLF)

    ConsoleWrite("----- Desktop -----" & @CRLF)

    ; Get Desktop element
    Global $pDesktop, $oDesktop
    $oUIAutomation.GetRootElement($pDesktop)
    $oDesktop = ObjCreateInterface($pDesktop, $sIID_IUIAutomationElement, $dtagIUIAutomationElement)
    If Not IsObj($oDesktop) Then Return ConsoleWrite("$oDesktop ERR" & @CRLF)
    ConsoleWrite("$oDesktop OK" & @CRLF)

    ConsoleWrite("----- Main Window -----" & @CRLF)

    $oUIAutomation.CreatePropertyCondition($UIA_ClassNamePropertyId, "WindowName", $pCondition)
    If Not $pCondition Then Return ConsoleWrite("$pCondition ERR" & @CRLF)
    ConsoleWrite("$pCondition OK" & @CRLF)

    $oDesktop.FindFirst($TreeScope_Descendants, $pCondition, $pWindow)
    $oWindow = ObjCreateInterface($pWindow, $sIID_IUIAutomationElement, $dtagIUIAutomationElement)
    If Not IsObj($oWindow) Then Return ConsoleWrite("$oWindow ERR" & @CRLF)
    ConsoleWrite("$oWindow OK" & @CRLF)

    ConsoleWrite("----- First Pane -----" & @CRLF)

    ; Why these two instructions are not working?
    ; $oUIAutomation.CreatePropertyCondition($UIA_ClassNamePropertyId, "AfxControlBar140s", $pCondition)
    ; $oUIAutomation.CreatePropertyCondition($UIA_AutomationIdPropertyId, "59422", $pCondition)

    $oUIAutomation.CreatePropertyCondition($UIA_ControlTypePropertyId, $UIA_PaneControlTypeId, $pCondition)
    If Not $pCondition Then Return ConsoleWrite("$pCondition ERR" & @CRLF)
    ConsoleWrite("$pCondition OK" & @CRLF)

    $oWindow.FindFirst($TreeScope_Descendants, $pCondition, $pPane1)
    $oPane1 = ObjCreateInterface($pPane1, $sIID_IUIAutomationElement, $dtagIUIAutomationElement)
    If Not IsObj($oPane1) Then Return ConsoleWrite("$oPane1 ERR" & @CRLF)
    ConsoleWrite("$oPane1 OK" & @CRLF)

    ConsoleWrite("----- Second Pane -----" & @CRLF)

    ; Same question of Pane1
    ; $oUIAutomation.CreatePropertyCondition($UIA_ClassNamePropertyId, "Afx:00790000:b:00010003:00000000:00000000", $pCondition)
    ; $oUIAutomation.CreatePropertyCondition($UIA_AutomationIdPropertyId, "81", $pCondition)

    $oUIAutomation.CreatePropertyCondition($UIA_ControlTypePropertyId, $UIA_PaneControlTypeId, $pCondition)
    If Not $pCondition Then Return ConsoleWrite("$pCondition ERR" & @CRLF)
    ConsoleWrite("$pCondition OK" & @CRLF)

    $oPane1.FindFirst($TreeScope_Descendants, $pCondition, $pPane2)
    $oPane2 = ObjCreateInterface($pPane2, $sIID_IUIAutomationElement, $dtagIUIAutomationElement)
    If Not IsObj($oPane2) Then Return ConsoleWrite("$oPane2 ERR" & @CRLF)
    ConsoleWrite("$oPane2 OK" & @CRLF)

    ConsoleWrite("----- ListView -----" & @CRLF)

    #cs

    ; The ListView, even if has two parents pane, is not found is the second one, but in the first one

    ; Same question of Pane1
    ; $oUIAutomation.CreatePropertyCondition($UIA_ClassNamePropertyId, "SysListView32", $pCondition)
    ; $oUIAutomation.CreatePropertyCondition($UIA_AutomationIdPropertyId, "33217", $pCondition)
    ; $oUIAutomation.CreatePropertyCondition($UIA_ControlTypePropertyId, $UIA_ListControlTypeId, $pCondition)
    ; $oUIAutomation.CreatePropertyCondition($UIA_NativeWindowHandlePropertyId, "0x0005091A", $pCondition)

    $oUIAutomation.CreatePropertyCondition($UIA_RuntimeIdPropertyId, "330010", $pCondition)
    If Not $pCondition Then Return ConsoleWrite("$pCondition ERR" & @CRLF)
    ConsoleWrite("$pCondition OK" & @CRLF)

    $oPane2.FindFirst($TreeScope_Children, $pCondition, $pListView)
    $oListView = ObjCreateInterface($pListView, $sIID_IUIAutomationElement, $dtagIUIAutomationElement)
    If Not IsObj($oListView) Then Return ConsoleWrite("$oListView ERR" & @CRLF)
    ConsoleWrite("$oListView OK" & @CRLF)

    #ce

    $oUIAutomation.CreatePropertyCondition($UIA_ClassNamePropertyId, "SysListView32", $pCondition)
    If Not $pCondition Then Return ConsoleWrite("$pCondition ERR" & @CRLF)
    ConsoleWrite("$pCondition OK" & @CRLF)

    $oPane1.FindFirst($TreeScope_Children, $pCondition, $pListView)
    $oListView = ObjCreateInterface($pListView, $sIID_IUIAutomationElement, $dtagIUIAutomationElement)
    If Not IsObj($oListView) Then Return ConsoleWrite("$oListView ERR" & @CRLF)
    ConsoleWrite("$oListView OK" & @CRLF)

    ConsoleWrite("----- List Items -----" & @CRLF)

    $oUIAutomation.CreatePropertyCondition($UIA_ControlTypePropertyId, $UIA_ListItemControlTypeId, $pCondition)
    If Not $pCondition Then Return ConsoleWrite("$pCondition ERR" & @CRLF)
    ConsoleWrite("$pCondition OK" & @CRLF)

    $oListView.FindAll($TreeScope_Children, $pCondition, $pListItems)
    $oListItems = ObjCreateInterface($pListItems, $sIID_IUIAutomationElementArray, $dtagIUIAutomationElementArray)
    $oListItems.Length($iListItems)
    If Not $iListItems Then Return ConsoleWrite("$oListItems ERR" & @CRLF)
    ConsoleWrite("$oListItems OK" & @CRLF)

    For $i = 0 To $iListItems - 1

        $oListItems.GetElement($i, $pListItem)
        $oListItem = ObjCreateInterface($pListItem, $sIID_IUIAutomationElement, $dtagIUIAutomationElement)

        $oUIAutomation.CreatePropertyCondition($UIA_ControlTypePropertyId, $UIA_TextControlTypeId, $pCondition)
        If Not $pCondition Then Return ConsoleWrite("$pCondition ERR" & @CRLF)
        ConsoleWrite("$pCondition OK" & @CRLF)

        ConsoleWrite("----- Text Controls -----" & @CRLF)

        $oListItem.FindAll($TreeScope_Descendants, $pCondition, $pTextControls)
        $oTextControls = ObjCreateInterface($pTextControls, $sIID_IUIAutomationElementArray, $dtagIUIAutomationElementArray)
        $oTextControls.Length($iTextControls)
        If Not $iTextControls Then Return ConsoleWrite("$oTextControls ERR" & @CRLF)
        ConsoleWrite("$oTextControls OK" & @CRLF)

        For $j = 0 To $iTextControls - 1

            $oTextControls.GetElement($j, $pText)
            $oText = ObjCreateInterface($pText, $sIID_IUIAutomationElement, $dtagIUIAutomationElement)

            ; None of these methods are working
            ; $oText.GetCurrentPropertyValue($UIA_NamePropertyId, $sText)
            ; $oText.GetCurrentPropertyValue($UIA_ValueValuePropertyId, $sText)

            $oText.GetCurrentPattern($UIA_LegacyIAccessiblePatternId, $pValue)
            $oValue = ObjCreateInterface($pValue, $sIID_IUIAutomationLegacyIAccessiblePattern, $dtagIUIAutomationLegacyIAccessiblePattern)
            If Not IsObj($oValue) Then Return ConsoleWrite("$oValue ERR" & @CRLF)
            ConsoleWrite("$oValue OK" & @CRLF)

            ; $oValue.CurrentName($sText)
            $oValue.CurrentValue($sText)

            ConsoleWrite("Value of [" & $i & "," & $j & "] item: " & $sText & @CRLF)
        Next

    Next

ConsoleWrite(@CRLF)

EndFunc
