ListView save/load checked scenarios - need an idea


Recommended Posts

Hello all,

I have an ListView with checkboxes and about 300 - 400 items. Entire list is loaded (from ini) every time and I need to store and load "checked scenario" by name.

Store list of checked indexless is a bad idea because in the case of sorting the list - scenario will no longer be correct.

What is the best way to store list of various scenarios of checked items?

Base code and database ini are attached

Example_LV_Store_Scenario.au3 Example.ini

Link to post
Share on other sites

I'd look into using an SQLite database. You could setup a database with columns Index, Group, Test Name, Status, IsChecked and Scenario. It would make it much easier for you to save, update and load.

Link to post
Share on other sites
6 hours ago, Luke94 said:

I'd look into using an SQLite database

Never been used this UDF. It not seems like overkill to use it?

In any case, I have no idea how to do it at the moment.

Another idea / example?



Link to post
Share on other sites
  • 2 weeks later...

Here is the solution, based on presumption that third ListView column (Name) is unique:

#cs ----------------------------------------------------------------------------

 AutoIt Version: 3.3.14.5
 Author:         myName

 Script Function:
    Template AutoIt script.
List
#ce ----------------------------------------------------------------------------

#include <GUIConstantsEx.au3>
#include <GuiListView.au3>
#include <ListBoxConstants.au3>

$t = TimerInit()
$aList = IniReadSection("Example.ini", "List")
ConsoleWrite("- Load INI Time " & TimerDiff($t) & @CRLF)

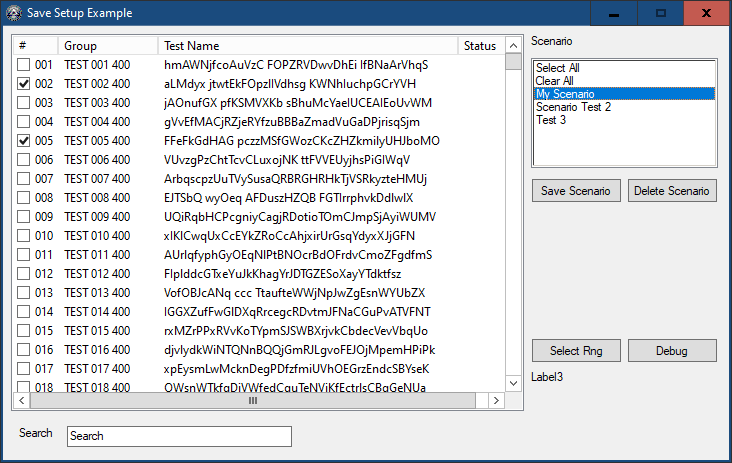

$hWnd = GUICreate("Save Setup Example", 726, 434, 188, 227)
$hLV = GUICtrlCreateListView("", 8, 8, 513, 377)
_GUICtrlListView_SetExtendedListViewStyle($hLV, BitOR($LVS_EX_FULLROWSELECT, $LVS_EX_CHECKBOXES))
GUICtrlCreateLabel("Search", 16, 400, 38, 17)
$hSearch = GUICtrlCreateInput("Search", 64, 400, 225, 21)

GUICtrlCreateLabel("Scenario", 528, 8, 50, 17)
$hSetup = GUICtrlCreateList("", 528, 32, 187, 110)
GUICtrlSendMsg($hSetup, $LB_INSERTSTRING, 0, "Select All") ; Set Default data
GUICtrlSendMsg($hSetup, $LB_INSERTSTRING, 1, "Clear All") ; Set Default data
    GUICtrlSendMsg($hSetup, $LB_INSERTSTRING, 2, "My Scenario")
    GUICtrlSendMsg($hSetup, $LB_INSERTSTRING, 3, "Scenario Test 2")
    GUICtrlSendMsg($hSetup, $LB_INSERTSTRING, 4, "Test 3")
GUICtrlSendMsg($hSetup, $LB_SELECTSTRING, -1, "Clear All") ; Select in Config
$hSetupSave = GUICtrlCreateButton("Save Scenario", 528, 152, 91, 25)
$hSetupDel = GUICtrlCreateButton("Delete Scenario", 624, 152, 91, 25)


$Debug1 = GUICtrlCreateButton("Select Rng", 528, 312, 91, 25)
$Debug2 = GUICtrlCreateButton("Debug", 624, 312, 91, 25)
$Label3 = GUICtrlCreateLabel("Label3", 528, 344, 36, 17)

; Add columns
_GUICtrlListView_AddColumn($hLV, "#", 45)
_GUICtrlListView_AddColumn($hLV, "Group", 100)
_GUICtrlListView_AddColumn($hLV, "Test Name", 300)
_GUICtrlListView_AddColumn($hLV, "Status", 60)

$t = TimerInit()
_GUICtrlListView_BeginUpdate($hLV)
$NumLen = StringLen($aList[0][0])
For $i = 1 To $aList[0][0]
    _GUICtrlListView_AddItem($hLV, StringFormat("%0" & $NumLen & "i", $i))

    $aStr = StringSplit($aList[$i][0], "__", 1)
    _GUICtrlListView_AddSubItem($hLV, $i-1, StringReplace($aStr[1], "_", " "), 1)
    _GUICtrlListView_AddSubItem($hLV, $i-1, StringReplace($aStr[2], "_", " "), 2) ; GUICtrlCreateListViewItem("Item " & $i, $idListview)
Next
_GUICtrlListView_EndUpdate($hLV)
ConsoleWrite("- Load LV Time " & TimerDiff($t) & @CRLF)


GUISetState(@SW_SHOW)
$iI = -1
While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $hSetup
            $setup_value = GUICtrlRead($hSetup)
            Switch $setup_value
                Case "Select All"
                    CheckAll(True)
                Case "Clear All"
                    CheckAll(False)
                Case Else
                    CheckScenario($setup_value)
            EndSwitch

        Case $hSetupSave
            $setup_value = GUICtrlRead($hSetup)
            Switch $setup_value
                Case "Select All","Clear All"
                Case Else
                    SaveScenario($setup_value)
            EndSwitch

        Case $hSetupDel
            $setup_value = GUICtrlRead($hSetup)
            Switch $setup_value
                Case "Select All","Clear All"
                Case Else
                    DelScenario($setup_value)
            EndSwitch

        Case $Debug1
            $iI = Random(0, 10, 1)
            _GUICtrlListView_SetItemSelected($hLV, $iI)
            _GUICtrlListView_SetItemFocused($hLV, $iI)
            _GUICtrlListView_EnsureVisible($hLV, $iI + 1)

    EndSwitch
WEnd

Func CheckAll($on_off)
    For $i = 0 To _GUICtrlListView_GetItemCount($hLV)
        _GUICtrlListView_SetItemChecked($hLV, $i, $on_off)
    Next
EndFunc

Func CheckScenario($scenario_name)
    $aListCheckScenario = IniReadSection("Example.ini", $scenario_name)
    If @error Then
        CheckAll(False)
        Return
    EndIf

    ; comma separated list of checked names from INI for this scenario, if name contains comma then use pipe | as separator
    $names = ','
    For $i = 1 To $aListCheckScenario[0][0]
        $names &= $aListCheckScenario[$i][0] & ','
    Next

    For $i = 0 To _GUICtrlListView_GetItemCount($hLV)
        $name = _GUICtrlListView_GetItemText($hLV, $i, 2)
        If StringInStr($names,','&$name&',') Then
            _GUICtrlListView_SetItemChecked($hLV, $i, True)
        Else
            _GUICtrlListView_SetItemChecked($hLV, $i, False)
        EndIf
    Next
EndFunc

Func SaveScenario($scenario_name)
    $ini_section = ''
    For $i = 0 To _GUICtrlListView_GetItemCount($hLV)
        If _GUICtrlListView_GetItemChecked($hLV, $i) Then
            $name = _GUICtrlListView_GetItemText($hLV, $i, 2)
            $ini_section &= $name & '=1' & @LF
        EndIf
    Next
    IniWriteSection("Example.ini", $scenario_name, $ini_section)
EndFunc

Func DelScenario($scenario_name)
    $i = GUICtrlSendMsg($hSetup, $LB_FINDSTRING, -1, $scenario_name)
    If $i <> -1 Then GUICtrlSendMsg($hSetup, $LB_DELETESTRING, $i, '')
    IniWriteSection("Example.ini", $scenario_name, '')
EndFunc



INI sections with checked names:

Quote

[My Scenario]
aLMdyx jtwtEkFOpzlIVdhsg KWNhIuchpGCrYVH=1
FFeFkGdHAG pczzMSfGWozCKcZHZkmilyUHJboMO=1
[Scenario Test 2]
VofOBJcANq ccc TtaufteWWjNpJwZgEsnWYUbZX=1
IGGXZufFwGlDXqRrcegcRDvtmJFNaCGuPvATVFNT=1
rxMZrPPxRVvKoTYpmSJSWBXrjvkCbdecVevVbqUo=1



Edited by Zedna
Link to post
Share on other sites

Here is little improvement/optimization:

On SelectionChange in Listbox with scenarios now dynamically enable/disable SaveScenario/DelScenario buttons (disable for Select All/Clear All) and those easier calling SaveScenario()/DelScenario() functions. Due to this better structurization of code is main program loop shorter and more readable:

; https://www.autoitscript.com/forum/topic/208545-listview-saveload-checked-scenarios-need-an-idea/?do=findComment&comment=1505446

#cs ----------------------------------------------------------------------------

 AutoIt Version: 3.3.14.5
 Author:         myName

 Script Function:
    Template AutoIt script.
List
#ce ----------------------------------------------------------------------------

#include <GUIConstantsEx.au3>
#include <GuiListView.au3>
#include <ListBoxConstants.au3>

$t = TimerInit()
$aList = IniReadSection("Example.ini", "List")
ConsoleWrite("- Load INI Time " & TimerDiff($t) & @CRLF)


$hWnd = GUICreate("Save Setup Example", 726, 434, 188, 227)
$hLV = GUICtrlCreateListView("", 8, 8, 513, 377)
_GUICtrlListView_SetExtendedListViewStyle($hLV, BitOR($LVS_EX_FULLROWSELECT, $LVS_EX_CHECKBOXES))
GUICtrlCreateLabel("Search", 16, 400, 38, 17)
$hSearch = GUICtrlCreateInput("Search", 64, 400, 225, 21)

GUICtrlCreateLabel("Scenario", 528, 8, 50, 17)
$hSetup = GUICtrlCreateList("", 528, 32, 187, 110)
GUICtrlSendMsg($hSetup, $LB_INSERTSTRING, 0, "Select All") ; Set Default data
GUICtrlSendMsg($hSetup, $LB_INSERTSTRING, 1, "Clear All") ; Set Default data
    GUICtrlSendMsg($hSetup, $LB_INSERTSTRING, 2, "My Scenario")
    GUICtrlSendMsg($hSetup, $LB_INSERTSTRING, 3, "Scenario Test 2")
    GUICtrlSendMsg($hSetup, $LB_INSERTSTRING, 4, "Test 3")
GUICtrlSendMsg($hSetup, $LB_SELECTSTRING, -1, "Clear All") ; Select in Config
$hSetupSave = GUICtrlCreateButton("Save Scenario", 528, 152, 91, 25)
$hSetupDel = GUICtrlCreateButton("Delete Scenario", 624, 152, 91, 25)
EnableButtonsSaveDel($GUI_DISABLE)

$Debug1 = GUICtrlCreateButton("Select Rng", 528, 312, 91, 25)
$Debug2 = GUICtrlCreateButton("Debug", 624, 312, 91, 25)
$Label3 = GUICtrlCreateLabel("Label3", 528, 344, 36, 17)

; Add columns
_GUICtrlListView_AddColumn($hLV, "#", 45)
_GUICtrlListView_AddColumn($hLV, "Group", 100)
_GUICtrlListView_AddColumn($hLV, "Test Name", 300)
_GUICtrlListView_AddColumn($hLV, "Status", 60)

$t = TimerInit()
_GUICtrlListView_BeginUpdate($hLV)
$NumLen = StringLen($aList[0][0])
For $i = 1 To $aList[0][0]
    _GUICtrlListView_AddItem($hLV, StringFormat("%0" & $NumLen & "i", $i))

    $aStr = StringSplit($aList[$i][0], "__", 1)
    _GUICtrlListView_AddSubItem($hLV, $i-1, StringReplace($aStr[1], "_", " "), 1)
    _GUICtrlListView_AddSubItem($hLV, $i-1, StringReplace($aStr[2], "_", " "), 2) ; GUICtrlCreateListViewItem("Item " & $i, $idListview)
Next
_GUICtrlListView_EndUpdate($hLV)
ConsoleWrite("- Load LV Time " & TimerDiff($t) & @CRLF)


GUISetState(@SW_SHOW)
$iI = -1
While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $hSetup
            $setup_value = GUICtrlRead($hSetup)
            Switch $setup_value
                Case "Select All"
                    CheckAll(True)
                    EnableButtonsSaveDel($GUI_DISABLE)
                Case "Clear All"
                    CheckAll(False)
                    EnableButtonsSaveDel($GUI_DISABLE)
                Case Else
                    CheckScenario($setup_value)
                    EnableButtonsSaveDel($GUI_ENABLE)
            EndSwitch

        Case $hSetupSave
            SaveScenario(GUICtrlRead($hSetup))

        Case $hSetupDel
            DelScenario(GUICtrlRead($hSetup))

        Case $Debug1
            $iI = Random(0, 10, 1)
            _GUICtrlListView_SetItemSelected($hLV, $iI)
            _GUICtrlListView_SetItemFocused($hLV, $iI)
            _GUICtrlListView_EnsureVisible($hLV, $iI + 1)

    EndSwitch
WEnd

Func EnableButtonsSaveDel($state)
    GUICtrlSetState($hSetupSave, $state)
    GUICtrlSetState($hSetupDel, $state)
EndFunc

Func CheckAll($on_off)
    For $i = 0 To _GUICtrlListView_GetItemCount($hLV)
        _GUICtrlListView_SetItemChecked($hLV, $i, $on_off)
    Next
EndFunc

Func CheckScenario($scenario_name)
    $aListCheckScenario = IniReadSection("Example.ini", $scenario_name)
    If @error Then
        CheckAll(False)
        Return
    EndIf

    ; comma separated list of checked names from INI for this scenario, if name contains comma then use pipe | as separator
    $names = ','
    For $i = 1 To $aListCheckScenario[0][0]
        $names &= $aListCheckScenario[$i][0] & ','
    Next

    For $i = 0 To _GUICtrlListView_GetItemCount($hLV)
        $name = _GUICtrlListView_GetItemText($hLV, $i, 2)
        If StringInStr($names,','&$name&',') Then
            _GUICtrlListView_SetItemChecked($hLV, $i, True)
        Else
            _GUICtrlListView_SetItemChecked($hLV, $i, False)
        EndIf
    Next
EndFunc

Func SaveScenario($scenario_name)
    $ini_section = ''
    For $i = 0 To _GUICtrlListView_GetItemCount($hLV)
        If _GUICtrlListView_GetItemChecked($hLV, $i) Then
            $name = _GUICtrlListView_GetItemText($hLV, $i, 2)
            $ini_section &= $name & '=1' & @LF
        EndIf
    Next
    IniWriteSection("Example.ini", $scenario_name, $ini_section)
EndFunc

Func DelScenario($scenario_name)
    $i = GUICtrlSendMsg($hSetup, $LB_FINDSTRING, -1, $scenario_name)
    If $i <> -1 Then GUICtrlSendMsg($hSetup, $LB_DELETESTRING, $i, '')
    IniWriteSection("Example.ini", $scenario_name, '')
EndFunc



EDIT:

little optimization in EnableButtonsSaveDel()

Edited by Zedna
Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By RAMzor
      Hello,
      I'm trying to implement Virtual ListView in my project. I have been based on example from @LarsJ.
      The script loads data from csv file instead of array as in original example and perform some parsing.
      Sometimes, when running a script, it adds garbage to the end of the correct data.
      The data is loaded correctly into the global array (double-clicking on a row with garbage displays it correct in the console), but is not displayed correctly.
      What am I missing or doing wrong?
      #include <GUIConstants.au3> #include <WindowsConstants.au3> #include <GuiImageList.au3> #include <GuiListView.au3> #include <GuiStatusBar.au3> #include <FileConstants.au3> #include <GuiListBox.au3> #include <SendMessage.au3> #include <EditConstants.au3> Opt("MustDeclareVars", 1) Global $hWnd, $idLV, $hLV, $aItems[1][1] Global $gWinXMin = 1130, $gWinYMin = 615 Global Const $TopMost = 262144 ; Set MsgBox top-most attribute Example() Func Example() Local $Ver = "Virtual LV" ; Create GUI $hWnd = GUICreate("iTS - Test Sequencer [Ver " & $Ver & "]", $gWinXMin, $gWinYMin, -1, -1, BitOR($WS_SIZEBOX, $WS_SYSMENU, $WS_MAXIMIZEBOX, $WS_MINIMIZEBOX)) ; Create ListView Reduces flicker Checkboxes Tooltip Icons Local $iLvStyle = BitOR($WS_EX_CLIENTEDGE, $LVS_EX_FULLROWSELECT, $LVS_EX_GRIDLINES, $LVS_EX_DOUBLEBUFFER, $LVS_EX_CHECKBOXES, $LVS_EX_INFOTIP);, $LVS_EX_SUBITEMIMAGES) $idLV = GUICtrlCreateListView("", 8, 50, 915, 477, $LVS_OWNERDATA, $iLvStyle) $hLV = GUICtrlGetHandle($idLV) ; Virtual listview ; --- ListView Add columns --- _GUICtrlListView_AddColumn($hLV, "# ID", 45) ; 0 _GUICtrlListView_AddColumn($hLV, "Group", 120) ; 1 _GUICtrlListView_AddColumn($hLV, "Name", 335) ; 2 _GUICtrlListView_AddColumn($hLV, "Min", 50) ; 3 _GUICtrlListView_AddColumn($hLV, "Max", 50) ; 4 _GUICtrlListView_AddColumn($hLV, "Result", 50) ; 5 _GUICtrlListView_AddColumn($hLV, "Status", 50) ; 6 _GUICtrlListView_AddColumn($hLV, "Description", 179) ; 7 ; Checkboxes _GUICtrlListView_SetCallBackMask($hLV, 32) ; 32 - The application stores the image list index of the current state image ; Load icon images ;~ Local $hImage = _GUIImageList_Create() ;~ _GUIImageList_Add($hImage, _GUICtrlListView_CreateSolidBitMap($hLV, 0xFF0000, 16, 16)) ; Index = 0 ;~ _GUIImageList_Add($hImage, _GUICtrlListView_CreateSolidBitMap($hLV, 0x00FF00, 16, 16)) ; Index = 1 ;~ _GUIImageList_Add($hImage, _GUICtrlListView_CreateSolidBitMap($hLV, 0x0000FF, 16, 16)) ; Index = 2 ;~ _GUICtrlListView_SetImageList($hLV, $hImage, 1) ; --- StatusBar --- Local $aStatusBarParts[5] = [220, 160, 160, 140, -1] Global $StatusBar = _GUICtrlStatusBar_Create($hWnd, $aStatusBarParts) ; $SBARS_SIZEGRIP ; --- DEBUG --- Local $Debug_1 = GUICtrlCreateButton("Check Random", 928, 383, 91, 25) ; 152 Local $Debug_2 = GUICtrlCreateButton("Load From Array", 1024, 383, 91, 25) ; 152 Local $Debug_3 = GUICtrlCreateButton("Load 15 Rows", 928, 412, 91, 25) Local $Debug_4 = GUICtrlCreateButton("Load 500 Rows", 1024, 412, 91, 25) Local $DebugLabel_1 = GUICtrlCreateLabel("DEBAG", 928, 444, 36, 17) GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY") GUIRegisterMsg($WM_SIZE, "WM_SIZE") GUIRegisterMsg($WM_GETMINMAXINFO, "MY_WM_GETMINMAXINFO") ; Restrict minimaze window below specified size [$gWinXMin, $gWinYMin] GUISetState(@SW_SHOW) ; ============================================================================================= ; --- Load Test --- Local $sTestCsvFile = @ScriptDir & "\Test CSV 15.csv" _ListView_Load($sTestCsvFile, $aItems, True) ; Load Autosized ; ============================================================================================= ; Message loop While 1 Switch GUIGetMsg() Case $Debug_1 ConsoleWrite(UBound($aItems, 1) & @CRLF) ConsoleWrite(UBound($aItems, 2) & @CRLF) For $i = 0 To UBound($aItems, 1) - 1 $aItems[$i][10] = 8192 ; Checked Next ConsoleWrite("- $i " & $i & @CRLF) GUICtrlSendMsg( $idLV, $LVM_SETITEMCOUNT, $i, 0 ) ;~ $aItems[$i][10] = 4096 ; Unchecked ;~ $aItems[$k+$j][10] = 8192 ; Checked Case $Debug_2 Local $iRows = 250 Dim $aItems[$iRows+1][12] For $iRow = 0 To $iRows - 1 $aItems[$iRow][0] = $iRow + 1 $aItems[$iRow][1] = "AAA-" & Random(1000000, 9999999, 1) $aItems[$iRow][2] = "BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB" $aItems[$iRow][3] = "CCC-" & Random(1000000, 9999999, 1) $aItems[$iRow][4] = "DDD-" & Random(1000000, 9999999, 1) $aItems[$iRow][10] = 4096 ; Unchecked Next GUICtrlSendMsg( $idLV, $LVM_SETITEMCOUNT, $iRow, 0 ) _GUICtrlStatusBar_SetText($StatusBar, $iRow & " Rows Loaded", 1) Case $Debug_3 GUICtrlSetData($Debug_3, "Load 15") $sTestCsvFile = @ScriptDir & "\Test CSV 15.csv" _ListView_Load($sTestCsvFile, $aItems, True) ; Load Autosized Case $Debug_4 GUICtrlSetData($Debug_4, "Load 500") $sTestCsvFile = @ScriptDir & "\Test CSV 500.csv" _ListView_Load($sTestCsvFile, $aItems, True) ; Load Autosized Case $GUI_EVENT_CLOSE ExitLoop EndSwitch WEnd GUIDelete() EndFunc ;==>Example ; ; ; Return Test Count Func _ListView_Load($sTestCsvFile, ByRef $aItems, $AutoSize = True) Local $iRow = 0, $iNumLen, $aData, $aName, $GroupName, $TestName, $TestIdx, $MinVal, $MaxVal, $iStatus;, $aName Local $sTestIniFile = StringRegExpReplace($sTestCsvFile, '\.[^.]*$', '.tcf') ; INI File ;~ _SendMessage($hLV, $LVM_DELETEALLITEMS) ; Delete All Local $aCsv = FileReadToArray($sTestCsvFile) ; 9.289ms If @error Then Return MsgBox($TopMost+16, "_ListView_Load()", "! CSV File Reading ERROR") Local $LinesCount = @extended Dim $aItems[$LinesCount][12] $iNumLen = StringLen($LinesCount) For $i = 1 To $LinesCount-1 ; If StringLeft($aCsv[$i], 5) = "TEST_" Then $aData = StringSplit($aCsv[$i], ",") If $aData[0] >= 5 Then $iRow += 1 $aData[1] = StringReplace($aData[1], "TEST_", "", 1) $aData[1] = StringReplace(StringReplace($aData[1], "__", "|", 1), "_", " ", 1) $aName = StringSplit($aData[1], "|", 3) If @error Then $GroupName = "" $TestName = $aName[0] Else $GroupName = $aName[0] $TestName = StringReplace($aName[1], "_", " ") ; (all '_' replaced with ' ') EndIf $TestIdx = StringStripWS($aData[2], 7) $MinVal = StringStripWS($aData[3], 7) $MaxVal = StringStripWS( $aData[4], 7) $aItems[$iRow - 1][0] = StringFormat("%0" & $iNumLen & "i ", $iRow) $aItems[$iRow - 1][1] = $GroupName $aItems[$iRow - 1][2] = $TestName $aItems[$iRow - 1][3] = $MinVal $aItems[$iRow - 1][4] = $MaxVal $aItems[$iRow - 1][10] = 4096 ; 4096-Unchecked, 8192-Checked EndIf Else ContinueLoop EndIf Next _GUICtrlListView_BeginUpdate($hLV) GUICtrlSendMsg($idLV, $LVM_SETITEMCOUNT, $iRow, 0) ; Update data [$aItems] to ListView _GUICtrlListView_SetColumnWidth($hLV, 0, -1) If $AutoSize Then For $i = 1 To 2 _GUICtrlListView_SetColumnWidth($hLV, $i, $LVSCW_AUTOSIZE) Next EndIf _GUICtrlListView_EndUpdate($hLV) _GUICtrlStatusBar_SetText($StatusBar, $iRow & " Rows Loaded", 1) Return $iRow EndFunc ;==>_ListView_Load Func WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam) Local Static $tText = DllStructCreate("wchar[50]") Local Static $pText = DllStructGetPtr($tText) Local $tNMHDR, $hWndFrom, $iCode $tNMHDR = DllStructCreate($tagNMHDR, $lParam) $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom")) $iCode = DllStructGetData($tNMHDR, "Code") Switch $hWndFrom Case $hLV Switch $iCode Case $LVN_GETDISPINFOW Local $tNMLVDISPINFO = DllStructCreate($tagNMLVDISPINFO, $lParam) Local $iItem = DllStructGetData($tNMLVDISPINFO, "Item") Local $iSubItem = DllStructGetData($tNMLVDISPINFO, "SubItem") Local $iMask = DllStructGetData($tNMLVDISPINFO, "Mask") ; Text If BitAND($iMask, $LVIF_TEXT) Then Local $sText = $aItems[$iItem][$iSubItem] DllStructSetData($tText, 1, $sText) DllStructSetData($tNMLVDISPINFO, "Text", $pText) DllStructSetData($tNMLVDISPINFO, "TextMax", StringLen($sText)) EndIf ; Checkbox in first column If BitAND($iMask, $LVIF_STATE) And $iSubItem = 0 Then DllStructSetData($tNMLVDISPINFO, "State", $aItems[$iItem][10]) EndIf ; Icon in first column ; Use proper $iSubItem value for other columns If BitAND($iMask, $LVIF_IMAGE) And $iSubItem = 6 Then ; Status Column Icon DllStructSetData($tNMLVDISPINFO, "Image", $aItems[$iItem][11]) EndIf Case $NM_CUSTOMDRAW Local $tNMLVCUSTOMDRAW = DllStructCreate($tagNMLVCUSTOMDRAW, $lParam) Local $dwDrawStage = DllStructGetData($tNMLVCUSTOMDRAW, "dwDrawStage") Local $dwItemSpec = DllStructGetData($tNMLVCUSTOMDRAW, "dwItemSpec") Switch $dwDrawStage ; Holds a value that specifies the drawing stage Case $CDDS_PREPAINT ; Before the paint cycle begins Return $CDRF_NOTIFYITEMDRAW ; Notify the parent window of any item-related drawing operations Case $CDDS_ITEMPREPAINT ; Before painting an item If Mod($dwItemSpec, 2) = 1 Then DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xFFFFFF) Else DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xEBF7FF) ; BGR EndIf Return $CDRF_NEWFONT ; $CDRF_NEWFONT must be returned after changing font or colors EndSwitch Case $NM_CLICK Local $tInfo = DllStructCreate($tagNMITEMACTIVATE, $lParam) Local $iItem = DllStructGetData($tInfo, "Index") Local $iSubItem = DllStructGetData($tInfo, "SubItem") If $iSubItem = 0 Then If $aItems[$iItem][10] = 4096 Then $aItems[$iItem][10] = 8192 ; Checked Else $aItems[$iItem][10] = 4096 ; Unchecked EndIf _GUICtrlListView_RedrawItems($hLV, $iItem, $iItem) EndIf Case $NM_DBLCLK ; User double-clicks an item with the left mouse button (No return value) Local $tInfo = DllStructCreate($tagNMITEMACTIVATE, $lParam) Local $iItem = DllStructGetData($tInfo, "Index") Local $iSubItem = DllStructGetData($tInfo, "SubItem") ConsoleWrite("--> DBLCLK Row : " & $iItem + 1 & @CRLF) ConsoleWrite("--> Name : " & $aItems[$iItem][$iSubItem] & @CRLF) EndSwitch EndSwitch Return $GUI_RUNDEFMSG EndFunc ;==>WM_NOTIFY ; Resize the status bar when GUI size changes Func WM_SIZE($hWnd, $iMsg, $wParam, $lParam) #forceref $hWnd, $iMsg, $wParam, $lParam ;~ ConsoleWrite("ListView Width " & ControlGetPos($hWnd, "", $idLV)[2] & @CRLF) _GUICtrlStatusBar_Resize($StatusBar) Return $GUI_RUNDEFMSG EndFunc ;==>WM_SIZE Func MY_WM_GETMINMAXINFO($hWnd, $Msg, $wParam, $lParam) Local $minmaxinfo = DllStructCreate("int;int;int;int;int;int;int;int;int;int",$lParam) DllStructSetData($minmaxinfo, 7, $gWinXMin); min X (+15) DllStructSetData($minmaxinfo, 8, $gWinYMin); min Y (+15) Return 0 EndFunc
      Test CSV 15.csv Test CSV 500.csv Virt_LV_Garbage.au3
    • By ahha
      Under program control is there an easy way to move a slider (thumb) to the top or bottom?
      I am aware of Melba23's GUIScrollbars_Ex UDF (https://www.autoitscript.com/forum/topic/113723-scrollbars-made-easy-bugfix-version-2-may-21/) but I believe it's overkill for my simple needs.
      In a listview with a vertical scrollbar when the window is active one can hit Ctrl+Home to move the scrollbar slider (thumb) to the top and Ctrl+End to the bottom.
      One can also right click the slider and choose Scroll Here, Top, Bottom, Page UP, Page Down, Scroll Up, and Scroll Down.
      I must be doing something basically wrong but am stuck.  Move the thumb to the middle before clicking the Top button to test the code below (Bottom is not coded).  I've commented out other trys.  try #3 is a strange fail.
      Any comments on what I'm missing greatly appreciated as I'm stuck
      #AutoIt3Wrapper_run_debug_mode=Y #include <Debug.au3> #include <GUIConstantsEx.au3> #include <GuiListView.au3> #include <GuiScrollBars.au3> AutoItSetOption("MustDeclareVars", 1) ;v1b - cut out extraneous code Example() Exit Func Example() Local $i, $j, $x, $hGUI, $idListView, $bTop, $bBottom $hGUI = GUICreate("Scrollbar Question", 300, 400) ;get handle in case we need it later $idListView = GUICtrlCreateListView("Col 0", 10, 10, 280, 300) $bTop = GUICtrlCreateButton("Top", 10, 350, 60, 25) $bBottom = GUICtrlCreateButton("Bottom", 120, 350, 60, 25) ;Pause("$hGUI = '" & $hGUI &"'"& @CRLF & "$idListView = '" & $idListView &"'") For $i = 1 to 100 _GUICtrlListView_AddItem($idListView, $i) Next GUISetState(@SW_SHOW) While 1 Switch GUIGetMsg() Case $GUI_EVENT_CLOSE ExitLoop Case $bTop ;drag thumb to middle of scrollbar before clicking Top button ;try #1 - FAILS Opt("WinTitleMatchMode", 2) ;2 = Match any substring in the title $x = WinActivate("Scrollbar Question") ;not $idListview but main GUI $hGUI - neither working If $x <> $hGUI Then Pause("WinActivate FAILED") Send("^{HOME}") ;Ctrl+home ;try#2 - FAILS ;~ $x = WinActivate($hGUI) ;try Main GUI ;~ If $x <> $hGUI Then Pause("WinActivate FAILED") ;~ Send("^{HOME}") ;Ctrl+home ;try#3 - strange FAILS ;~ $x = WinActivate($idListview) ;try $idListview ;~ If $x <> $idListview Then Pause("WinActivate FAILED") ;strange it works BUT if I comment out this line it fails ;~ ;Sleep(1000) ;it's not a time delay issue ;~ Send("^{HOME}") ;Ctrl+home ;try#4 - same strange fail as #3 ;~ $x = WinActivate($idListview) ;try $idListview ;~ If $x <> $idListview Then Pause("WinActivate FAILED") ;~ Send("{UP 100}") ;try#5 - what the heck is going on? same strange fail as #3 ;$x = WinActivate($idListview) ;try $idListview ;~ $x = WinActivate($hGUI) ;try Main GUI ;~ If $x <> $idListview Then Pause("WinActivate FAILED") ;~ MouseWheel($MOUSE_WHEEL_UP, 100) ;_GUIScrollBars_ScrollWindow($hGUI, 0, 100) ;NO - moves the ListView window in the $hGUI ;_GUIScrollBars_ScrollWindow($idListview, 0, 100) ;does not seem to work ;_GUIScrollBars_SetScrollInfoPos($hGUI, $SB_VERT, 30) ;does not work ;_GUIScrollBars_SetScrollInfoPos($idListview, $SB_VERT, 30) ;does not work ;I'm doing something very basic wrong. I need help. Pause("Scrollbar thumb should be at Top") Case $bBottom Pause("In: Case $bBottom") Pause("Scroll bar should be at BOttom") EndSwitch WEnd GUIDelete($idListView) EndFunc ;Func Example() Func Pause($text="") MsgBox(262144, "DEBUG", "Paused: " & $text) EndFunc
    • By ahha
      Newbie to _GUICtrlListView_RegisterSortCallBack and can't get it to sort properly on date in format MM/DD/YYYY.
      Example code below.  Q - How do I get the date to sort properly?
      ;#AutoIt3Wrapper_run_debug_mode=Y #include <GUIConstantsEx.au3> #include <GuiListView.au3> Global $g_id_ListView Example() Exit Func Example() Local $idRow1, $idRow2, $idRow3 GUICreate("ListView Sort Question", 300, 200) $g_id_ListView = GUICtrlCreateListView("Row#|Name|Date", 10, 10, 280, 180) $id_Row1 = GUICtrlCreateListViewItem("#1|Alice|01/15/2022", $g_id_ListView) $id_Row2 = GUICtrlCreateListViewItem("#2|Bob|02/22/2021", $g_id_ListView) $id_Row3 = GUICtrlCreateListViewItem("#3|Carol|03/13/2021", $g_id_ListView) $id_Row10 = GUICtrlCreateListViewItem("#10|Dave|10/09/2021", $g_id_ListView) $id_Row11 = GUICtrlCreateListViewItem("#11|Eve|11/21/2021", $g_id_ListView) GUISetState(@SW_SHOW) ;$vCompareType = 0 ;not ok as Row# sort #1, #10, and want #1, #2, ;$vCompareType = 1 ;not ok as Row# sort #1, #10, and want #1, #2, $vCompareType = 2 ;Row# okay but Date messed up _GUICtrlListView_RegisterSortCallBack($g_id_ListView, $vCompareType) While 1 Switch GUIGetMsg() Case $GUI_EVENT_CLOSE ExitLoop Case $g_id_ListView ;MsgBox(0,"","col="&GUICtrlGetState($g_id_ListView)) _GUICtrlListView_SortItems($g_id_ListView, GUICtrlGetState($g_id_ListView)) EndSwitch WEnd _GUICtrlListView_UnRegisterSortCallBack($g_id_ListView) GUIDelete($g_id_ListView) EndFunc ;Func Example()
    • By UEZ
      This project has been discontinued!

      Here a small tool I wrote to update my Sysinternal tools collection without the need to download always the whole package or visiting the site to check for updates. I know that there are several tools available (also some tools written in AutoIt) but here another one for the collection. It was good exercise for me to code it.





      Some files from the live web site cannot be downloaded although they are visible!

      Here the download link of the source code only: AutoIt Sysinternal Tools Synchronizer v0.99.6 build 2020-09-23 beta.7z  (1557 downloads previously)
      -=> Requires AutoIt version 3.3.13.20 or higher / tested on Win8.1 real machine and some VMs: Win7 / Vista / Win10

      Compiled exe only: @MediaFire

      Just select the Sysinternal Tools folder or create one and press the synchronize button to download the selected items. Click on AutoIt label (near to left upper corner) to open menu.

      Special thanks to LarsJ, Melba23 and mesale0077 for their help.

      I've still some ideas to implement which are more gimmick related, so it is not finished yet...
      If you want to add your language please check out #Region Language. Thanks.

      Please report any bug or if you have any suggestions.

      The language of the tool tip from each of the executable in the left list view were automatically created using Google translator and weren't checked for correctness.

      Br,
      UEZ
    • By Cengokill
      Hi everyone,
      I have created a ListView that is in a tab, and I want to display an image in that tab, with the ListView on top.
      However, the image still appears on top of my ListView.
      If I remove the tabs everything works.
      I looked at the autoit documentation and the <GuiListView.au3> documentation , I can't figure out how to display a background image, and put on top a ListView, inside a tab. 😥
      Here is the code:
      Opt("GUIOnEventMode", 1) $Form1 = GUICreate($Titre, 700, 627, $Form1Width, $Form1Height); main window $tabulation = GUICtrlCreateTab(148,0,700,580); creating tabs $tab1=GUICtrlCreateTabItem("Tab 1"); first tab GUICtrlSetState(-1, $GUI_SHOW); this tab is selected by default $Pic1 = GUICtrlCreatePic("image.jpg", 0, 30, 700, 627) GUICtrlSetState(-1, $GUI_DISABLE). $idListview = GUICtrlCreateListView("list 1|list 2|list 3", 200, 50, 390, 200) GUISetState(@SW_SHOW) While 1     Sleep(100) WEnd Thank you in advance.

×
×
  • Create New...
