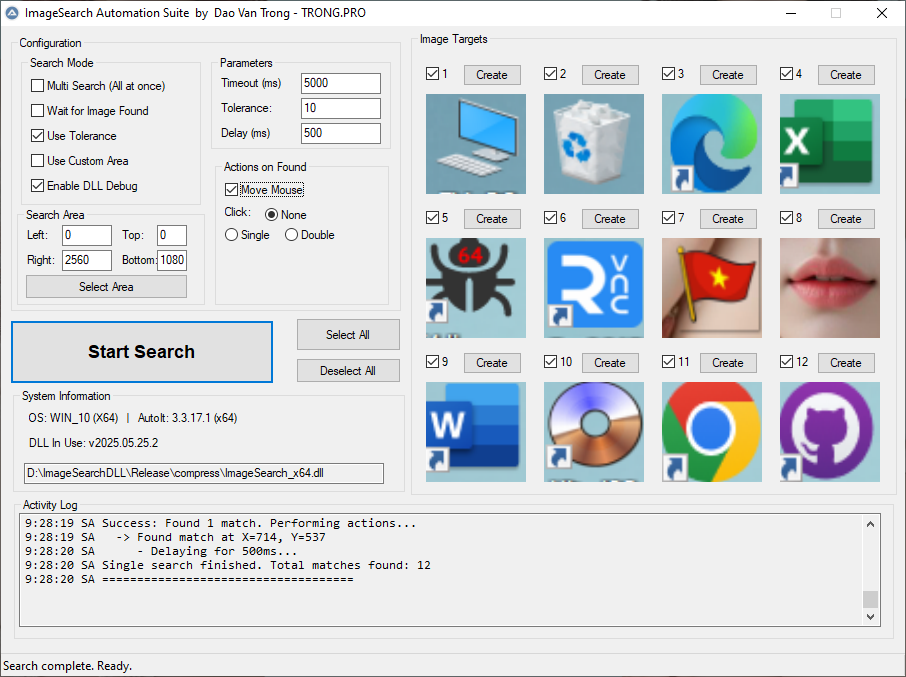

Trong Posted July 23 Posted July 23 (edited) Source ImageSearch Automation Suite: expandcollapse popup#RequireAdmin #Region ;**** Directives created by AutoIt3Wrapper_GUI **** #AutoIt3Wrapper_UseX64=y #EndRegion ;**** Directives created by AutoIt3Wrapper_GUI **** #pragma compile(x64, true) #cs ---------------------------------------------------------------------------- ; ; Title .........: ImageSearch Automation Suite (Refactored) ; AutoIt Version : 3.3.16.1 ; Author ........: Dao Van Trong (TRONG.PRO) ; Date ..........: 2025-07-28 ; Note ..........: This script is a graphical user interface (GUI) front-end for the ; ImageSearch_UDF.au3 and its underlying ImageSearch.dll. ; ; ------------------------------------------------------------------------------------------------------------------------------- ; #SECTION# SCRIPT OVERVIEW ; ------------------------------------------------------------------------------------------------------------------------------- ; ; This script provides a powerful and user-friendly interface for performing complex image search and automation tasks. ; It acts as a control panel for the high-performance ImageSearch UDF, allowing you to visually configure, execute, ; and log search operations without writing complex code. It is designed for tasks ranging from simple automation ; to advanced botting and UI testing. ; ; ------------------------------------------------------------------------------------------------------------------------------- ; #SECTION# FIRST-TIME SETUP ; ------------------------------------------------------------------------------------------------------------------------------- ; ; Before you can start a search, you need to provide the images you want to find. ; ; 1. RUN THE SCRIPT: The main window will appear. On the right side, you will see 12 empty "Image Target" slots. ; ; 2. CREATE AN IMAGE: Click the "Create" button next to slot #1. ; ; 3. CAPTURE THE REGION: The script window will hide. Your mouse cursor will turn into a crosshair. ; Click and drag a rectangle around the object on the screen you want to find. When you release the mouse button, ; a bitmap image named "Search_1.bmp" will be saved in the same directory as the script. ; ; 4. PREVIEW UPDATES: The image you just captured will now appear in the preview panel for slot #1. ; ; 5. REPEAT: Repeat this process for any other images you need to find (up to 12). ; ; ------------------------------------------------------------------------------------------------------------------------------- ; #SECTION# GUI ELEMENT GUIDE ; ------------------------------------------------------------------------------------------------------------------------------- ; ; === Image Targets (Right Panel) === ; - Checkbox (1-12): Tick the box next to an image to include it in the next search operation. ; - Create Button: Click to capture a screen region and save it as the image for that slot. ; - Image Preview: Shows the image that will be searched for. It displays a placeholder if the .bmp file doesn't exist. ; ; === Configuration -> Search Mode (Top-Left) === ; - [ ] Multi Search (All at once): ; - If UNCHECKED (Single Mode - Default): The script searches for selected images one by one, in order. ; - If CHECKED (Multi Mode): The script searches for ALL selected images in a single, highly efficient operation. ; It will find the FIRST available match from the list of selected images. ; ; - [ ] Find All Occurrences: ; - If UNCHECKED (Default): The search stops as soon as the first match is found. ; - If CHECKED: The search will find EVERY instance of the selected image(s) on the screen. ; ; - [ ] Wait for Image Found: ; - If CHECKED: The script will repeatedly search for the image until it is found or the "Timeout" value is reached. ; ; - [ ] Use Tolerance: ; - If CHECKED: Allows for inexact matches. The "Tolerance" value (0-255) determines how much color variation is allowed. ; ; - [ ] Use Custom Area: ; - If CHECKED: The search will be restricted to the coordinates defined in the "Search Area" group box. ; - If UNCHECKED: The search will be performed on the entire screen. ; ; - [ ] Enable DLL Debug: ; - If CHECKED: The raw output from the DLL, including detailed debug info, will be printed in the Activity Log. ; Useful for advanced troubleshooting. ; ; === Configuration -> Parameters === ; - Timeout (ms): The maximum time (in milliseconds) to wait when "Wait for Image Found" is enabled. ; - Tolerance: A number from 0 (exact match) to 255 (very loose match). A good starting value is 10-20. ; - Delay (ms): The time (in milliseconds) to pause after performing an action (like a click) on a found image. ; ; === Configuration -> Search Area === ; - Left, Top, Right, Bottom: The pixel coordinates of the rectangular search area. ; - Select Area Button: A convenient tool to draw a rectangle on the screen with your mouse to automatically fill in these coordinates. ; ; === Configuration -> Actions on Found === ; - [ ] Move Mouse: If checked, the mouse cursor will move to the location of the found image. ; - Click (None / Single / Double): Choose the mouse action to perform after the image is found. The click will happen at the ; coordinates of the found image (center or top-left, depending on UDF settings). ; ; === Main Action Buttons === ; - Start Search: Begins the search operation using all the currently selected settings. ; - Select All: Checks all 12 image target boxes. ; - Deselect All: Unchecks all 12 image target boxes. ; ; === Bottom Panels === ; - Activity Log: Displays a timestamped log of all actions, search results, and errors. ; - System Information: Shows details about your OS, AutoIt version, and the specific ImageSearch DLL being used. ; - Status Bar: Provides real-time feedback on the script's current state (e.g., "Ready", "Searching...", "Search complete"). ; ; ------------------------------------------------------------------------------------------------------------------------------- ; #SECTION# WORKFLOW EXAMPLES ; ------------------------------------------------------------------------------------------------------------------------------- ; ; Scenario 1: Click a "Login" button that might be in one of two different styles. ; -------------------------------------------------------------------------------- ; 1. Create "Search_1.bmp" of the first login button style. ; 2. Create "Search_2.bmp" of the second login button style. ; 3. Check the boxes for images 1 and 2. ; 4. Check "Multi Search" (to find whichever appears first). ; 5. Set "Actions on Found" to "Single" click. ; 6. Click "Start Search". The script will find the first available login button and click it. ; ; Scenario 2: Count how many gold coin icons are visible inside a game window. ; -------------------------------------------------------------------------------- ; 1. Create "Search_1.bmp" of a single gold coin icon. ; 2. Check the box for image 1. ; 3. Uncheck "Multi Search". ; 4. Check "Find All Occurrences". ; 5. Check "Use Custom Area" and use the "Select Area" button to draw a box around the game window. ; 6. Set "Actions on Found" to "None" for the click action. ; 7. Click "Start Search". The Activity Log will show "Found X match(es)" where X is the number of coins. ; #ce ---------------------------------------------------------------------------- #include <Array.au3> #include <GDIPlus.au3> #include <ScreenCapture.au3> #include <WinAPI.au3> #include <WindowsConstants.au3> #include <GUIConstantsEx.au3> #include <EditConstants.au3> #include <StaticConstants.au3> #include <ButtonConstants.au3> #include <Date.au3> #include <Misc.au3> #include <Math.au3> #include <GuiEdit.au3> #include <GuiStatusBar.au3> #include "ImageSearch_UDF.au3" ;Opt("MustDeclareVars", 1) ; === GLOBAL CONSTANTS AND VARIABLES === Global Const $MAX_IMAGES = 12 Global Const $g_sPlaceholderPath = @WindowsDir & "\Web\Wallpaper\Windows\img0.jpg" Global $g_asImagePaths[$MAX_IMAGES], $g_nMsg, $g_hMainGUI, $g_hLog, $g_hStatusBar ; --- GUI Control IDs --- Global $g_idBtnStart, $g_idBtnSelectAll, $g_idBtnDeselectAll, $g_idBtnSelectArea Global $g_idInputDelay, $g_idChkMoveMouse Global $g_idRadNoClick, $g_idRadSingleClick, $g_idRadDoubleClick Global $g_idChkWait, $g_idInputWaitTime Global $g_idChkUseArea, $g_idInputLeft, $g_idInputTop, $g_idInputRight, $g_idInputBottom Global $g_idChkMultiSearch, $g_idChkFindAll, $g_idChkUseTolerance, $g_idInputTolerance, $g_idChkEnableDebug Global $g_aidPic[$MAX_IMAGES], $g_aidChkSearch[$MAX_IMAGES], $g_aidBtnCreate[$MAX_IMAGES] _Main() ; #FUNCTION# ==================================================================================================================== ; Name...........: _Main ; Description....: Main program entry point. Initializes components and enters the GUI message loop. ; =============================================================================================================================== Func _Main() ; Explicitly initialize the ImageSearch library If Not _ImageSearch_Startup() Then MsgBox(16, "Fatal Error", "Failed to initialize the ImageSearch DLL. @error: " & @error & @CRLF & "The script will now exit.") Exit EndIf _GDIPlus_Startup() _InitializeImagePaths() _CreateGUI() _UpdateAllImagePreviews() ; Main message loop to handle GUI events. While 1 $g_nMsg = GUIGetMsg() Switch $g_nMsg Case $GUI_EVENT_CLOSE ExitLoop Case $g_idBtnStart _StartSearch() Case $g_idBtnSelectAll _SelectAll(True) Case $g_idBtnDeselectAll _SelectAll(False) Case $g_idBtnSelectArea _SelectAreaOnScreen() Case $g_aidBtnCreate[0] To $g_aidBtnCreate[$MAX_IMAGES - 1] _HandleImageCreation($g_nMsg) EndSwitch WEnd _Exit() EndFunc ;==>_Main ; === GUI AND INITIALIZATION FUNCTIONS === ; #FUNCTION# ==================================================================================================================== ; Name...........: _InitializeImagePaths ; Description....: Populates the global array with default paths for the search images. ; =============================================================================================================================== Func _InitializeImagePaths() For $i = 0 To $MAX_IMAGES - 1 $g_asImagePaths[$i] = @ScriptDir & "\Search_" & $i + 1 & ".bmp" Next EndFunc ;==>_InitializeImagePaths ; #FUNCTION# ==================================================================================================================== ; Name...........: _CreateGUI ; Description....: Creates the entire graphical user interface, defining all controls and their positions. ; =============================================================================================================================== Func _CreateGUI() $g_hMainGUI = GUICreate("ImageSearch Automation Suite (Refactored) by Dao Van Trong - TRONG.PRO", 904, 650) ; --- TOP: CONFIGURATION --- GUICtrlCreateGroup("Configuration", 10, 10, 390, 300) ; --- Search Mode --- GUICtrlCreateGroup("Search Mode", 20, 30, 180, 175) $g_idChkMultiSearch = GUICtrlCreateCheckbox("Multi Search (All at once)", 30, 50, 160, 20) GUICtrlSetTip(-1, "Searches for all selected images in a single operation." & @CRLF & "Finds the FIRST occurrence of ANY of the selected images.") $g_idChkFindAll = GUICtrlCreateCheckbox("Find All Occurrences", 30, 75, 160, 20) GUICtrlSetTip(-1, "Finds EVERY instance of the selected image(s), not just the first one.") $g_idChkWait = GUICtrlCreateCheckbox("Wait for Image Found", 30, 100, 160, 20) $g_idChkUseTolerance = GUICtrlCreateCheckbox("Use Tolerance", 30, 125, 160, 20) GUICtrlSetState(-1, $GUI_CHECKED) $g_idChkUseArea = GUICtrlCreateCheckbox("Use Custom Area", 30, 150, 160, 20) $g_idChkEnableDebug = GUICtrlCreateCheckbox("Enable DLL Debug", 30, 175, 160, 20) GUICtrlSetState(-1, $GUI_CHECKED) GUICtrlSetTip(-1, "Log detailed information from the DLL.") ; --- Parameters --- GUICtrlCreateGroup("Parameters", 210, 30, 180, 94) GUICtrlCreateLabel("Timeout (ms)", 220, 50, 80, 20) $g_idInputWaitTime = GUICtrlCreateInput("5000", 300, 47, 80, 21) GUICtrlCreateLabel("Tolerance:", 220, 75, 80, 20) $g_idInputTolerance = GUICtrlCreateInput("10", 300, 72, 80, 21) GUICtrlCreateLabel("Delay (ms)", 220, 100, 80, 20) $g_idInputDelay = GUICtrlCreateInput("500", 300, 97, 80, 21) ; --- Search Area --- GUICtrlCreateGroup("Search Area", 16, 210, 188, 98) GUICtrlCreateLabel("Left:", 26, 230, 30, 20) $g_idInputLeft = GUICtrlCreateInput("0", 61, 227, 50, 21) GUICtrlCreateLabel("Top:", 121, 230, 30, 20) $g_idInputTop = GUICtrlCreateInput("0", 156, 227, 30, 21) GUICtrlCreateLabel("Right:", 26, 255, 35, 20) $g_idInputRight = GUICtrlCreateInput(@DesktopWidth, 61, 252, 50, 21) GUICtrlCreateLabel("Bottom:", 121, 255, 40, 20) $g_idInputBottom = GUICtrlCreateInput(@DesktopHeight, 156, 252, 30, 21) $g_idBtnSelectArea = GUICtrlCreateButton("Select Area", 24, 276, 163, 25) ; --- Actions on Found --- GUICtrlCreateGroup("Actions on Found", 214, 134, 174, 146) $g_idChkMoveMouse = GUICtrlCreateCheckbox("Move Mouse", 224, 154, 100, 20) GUICtrlSetState(-1, $GUI_CHECKED) GUICtrlCreateLabel("Click:", 224, 179, 40, 20) $g_idRadNoClick = GUICtrlCreateRadio("None", 264, 179, 55, 20) GUICtrlSetState(-1, $GUI_CHECKED) $g_idRadSingleClick = GUICtrlCreateRadio("Single", 224, 199, 60, 20) $g_idRadDoubleClick = GUICtrlCreateRadio("Double", 284, 199, 65, 20) ; --- RIGHT COLUMN: IMAGES & INFO --- GUICtrlCreateGroup("Image Targets", 410, 6, 486, 464) Local $iPicWidth = 100, $iPicHeight = 100 Local $iX_Start = 425, $iY_Start = 38 Local $iX = $iX_Start, $iY = $iY_Start Local $iColWidth = 118 For $i = 0 To $MAX_IMAGES - 1 If $i > 0 And Mod($i, 4) = 0 Then ; New row $iX = $iX_Start $iY += 144 EndIf $g_aidChkSearch[$i] = GUICtrlCreateCheckbox(String($i + 1), $iX, $iY, 34, 20) $g_aidBtnCreate[$i] = GUICtrlCreateButton("Create", $iX + 37, $iY, 59, 22) $g_aidPic[$i] = GUICtrlCreatePic("", $iX, $iY + 30, $iPicWidth, $iPicHeight, $SS_CENTERIMAGE) $iX += $iColWidth Next ; --- BOTTOM: LOGS & SYSTEM INFO --- GUICtrlCreateGroup("Activity Log", 13, 472, 880, 142) $g_hLog = GUICtrlCreateEdit("", 18, 487, 862, 114, BitOR($ES_MULTILINE, $ES_READONLY, $WS_VSCROLL, $ES_AUTOVSCROLL)) GUICtrlSetFont(-1, 9, 400, 0, "Consolas") GUICtrlCreateGroup("System Information", 12, 363, 392, 104) GUICtrlCreateLabel("OS: " & @OSVersion & " (" & @OSArch & ")" & " | AutoIt: " & @AutoItVersion & (@AutoItX64 ? " (x64)" : ""), 28, 385, 360, 20) GUICtrlCreateLabel("DLL In Use:" & " v" & $__IMAGESEARCH_UDF_VERSION, 28, 410, 360, 20) GUICtrlCreateInput($g_sImageSearchDLL_Path, 23, 437, 360, 21, $ES_READONLY) ; --- MAIN ACTION BUTTONS --- $g_idBtnStart = GUICtrlCreateButton("Start Search", 9, 318, 264, 40, $BS_DEFPUSHBUTTON) GUICtrlSetFont(-1, 14, 700) $g_idBtnSelectAll = GUICtrlCreateButton("Select All", 295, 318, 105, 22) $g_idBtnDeselectAll = GUICtrlCreateButton("Deselect All", 295, 345, 105, 22) ; --- STATUS BAR --- $g_hStatusBar = _GUICtrlStatusBar_Create($g_hMainGUI) _UpdateStatus("Ready") GUISetState(@SW_SHOW) EndFunc ;==>_CreateGUI ; === CORE LOGIC FUNCTIONS === ; #FUNCTION# ==================================================================================================================== ; Name...........: _StartSearch ; Description....: Gathers all settings from the GUI, validates them, and initiates the appropriate search function. ; =============================================================================================================================== Func _StartSearch() GUICtrlSetData($g_hLog, "") _UpdateStatus("Starting search...") ; --- Read and Validate GUI inputs --- Local $iDelay = Number(GUICtrlRead($g_idInputDelay)) Local $bMoveMouse = (GUICtrlRead($g_idChkMoveMouse) = $GUI_CHECKED) Local $iClickType = 0 ; 0 = None, 1 = Single, 2 = Double If GUICtrlRead($g_idRadSingleClick) = $GUI_CHECKED Then $iClickType = 1 If GUICtrlRead($g_idRadDoubleClick) = $GUI_CHECKED Then $iClickType = 2 Local $bWaitSearch = (GUICtrlRead($g_idChkWait) = $GUI_CHECKED) Local $iWaitTime = Number(GUICtrlRead($g_idInputWaitTime)) Local $bMultiSearch = (GUICtrlRead($g_idChkMultiSearch) = $GUI_CHECKED) Local $iFindAll = (GUICtrlRead($g_idChkFindAll) = $GUI_CHECKED ? 1 : 0) Local $iTolerance = Number(GUICtrlRead($g_idInputTolerance)) Local $iDebugMode = (GUICtrlRead($g_idChkEnableDebug) = $GUI_CHECKED ? 1 : 0) ; --- Determine Search Area --- Local $iLeft, $iTop, $iRight, $iBottom If GUICtrlRead($g_idChkUseArea) = $GUI_CHECKED Then $iLeft = GUICtrlRead($g_idInputLeft) $iTop = GUICtrlRead($g_idInputTop) $iRight = GUICtrlRead($g_idInputRight) $iBottom = GUICtrlRead($g_idInputBottom) Else $iLeft = 0 $iTop = 0 $iRight = @DesktopWidth $iBottom = @DesktopHeight EndIf ; --- Get list of images to search for, validating existence --- Local $aSearchList[1] = [0] For $i = 0 To $MAX_IMAGES - 1 If GUICtrlRead($g_aidChkSearch[$i]) = $GUI_CHECKED Then If Not FileExists($g_asImagePaths[$i]) Then _LogWrite("WARN: Image " & $i + 1 & " not found. Unchecking and skipping.") GUICtrlSetState($g_aidChkSearch[$i], $GUI_UNCHECKED) _UpdateSingleImagePreview($i) ContinueLoop EndIf _ArrayAdd($aSearchList, $g_asImagePaths[$i]) $aSearchList[0] += 1 EndIf Next If $aSearchList[0] = 0 Then _LogWrite("ERROR: No valid images selected for search.") _UpdateStatus("Error: No valid images selected. Ready.") Return EndIf _LogWrite("====================================") _LogWrite("Starting search for " & $aSearchList[0] & " image(s)...") If $bMultiSearch Then _SearchMultipleImages($aSearchList, $bWaitSearch, $iWaitTime, $iLeft, $iTop, $iRight, $iBottom, $iTolerance, $iDebugMode, $iFindAll, $bMoveMouse, $iClickType, $iDelay) Else _SearchSingleImages($aSearchList, $bWaitSearch, $iWaitTime, $iLeft, $iTop, $iRight, $iBottom, $iTolerance, $iDebugMode, $iFindAll, $bMoveMouse, $iClickType, $iDelay) EndIf _LogWrite("====================================" & @CRLF) _UpdateStatus("Search complete. Ready.") EndFunc ;==>_StartSearch ; #FUNCTION# ==================================================================================================================== ; Name...........: __ExecuteSearch ; Description....: A centralized wrapper function to call the appropriate UDF search function. ; Parameters.....: $sImagePath - The path(s) to the image(s) to search for. ; ... All other search parameters. ; Return values..: The 2D array result from the UDF. ; =============================================================================================================================== Func __ExecuteSearch($sImagePath, $bWait, $iWaitTime, $iLeft, $iTop, $iRight, $iBottom, $iTolerance, $iDebug, $iFindAll) Local $iMaxResults = ($iFindAll = 1 ? 99 : 1) If $bWait Then Return _ImageSearch_WaitArea($iWaitTime, $sImagePath, $iLeft, $iTop, $iRight, $iBottom, $iTolerance, -1, $iMaxResults, 1, $iDebug, 1.0, 1.0, 0.1, $iFindAll) Else Return _ImageSearch_Area($sImagePath, $iLeft, $iTop, $iRight, $iBottom, $iTolerance, -1, $iMaxResults, 1, $iDebug, 1.0, 1.0, 0.1, $iFindAll) EndIf EndFunc ;==>__ExecuteSearch ; #FUNCTION# ==================================================================================================================== ; Name...........: _SearchMultipleImages ; Description....: Performs a search for all selected images at once. ; Parameters.....: $aImageList - Array of image paths to search for. ; ... and other search and action parameters. ; =============================================================================================================================== Func _SearchMultipleImages($aImageList, $bWait, $iWaitTime, $iLeft, $iTop, $iRight, $iBottom, $iTolerance, $iDebug, $iFindAll, $bMove, $iClickType, $iDelay) _UpdateStatus("Mode: Multi Search (All at once)...") _LogWrite("Mode: Multi Search (All at once)") _LogWrite("Find All Occurrences: " & ($iFindAll = 1 ? "Enabled" : "Disabled")) Local $sImageListStr = _ArrayToString($aImageList, "|", 1) Local $aResult = __ExecuteSearch($sImageListStr, $bWait, $iWaitTime, $iLeft, $iTop, $iRight, $iBottom, $iTolerance, $iDebug, $iFindAll) If $iDebug = 1 Then _LogWrite("DLL Return: " & $g_sLastDllReturn) If $g_bImageSearch_Debug Then _LogWrite("DEBUG: UDF returned an array. Checking aResult[0][0] = " & $aResult[0][0]) If $aResult[0][0] > 0 Then _ProcessMultiResults($aResult, $bMove, $iClickType, $iDelay) Else _LogSearchError($aResult[0][0]) EndIf EndFunc ;==>_SearchMultipleImages ; #FUNCTION# ==================================================================================================================== ; Name...........: _SearchSingleImages ; Description....: Performs a search for each selected image individually, one by one. ; Parameters.....: $aImageList - Array of image paths to search for. ; ... and other search and action parameters. ; =============================================================================================================================== Func _SearchSingleImages($aImageList, $bWait, $iWaitTime, $iLeft, $iTop, $iRight, $iBottom, $iTolerance, $iDebug, $iFindAll, $bMove, $iClickType, $iDelay) _LogWrite("Mode: Single Search (One by one)") _LogWrite("Find All Occurrences: " & ($iFindAll = 1 ? "Enabled" : "Disabled")) Local $iTotalFound = 0 For $i = 1 To $aImageList[0] Local $sCurrentImage = $aImageList[$i] Local $sImageName = StringRegExpReplace($sCurrentImage, ".+\\(.+)", "$1") _UpdateStatus("Searching for: " & $sImageName & "...") _LogWrite(" -> Searching for: " & $sImageName) Local $aResult = __ExecuteSearch($sCurrentImage, $bWait, $iWaitTime, $iLeft, $iTop, $iRight, $iBottom, $iTolerance, $iDebug, $iFindAll) If $iDebug = 1 Then _LogWrite("DLL Return: " & $g_sLastDllReturn) If $g_bImageSearch_Debug Then _LogWrite("DEBUG: UDF returned an array. Checking aResult[0][0] = " & $aResult[0][0]) If $aResult[0][0] > 0 Then $iTotalFound += $aResult[0][0] _ProcessMultiResults($aResult, $bMove, $iClickType, $iDelay) Else _LogSearchError($aResult[0][0]) EndIf Next _LogWrite("Single search finished. Total matches found: " & $iTotalFound) EndFunc ;==>_SearchSingleImages ; #FUNCTION# ==================================================================================================================== ; Name...........: _ProcessMultiResults ; Description....: Processes the 2D array result from a search and performs actions for each found item. ; Parameters.....: $aResult - The 2D result array from the UDF. ; $bMove - Boolean, whether to move the mouse. ; $iClickType - 0 for none, 1 for single, 2 for double click. ; $iDelay - Delay in ms after actions. ; =============================================================================================================================== Func _ProcessMultiResults($aResult, $bMove, $iClickType, $iDelay) Local $iFoundCount = $aResult[0][0] _LogWrite("Success: Found " & $iFoundCount & " match(es). Performing actions...") For $i = 1 To $iFoundCount Local $iX = $aResult[$i][1], $iY = $aResult[$i][2], $iW = $aResult[$i][3], $iH = $aResult[$i][4] _UpdateStatus("Performing action on match #" & $i & " at " & $iX & "," & $iY & "...") _LogWrite(" -> Found match #" & $i & " at X=" & $iX & ", Y=" & $iY) _HighlightFoundArea($iX, $iY, $iW, $iH, 0xFF00FF00) _PerformActions($iX, $iY, $bMove, $iClickType, $iDelay) Next _LogWrite("All actions complete for this search cycle.") EndFunc ;==>_ProcessMultiResults ; #FUNCTION# ==================================================================================================================== ; Name...........: _PerformActions ; Description....: Executes the user-defined actions (move, click, delay) at a given coordinate. ; Parameters.....: $iX, $iY - The coordinates to perform actions at. ; ... and other action parameters. ; =============================================================================================================================== Func _PerformActions($iX, $iY, $bMove, $iClickType, $iDelay) If $bMove Then _LogWrite(" - Moving mouse...") MouseMove($iX, $iY, 10) EndIf If $iClickType > 0 Then _LogWrite(" - Performing " & ($iClickType = 1 ? "single" : "double") & " click...") MouseClick("left", $iX, $iY, $iClickType, 0) EndIf _LogWrite(" - Delaying for " & $iDelay & "ms...") Sleep($iDelay) EndFunc ;==>_PerformActions ; === HELPER AND UTILITY FUNCTIONS === ; #FUNCTION# ==================================================================================================================== ; Name...........: _HandleImageCreation ; Description....: Event handler that determines which "Create" button was pressed and calls the creation function. ; Parameters.....: $nMsg - The control ID of the pressed button. ; =============================================================================================================================== Func _HandleImageCreation($nMsg) For $i = 0 To $MAX_IMAGES - 1 If $nMsg = $g_aidBtnCreate[$i] Then _CreateImageFile($g_asImagePaths[$i], "Create/Update Image " & $i + 1, $i) Return EndIf Next EndFunc ;==>_HandleImageCreation ; #FUNCTION# ==================================================================================================================== ; Name...........: _CreateImageFile ; Description....: Manages the process of calling the screen capture function and updating the log/GUI. ; Parameters.....: $sFilePath - The path to save the image file. ; $sTitle - The title for the capture window. ; $iIndex - The index of the image slot being updated. ; =============================================================================================================================== Func _CreateImageFile($sFilePath, $sTitle, $iIndex) _UpdateStatus("Preparing to create image " & $iIndex + 1 & "...") Local $iResult = _CaptureRegion($sTitle, $sFilePath) If $iResult = -1 Then _LogWrite("ERROR: Could not capture screen.") ElseIf $iResult = -2 Then _LogWrite("CANCELLED: User cancelled image creation for " & $sFilePath) Else _LogWrite("Image saved successfully: " & $sFilePath) _UpdateSingleImagePreview($iIndex) EndIf _UpdateStatus("Ready") EndFunc ;==>_CreateImageFile ; #FUNCTION# ==================================================================================================================== ; Name...........: _SelectAreaOnScreen ; Description....: Manages the process of selecting a screen area and updating the GUI input fields. ; =============================================================================================================================== Func _SelectAreaOnScreen() _UpdateStatus("Preparing to select search area...") Local $aCoords = _CaptureRegion("Select an area and release the mouse", "") If Not IsArray($aCoords) Then _LogWrite("INFO: Area selection cancelled.") Else GUICtrlSetData($g_idInputLeft, $aCoords[0]) GUICtrlSetData($g_idInputTop, $aCoords[1]) GUICtrlSetData($g_idInputRight, $aCoords[2]) GUICtrlSetData($g_idInputBottom, $aCoords[3]) _LogWrite("INFO: Search area updated to L:" & $aCoords[0] & " T:" & $aCoords[1] & " R:" & $aCoords[2] & " B:" & $aCoords[3]) EndIf _UpdateStatus("Ready") EndFunc ;==>_SelectAreaOnScreen ; #FUNCTION# ==================================================================================================================== ; Name...........: _CaptureRegion ; Description....: Creates a transparent GUI to allow the user to select a screen region by dragging the mouse. ; MODIFIED: Selection area is now always a square. ; Parameters.....: $sTitle - The title for the capture window. ; $sFilePath - If provided, captures and saves an image. If empty, returns coordinates. ; Return values..: If $sFilePath is provided: 0 on success, -1 on capture error, -2 on user cancel. ; If $sFilePath is empty: A 4-element array [Left, Top, Right, Bottom] on success, -2 on user cancel. ; =============================================================================================================================== Func _CaptureRegion($sTitle, $sFilePath) Local $hUserDLL = DllOpen("user32.dll") If $hUserDLL = -1 Then Return -1 Local $hCrossGUI = GUICreate($sTitle, @DesktopWidth, @DesktopHeight, 0, 0, $WS_POPUP, $WS_EX_TOPMOST) GUISetBkColor(0x000001) WinSetTrans($hCrossGUI, "", 1) GUISetState(@SW_SHOW, $hCrossGUI) GUISetCursor(3, 1, $hCrossGUI) _UpdateStatus("Drag the mouse to select a square area. Press ESC to cancel.") ToolTip("Drag the mouse to select a square area. Press ESC to cancel.", 0, 0) While Not _IsPressed("01", $hUserDLL) If _IsPressed("1B", $hUserDLL) Then ToolTip("") GUIDelete($hCrossGUI) DllClose($hUserDLL) Return -2 EndIf Sleep(20) WEnd ToolTip("") Local $aStartPos = MouseGetPos() Local $iX1 = $aStartPos[0], $iY1 = $aStartPos[1] Local $hRectGUI While _IsPressed("01", $hUserDLL) Local $aCurrentPos = MouseGetPos() Local $iX2 = $aCurrentPos[0], $iY2 = $aCurrentPos[1] If IsHWnd($hRectGUI) Then GUIDelete($hRectGUI) ; Calculate the absolute width and height of the drag area Local $iAbsWidth = Abs($iX1 - $iX2) Local $iAbsHeight = Abs($iY1 - $iY2) ; Determine the side length of the square (the larger of width or height) Local $iSide = _Max($iAbsWidth, $iAbsHeight) ; Determine the top-left corner of the square based on drag direction Local $iLeft_Temp = $iX1 If $iX2 < $iX1 Then $iLeft_Temp = $iX1 - $iSide Local $iTop_Temp = $iY1 If $iY2 < $iY1 Then $iTop_Temp = $iY1 - $iSide ; Create the square feedback GUI $hRectGUI = GUICreate("", $iSide, $iSide, $iLeft_Temp, $iTop_Temp, $WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_TOPMOST)) GUISetBkColor(0xFF0000) _WinAPI_SetLayeredWindowAttributes($hRectGUI, 0, 100) GUISetState(@SW_SHOWNOACTIVATE, $hRectGUI) Sleep(10) WEnd Local $aEndPos = MouseGetPos() Local $iX2 = $aEndPos[0], $iY2 = $aEndPos[1] GUIDelete($hCrossGUI) If IsHWnd($hRectGUI) Then GUIDelete($hRectGUI) DllClose($hUserDLL) ; Final coordinate calculation for the square Local $iAbsWidth = Abs($iX1 - $iX2) Local $iAbsHeight = Abs($iY1 - $iY2) Local $iSide = _Max($iAbsWidth, $iAbsHeight) If $iSide = 0 Then Return -2 ; If there was no drag, treat as cancel Local $iLeft = $iX1 If $iX2 < $iX1 Then $iLeft = $iX1 - $iSide Local $iTop = $iY1 If $iY2 < $iY1 Then $iTop = $iY1 - $iSide Local $iRight = $iLeft + $iSide Local $iBottom = $iTop + $iSide ; If $sFilePath is empty, it's an area selection, not an image capture If $sFilePath = "" Then Local $aReturn[4] = [$iLeft, $iTop, $iRight, $iBottom] Return $aReturn EndIf Local $aMousePos = MouseGetPos() MouseMove(0, 0, 0) Sleep(250) Local $hBitmap = _ScreenCapture_Capture("", $iLeft, $iTop, $iRight, $iBottom, False) If @error Then MouseMove($aMousePos[0], $aMousePos[1], 0) Return -1 EndIf Local $hImage = _GDIPlus_BitmapCreateFromHBITMAP($hBitmap) _GDIPlus_ImageSaveToFile($hImage, $sFilePath) _GDIPlus_BitmapDispose($hImage) _WinAPI_DeleteObject($hBitmap) MouseMove($aMousePos[0], $aMousePos[1], 0) Return 0 EndFunc ;==>_CaptureRegion ; #FUNCTION# ==================================================================================================================== ; Name...........: _CaptureRegion ; Description....: Creates a transparent GUI to allow the user to select a screen region by dragging the mouse. ; Parameters.....: $sTitle - The title for the capture window. ; $sFilePath - If provided, captures and saves an image. If empty, returns coordinates. ; Return values..: If $sFilePath is provided: 0 on success, -1 on capture error, -2 on user cancel. ; If $sFilePath is empty: A 4-element array [Left, Top, Right, Bottom] on success, -2 on user cancel. ; =============================================================================================================================== Func _CaptureRegion_free($sTitle, $sFilePath) Local $hUserDLL = DllOpen("user32.dll") If $hUserDLL = -1 Then Return -1 Local $hCrossGUI = GUICreate($sTitle, @DesktopWidth, @DesktopHeight, 0, 0, $WS_POPUP, $WS_EX_TOPMOST) GUISetBkColor(0x000001) WinSetTrans($hCrossGUI, "", 1) GUISetState(@SW_SHOW, $hCrossGUI) GUISetCursor(3, 1, $hCrossGUI) _UpdateStatus("Drag the mouse to select an area. Press ESC to cancel.") ToolTip("Drag the mouse to select an area. Press ESC to cancel.", 0, 0) While Not _IsPressed("01", $hUserDLL) If _IsPressed("1B", $hUserDLL) Then ToolTip("") GUIDelete($hCrossGUI) DllClose($hUserDLL) Return -2 EndIf Sleep(20) WEnd ToolTip("") Local $aStartPos = MouseGetPos() Local $iX1 = $aStartPos[0], $iY1 = $aStartPos[1] Local $hRectGUI While _IsPressed("01", $hUserDLL) Local $aCurrentPos = MouseGetPos() Local $iX2 = $aCurrentPos[0], $iY2 = $aCurrentPos[1] If IsHWnd($hRectGUI) Then GUIDelete($hRectGUI) Local $iLeft = ($iX1 < $iX2 ? $iX1 : $iX2) Local $iTop = ($iY1 < $iY2 ? $iY1 : $iY2) Local $iWidth = Abs($iX1 - $iX2) Local $iHeight = Abs($iY1 - $iY2) $hRectGUI = GUICreate("", $iWidth, $iHeight, $iLeft, $iTop, $WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_TOPMOST)) GUISetBkColor(0xFF0000) _WinAPI_SetLayeredWindowAttributes($hRectGUI, 0, 100) GUISetState(@SW_SHOWNOACTIVATE, $hRectGUI) Sleep(10) WEnd Local $aEndPos = MouseGetPos() Local $iX2 = $aEndPos[0], $iY2 = $aEndPos[1] GUIDelete($hCrossGUI) If IsHWnd($hRectGUI) Then GUIDelete($hRectGUI) DllClose($hUserDLL) Local $iLeft = ($iX1 < $iX2 ? $iX1 : $iX2) Local $iTop = ($iY1 < $iY2 ? $iY1 : $iY2) Local $iRight = ($iX1 > $iX2 ? $iX1 : $iX2) Local $iBottom = ($iY1 > $iY2 ? $iY1 : $iY2) ; If $sFilePath is empty, it's an area selection, not an image capture If $sFilePath = "" Then Local $aReturn[4] = [$iLeft, $iTop, $iRight, $iBottom] Return $aReturn EndIf Local $aMousePos = MouseGetPos() MouseMove(0, 0, 0) Sleep(250) Local $hBitmap = _ScreenCapture_Capture("", $iLeft, $iTop, $iRight, $iBottom, False) If @error Then MouseMove($aMousePos[0], $aMousePos[1], 0) Return -1 EndIf Local $hImage = _GDIPlus_BitmapCreateFromHBITMAP($hBitmap) _GDIPlus_ImageSaveToFile($hImage, $sFilePath) _GDIPlus_BitmapDispose($hImage) _WinAPI_DeleteObject($hBitmap) MouseMove($aMousePos[0], $aMousePos[1], 0) Return 0 EndFunc ;==>_CaptureRegion ; #FUNCTION# ==================================================================================================================== ; Name...........: _HighlightFoundArea ; Description....: Creates a temporary, semi-transparent GUI to highlight a found image location. ; Parameters.....: $iX, $iY - The center coordinates of the area to highlight. ; $iWidth - The width of the highlight rectangle. ; $iHeight - The height of the highlight rectangle. ; $iColor - [optional] The color of the highlight rectangle. ; =============================================================================================================================== Func _HighlightFoundArea($iX, $iY, $iWidth, $iHeight, $iColor = 0xFFFF0000) Local $hGUI = GUICreate("", $iWidth, $iHeight, $iX - $iWidth / 2, $iY - $iHeight / 2, $WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_TOPMOST, $WS_EX_TOOLWINDOW)) GUISetBkColor($iColor) _WinAPI_SetLayeredWindowAttributes($hGUI, 0, 128) GUISetState(@SW_SHOWNOACTIVATE) Sleep(500) GUIDelete($hGUI) EndFunc ;==>_HighlightFoundArea ; #FUNCTION# ==================================================================================================================== ; Name...........: _LogWrite ; Description....: Writes a timestamped message to the activity log and ensures it scrolls to the bottom. ; Parameters.....: $sMessage - The string message to log. ; =============================================================================================================================== Func _LogWrite($sMessage) GUICtrlSetData($g_hLog, _NowTime() & " " & $sMessage & @CRLF, 1) _GUICtrlEdit_SetSel(GUICtrlGetHandle($g_hLog), 0x7FFFFFFF, 0x7FFFFFFF) EndFunc ;==>_LogWrite ; #FUNCTION# ==================================================================================================================== ; Name...........: _LogSearchError ; Description....: Translates an error code from the UDF into a human-readable message and logs it. ; Parameters.....: $iErrorCode - The status code returned by the _ImageSearch* function. ; =============================================================================================================================== Func _LogSearchError($iErrorCode) Switch $iErrorCode Case 0 _LogWrite(" - Not found.") Case -1 _LogWrite("ERROR: DllCall failed. Check if the DLL is corrupted or blocked by antivirus.") Case -2 _LogWrite("ERROR: Invalid format returned from DLL. The UDF could not parse the result.") Case -3 _LogWrite("ERROR: Invalid content returned from DLL. The result string was malformed.") Case -11 _LogWrite("ERROR: The source image file was not found on disk (checked by UDF).") Case -12 _LogWrite("ERROR: Failed to deploy or load the ImageSearch DLL. Call _ImageSearch_Startup().") Case Else _LogWrite("ERROR: An internal DLL error occurred. Code: " & $iErrorCode) EndSwitch EndFunc ;==>_LogSearchError ; #FUNCTION# ==================================================================================================================== ; Name...........: _UpdateAllImagePreviews ; Description....: Iterates through all image slots and updates their preview images. ; =============================================================================================================================== Func _UpdateAllImagePreviews() For $i = 0 To $MAX_IMAGES - 1 _UpdateSingleImagePreview($i) Next EndFunc ;==>_UpdateAllImagePreviews ; #FUNCTION# ==================================================================================================================== ; Name...........: _UpdateSingleImagePreview ; Description....: Updates a single image preview slot. Shows the placeholder if the image doesn't exist. ; Parameters.....: $iIndex - The index of the image slot to update. ; =============================================================================================================================== Func _UpdateSingleImagePreview($iIndex) If FileExists($g_asImagePaths[$iIndex]) Then GUICtrlSetImage($g_aidPic[$iIndex], $g_asImagePaths[$iIndex]) Else If FileExists($g_sPlaceholderPath) Then GUICtrlSetImage($g_aidPic[$iIndex], $g_sPlaceholderPath) Else GUICtrlSetImage($g_aidPic[$iIndex], "shell32.dll", 22) EndIf EndIf EndFunc ;==>_UpdateSingleImagePreview ; #FUNCTION# ==================================================================================================================== ; Name...........: _SelectAll ; Description....: Checks or unchecks all image target checkboxes. ; Parameters.....: $bState - True to check all, False to uncheck all. ; =============================================================================================================================== Func _SelectAll($bState) Local $iCheckState = $GUI_UNCHECKED If $bState Then $iCheckState = $GUI_CHECKED For $i = 0 To $MAX_IMAGES - 1 GUICtrlSetState($g_aidChkSearch[$i], $iCheckState) Next EndFunc ;==>_SelectAll ; #FUNCTION# ==================================================================================================================== ; Name...........: _UpdateStatus ; Description....: Sets the text of the status bar. ; Parameters.....: $sMessage - The message to display. ; =============================================================================================================================== Func _UpdateStatus($sMessage) _GUICtrlStatusBar_SetText($g_hStatusBar, $sMessage) EndFunc ;==>_UpdateStatus ; #FUNCTION# ==================================================================================================================== ; Name...........: _Exit ; Description....: Exits the script cleanly. This will trigger the OnAutoItExitRegister function. ; =============================================================================================================================== Func _Exit() _GDIPlus_Shutdown() Exit EndFunc ;==>_Exit ; Dao Van Trong - TRONG.PRO This program is an example of using ImageSearchUDF. Download ImageSearchUDF here: Download ImageSearch Automation Suite HERE: Edited July 28 by Trong KaFu and ioa747 2 Enjoy my work? Buy me a 🍻 or tip via ❤️ PayPal
Parsix Posted July 23 Posted July 23 thanks If there is more than one identical shape with the same background in the image, it will only find one in the search results, and often the one defined in the "target image" selected by the mouse.

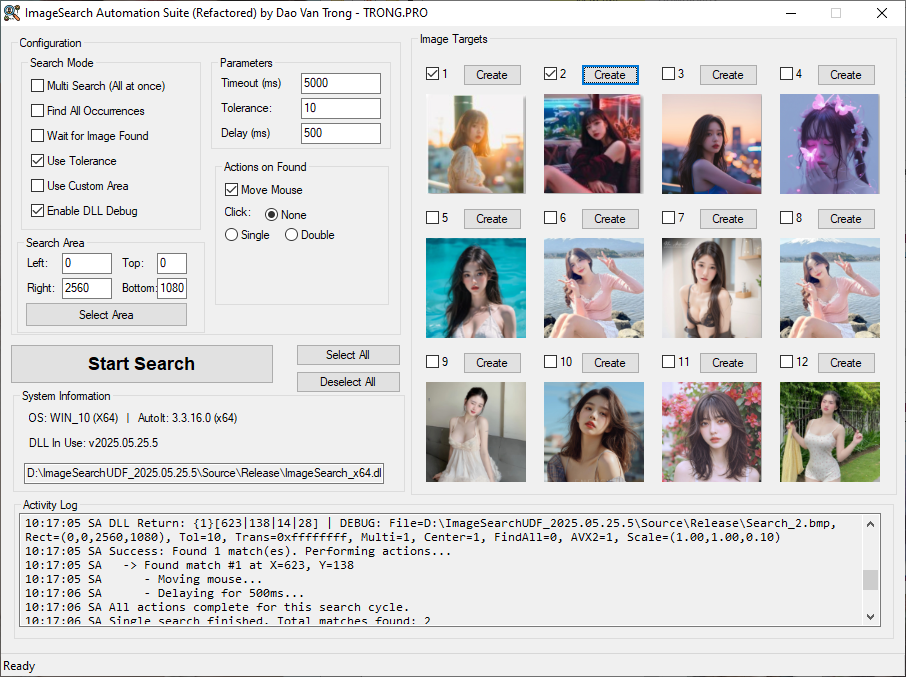

Trong Posted July 24 Author Posted July 24 (edited) On 7/24/2025 at 3:27 AM, Parsix said: thanks If there is more than one identical shape with the same background in the image, it will only find one in the search results, and often the one defined in the "target image" selected by the mouse. Updated code, try it out! Edited July 28 by Trong Enjoy my work? Buy me a 🍻 or tip via ❤️ PayPal
