Sardith

Process list

9 posts in this topic

Is there any way to make a process list, with process's icon?

#include <GUIConstants.au3>


$hGui = GUICreate("Test", 360, 400, -1, -1, -1, BitOR($WS_EX_TOPMOST, $WS_EX_TOOLWINDOW))


$list=GUICtrlCreateList ("", 100,32, 200, 300)
GUICtrlSetLimit(-1,200) ; to limit horizontal scrolling
GUICtrlSetData(-1, _FormatProcessList())
$Button_1 = GUICtrlCreateButton ("Refresh",  10, 30, 100)


GUISetState ()


Func Refresh()
    GUICtrlSetData($List, "")
    GUICtrlSetData($List, _FormatProcessList())
EndFunc

Func _FormatProcessList()
    Local $list = ProcessList()
    Local $retstr = 0
    For $i = 1 To $list[0][0]
        $retstr = $retstr & $list[$i][0]
        If $i < $list[0][0] Then $retstr = $retstr & "|"
    Next
    Return $retstr
EndFunc
GUISetState ()


While 1
    $msg = GUIGetMsg(1)
Switch $Msg
    Case $Button_1
        Refresh()

   EndSwitch
Wend



[font="Verdana"]Valik:Get it straight - I'm not here to say please, I'm here to help - if my help's not appreciated then lotsa luck, gentlemen.[/font]

Share this post


Link to post
Share on other sites



Yeah, that happens to be in the first post.

Add/Remove Programs List

http://www.autoitscript.com/forum/index.ph...mp;#entry140923

For some reason smoke, big daddy's program isn't displaying any icons for me.

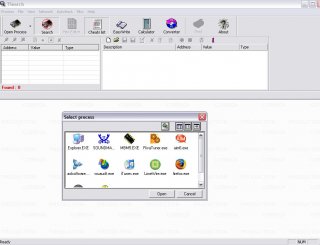

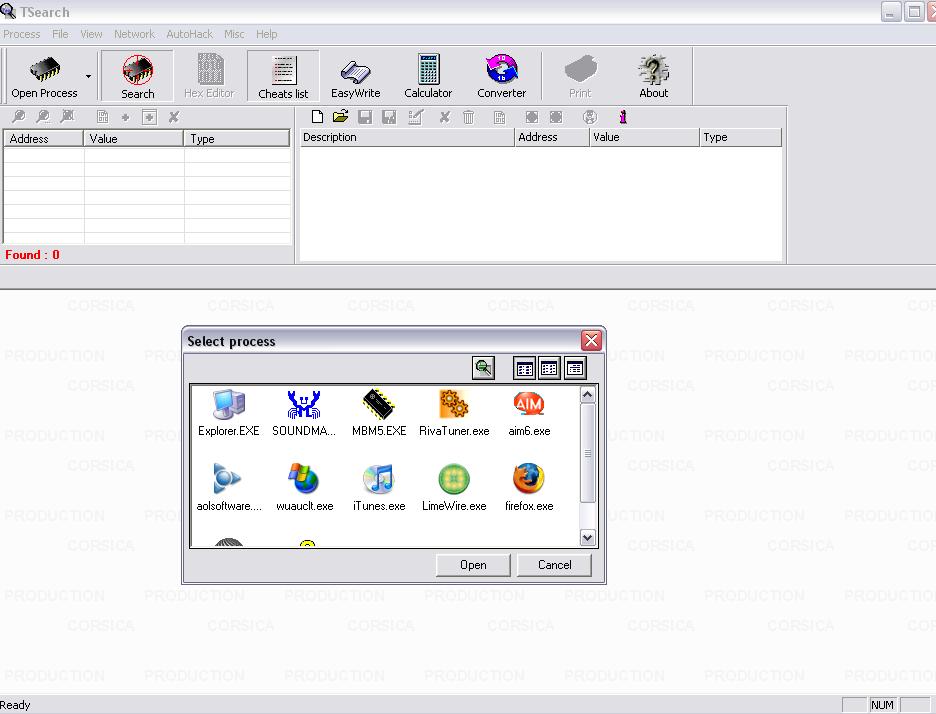

Posted Image


[font="Verdana"]Valik:Get it straight - I'm not here to say please, I'm here to help - if my help's not appreciated then lotsa luck, gentlemen.[/font]

Share this post


Link to post
Share on other sites

Func FileGetIconCount($szFile)
    Local $nCount = 0

    Local $LPCTSTR = DllStructCreate("char[260]")
    DllStructSetData($LPCTSTR, 1, $szFile)
    $nCount = DllCall("shell32.dll", "int", "ExtractIconEx", "ptr", DllStructGetPtr($LPCTSTR), "int", -1, "int", 0, "int", 0, "int", 0)

    Return $nCount[0]
EndFunc



Func FileGetIcon(ByRef $szIconFile, ByRef $nIcon, $szFile)
    Local $szRegDefault = "", $szDefIcon = ""

    $nIcon = 0
    $szExt = StringRight($szFile,4)
    $szRegDefault = RegRead("HKCU\Software\Microsoft\Windows\CurrentVersion\Explorer\FileExts\" & $szExt,"ProgID")
    If $szRegDefault = "" Then $szRegDefault = RegRead("HKCR\" & $szExt,"")
    If $szRegDefault <> "" Then $szDefIcon = RegRead("HKCR\" & $szRegDefault & "\DefaultIcon","")
    If $szDefIcon = "" Then
        $szIconFile = "shell32.dll"
    ElseIf $szDefIcon <> "%1" Then
        $arSplit = StringSplit($szDefIcon,",")
        If IsArray($arSplit) Then
            $szIconFile = $arSplit[1]
            If $arSplit[0] > 1 Then $nIcon = $arSplit[2]
        Else
            Return 0
        EndIf
    EndIf
    Return 1
EndFunc

Could anyone help me out with this funcation, found via search. FileGetIcon(ByRef $szIconFile, ByRef $nIcon, $szFile). Wanted to test it, but im not sure how to test it.


[font="Verdana"]Valik:Get it straight - I'm not here to say please, I'm here to help - if my help's not appreciated then lotsa luck, gentlemen.[/font]

Share this post


Link to post
Share on other sites

#6 ·  Posted (edited)

Share this post


Link to post
Share on other sites

Correct.


[font="Verdana"]Valik:Get it straight - I'm not here to say please, I'm here to help - if my help's not appreciated then lotsa luck, gentlemen.[/font]

Share this post


Link to post
Share on other sites

Anyone have any ideas of how to go about doing this?


[font="Verdana"]Valik:Get it straight - I'm not here to say please, I'm here to help - if my help's not appreciated then lotsa luck, gentlemen.[/font]

Share this post


Link to post
Share on other sites

Still to no avail.

I was looking at this code, if someone can help me edit it a bit. Im no good at taking apart others work.

; AutoIt Version: 3.1.1.70 (min)
; Author:         Holger Kotsch
;
; Script Function:
;   IconFileScanner 1.2
;
; ----------------------------------------------------------------------------

#include <GUIConstants.au3>


If Not IsDeclared("LVM_SETCOLUMN")                  Then Global Const $LVM_SETCOLUMN                = 0x101A



Global Const $LVM_GETITEM           = $LVM_FIRST + 5



Global $arIconFiles[1000]

Global $szDirType       = RegRead("HKCR\Directory", "")
If $szDirType = "" Then $szDirType = "Directory"
Global $nFirstEntry = 0, $nLastEntry = 0
Global $szCurrentPath   = @WindowsDir
Global $szVersion       = "1.3"
Global $nCurCol         = -1
Global $nSortDir        = 1
Global $bSet            = 0
Global $nCol            = -1


$hGUI           = GUICreate("Icon File Scanner", 585, 342, -1, -1, BitOr($WS_SIZEBOX, $WS_MAXIMIZEBOX, $WS_MINIMIZEBOX, $WS_CAPTION, $WS_POPUP, $WS_SYSMENU))

$nFileMenu      = GUICtrlCreateMenu("&File")
$nFileSelFolder = GUICtrlCreateMenuItem("Select Folder...",$nFileMenu)
$nViewMenu      = GUICtrlCreateMenu("&View")
$nViewMenuItem0 = GUICtrlCreateMenuItem("Icons", $nViewMenu, -1, 1)
$nViewMenuItem1 = GUICtrlCreateMenuItem("Report", $nViewMenu, -1, 1)
GUICtrlSetState(-1, $GUI_CHECKED)
$nViewMenuItem2 = GUICtrlCreateMenuItem("SmallIcons", $nViewMenu,-1, 1)
$nViewMenuItem3 = GUICtrlCreateMenuItem("List", $nViewMenu, -1, 1)
$nHelpMenu      = GUICtrlCreateMenu("&Help")
$nAboutItem     = GUICtrlCreateMenuItem("About",$nHelpMenu)

GUICtrlCreateLabel("", 0, 0, 701, 2, $SS_SUNKEN)
GUICtrlSetResizing(-1, $GUI_DOCKTOP + $GUI_DOCKHEIGHT)
$nPathLabel = GUICtrlCreateLabel("Path:",5, 5, 30, 18)
GUICtrlSetResizing(-1, $GUI_DOCKALL)
$nCurPath   = GUICtrlCreateCombo($szCurrentPath, 35, 2, 350, 20)
GUICtrlSetResizing(-1, $GUI_DOCKALL)
$nGoButton= GUICtrlCreateButton("Go", 385, 2, 25, 20, $BS_FLAT)
GUICtrlSetState(-1, $GUI_DEFBUTTON)
GUICtrlSetResizing(-1, $GUI_DOCKALL)
$nPathButton= GUICtrlCreateButton("...", 410, 2, 25, 20, BitOr($BS_ICON, $BS_FLAT))
GUICtrlSetImage(-1, "shell32.dll", 3, 0)
GUICtrlSetResizing(-1, $GUI_DOCKALL)

$nDirList   = GUICtrlCreateListView("Name|Size|Type|Changed", 0, 23, 390, 280)
GUICtrlRegisterListViewSort(-1, "LVSort")
GUICtrlSetResizing(-1, $GUI_DOCKTOP + $GUI_DOCKBOTTOM)
GUICtrlSendMsg(-1, $LVM_SETEXTENDEDLISTVIEWSTYLE, $LVS_EX_GRIDLINES, $LVS_EX_GRIDLINES)
GUICtrlListViewSetColumnFormat($nDirList, 1, $LVCFMT_RIGHT)
GUICtrlSetImage(-1, "shell32.dll", 0)
$nContext   = GUICtrlCreateContextMenu($nDirList)
$viewitem   = GUICtrlCreateMenu("View", $nContext)
GUICtrlCreateMenuItem("",$nContext)
$nInfoItem  = GUICtrlCreateMenuItem("Info", $nContext)
$nDirItem0  = GUICtrlCreateMenuItem("Icons", $viewitem, -1, 1)
$nDirItem1  = GUICtrlCreateMenuItem("Report", $viewitem, -1, 1)
GUICtrlSetState(-1, $GUI_CHECKED)
$nDirItem2  = GUICtrlCreateMenuItem("SmallIcons", $viewitem,-1, 1)
$nDirItem3  = GUICtrlCreateMenuItem("List", $viewitem, -1, 1)

$nIconList  = GUICtrlCreateListView("Icon", 395, 23, 190, 280)
GUICtrlSetStyle(-1, BitOr($LVS_SHOWSELALWAYS, $LVS_SINGLESEL, $WS_TABSTOP)) ; set this ListView to LVS_ICON-style cause LVS_ICON = 0x0000
GUICtrlSetResizing(-1, $GUI_DOCKTOP + $GUI_DOCKBOTTOM)
$nIconMenu  = GUICtrlCreateContextMenu($nIconList)
$nIconItem0 = GUICtrlCreateMenuItem("Icons", $nIconMenu, -1, 1)
GUICtrlSetState(-1, $GUI_CHECKED)
$nIconItem1 = GUICtrlCreateMenuItem("Report", $nIconMenu, -1, 1)
$nIconItem2 = GUICtrlCreateMenuItem("SmallIcons", $nIconMenu,-1, 1)
$nIconItem3 = GUICtrlCreateMenuItem("List", $nIconMenu, -1, 1)

$nFileInfo  = GUICtrlCreateLabel("File:", 0, 305, 390, 18, $SS_SUNKEN)
GUICtrlSetResizing(-1, $GUI_DOCKHEIGHT)
$nIconInfo  = GUICtrlCreateLabel("Icons:", 395, 305, 190, 18, $SS_SUNKEN)
GUICtrlSetResizing(-1, $GUI_DOCKHEIGHT)

GUISetState()

$nFirstItem = 0
$nLastItem  = 0
$nFirstIcon = 0
$nLastIcon  = 0
$nOldItem   = 0

DirToList($szCurrentPath)
GUICtrlSendMsg($nDirList, $LVM_SETCOLUMNWIDTH, 0, -1)
GUICtrlSendMsg($nDirList, $LVM_SETCOLUMNWIDTH, 0, -2)

While 1
    $nMsg = GUIGetMsg ()

    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            ExitLoop

        Case $GUI_EVENT_RESIZED
            GUISetState(@SW_LOCK, $hGUI)
            $nStyle = DllCall("user32.dll", "int", "GetWindowLong", "hwnd", GUICtrlGetHandle($nIconList), "int", -16)
            $nStyle = BitAnd($nStyle[0], 0x0003)
            GUICtrlSetStyle($nIconList, BitOr(1, $LVS_SHOWSELALWAYS, $LVS_SINGLESEL, $WS_TABSTOP))
            GUICtrlSetStyle($nIconList, BitOr($nStyle, $LVS_SHOWSELALWAYS, $LVS_SINGLESEL, $WS_TABSTOP))
            GUISetState(@SW_UNLOCK, $hGUI)

        Case $nAboutItem, $nInfoItem
            Msgbox(0 ,"About", "IconFileScanner " & $szVersion & " by Holger Kotsch")

        Case $nPathButton, $nFileSelFolder, $nGoButton, $nCurPath
            If $nMsg = $nGoButton Or $nMsg = $nCurPath Then
                $szFolder = GUICtrlRead($nCurPath)
                If Not FileExists($szFolder) Then ContinueLoop
            Else
                $szFolder = FileSelectFolder("Select folder to scan", "", 0, $szCurrentPath)
            EndIf
            If $szFolder <> "" Then
                $szCurrentPath = $szFolder
                GUICtrlSetData($nCurPath, $szCurrentPath, $szCurrentPath)
                GUICtrlSetData($nFileInfo, "Scanning folder...")
                GUICtrlSetData($nIconInfo, "Icons:")
                For $i = $nFirstIcon To $nLastIcon
                    GUICtrlDelete($i)
                Next
                For $i = $nFirstItem To $nLastItem
                    GUICtrlDelete($i)
                Next
                $nFirstItem = 0
                $nLastItem  = 0
                $nFirstIcon = 0
                $nLastIcon  = 0
                $nOldItem   = 0
                GUISetCursor(1)
                GUICtrlSetCursor($nDirList,1)
                DirToList($szCurrentPath)
                GUISetCursor(2)
                GUICtrlSetCursor($nDirList,2)
            EndIf

        Case $nDirItem0 To $nDirItem3,  $nViewMenuItem0 To $nViewMenuItem3
            If $nMsg >= $nDirItem0 And $nMsg <= $nDirItem3 Then
                $nMsgItem = $nDirItem0
                For $i = 0 To 3
                    GUICtrlSetState($nViewMenuItem0 + $i, $GUI_UNCHECKED)
                Next
                GUICtrlSetState($nViewMenuItem0 + $nMsg - $nMsgItem, $GUI_CHECKED)
            Else
                $nMsgItem = $nViewMenuItem0
                For $i = 0 To 3
                    GUICtrlSetState($nDirItem0 + $i, $GUI_UNCHECKED)
                Next
                GUICtrlSetState($nDirItem0 + $nMsg - $nMsgItem, $GUI_CHECKED)
            EndIf
            GUICtrlSetStyle($nDirList, BitOr($nMsg - $nMsgItem, $LVS_SHOWSELALWAYS, $LVS_SINGLESEL, $WS_TABSTOP))
            If BitAnd($nMsg - $nMsgItem, $LVS_REPORT) Then
                GUICtrlSendMsg($nDirList, $LVM_SETCOLUMNWIDTH,0,200)
                For $i = 1 To 3
                    GUICtrlSendMsg($nDirList, $LVM_SETCOLUMNWIDTH, $i,-1)
                    GUICtrlSendMsg($nDirList, $LVM_SETCOLUMNWIDTH, $i,-2)
                Next
            EndIf

        Case $nIconItem0 To $nIconItem3
            GUICtrlSetStyle($nIconList, BitOr($nMsg - $nIconItem0, $LVS_SHOWSELALWAYS, $LVS_SINGLESEL, $WS_TABSTOP))

        Case $nFirstItem To $nLastItem
            If $nMsg <> $nOldItem Then
                $nOldItem = $nMsg
                $szFileInfo = StringSplit(GUICtrlRead($nMsg),"|")
                $szFile = $szFileInfo[1]
                If $nFirstIcon > 0 Then
                    For $i = $nFirstIcon To $nLastIcon
                        GUICtrlDelete($i)
                    Next
                EndIf
                GUICtrlSetData($nFileInfo, "Type: " & $szFileInfo[3] & "  Changed at: " & $szFileInfo[4] & "  Size: " & $szFileInfo[2])
                $nIcons = FileGetIconCount($szCurrentPath & "\" & $szFile)
                GUICtrlSetData($nIconInfo, "Extracting icons...")
                GUISetCursor(1)
                GUICtrlSetCursor($nIconList,1)
                For $i = 0 To $nIcons - 1
                    $nIcon = GUICtrlCreateListViewItem($i, $nIconList)
                    GUICtrlSetImage(-1,$szCurrentPath & "\" & $szFile,$i)
                    If $nFirstIcon = 0 Then $nFirstIcon = $nIcon
                Next
                GUICtrlSetData($nIconInfo, "Icons: " & $nIcons)
                GUISetCursor(2)
                GUICtrlSetCursor($nIconList,2)
                $nLastIcon = $nIcon
            EndIf

        Case $nDirList
            $bSet = 0
            $nCurCol = $nCol
            GUICtrlSendMsg($nDirList, $LVM_SETSELECTEDCOLUMN, GUICtrlGetState($nDirList), 0)
            DllCall("user32.dll", "int", "InvalidateRect", "hwnd", GUICtrlGetHandle($nDirList), "int", 0, "int", 1)

    EndSwitch
WEnd


Exit


Func FileGetIconCount($szFile)
    Local $nCount = 0

    Local $LPCTSTR = DllStructCreate("char[260]")
    DllStructSetData($LPCTSTR, 1, $szFile)
    $nCount = DllCall("shell32.dll", "int", "ExtractIconEx", "ptr", DllStructGetPtr($LPCTSTR), "int", -1, "int", 0, "int", 0, "int", 0)

    Return $nCount[0]
EndFunc


Func DirToList($szPath)
    Local $hSearch, $szFile, $szDate, $szType, $nItem

    $hSearch = FileFindFirstFile($szPath & "\*.*")
    If $hSearch <> -1 Then
        $nItem = -1
        While 1
            $szFile = FileFindNextFile($hSearch)
            If @error Then ExitLoop
            If $szFile <> "." And $szFile <> ".." And Not StringInStr(FileGetAttrib($szPath & "\" & $szFile),"D") Then

                $szExt = ".ani|.cpl|.ico|.icl|.dll|.exe"
                $szExt = StringSplit($szExt,"|")
                $nExtFound = 0
                For $i = 1 To $szExt[0]
                    If StringInStr($szFile, $szExt[$i]) Then
                        $nExtFound = 1
                        ExitLoop
                    EndIf
                Next

                If $nExtFound Then
                    $nIcon = 0
                    $szIconFile = $szPath & "\" & $szFile
                    If FileGetIconCount($szIconFile) > 0 Then
                        If FileGetIcon($szIconFile, $nIcon, $szFile) Then
                            $szSize = Round(FileGetSize($szPath & "\" & $szFile) / 1000) & " KB"
                            $szType = FileGetType($szFile)
                            $arDate = FileGetTime($szPath & "\" & $szFile)
                            If IsArray($arDate) Then $szDate = $arDate[2] & "." & $arDate[1] & "." & $arDate[0] & " " & $arDate[3] & ":" & $arDate[4]
                            $nItem = GUICtrlCreateListViewItem($szFile & "|" & $szSize & "|" & $szType & "|" & $szDate, $nDirList)
                            GUICtrlSetImage(-1,$szIconFile,$nIcon)
                            If $nFirstItem = 0 Then $nFirstItem = $nItem
                        EndIf
                    EndIf
                EndIf
            EndIf
        WEnd
        FileClose($hSearch)
        $nLastItem = $nItem
        If $nLastItem > 0 Then
            GUICtrlSetData($nFileInfo, $nLastItem - $nFirstItem & " Objects")
        Else
            GUICtrlSetData($nFileInfo, "Ready")
        EndIf
    EndIf
EndFunc


Func FileGetType($szFile)
    Local $szRegDefault = "", $szRegType = ""

    $szExt = StringRight($szFile,4)
    $szRegDefault = RegRead("HKCR\" & $szExt,"")
    If $szRegDefault <> "" Then $szRegType = RegRead("HKCR\" & $szRegDefault,"")
    If $szRegType = "" Then $szRegType = $szExt & "-File"

    Return $szRegType
EndFunc


Func FileGetIcon(ByRef $szIconFile, ByRef $nIcon, $szFile)
    Local $szRegDefault = "", $szDefIcon = ""

    $nIcon = 0
    $szExt = StringRight($szFile,4)
    $szRegDefault = RegRead("HKCU\Software\Microsoft\Windows\CurrentVersion\Explorer\FileExts\" & $szExt,"ProgID")
    If $szRegDefault = "" Then $szRegDefault = RegRead("HKCR\" & $szExt,"")
    If $szRegDefault <> "" Then $szDefIcon = RegRead("HKCR\" & $szRegDefault & "\DefaultIcon","")
    If $szDefIcon = "" Then
        $szIconFile = "shell32.dll"
    ElseIf $szDefIcon <> "%1" Then
        $arSplit = StringSplit($szDefIcon,",")
        If IsArray($arSplit) Then
            $szIconFile = $arSplit[1]
            If $arSplit[0] > 1 Then $nIcon = $arSplit[2]
        Else
            Return 0
        EndIf
    EndIf
    Return 1
EndFunc


Func GUICtrlListViewSetColumnFormat($hListView, $nCol, $nFormat)
    $hListViewHeader = GUICtrlSendMsg($hListView, $LVM_GETHEADER, 0, 0)

    Local $LVCOLUMN = DllStructCreate("uint;int;int;ptr;int;int;int;int")

    DllStructSetData($LVCOLUMN, 1, $LVCF_FMT)
    DllStructSetData($LVCOLUMN, 2, $nFormat)

    GUICtrlSendMsg($hListView, $LVM_SETCOLUMN, $nCol, DllStructGetPtr($LVCOLUMN))
EndFunc


Func LVSort($hWnd, $nItem1, $nItem2, $nColumn)
    Local $nSort

    GUICtrlSetCursor($nDirList, 1)

    If $nColumn = $nCurCol Then
        If Not $bSet Then
            $nSortDir = $nSortDir * -1
            $bSet = 1
        EndIf
    Else
        $nSortDir = 1
    EndIf
    $nCol = $nColumn

    $val1   = GetSubItemText($nDirList, $nItem1, $nColumn)
    $val2   = GetSubItemText($nDirList, $nItem2, $nColumn)

    If $nColumn = 1 Then
        $val1 = Number(StringTrimRight($val1, 3))
        $val2 = Number(StringTrimRight($val2, 3))
    ElseIf $nColumn = 3 Then
        $val1 = StringRight(StringTrimRight($val1, 6), 4) & StringMid($val1, 4, 2) & StringLeft($val1, 2)
        $val2 = StringRight(StringTrimRight($val2, 6), 4) & StringMid($val2, 4, 2) & StringLeft($val2, 2)
    EndIf

    $nResult = 0

    If $val1 < $val2 Then
        $nResult = -1
    ElseIf  $val1 > $val2 Then
        $nResult = 1
    EndIf

    $nResult = $nResult * $nSortDir

    GUICtrlSetCursor($nDirList, 2)

    Return $nResult
EndFunc


Func GetSubItemText($nCtrlID, $nItemID, $nColumn)
    Local $stLvfi       = DllStructCreate("uint;ptr;int;int[2];int")
    DllStructSetData($stLvfi, 1, $LVFI_PARAM)
    DllStructSetData($stLvfi, 3, $nItemID)

    Local $stBuffer     = DllStructCreate("char[260]")

    $nIndex = GUICtrlSendMsg($nCtrlID, $LVM_FINDITEM, -1, DllStructGetPtr($stLvfi));

    Local $stLvi        = DllStructCreate("uint;int;int;uint;uint;ptr;int;int;int;int")

    DllStructSetData($stLvi, 1, $LVIF_TEXT)
    DllStructSetData($stLvi, 2, $nIndex)
    DllStructSetData($stLvi, 3, $nColumn)
    DllStructSetData($stLvi, 6, DllStructGetPtr($stBuffer))
    DllStructSetData($stLvi, 7, 260)

    GUICtrlSendMsg($nCtrlID, $LVM_GETITEM, 0, DllStructGetPtr($stLvi));

    Return DllStructGetData($stBuffer, 1)
EndFunc

Pretty much just need the name field. Any help would be great.


[font="Verdana"]Valik:Get it straight - I'm not here to say please, I'm here to help - if my help's not appreciated then lotsa luck, gentlemen.[/font]

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
Sign in to follow this
Followers 0
