fikri1979

Can Autoit do like this GUi

Recommended Posts

fikri1979

Hello all,...

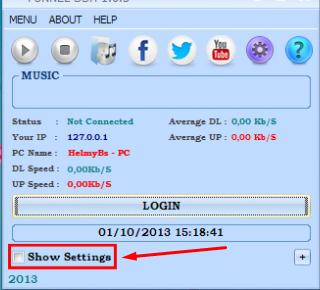

how to create Gui like this picture below, when i click checkbox "Show Setting" then appears "Setting Account"

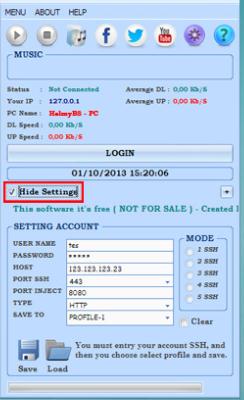

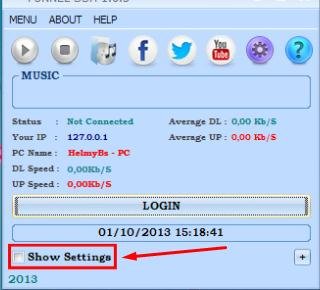

post-81604-0-84343900-1384654372_thumb.j  then appears post-81604-0-91201700-1384654413_thumb.j

Help me please, how to do that?

Share this post


Link to post
Share on other sites
Starstar

Do you want some thing like this?

#cs ----------------------------------------------------------------------------

 AutoIt Version: 3.3.9.22 (Beta)
 Author:         AdnanBaloch(Starstar)

 Script Function:
    Open a Gui from Gui.

#ce ----------------------------------------------------------------------------

#include <GUIConstantsEx.au3>
Global $hGui

$hGui = GUICreate ( 'First Gui', 430, 350 ) ; Gui Title and it width and height
GUISetBkColor ( 0xFFFFFF, $hGui ) ;Gui Backgroung colour
$iChkBox = GUICtrlCreateCheckbox ('Show Setting', 120, 290, 80, 20 )
GUISetState (@SW_SHOW)

While 1
     $iMsg = GUIGetMsg ( )
    Switch $iMsg
        Case $GUI_EVENT_CLOSE
            ExitLoop
        Case $iChkBox
            GUICreate("Setting",240,200)
            GUISetState (@SW_SHOW)

             EndSwitch
WEnd

or you want to click on showed CheckBox(to check it)? Tell me.

Edited by Starstar
  • Like 1

Life is like a coin. You can spend it Anyway as you wish and for your kind information. "you can spend it only once."

Share this post


Link to post
Share on other sites
Danyfirex

 sure It can do it.

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
Opt("GUIResizeMode", $GUI_DOCKALL)
Example()



Func Example()
    Local $msg
     Local $widht=200,$height=200
    GUICreate("My GUI",$widht,$height)
    GUISetState(@SW_SHOW)
    $check=GUICtrlCreateCheckbox("Show Options",10,100,100,100)


    While 1
        $msg = GUIGetMsg()
        If $msg = $GUI_EVENT_CLOSE Then ExitLoop
        if $msg= $check Then
            if GUICtrlRead($check)=1 then
        winmove("","",Default,Default,Default,$height*2)
        GUICtrlSetData($check,"Hide Options")
        Else
        winmove("","",Default,Default,Default,$height)
        GUICtrlSetData($check,"Show Options")
        EndIf
        Endif

    WEnd
    GUIDelete()
EndFunc

saludos

Edited by Danyfirex
  • Like 1

Share this post


Link to post
Share on other sites
Starstar

another good idea wow..........Great job Danyfirex......

Edited by Starstar
  • Like 1

Life is like a coin. You can spend it Anyway as you wish and for your kind information. "you can spend it only once."

Share this post


Link to post
Share on other sites
gil900
Melba23

fikri1979,

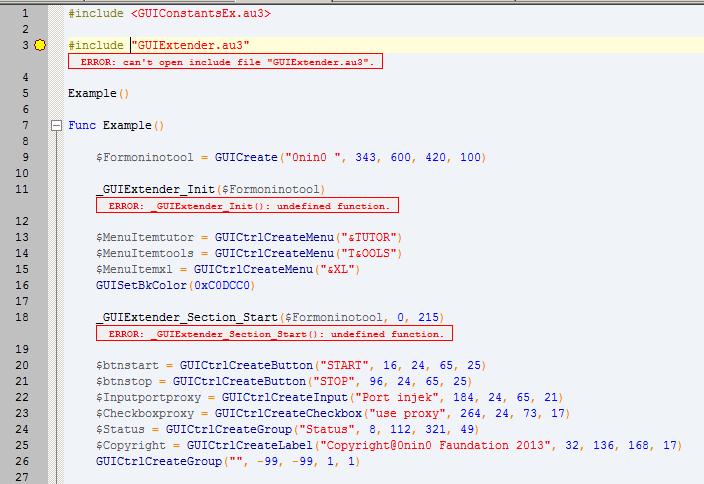

GUIExtender is just what you want. :)

M23

  • Like 2

Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
fikri1979

thank you so much for all

  • Like 1

Share this post


Link to post
Share on other sites
fikri1979

 sure It can do it.

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
Opt("GUIResizeMode", $GUI_DOCKALL)
Example()



Func Example()
    Local $msg
     Local $widht=200,$height=200
    GUICreate("My GUI",$widht,$height)
    GUISetState(@SW_SHOW)
    $check=GUICtrlCreateCheckbox("Show Options",10,100,100,100)


    While 1
        $msg = GUIGetMsg()
        If $msg = $GUI_EVENT_CLOSE Then ExitLoop
        if $msg= $check Then
            if GUICtrlRead($check)=1 then
        winmove("","",Default,Default,Default,$height*2)
        GUICtrlSetData($check,"Hide Options")
        Else
        winmove("","",Default,Default,Default,$height)
        GUICtrlSetData($check,"Show Options")
        EndIf
        Endif

    WEnd
    GUIDelete()
EndFunc

saludos

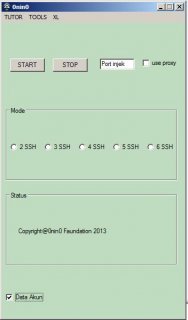

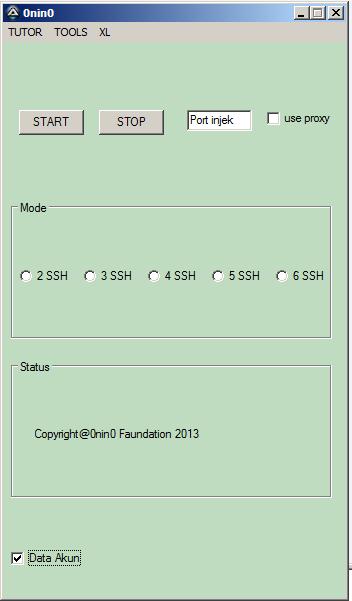

i'had tried with your scrip but appeart like this picture below, how to fix it?

post-81604-0-43094700-1384829593_thumb.j become this post-81604-0-01520600-1384829632_thumb.j

my script

#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#Region ### START Koda GUI section ### Form=d:\latihan autoit\konsep tool baru.kxf
$Formoninotool = GUICreate("0nin0 ", 343, 215, 420, 339)
$MenuItemtutor = GUICtrlCreateMenu("&TUTOR")
$MenuItemtools = GUICtrlCreateMenu("T&OOLS")
$MenuItemxl = GUICtrlCreateMenu("&XL")
GUISetBkColor(0xC0DCC0)
$btnstart = GUICtrlCreateButton("START", 16, 24, 65, 25)
$btnstop = GUICtrlCreateButton("STOP", 96, 24, 65, 25)
$Inputportproxy = GUICtrlCreateInput("Port injek", 184, 24, 65, 21)
$Checkboxproxy = GUICtrlCreateCheckbox("use proxy", 264, 24, 73, 17)
$Status = GUICtrlCreateGroup("Status", 8, 112, 321, 49)
$Copyright = GUICtrlCreateLabel("Copyright@0nin0 Faundation 2013", 32, 136, 168, 17)
GUICtrlCreateGroup("", -99, -99, 1, 1)
$Checkboxdataakun = GUICtrlCreateCheckbox("Data Akun", 8, 168, 97, 17)
$GroupMode = GUICtrlCreateGroup("Mode", 8, 56, 321, 49)
$Radio1ssh = GUICtrlCreateRadio("2 SSH", 16, 80, 57, 17)
$Radio2ssh = GUICtrlCreateRadio("3 SSH", 80, 80, 57, 17)
$Radio4ssg = GUICtrlCreateRadio("4 SSH", 144, 80, 57, 17)
$Radio5ssh = GUICtrlCreateRadio("5 SSH", 208, 80, 57, 17)
$Radio6ssh = GUICtrlCreateRadio("6 SSH", 272, 80, 49, 17)
GUICtrlCreateGroup("", -99, -99, 1, 1)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $Checkboxdataakun
            checkboxdataakun()
    EndSwitch
WEnd

Func checkboxdataakun()
    if $Checkboxdataakun = 1 Then
        winmove("","",Default,Default,Default,215)
        GUICtrlSetData($Checkboxdataakun,"Hide Options")
        Else
        winmove("","",Default,Default,Default,600)
        GUICtrlSetData($Checkboxdataakun,"Data Akun")
    EndIf
EndFunc

Share this post


Link to post
Share on other sites
Starstar

hi fikri1979 what do you want from this code?


Life is like a coin. You can spend it Anyway as you wish and for your kind information. "you can spend it only once."

Share this post


Link to post
Share on other sites
fikri1979

hi fikri1979 what do you want from this code?

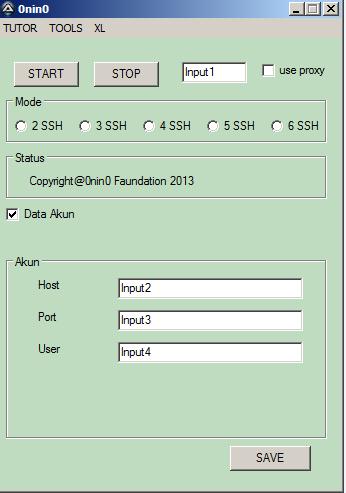

I just want like this :

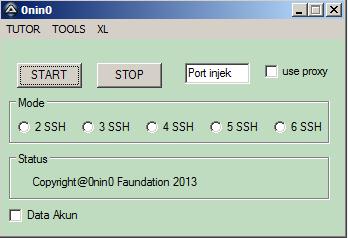

post-81604-0-14375800-1384835734_thumb.j when i click check box "data akun" then appears post-81604-0-76304000-1384835764_thumb.j

i'm beginner

how create script?

Edited by fikri1979

Share this post


Link to post
Share on other sites
Starstar

Check this one...

#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>

Opt("GUIResizeMode", $GUI_DOCKALL)
EX()
Func EX()
    Local $msg
$Formoninotool = GUICreate("0nin0 ", 343, 215, 420, 100)
$MenuItemtutor = GUICtrlCreateMenu("&TUTOR")
$MenuItemtools = GUICtrlCreateMenu("T&OOLS")
$MenuItemxl = GUICtrlCreateMenu("&XL")
GUISetBkColor(0xC0DCC0)
$btnstart = GUICtrlCreateButton("START", 16, 24, 65, 25)
$btnstop = GUICtrlCreateButton("STOP", 96, 24, 65, 25)
$Inputportproxy = GUICtrlCreateInput("Port injek", 184, 24, 65, 21)
$Checkboxproxy = GUICtrlCreateCheckbox("use proxy", 264, 24, 73, 17)
$Status = GUICtrlCreateGroup("Status", 8, 112, 321, 49)
$Copyright = GUICtrlCreateLabel("Copyright@0nin0 Faundation 2013", 32, 136, 168, 17)
GUICtrlCreateGroup("", -99, -99, 1, 1)
$Checkboxdataakun = GUICtrlCreateCheckbox("Data Akun", 8, 168, 97, 17)
$GroupMode = GUICtrlCreateGroup("Mode", 8, 56, 321, 49)
$Radio1ssh = GUICtrlCreateRadio("2 SSH", 16, 80, 57, 17)
$Radio2ssh = GUICtrlCreateRadio("3 SSH", 80, 80, 57, 17)
$Radio4ssg = GUICtrlCreateRadio("4 SSH", 144, 80, 57, 17)
$Radio5ssh = GUICtrlCreateRadio("5 SSH", 208, 80, 57, 17)
$Radio6ssh = GUICtrlCreateRadio("6 SSH", 272, 80, 49, 17)
GUICtrlCreateGroup("", -99, -99, 1, 1)
GUISetState(@SW_SHOW)

 While 1
        $msg = GUIGetMsg()
        If $msg = $GUI_EVENT_CLOSE Then ExitLoop
        If $msg=$Checkboxdataakun Then
        If GUICtrlRead($Checkboxdataakun)=1 Then
         winmove("","",Default,Default,Default,600)
        GUICtrlSetData($Checkboxdataakun,"Hide Akun")
        $ExInput = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 200, 168, 17)
        $ExInput = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 250, 168, 17)
        $ExInput = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 300, 168, 17)
        $ExInput = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 350, 168, 17)
        $ExInput = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 400, 168, 17)
        $ExInput = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 450, 168, 17)
        $ExInput = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 500, 168, 17)
        Else
        winmove("","",Default,Default,Default,240)
        GUICtrlSetData($Checkboxdataakun,"Show Akun")
        EndIf
        Endif
WEnd
    GUIDelete()
EndFunc
Edited by Starstar
  • Like 1

Life is like a coin. You can spend it Anyway as you wish and for your kind information. "you can spend it only once."

Share this post


Link to post
Share on other sites
fikri1979



Check this one...

#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>

Opt("GUIResizeMode", $GUI_DOCKALL)
EX()
Func EX()
    Local $msg
$Formoninotool = GUICreate("0nin0 ", 343, 215, 420, 100)
$MenuItemtutor = GUICtrlCreateMenu("&TUTOR")
$MenuItemtools = GUICtrlCreateMenu("T&OOLS")
$MenuItemxl = GUICtrlCreateMenu("&XL")
GUISetBkColor(0xC0DCC0)
$btnstart = GUICtrlCreateButton("START", 16, 24, 65, 25)
$btnstop = GUICtrlCreateButton("STOP", 96, 24, 65, 25)
$Inputportproxy = GUICtrlCreateInput("Port injek", 184, 24, 65, 21)
$Checkboxproxy = GUICtrlCreateCheckbox("use proxy", 264, 24, 73, 17)
$Status = GUICtrlCreateGroup("Status", 8, 112, 321, 49)
$Copyright = GUICtrlCreateLabel("Copyright@0nin0 Faundation 2013", 32, 136, 168, 17)
GUICtrlCreateGroup("", -99, -99, 1, 1)
$Checkboxdataakun = GUICtrlCreateCheckbox("Data Akun", 8, 168, 97, 17)
$GroupMode = GUICtrlCreateGroup("Mode", 8, 56, 321, 49)
$Radio1ssh = GUICtrlCreateRadio("2 SSH", 16, 80, 57, 17)
$Radio2ssh = GUICtrlCreateRadio("3 SSH", 80, 80, 57, 17)
$Radio4ssg = GUICtrlCreateRadio("4 SSH", 144, 80, 57, 17)
$Radio5ssh = GUICtrlCreateRadio("5 SSH", 208, 80, 57, 17)
$Radio6ssh = GUICtrlCreateRadio("6 SSH", 272, 80, 49, 17)
GUICtrlCreateGroup("", -99, -99, 1, 1)
GUISetState(@SW_SHOW)

 While 1
        $msg = GUIGetMsg()
        If $msg = $GUI_EVENT_CLOSE Then ExitLoop
        If $msg=$Checkboxdataakun Then
        If GUICtrlRead($Checkboxdataakun)=1 Then
         winmove("","",Default,Default,Default,600)
        GUICtrlSetData($Checkboxdataakun,"Hide Akun")
        $ExInput = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 200, 168, 17)
        $ExInput = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 250, 168, 17)
        $ExInput = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 300, 168, 17)
        $ExInput = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 350, 168, 17)
        $ExInput = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 400, 168, 17)
        $ExInput = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 450, 168, 17)
        $ExInput = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 500, 168, 17)
        Else
        winmove("","",Default,Default,Default,240)
        GUICtrlSetData($Checkboxdataakun,"Show Akun")
        EndIf
        Endif
WEnd
    GUIDelete()
EndFunc

Thanks very much......

Share this post


Link to post
Share on other sites
Starstar

Lets check anotherone For you.........According your givan images.

#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>

Opt("GUIResizeMode", $GUI_DOCKALL)
EX()
Func EX()
    Local $msg
$Formoninotool = GUICreate("0nin0 ", 343, 215, 420, 100)
$MenuItemtutor = GUICtrlCreateMenu("&TUTOR")
$MenuItemtools = GUICtrlCreateMenu("T&OOLS")
$MenuItemxl = GUICtrlCreateMenu("&XL")
GUISetBkColor(0xC0DCC0)
$btnstart = GUICtrlCreateButton("START", 16, 24, 65, 25)
$btnstop = GUICtrlCreateButton("STOP", 96, 24, 65, 25)
$Inputportproxy = GUICtrlCreateInput("Port injek", 184, 24, 65, 21)
$Checkboxproxy = GUICtrlCreateCheckbox("use proxy", 264, 24, 73, 17)
$Status = GUICtrlCreateGroup("Status", 8, 112, 321, 49)
$Copyright = GUICtrlCreateLabel("Copyright@0nin0 Faundation 2013", 32, 136, 168, 17)
GUICtrlCreateGroup("", -99, -99, 1, 1)
$Checkboxdataakun = GUICtrlCreateCheckbox("Data Akun", 8, 168, 97, 17)
$GroupMode = GUICtrlCreateGroup("Mode", 8, 56, 321, 49)
$Radio1ssh = GUICtrlCreateRadio("2 SSH", 16, 80, 57, 17)
$Radio2ssh = GUICtrlCreateRadio("3 SSH", 80, 80, 57, 17)
$Radio4ssg = GUICtrlCreateRadio("4 SSH", 144, 80, 57, 17)
$Radio5ssh = GUICtrlCreateRadio("5 SSH", 208, 80, 57, 17)
$Radio6ssh = GUICtrlCreateRadio("6 SSH", 272, 80, 49, 17)
GUICtrlCreateGroup("", -99, -99, 1, 1)
GUISetState(@SW_SHOW)

 While 1
        $msg = GUIGetMsg()
        If $msg = $GUI_EVENT_CLOSE Then ExitLoop
        If $msg=$Checkboxdataakun Then
        If GUICtrlRead($Checkboxdataakun)=1 Then
         winmove("","",Default,Default,Default,600)
        GUICtrlSetData($Checkboxdataakun,"Hide Akun")
        $ExLaInput1 = GUICtrlCreateLabel("Host:", 32, 200, 30, 17)
        $ExLAInput2 = GUICtrlCreateLabel("Port: ", 32, 250, 30, 17)
        $ExLaInput3 = GUICtrlCreateLabel("User: ", 32, 300, 30, 17)
        $Inputproxy = GUICtrlCreateInput("Host",100, 198, 100, 17)
        $Inputport = GUICtrlCreateInput("Port", 100, 248, 100, 17)
        $InputUser = GUICtrlCreateInput("User", 100, 298, 100, 17)
        $ExInput4 = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 350, 168, 17)
        $ExInput5 = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 400, 168, 17)
        $ExInput6 = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 450, 168, 17)
        $ExInput7 = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 500, 168, 17)
        Else
        winmove("","",Default,Default,Default,240)
        GUICtrlSetData($Checkboxdataakun,"Show Akun")
        EndIf
        Endif
WEnd
    GUIDelete()
EndFunc
Edited by Starstar
  • Like 1

Life is like a coin. You can spend it Anyway as you wish and for your kind information. "you can spend it only once."

Share this post


Link to post
Share on other sites
fikri1979



Lets check anotherone For you.........According your givan images.

#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>

Opt("GUIResizeMode", $GUI_DOCKALL)
EX()
Func EX()
    Local $msg
$Formoninotool = GUICreate("0nin0 ", 343, 215, 420, 100)
$MenuItemtutor = GUICtrlCreateMenu("&TUTOR")
$MenuItemtools = GUICtrlCreateMenu("T&OOLS")
$MenuItemxl = GUICtrlCreateMenu("&XL")
GUISetBkColor(0xC0DCC0)
$btnstart = GUICtrlCreateButton("START", 16, 24, 65, 25)
$btnstop = GUICtrlCreateButton("STOP", 96, 24, 65, 25)
$Inputportproxy = GUICtrlCreateInput("Port injek", 184, 24, 65, 21)
$Checkboxproxy = GUICtrlCreateCheckbox("use proxy", 264, 24, 73, 17)
$Status = GUICtrlCreateGroup("Status", 8, 112, 321, 49)
$Copyright = GUICtrlCreateLabel("Copyright@0nin0 Faundation 2013", 32, 136, 168, 17)
GUICtrlCreateGroup("", -99, -99, 1, 1)
$Checkboxdataakun = GUICtrlCreateCheckbox("Data Akun", 8, 168, 97, 17)
$GroupMode = GUICtrlCreateGroup("Mode", 8, 56, 321, 49)
$Radio1ssh = GUICtrlCreateRadio("2 SSH", 16, 80, 57, 17)
$Radio2ssh = GUICtrlCreateRadio("3 SSH", 80, 80, 57, 17)
$Radio4ssg = GUICtrlCreateRadio("4 SSH", 144, 80, 57, 17)
$Radio5ssh = GUICtrlCreateRadio("5 SSH", 208, 80, 57, 17)
$Radio6ssh = GUICtrlCreateRadio("6 SSH", 272, 80, 49, 17)
GUICtrlCreateGroup("", -99, -99, 1, 1)
GUISetState(@SW_SHOW)

 While 1
        $msg = GUIGetMsg()
        If $msg = $GUI_EVENT_CLOSE Then ExitLoop
        If $msg=$Checkboxdataakun Then
        If GUICtrlRead($Checkboxdataakun)=1 Then
         winmove("","",Default,Default,Default,600)
        GUICtrlSetData($Checkboxdataakun,"Hide Akun")
        $ExLaInput1 = GUICtrlCreateLabel("Host:", 32, 200, 30, 17)
        $ExLAInput2 = GUICtrlCreateLabel("Port: ", 32, 250, 30, 17)
        $ExLaInput3 = GUICtrlCreateLabel("User: ", 32, 300, 30, 17)
        $Inputproxy = GUICtrlCreateInput("Host",100, 198, 100, 17)
        $Inputport = GUICtrlCreateInput("Port", 100, 248, 100, 17)
        $InputUser = GUICtrlCreateInput("User", 100, 298, 100, 17)
        $ExInput4 = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 350, 168, 17)
        $ExInput5 = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 400, 168, 17)
        $ExInput6 = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 450, 168, 17)
        $ExInput7 = GUICtrlCreateLabel("AdnanBaloch[Starstar]", 32, 500, 168, 17)
        Else
        winmove("","",Default,Default,Default,240)
        GUICtrlSetData($Checkboxdataakun,"Show Akun")
        EndIf
        Endif
WEnd
    GUIDelete()
EndFunc

very good and helpful...thanks so much

Share this post


Link to post
Share on other sites
Melba23

fikri1979,

If you had wanted to use my UDF then it works like this: :)

#include <GUIConstantsEx.au3>

#include "GUIExtender.au3"

Example()

Func Example()

    $Formoninotool = GUICreate("0nin0 ", 343, 600, 420, 100)

    _GUIExtender_Init($Formoninotool)

    $MenuItemtutor = GUICtrlCreateMenu("&TUTOR")
    $MenuItemtools = GUICtrlCreateMenu("T&OOLS")
    $MenuItemxl = GUICtrlCreateMenu("&XL")
    GUISetBkColor(0xC0DCC0)

    _GUIExtender_Section_Start($Formoninotool, 0, 215)

    $btnstart = GUICtrlCreateButton("START", 16, 24, 65, 25)
    $btnstop = GUICtrlCreateButton("STOP", 96, 24, 65, 25)
    $Inputportproxy = GUICtrlCreateInput("Port injek", 184, 24, 65, 21)
    $Checkboxproxy = GUICtrlCreateCheckbox("use proxy", 264, 24, 73, 17)
    $Status = GUICtrlCreateGroup("Status", 8, 112, 321, 49)
    $Copyright = GUICtrlCreateLabel("Copyright@0nin0 Faundation 2013", 32, 136, 168, 17)
    GUICtrlCreateGroup("", -99, -99, 1, 1)

    $GroupMode = GUICtrlCreateGroup("Mode", 8, 56, 321, 49)
    $Radio1ssh = GUICtrlCreateRadio("2 SSH", 16, 80, 57, 17)
    $Radio2ssh = GUICtrlCreateRadio("3 SSH", 80, 80, 57, 17)
    $Radio4ssg = GUICtrlCreateRadio("4 SSH", 144, 80, 57, 17)
    $Radio5ssh = GUICtrlCreateRadio("5 SSH", 208, 80, 57, 17)
    $Radio6ssh = GUICtrlCreateRadio("6 SSH", 272, 80, 49, 17)
    GUICtrlCreateGroup("", -99, -99, 1, 1)

    _GUIExtender_Section_Action($Formoninotool, 2, "Hide Akun", "Data Akun", 8, 168, 97, 17) ; Normal button

    _GUIExtender_Section_End($Formoninotool)
    _GUIExtender_Section_Start($Formoninotool, 215, 385)

    $ExLaInput1 = GUICtrlCreateLabel("Host:", 32, 200, 30, 17)
    $ExLAInput2 = GUICtrlCreateLabel("Port: ", 32, 250, 30, 17)
    $ExLaInput3 = GUICtrlCreateLabel("User: ", 32, 300, 30, 17)
    $Inputproxy = GUICtrlCreateInput("Host",100, 198, 100, 17)
    $Inputport = GUICtrlCreateInput("Port", 100, 248, 100, 17)
    $InputUser = GUICtrlCreateInput("User", 100, 298, 100, 17)
    $ExInput4 = GUICtrlCreateLabel("Melba23", 32, 350, 168, 17)
    $ExInput5 = GUICtrlCreateLabel("Melba23", 32, 400, 168, 17)
    $ExInput6 = GUICtrlCreateLabel("Melba23", 32, 450, 168, 17)
    $ExInput7 = GUICtrlCreateLabel("Melba23", 32, 500, 168, 17)

    _GUIExtender_Section_End($Formoninotool)

    ; Retract lower section
    _GUIExtender_Section_Extend($Formoninotool, 2, False)

    GUISetState(@SW_SHOW)

     While 1
         $aMsg = GUIGetMsg(1)
        Switch $aMsg[0]
            Case $GUI_EVENT_CLOSE
                Exit
        EndSwitch

        Switch $aMsg[1]
            Case $Formoninotool
                _GUIExtender_Action($aMsg[1], $aMsg[0]) ; Check for click on Action control
        EndSwitch

    WEnd

EndFunc
M23
  • Like 2

Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
fikri1979

fikri1979,

If you had wanted to use my UDF then it works like this: :)

#include <GUIConstantsEx.au3>

#include "GUIExtender.au3"

Example()

Func Example()

    $Formoninotool = GUICreate("0nin0 ", 343, 600, 420, 100)

    _GUIExtender_Init($Formoninotool)

    $MenuItemtutor = GUICtrlCreateMenu("&TUTOR")
    $MenuItemtools = GUICtrlCreateMenu("T&OOLS")
    $MenuItemxl = GUICtrlCreateMenu("&XL")
    GUISetBkColor(0xC0DCC0)

    _GUIExtender_Section_Start($Formoninotool, 0, 215)

    $btnstart = GUICtrlCreateButton("START", 16, 24, 65, 25)
    $btnstop = GUICtrlCreateButton("STOP", 96, 24, 65, 25)
    $Inputportproxy = GUICtrlCreateInput("Port injek", 184, 24, 65, 21)
    $Checkboxproxy = GUICtrlCreateCheckbox("use proxy", 264, 24, 73, 17)
    $Status = GUICtrlCreateGroup("Status", 8, 112, 321, 49)
    $Copyright = GUICtrlCreateLabel("Copyright@0nin0 Faundation 2013", 32, 136, 168, 17)
    GUICtrlCreateGroup("", -99, -99, 1, 1)

    $GroupMode = GUICtrlCreateGroup("Mode", 8, 56, 321, 49)
    $Radio1ssh = GUICtrlCreateRadio("2 SSH", 16, 80, 57, 17)
    $Radio2ssh = GUICtrlCreateRadio("3 SSH", 80, 80, 57, 17)
    $Radio4ssg = GUICtrlCreateRadio("4 SSH", 144, 80, 57, 17)
    $Radio5ssh = GUICtrlCreateRadio("5 SSH", 208, 80, 57, 17)
    $Radio6ssh = GUICtrlCreateRadio("6 SSH", 272, 80, 49, 17)
    GUICtrlCreateGroup("", -99, -99, 1, 1)

    _GUIExtender_Section_Action($Formoninotool, 2, "Hide Akun", "Data Akun", 8, 168, 97, 17) ; Normal button

    _GUIExtender_Section_End($Formoninotool)
    _GUIExtender_Section_Start($Formoninotool, 215, 385)

    $ExLaInput1 = GUICtrlCreateLabel("Host:", 32, 200, 30, 17)
    $ExLAInput2 = GUICtrlCreateLabel("Port: ", 32, 250, 30, 17)
    $ExLaInput3 = GUICtrlCreateLabel("User: ", 32, 300, 30, 17)
    $Inputproxy = GUICtrlCreateInput("Host",100, 198, 100, 17)
    $Inputport = GUICtrlCreateInput("Port", 100, 248, 100, 17)
    $InputUser = GUICtrlCreateInput("User", 100, 298, 100, 17)
    $ExInput4 = GUICtrlCreateLabel("Melba23", 32, 350, 168, 17)
    $ExInput5 = GUICtrlCreateLabel("Melba23", 32, 400, 168, 17)
    $ExInput6 = GUICtrlCreateLabel("Melba23", 32, 450, 168, 17)
    $ExInput7 = GUICtrlCreateLabel("Melba23", 32, 500, 168, 17)

    _GUIExtender_Section_End($Formoninotool)

    ; Retract lower section
    _GUIExtender_Section_Extend($Formoninotool, 2, False)

    GUISetState(@SW_SHOW)

     While 1
         $aMsg = GUIGetMsg(1)
        Switch $aMsg[0]
            Case $GUI_EVENT_CLOSE
                Exit
        EndSwitch

        Switch $aMsg[1]
            Case $Formoninotool
                _GUIExtender_Action($aMsg[1], $aMsg[0]) ; Check for click on Action control
        EndSwitch

    WEnd

EndFunc
M23



 i've tried with that scrip but i get some error.......why get an error message? n how to fix it?

post-81604-0-55680900-1384845806_thumb.j

Share this post


Link to post
Share on other sites
Starstar

Download GUIExtender.au3 From >here.

and past it in Include Folder normly Include is in autoit dirictory(C:Program FilesAutoIt3Include).

Edited by Starstar
  • Like 1

Life is like a coin. You can spend it Anyway as you wish and for your kind information. "you can spend it only once."

Share this post


Link to post
Share on other sites
Melba23

fikri1979,

You can download the UDF from the link in my sig below. Do NOT put it in the AutoIt "Include" folder as suggested above. Either put it in the same folder as the script - or create your own "Include" folder as explained in the Adding UDFs to AutoIt and SciTE tutorial in the Wiki.

M23

  • Like 1

Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
Starstar

Thanks Melba23 i didn't know about article(Adding PDFs to AutoIt and SciTE).

fikri1979...

Click on GuiExtender from Melba23 signatures and download it and past it in same folder......as your script.

Edited by Starstar
  • Like 1

Life is like a coin. You can spend it Anyway as you wish and for your kind information. "you can spend it only once."

Share this post


Link to post
Share on other sites
fikri1979

fikri1979,

You can download the UDF from the link in my sig below. Do NOT put it in the AutoIt "Include" folder as suggested above. Either put it in the same folder as the script - or create your own "Include" folder as explained in the Adding UDFs to AutoIt and SciTE tutorial in the Wiki.

M23

:thumbsup: thanks so much..very helpful  :thumbsup:

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

×
