JohnOne

ListView select subitems.

16 posts in this topic

#1 ·  Posted (edited)

Originally though $LVS_EX_BORDERSELECT was breaking my script, turns out I was using it wrong.

Pehaps a mention in the help file might be in order <see highlighted post>

My question now boils down to the below bold.

If I change the listview creation to the commented out one, it's as though the button is constantly being pressed.

Also the uncommented one, only the cells in col1 can be selected, and I need to selects any in the view.

Script is straight out of the help file with only the styles and exstyles added.

Exit script with Esc key.

#include <ListViewConstants.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <WindowsConstants.au3>

HotKeySet("{Esc}", "_Exit")

Example()

Func Example()
    GUICreate("listview items", 220, 250, 100, 200, -1, $WS_EX_ACCEPTFILES)
    GUISetBkColor(0x00E0FFFF) ; will change background color

    ;Local $idListview = GUICtrlCreateListView("col1  |col2|col3  ", 10, 10, 200, 150, $LVS_SINGLESEL, BitOR($LVS_EX_BORDERSELECT, $LVS_EX_GRIDLINES))
    Local $idListview = GUICtrlCreateListView("col1  |col2|col3  ", 10, 10, 200, 150, $LVS_SINGLESEL, $LVS_EX_GRIDLINES)
    Local $idButton = GUICtrlCreateButton("Value?", 75, 170, 70, 20)
    Local $idItem1 = GUICtrlCreateListViewItem("item2|col22|col23", $idListview)
    Local $idItem2 = GUICtrlCreateListViewItem("item1|col12|col13", $idListview)
    Local $idItem3 = GUICtrlCreateListViewItem("item3|col32|col33", $idListview)
    GUICtrlCreateInput("", 20, 200, 150)
    ;GUICtrlSetState(-1, $GUI_DROPACCEPTED) ; to allow drag and dropping
    GUISetState(@SW_SHOW)
    GUICtrlSetData($idItem2, "ITEM1")
    GUICtrlSetData($idItem3, "||COL33")
    GUICtrlDelete($idItem1)

    ; Loop until the user exits.
    While 1
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE
                ExitLoop

            Case $idButton
                MsgBox($MB_SYSTEMMODAL, "listview item", GUICtrlRead(GUICtrlRead($idListview)), 2)

            Case $idListview
                MsgBox($MB_SYSTEMMODAL, "listview", "clicked=" & GUICtrlGetState($idListview), 2)

        EndSwitch
    WEnd
EndFunc   ;==>Example

Func _Exit()
    Exit
EndFunc

Obviously looking for a solution to selecting any cell.

Edited by JohnOne

AutoIt Absolute Beginners    Require a serial    Pause Script    Video Tutorials by Morthawt   ipify

Monkey's are, like, natures humans.

Share this post


Link to post
Share on other sites



Reproduced on windows 8.1.

1 person likes this

Roses are FF0000, violets are 0000FF... All my base are belong to you.

Share this post


Link to post
Share on other sites

The button part might be a bug, but that's not important to me just now.

But I've searched a lot and not found how to select a single item in a 2D list view, with the exception of column 0.

My wonder at the moment is if it's even possible to that.


AutoIt Absolute Beginners    Require a serial    Pause Script    Video Tutorials by Morthawt   ipify

Monkey's are, like, natures humans.

Share this post


Link to post
Share on other sites

#4 ·  Posted (edited)

;~ Example made by LarsJ, just some very little change by Johnmcloud - 2015
#include <WindowsConstants.au3>
#include <GUIConstantsEx.au3>
#include <GuiListView.au3>

Opt("MustDeclareVars", 1)

Global $hGUI, $hListview, $aHit[2] = [-1, -1] ; $aHit contains row & col of marked cell

$hGUI = GUICreate("Mark Cell in Listview", 250, 222)

Local $iListview = GUICtrlCreateListView("Column 0|Column 1", 2, 2, 248, 180, $LVS_REPORT, BitOR($LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT))
$$hListview = GUICtrlGetHandle($iListview)
Local $iButton = GUICtrlCreateButton("Value?", 90, 193, 70, 20)

For $i = 0 To 50
    GUICtrlCreateListViewItem("Item" & $i & "|SubItem " & $i, $iListview)
Next
GUISetState(@SW_SHOW)

GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY")

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
        Case $iButton
            MsgBox(0, "Info", "Cell selected: " & _GUICtrlListView_GetItemText($hListview, $aHit[0], $aHit[1]) & @CR, 0, $hGUI)
    EndSwitch
WEnd

Func WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam
    Local $tNMHDR, $hWndFrom, $iCode
    $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom"))
    $iCode = DllStructGetData($tNMHDR, "Code")
    Switch $hWndFrom
        Case $hListview
            Switch $iCode
                Case $LVN_ITEMCHANGED
                    Local $tNMLISTVIEW, $iItem, $aInfo
                    $tNMLISTVIEW = DllStructCreate($tagNMLISTVIEW, $lParam)
                    $iItem = DllStructGetData($tNMLISTVIEW, "Item")
                    _GUICtrlListView_SetItemSelected($hListview, $iItem, False)
                    Local $aInfo = GUIGetCursorInfo($hGUI)
                    If $aInfo[2] Then
                        $aInfo = _GUICtrlListView_SubItemHitTest($hListview, $aInfo[0] - 2, $aInfo[1] - 2) ; Upper left = ( 2, 2 )
                        If $aInfo[0] > -1 And $aInfo[1] > -1 And $aInfo[0] = $iItem Then
                            If $aHit[0] > -1 Then _GUICtrlListView_RedrawItems($hListview, $aHit[0], $aHit[0])
                            If $aHit[0] <> $aInfo[0] Or $aHit[1] <> $aInfo[1] Then
                                $aHit[0] = $aInfo[0] ; Row
                                $aHit[1] = $aInfo[1] ; Col
                            Else
                                $aHit[0] = -1 ; Row
                                $aHit[1] = -1 ; Col
                            EndIf
                            _GUICtrlListView_RedrawItems($hListview, $iItem, $iItem)
                        EndIf
                    EndIf
                Case $NM_CUSTOMDRAW
                    Local $tNMLVCUSTOMDRAW = DllStructCreate($tagNMLVCUSTOMDRAW, $lParam)
                    Local $dwDrawStage = DllStructGetData($tNMLVCUSTOMDRAW, "dwDrawStage")
                    Switch $dwDrawStage ; Holds a value that specifies the drawing stage
                        Case $CDDS_PREPAINT ; Before the paint cycle begins
                            Return $CDRF_NOTIFYITEMDRAW ; Notify the parent window of any ITEM-related drawing operations
                        Case $CDDS_ITEMPREPAINT ; Before painting an item
                            Return $CDRF_NOTIFYSUBITEMDRAW ; Notify the parent window of any SUBITEM-related drawing operations
                        Case BitOR($CDDS_ITEMPREPAINT, $CDDS_SUBITEM) ; Before painting a subitem
                            Local $dwItemSpec = DllStructGetData($tNMLVCUSTOMDRAW, "dwItemSpec") ; Item index
                            Local $iSubItem = DllStructGetData($tNMLVCUSTOMDRAW, "iSubItem") ; Subitem index
                            Local $uItemState = DllStructGetData($tNMLVCUSTOMDRAW, "uItemState") ; Item state
                            If $dwItemSpec = $aHit[0] Then ; Marked row
                                Switch $iSubItem
                                    Case $aHit[1] ; Marked column
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0xFFFFFF) ; Forecolor white
                                        DllStructSetData($tNMLVCUSTOMDRAW, "clrTextBk", 0xCC6600) ; Backcolor dark blue, BGR
                                    Case Else ; Other columns
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0x000000) ; Forecolor black
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xFFFFFF) ; Backcolor white
                                EndSwitch
                            Else ; Other rows
                                DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0x000000)
                                DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xFFFFFF)
                            EndIf
                            Return $CDRF_NEWFONT ; $CDRF_NEWFONT must be returned after changing font or colors
                    EndSwitch
            EndSwitch
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY



$LVS_EX_BORDERSELECT works only with icon Listview style, your use is wrong. Rename the thread accordy to the request, so "how to select subitem in listview" or similar.

Edited by johnmcloud
1 person likes this

Share this post


Link to post
Share on other sites

and another interesting topic

it is maybe from 2007 but that code still works

1 person likes this

TCP server and client - Learning about TCP servers and clients connection
Au3 oIrrlicht - Irrlicht project
Au3impact - Another 3D DLL game engine for autoit. (3impact 3Drad related)



There are those that believe that the perfect heist lies in the preparation.
Some say that it’s all in the timing, seizing the right opportunity. Others even say it’s the ability to leave no trace behind, be a ghost.



Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

...[]...

MsgBox(0, "Info", "Cell selected: " & _GUICtrlListView_GetItemText($hListview, $aHit[0], $aHit[1]) & @CR, 0, $hGUI)

...[]...



The code listed by johnmcloud does not appear to work.

If I run the complete code, when "SubItem2" is selected and the "Value?" button is pressed the message box above reports:

"Cell selected SubItem 2" (see png attached):

I would have expected:

"Cell selected Item12, SubItem 2"

To have been reported.

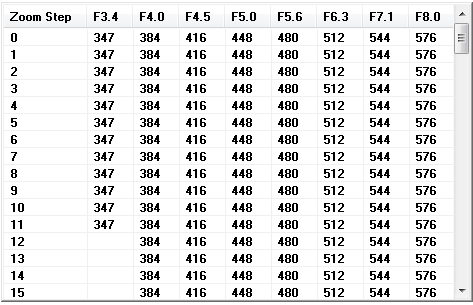

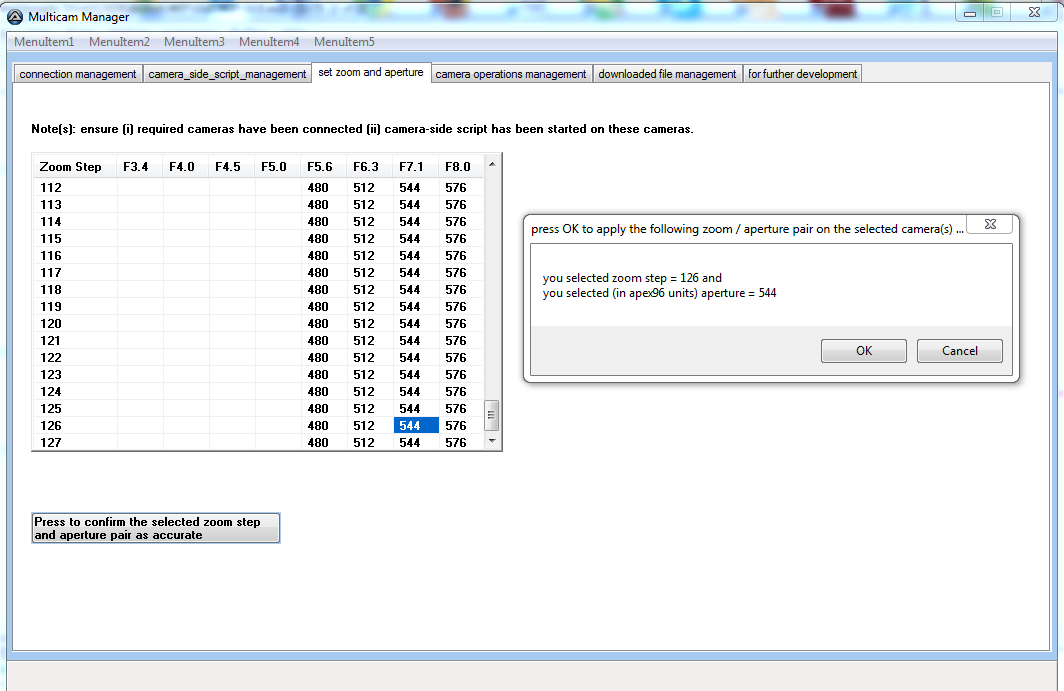

I'm attempting to use similar code to allow a user to identify a zoom step on a camera (from among 128 zoom steps) and then select an aperture value (from amongst 8 available values).

Any code / comment to progress the challenge would be appreciated.

(Please also note the error in johnmccloud source above:

$$hListview --> should be $hListview

 )

Select SubItem2.PNG

Select SubItem2-result.PNG

Edited by newniman

Share this post


Link to post
Share on other sites

newniman,

The code works perfectly - but it returns the text of the selected cell. If you want to get the location of the selected cell then use this:

MsgBox(0, "Info", "Cell selected: Row" & $aHit[0] & " - Col: " & $aHit[1], 0, $hGUI)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Splendid Melba23,

i'm sure you'll not believe i've been struggling with this for the last 2 hours :sweating:.

Silly confusion on my behalf. Easy when you know how - i'll not forget that one :>

Thanks a lot.

Share this post


Link to post
Share on other sites

newniman,

Glad I could help.

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

#11 ·  Posted (edited)

Any chance of a code edit hint to disable items in the first column being selected (Zoom Step in my attached png) ?


Edited by newniman

Share this post


Link to post
Share on other sites

newniman,

Something like this inside the $NM_CUSTOMDRAW handler seems to work:

Switch $iSubItem

    Case $aHit[1] ; Marked column
        If $aHit[1] > 0 Then ; Only act on column 1+ <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
            DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0xFFFFFF) ; Forecolor white
            DllStructSetData($tNMLVCUSTOMDRAW, "clrTextBk", 0xCC6600) ; Backcolor dark blue, BGR
        Else
            ContinueCase

        EndIf

    Case Else ; Other columns
        DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0x000000) ; Forecolor black
        DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xFFFFFF) ; Backcolor white
EndSwitch

Now you only highlight column 1+. But beware - you still get the selected items returned so you will need to add some code to prevent these selections being actioned:

Case $iButton

    If $aHit[1] > 0 Then ; Do not action column 0 <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
        MsgBox(0, "Info", "Cell selected: Row" & $aHit[0] & " - Col: " & $aHit[1], 0, $hGUI)
    EndIf

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Melba23, I haven't had a chance to try your suggestion yet - instead i've got stuck again at baby first steps (i'm old too :))

I created the listview items from a text file (attached) and, as far as I understand, otherwise maintained the same logic to johnmcloud's original:

#include <file.au3>
#include <string.au3>
#include <array.au3>

#include <Constants.au3>
#include <StaticConstants.au3>

#include <WindowsConstants.au3>
#include <GUIConstantsEx.au3>
#include <TabConstants.au3>
#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <ListviewConstants.au3>

#include <GuiListView.au3>
#include <GUIListBox.au3>


;Opt("MustDeclareVars", 1)

Global $hGUI, $hListview, $aHit[2] = [-1, -1] ; $aHit contains row & col of marked cell

$hGUI = GUICreate("Mark Cell in Listview", 1040, 590)

Local $iListview = GUICtrlCreateListView("Zoom Step|F3.4|F4.0|F4.5|F5.0|F5.6|F6.3|F7.1|F8.0", 24, 100, 472, 300, $LVS_REPORT, BitOR($LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT))
    GUICtrlSetFont(-1, 8, 800, 0, "MS Sans Serif")

    Local $PIPEFILE = "C:\edit-zoom_step_av_value.csv"
    Local $aRetArray

    _FileReadToArray($PIPEFILE, $aRetArray, $FRTA_NOCOUNT, "|")

    Local $iRows = UBound($aRetArray, $UBOUND_ROWS) ; Total number of rows.

    For $x = 0 to $iRows-1
        GUICtrlCreateListViewItem($aRetArray[$x][0] & "|" & $aRetArray[$x][1] & "|" & $aRetArray[$x][2] & "|" & $aRetArray[$x][3] & "|" & $aRetArray[$x][4] & "|" _
        & $aRetArray[$x][5] & "|" & $aRetArray[$x][6] & "|" & $aRetArray[$x][7] & "|" & $aRetArray[$x][8] , $iListview)
    Next

$hListview = GUICtrlGetHandle($iListview)

Local $iButton = GUICtrlCreateButton("Value?", 150, 430, 70, 20)

GUISetState(@SW_SHOW)

GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY"); good tutorial @ https://www.autoitscript.com/wiki/Tutorial_GUIRegisterMsg

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
        Case $iButton
            MsgBox(0, "Info", "Cell selected: " & _GUICtrlListView_GetItemText($hListview, $aHit[0], $aHit[1]) & @CR, 0, $hGUI)
            ;MsgBox(0, "Info", "zoom_step selected: " & $aHit[0] & " --> Aperture column selected: " & $aHit[1], 0, $hGUI)
    EndSwitch
WEnd

Func WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam ; https://www.autoitscript.com/forum/topic/72304-forceref/ --> It is used by au3check to tell it not to report on "variable not used" when using the parameter "-w 5" (i think)
    Local $tNMHDR, $hWndFrom, $iCode
    $tNMHDR = DllStructCreate($tagNMHDR, $lParam) ; https://www.autoitscript.com/autoit3/docs/functions/DllStructCreate.htm --> Creates a C/C++ style structure to be used in DllCall.
    $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom"))
    $iCode = DllStructGetData($tNMHDR, "Code")
    Switch $hWndFrom
        Case $hListview
            Switch $iCode
                Case $LVN_ITEMCHANGED
                    Local $tNMLISTVIEW, $iItem, $aInfo
                    $tNMLISTVIEW = DllStructCreate($tagNMLISTVIEW, $lParam)
                    $iItem = DllStructGetData($tNMLISTVIEW, "Item")
                    _GUICtrlListView_SetItemSelected($hListview, $iItem, False)
                    Local $aInfo = GUIGetCursorInfo($hGUI)
                    If $aInfo[2] Then
                        $aInfo = _GUICtrlListView_SubItemHitTest($hListview, $aInfo[0] - 2, $aInfo[1] - 2) ; Upper left = ( 2, 2 )
                        If $aInfo[0] > -1 And $aInfo[1] > -1 And $aInfo[0] = $iItem Then
                            If $aHit[0] > -1 Then _GUICtrlListView_RedrawItems($hListview, $aHit[0], $aHit[0])
                            If $aHit[0] <> $aInfo[0] Or $aHit[1] <> $aInfo[1] Then
                                $aHit[0] = $aInfo[0] ; Row
                                $aHit[1] = $aInfo[1] ; Col
                            Else
                                $aHit[0] = -1 ; Row
                                $aHit[1] = -1 ; Col
                            EndIf
                            _GUICtrlListView_RedrawItems($hListview, $iItem, $iItem)
                        EndIf
                    EndIf
                Case $NM_CUSTOMDRAW
                    Local $tNMLVCUSTOMDRAW = DllStructCreate($tagNMLVCUSTOMDRAW, $lParam)
                    Local $dwDrawStage = DllStructGetData($tNMLVCUSTOMDRAW, "dwDrawStage")
                    Switch $dwDrawStage ; Holds a value that specifies the drawing stage
                        Case $CDDS_PREPAINT ; Before the paint cycle begins
                            Return $CDRF_NOTIFYITEMDRAW ; Notify the parent window of any ITEM-related drawing operations
                        Case $CDDS_ITEMPREPAINT ; Before painting an item
                            Return $CDRF_NOTIFYSUBITEMDRAW ; Notify the parent window of any SUBITEM-related drawing operations
                        Case BitOR($CDDS_ITEMPREPAINT, $CDDS_SUBITEM) ; Before painting a subitem
                            Local $dwItemSpec = DllStructGetData($tNMLVCUSTOMDRAW, "dwItemSpec") ; Item index
                            Local $iSubItem = DllStructGetData($tNMLVCUSTOMDRAW, "iSubItem") ; Subitem index
                            Local $uItemState = DllStructGetData($tNMLVCUSTOMDRAW, "uItemState") ; Item state
                            If $dwItemSpec = $aHit[0] Then ; Marked row
                                Switch $iSubItem
                                    Case $aHit[1] ; Marked column
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0xFFFFFF) ; Forecolor white
                                        DllStructSetData($tNMLVCUSTOMDRAW, "clrTextBk", 0xCC6600) ; Backcolor dark blue, BGR
                                    Case Else ; Other columns
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0x000000) ; Forecolor black
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xFFFFFF) ; Backcolor white
                                EndSwitch
                            Else ; Other rows
                                DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0x000000)
                                DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xFFFFFF)
                            EndIf
                            Return $CDRF_NEWFONT ; $CDRF_NEWFONT must be returned after changing font or colors
                    EndSwitch
            EndSwitch
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY

So that may not be pretty, but I can't now select items from the listview and don't understand why not :ermm:

edit-zoom_step_av_value.csv

Share this post


Link to post
Share on other sites

newniman,

The problem was that you had not correctly set the position of the ListView within the GUI - see line #55 of this amended script:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <File.au3>
#include <GuiListView.au3>

Global $hGUI, $hListview, $aHit[2] = [-1, -1] ; $aHit contains row & col of marked cell
Local $PIPEFILE = "edit-zoom_step_av_value.csv"
Local $aRetArray



_FileReadToArray($PIPEFILE, $aRetArray, $FRTA_NOCOUNT);, "|") ; As the delimiters are already "!" why bother to split the lines? <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

$hGUI = GUICreate("Mark Cell in Listview", 1040, 590)

Local $cListview = GUICtrlCreateListView("Zoom Step|F3.4|F4.0|F4.5|F5.0|F5.6|F6.3|F7.1|F8.0", 24, 100, 472, 300, $LVS_REPORT, BitOR($LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT))
$hListview = GUICtrlGetHandle($cListview)
GUICtrlSetFont($cListview, 8, 800, 0, "MS Sans Serif")

For $x = 0 To UBound($aRetArray, $UBOUND_ROWS) - 1
    ; As the "|" are already in place, this is much easier to write! <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
    GUICtrlCreateListViewItem($aRetArray[$x], $cListview)
Next

Local $cButton = GUICtrlCreateButton("Value?", 150, 430, 70, 20)

GUISetState(@SW_SHOW)

GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY"); good tutorial @ https://www.autoitscript.com/wiki/Tutorial_GUIRegisterMsg



While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
        Case $cButton

            MsgBox(0, "Info", "Cell selected: " & _GUICtrlListView_GetItemText($hListview, $aHit[0], $aHit[1]) & @CR, 0, $hGUI)
            ;MsgBox(0, "Info", "zoom_step selected: " & $aHit[0] & " --> Aperture column selected: " & $aHit[1], 0, $hGUI)
    EndSwitch

WEnd



Func WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam ; Used by au3check to tell it not to report on "variable not used" when using the parameter "-w 5"  - Correct <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
    Local $tNMHDR, $hWndFrom, $iCode

    $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom"))
    $iCode = DllStructGetData($tNMHDR, "Code")
    Switch $hWndFrom

        Case $hListview

            Switch $iCode

                Case $LVN_ITEMCHANGED
                    Local $tNMLISTVIEW, $iItem, $aInfo

                    $tNMLISTVIEW = DllStructCreate($tagNMLISTVIEW, $lParam)
                    $iItem = DllStructGetData($tNMLISTVIEW, "Item")
                    _GUICtrlListView_SetItemSelected($hListview, $iItem, False)
                    Local $aInfo = GUIGetCursorInfo($hGUI)
                    If $aInfo[2] Then
                        $aInfo = _GUICtrlListView_SubItemHitTest($hListview, $aInfo[0] - 24, $aInfo[1] - 100) ; Upper left position of ListView within GUI - so must match actual position
                        If $aInfo[0] > -1 And $aInfo[1] > -1 And $aInfo[0] = $iItem Then
                            If $aHit[0] > -1 Then _GUICtrlListView_RedrawItems($hListview, $aHit[0], $aHit[0])
                            If $aHit[0] <> $aInfo[0] Or $aHit[1] <> $aInfo[1] Then
                                $aHit[0] = $aInfo[0] ; Row
                                $aHit[1] = $aInfo[1] ; Col
                            Else
                                $aHit[0] = -1 ; Row
                                $aHit[1] = -1 ; Col
                            EndIf

                            _GUICtrlListView_RedrawItems($hListview, $iItem, $iItem)
                        EndIf

                    EndIf

                Case $NM_CUSTOMDRAW
                    Local $tNMLVCUSTOMDRAW = DllStructCreate($tagNMLVCUSTOMDRAW, $lParam)
                    Local $dwDrawStage = DllStructGetData($tNMLVCUSTOMDRAW, "dwDrawStage")
                    Switch $dwDrawStage ; Holds a value that specifies the drawing stage
                        Case $CDDS_PREPAINT ; Before the paint cycle begins
                            Return $CDRF_NOTIFYITEMDRAW ; Notify the parent window of any ITEM-related drawing operations
                        Case $CDDS_ITEMPREPAINT ; Before painting an item
                            Return $CDRF_NOTIFYSUBITEMDRAW ; Notify the parent window of any SUBITEM-related drawing operations
                        Case BitOR($CDDS_ITEMPREPAINT, $CDDS_SUBITEM) ; Before painting a subitem

                            Local $dwItemSpec = DllStructGetData($tNMLVCUSTOMDRAW, "dwItemSpec") ; Item index
                            Local $iSubItem = DllStructGetData($tNMLVCUSTOMDRAW, "iSubItem") ; Subitem index
                            Local $uItemState = DllStructGetData($tNMLVCUSTOMDRAW, "uItemState") ; Item state
                            If $dwItemSpec = $aHit[0] Then ; Marked row
                                Switch $iSubItem

                                    Case $aHit[1] ; Marked column
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0xFFFFFF) ; Forecolor white
                                        DllStructSetData($tNMLVCUSTOMDRAW, "clrTextBk", 0xCC6600) ; Backcolor dark blue, BGR
                                    Case Else ; Other columns
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0x000000) ; Forecolor black
                                        DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xFFFFFF) ; Backcolor white
                                EndSwitch

                            Else ; Other rows
                                DllStructSetData($tNMLVCUSTOMDRAW, "ClrText", 0x000000)
                                DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", 0xFFFFFF)
                            EndIf

                            Return $CDRF_NEWFONT ; $CDRF_NEWFONT must be returned after changing font or colors

                    EndSwitch

            EndSwitch

    EndSwitch

    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY

I also removed most of the include files (which were not all necessary) and cleaned up the _FileReadToArray code which makes creating the ListView items much easier.

M23

1 person likes this

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Thanks a million Melba23...

this is more than i'd hoped for at this stage. Probably need to grow a few more synapses before I fully understand but you have given a great head start. I may not be great at artistic design either, but it's functional ok. Here's a screenshot (i'll disable 1st column & do the other stuff you suggest later):




Share this post


Link to post
Share on other sites

newniman,

Delighted I could help. Do not hesitate to ask for further explanations if your synapses refuse to grow - or if you need any more help with the script overall (but please do that in another thread).

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
