Listview lose focus [SOLVED]

11 posts in this topic

#1 ·  Posted (edited)

When I open the second GUI I lose focus and the list box does not change background, Why? THX :)



#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GUIListView.au3>

Global $bChanged = False,$hGUI2

$hGUI = GUICreate("Test", 500, 500)
GUISetBkColor(0xE0FFFF)
$Pic = GUICtrlCreatePic(@ScriptDir&"\1.jpg", 0, 0, 1024, 600)
GUICtrlSetState(-1, $GUI_DISABLE)
$Button1 = GUICtrlCreateButton("Button1", 5,250, 200, 50)
$cLV = GUICtrlCreateListView("Column 1", 10, 10, 200, 200)
$hLV = GUICtrlGetHandle($cLV)

    GUICtrlCreateListViewItem("Item " & 0, $cLV)
    GUICtrlCreateListViewItem("Item " & 1, $cLV)
    GUICtrlCreateListViewItem("Item " & 2, $cLV)

GUISetState()

GUIRegisterMsg($WM_NOTIFY, "_WM_NOTIFY")

While 1
    $aMsg = GUIGetMsg(1)
     Switch $aMsg[1]

            Case $hGUI
                Switch $aMsg[0]
                    Case $GUI_EVENT_CLOSE
                         ExitLoop
                         GUIDelete($hGUI)
                    case $Button1
                        _gui()
                EndSwitch

            Case $hGUI2
                Switch $aMsg[0]
                    Case $GUI_EVENT_CLOSE
                        GUISetState(@SW_ENABLE,$hGUI)
                        GUIDelete($hGUI2)
                EndSwitch

            If $bChanged Then
                $litem = _GUICtrlListView_GetSelectedIndices($hLV)
                ConsoleWrite($litem & @CRLF)
                $bChanged = False
                Switch $litem
                    Case "0"
                         GUICtrlSetImage($Pic, @ScriptDir&"\0.jpg")
                    Case "1"
                        GUICtrlSetImage($Pic, @ScriptDir&"\1.jpg")
                    Case "2"
                        GUICtrlSetImage($Pic, @ScriptDir&"\2.jpg")
                EndSwitch
                $bChanged = False
            EndIf

    EndSwitch
WEnd


Func _WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam
    Local $hWndFrom, $iIDFrom, $iCode, $tNMHDR, $hWndListView, $tInfo
    $hWndListView = $hLV

    $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom"))
    $iIDFrom = DllStructGetData($tNMHDR, "IDFrom")
    $iCode = DllStructGetData($tNMHDR, "Code")
    Switch $hWndFrom
        Case $hWndListView
            Switch $iCode
                Case $NM_CLICK
                    $tStruct = DllStructCreate($tagNMITEMACTIVATE, $lParam)
                    $Index = DllStructGetData($tStruct, "Index")
                    Local $iItemText = _GUICtrlListView_GetItemText($cLV, DllStructGetData($tStruct, "Index"), 1)
                    $item = StringSplit(_GUICtrlListView_GetItemTextString($cLV, $Index), '|')
                    $item = $item[1]
                    ConsoleWrite($item & @CRLF)
                    $bChanged = True

                Case $LVN_KEYDOWN
                    $tStruct = DllStructCreate($tagNMLVKEYDOWN, $lParam)
                    $iKey = DllStructGetData($tStruct, "VKey")
                    Switch $iKey
                        Case 38, 40
                            $bChanged = True
                    EndSwitch

            EndSwitch

    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>_WM_NOTIFY

Func _gui()
    $hGUI2 = GUICreate("Test", 100, 100)
    GUISetState(@SW_SHOW)
    GUISetState(@SW_DISABLE,$hGUI)
EndFunc






Edited by rootx

Share this post


Link to post
Share on other sites



#3 ·  Posted (edited)

THX, but I have not explained well my question....

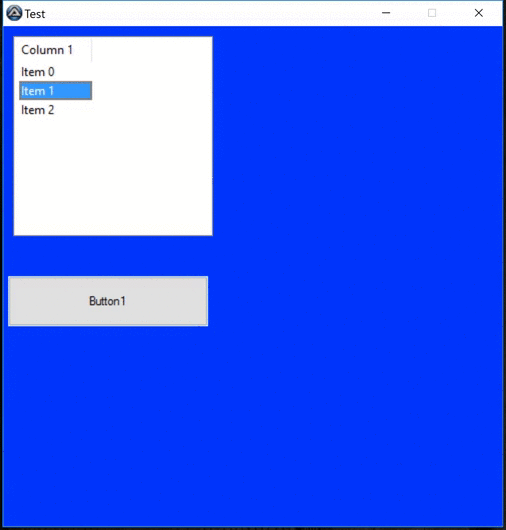

1.Run the script, if I select an item in the listview consequently the Gui the background changes

2. Click on the button and open the second gui and then close it

3. Now if you try to select the item on the listview the control background change no longer works.

What happens to GUIRegisterMsg ($ WM_NOTIFY, "WM_NOTIFY") ?

THX.

PS. This way was suggested to me by Melba ("THX"), because before when I changed the background the listview will disappear



Edited by rootx

Share this post


Link to post
Share on other sites

Please...




Share this post


Link to post
Share on other sites

Share this post


Link to post
Share on other sites

LarsJ THX, it doesn't work. :(

Share this post


Link to post
Share on other sites

It works for me:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GUIListView.au3>

Global $bChanged = False,$hGUI2

$hGUI = GUICreate("Test", 500, 500)
GUISetBkColor(0xE0FFFF)
$Pic = GUICtrlCreatePic(@ScriptDir&"\1.jpg", 0, 0, 1024, 600)
GUICtrlSetState(-1, $GUI_DISABLE)
$Button1 = GUICtrlCreateButton("Button1", 5,250, 200, 50)
$cLV = GUICtrlCreateListView("Column 1", 10, 10, 200, 200)
$hLV = GUICtrlGetHandle($cLV)

    GUICtrlCreateListViewItem("Item " & 0, $cLV)
    GUICtrlCreateListViewItem("Item " & 1, $cLV)
    GUICtrlCreateListViewItem("Item " & 2, $cLV)

GUISetState()

GUIRegisterMsg($WM_NOTIFY, "_WM_NOTIFY")

While 1
    $aMsg = GUIGetMsg(1)
     Switch $aMsg[1]

            Case $hGUI
                Switch $aMsg[0]
                    Case $GUI_EVENT_CLOSE
                         ExitLoop
                         GUIDelete($hGUI)
                    case $Button1
                        _gui()
                EndSwitch

            If $bChanged Then
                $litem = _GUICtrlListView_GetSelectedIndices($hLV)
                ConsoleWrite($litem & @CRLF)
                $bChanged = False
                Switch $litem
                    Case "0"
                         GUICtrlSetImage($Pic, @ScriptDir&"\0.jpg")
                    Case "1"
                        GUICtrlSetImage($Pic, @ScriptDir&"\1.jpg")
                    Case "2"
                        GUICtrlSetImage($Pic, @ScriptDir&"\2.jpg")
                EndSwitch
                $bChanged = False
            EndIf

            Case $hGUI2
                Switch $aMsg[0]
                    Case $GUI_EVENT_CLOSE
                        GUISetState(@SW_ENABLE,$hGUI)
                        GUIDelete($hGUI2)
                EndSwitch

    EndSwitch
WEnd


Func _WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam
    Local $hWndFrom, $iIDFrom, $iCode, $tNMHDR, $hWndListView, $tInfo
    $hWndListView = $hLV

    $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom"))
    $iIDFrom = DllStructGetData($tNMHDR, "IDFrom")
    $iCode = DllStructGetData($tNMHDR, "Code")
    Switch $hWndFrom
        Case $hWndListView
            Switch $iCode
                Case $NM_CLICK
                    $tStruct = DllStructCreate($tagNMITEMACTIVATE, $lParam)
                    $Index = DllStructGetData($tStruct, "Index")
                    Local $iItemText = _GUICtrlListView_GetItemText($cLV, DllStructGetData($tStruct, "Index"), 1)
                    $item = StringSplit(_GUICtrlListView_GetItemTextString($cLV, $Index), '|')
                    $item = $item[1]
                    ConsoleWrite($item & @CRLF)
                    $bChanged = True

                Case $LVN_KEYDOWN
                    $tStruct = DllStructCreate($tagNMLVKEYDOWN, $lParam)
                    $iKey = DllStructGetData($tStruct, "VKey")
                    Switch $iKey
                        Case 38, 40
                            $bChanged = True
                    EndSwitch

            EndSwitch

    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>_WM_NOTIFY

Func _gui()
    $hGUI2 = GUICreate("Test", 100, 100)
    GUISetState(@SW_SHOW)
    GUISetState(@SW_DISABLE,$hGUI)
EndFunc



1 person likes this

Share this post


Link to post
Share on other sites

#8 ·  Posted (edited)

LarsJ

Its not working correctly yet, $LVN_KEYDOWN It changes when I move the mouse.




Edited by rootx

Share this post


Link to post
Share on other sites

I forgot the up/down arrows. I think I would do something like this. But there is still room for improvement.

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GUIListView.au3>

Global $bChanged = False,$hGUI2

$hGUI = GUICreate("Test", 500, 500)
GUISetBkColor(0xE0FFFF)
$Pic = GUICtrlCreatePic(@ScriptDir&"\1.jpg", 0, 0, 1024, 600)
GUICtrlSetState(-1, $GUI_DISABLE)
$Button1 = GUICtrlCreateButton("Button1", 5,250, 200, 50)
$idLvEvent = GUICtrlCreateDummy() ; <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
$cLV = GUICtrlCreateListView("Column 1", 10, 10, 200, 200)
$hLV = GUICtrlGetHandle($cLV)

    GUICtrlCreateListViewItem("Item " & 0, $cLV)
    GUICtrlCreateListViewItem("Item " & 1, $cLV)
    GUICtrlCreateListViewItem("Item " & 2, $cLV)

GUISetState()

GUIRegisterMsg($WM_NOTIFY, "_WM_NOTIFY")

While 1
    $aMsg = GUIGetMsg(1)
     Switch $aMsg[1]

            Case $hGUI
                Switch $aMsg[0]
                    Case $GUI_EVENT_CLOSE
                         ExitLoop
                         GUIDelete($hGUI)
                    case $Button1
                        _gui()
                    Case $idLvEvent ; <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
                        $litem = _GUICtrlListView_GetSelectedIndices($hLV)
                        ConsoleWrite($litem & @CRLF)
                        Switch $litem
                            Case "0"
                                 GUICtrlSetImage($Pic, @ScriptDir&"\0.jpg")
                            Case "1"
                                GUICtrlSetImage($Pic, @ScriptDir&"\1.jpg")
                            Case "2"
                                GUICtrlSetImage($Pic, @ScriptDir&"\2.jpg")
                        EndSwitch
                EndSwitch

            Case $hGUI2
                Switch $aMsg[0]
                    Case $GUI_EVENT_CLOSE
                        GUISetState(@SW_ENABLE,$hGUI)
                        GUIDelete($hGUI2)
                EndSwitch

    EndSwitch
WEnd


Func _WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam
    Local Static $item
    Local $hWndFrom, $iIDFrom, $iCode, $tNMHDR, $hWndListView, $tInfo
    $hWndListView = $hLV

    $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom"))
    $iIDFrom = DllStructGetData($tNMHDR, "IDFrom")
    $iCode = DllStructGetData($tNMHDR, "Code")
    Switch $hWndFrom
        Case $hWndListView
            Switch $iCode
                Case $LVN_ITEMCHANGED
                  Local $tNMListView = DllStructCreate( $tagNMLISTVIEW, $lParam )
                  Local $iNewState = DllStructGetData( $tNMListView, "NewState" )
                  If BitAND( $iNewState, $LVIS_FOCUSED ) Then
                    Local $iLvItem = DllStructGetData( $tNMListView, "Item" )
                    $item = _GUICtrlListView_GetItemText( $hWndListView, $iLvItem, 0 )
                  EndIf
                Case $NM_CLICK
                    ;$tStruct = DllStructCreate($tagNMITEMACTIVATE, $lParam)
                    ;$Index = DllStructGetData($tStruct, "Index")
                    ;Local $iItemText = _GUICtrlListView_GetItemText($cLV, DllStructGetData($tStruct, "Index"), 1)
                    ;$item = StringSplit(_GUICtrlListView_GetItemTextString($cLV, $Index), '|')
                    ;$item = $item[1]
                    ConsoleWrite($item & @CRLF)
                    GUICtrlSendToDummy( $idLvEvent )

                Case $LVN_KEYDOWN
                    $tStruct = DllStructCreate($tagNMLVKEYDOWN, $lParam)
                    $iKey = DllStructGetData($tStruct, "VKey")
                    Switch $iKey
                        Case 38, 40
                            ConsoleWrite($item & @CRLF)
                            GUICtrlSendToDummy( $idLvEvent )
                    EndSwitch

            EndSwitch

    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>_WM_NOTIFY

Func _gui()
    $hGUI2 = GUICreate("Test", 100, 100)
    GUISetState(@SW_SHOW)
    GUISetState(@SW_DISABLE,$hGUI)
EndFunc



1 person likes this

Share this post


Link to post
Share on other sites

Make it this way:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GUIListView.au3>

Global $bChanged = False, $hGUI2

$hGUI = GUICreate("Test", 500, 500)
GUISetBkColor(0xE0FFFF)
$Pic = GUICtrlCreatePic(@ScriptDir & "\1.jpg", 0, 0, 1024, 600)
GUICtrlSetState(-1, $GUI_DISABLE)
$Button1 = GUICtrlCreateButton("Button1", 5, 250, 200, 50)
$cLV = GUICtrlCreateListView("Column 1", 10, 10, 200, 200)
$hLV = GUICtrlGetHandle($cLV)

GUICtrlCreateListViewItem("Item " & 0, $cLV)
GUICtrlCreateListViewItem("Item " & 1, $cLV)
GUICtrlCreateListViewItem("Item " & 2, $cLV)

GUISetState()

GUIRegisterMsg($WM_NOTIFY, "_WM_NOTIFY")

While 1
    If $bChanged Then
        $litem = _GUICtrlListView_GetSelectedIndices($hLV)
        ;ConsoleWrite('Loop: ' & $litem & @CRLF)
        $bChanged = False
        Switch $litem
            Case "0"
                GUICtrlSetImage($Pic, @ScriptDir & "\0.jpg")
            Case "1"
                GUICtrlSetImage($Pic, @ScriptDir & "\1.jpg")
            Case "2"
                GUICtrlSetImage($Pic, @ScriptDir & "\2.jpg")
        EndSwitch
        $bChanged = False
    EndIf
    $aMsg = GUIGetMsg(1)
    Switch $aMsg[1]

        Case $hGUI
            Switch $aMsg[0]
                Case $GUI_EVENT_CLOSE
                    ExitLoop
                    GUIDelete($hGUI)
                Case $Button1
                    _gui()
            EndSwitch

        Case $hGUI2
            Switch $aMsg[0]
                Case $GUI_EVENT_CLOSE
                    GUISetState(@SW_ENABLE, $hGUI)
                    GUIDelete($hGUI2)
            EndSwitch

    EndSwitch
WEnd


Func _WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam
    Local $hWndFrom, $iIDFrom, $iCode, $tNMHDR, $hWndListView, $tInfo
    $hWndListView = $hLV

    $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom"))
    $iIDFrom = DllStructGetData($tNMHDR, "IDFrom")
    $iCode = DllStructGetData($tNMHDR, "Code")
    Switch $hWndFrom
        Case $hWndListView
            Switch $iCode
                Case $NM_CLICK
                    $tStruct = DllStructCreate($tagNMITEMACTIVATE, $lParam)
                    $Index = DllStructGetData($tStruct, "Index")
                    Local $iItemText = _GUICtrlListView_GetItemText($cLV, DllStructGetData($tStruct, "Index"), 1)
                    $item = StringSplit(_GUICtrlListView_GetItemTextString($cLV, $Index), '|')
                    $item = $item[1]
                    $bChanged = True
                    ;ConsoleWrite('WM_Click: ' & $item & @TAB & $bChanged & @CRLF)
                Case $LVN_KEYDOWN
                    $tStruct = DllStructCreate($tagNMLVKEYDOWN, $lParam)
                    $iKey = DllStructGetData($tStruct, "VKey")
                    Switch $iKey
                        Case 38, 40
                            $bChanged = True
                            ;ConsoleWrite('Keydown: ' & $iKey & @TAB & $bChanged & @CRLF)
                    EndSwitch

            EndSwitch

    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>_WM_NOTIFY

Func _gui()
    $hGUI2 = GUICreate("Test", 100, 100)
    GUISetState(@SW_SHOW)
    GUISetState(@SW_DISABLE, $hGUI)
EndFunc   ;==>_gui



1 person likes this

Share this post


Link to post
Share on other sites

THX AutoBert & LarsJ

The are working both! :drool:

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
Sign in to follow this
Followers 0

  • Similar Content

    • Daka
      By Daka
      I know there are listbox and listview, but now I have?
      here is the video of infowindow
      I tried to read mouse selection like for listbox:
      $listWindow = "[CLASS:TFormResearchGR]" $topicsList = "[CLASS:TMWrapper; INSTANCE:255]" WinWait($listWindow, "", 60) $hdlWindow = WinGetHandle($listWindow) $hdlList = ControlGetHandle($hdlWindow, "", $topicsList) _GUICtrlListBox_ClickItem($hdlList, 0, "left") $countOfList = _GUICtrlListBox_GetCount($hdlList) ConsoleWrite("Count of list: " & $countOfList & @LF) count of list is not working.
      I realiezed that there are difference between listbox and listview, but this is something different.
      and till now I never saw that you can go inside with infotool and also get instances.

      so Im confused how to get the list number and the names of selection?
    • AndyS19
      By AndyS19
      I have a listview with 3 columns and I want to set the 3rd column's color based on the item's 'Param' value, but even though I set up for the 3rd column, the entire row always gets the color.
      My test code is below, but here is the pertinent code:
      Func WM_NOTIFY($hWnd, $iMsg, $iwParam, $ilParam) #forceref $hWnd, $iMsg, $iwParam, $ilParam Local $hWndFrom, $iCode, $tNMHDR $tNMHDR = DllStructCreate($tagNMHDR, $ilParam) $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom")) $iCode = DllStructGetData($tNMHDR, "Code") Switch $hWndFrom Case $hListView Switch $iCode Case $NM_CUSTOMDRAW Local $iDrawStage, $tCustDraw $tCustDraw = DllStructCreate($tagNMLVCUSTOMDRAW, $ilParam) $iDrawStage = DllStructGetData($tCustDraw, 'dwDrawStage') Switch $iDrawStage Case BitOR(0, $CDDS_ITEMPREPAINT) ;, $CDDS_SUBITEM) setItemColor($tCustDraw, $hWndFrom) Return $CDRF_NOTIFYSUBITEMDRAW EndSwitch EndSwitch EndSwitch Return $GUI_RUNDEFMSG EndFunc ;==>WM_NOTIFY Func setItemColor($tCustDraw, $hWnd) Local $iIndex, $color, $iSubitem $iIndex = DllStructGetData($tCustDraw, 'dwItemSpec') ; item number $color = _GUICtrlListView_GetItemParam($hWnd, $iIndex) $iSubitem = DllStructGetData($tCustDraw, 'iSubItem') ; Here, I want to only change the color of the 3rd col, and not the 1st and 2nd cols DllStructSetData($tCustDraw, 'iSubItem', 2) ; always use the 3rd column (the 'sample' col) logmsg("+++: setItemColor($tCustDraw, 0x" & Hex($hWnd) & ") entered ... " _ & ", $iIndex = " & $iIndex & ", $iSubItem = " & $iSubitem & ", $color = " & Hex($color)) DllStructSetData($tCustDraw, 'clrText', $color) ; set the Text color DllStructSetData($tCustDraw, 'clrTextBk', bitnot($color)) ; set the background color EndFunc ;==>setItemColor Func logmsg($msg, $lnum = @ScriptLineNumber) ConsoleWrite("+++:" & $lnum & ": " & $msg & @CRLF) EndFunc ;==>logmsg
      Here is the full test code:
      #include-once ;#cs #NoTrayIcon #AutoIt3Wrapper_UseUpx=n #AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6 #AutoIt3Wrapper_UseX64=N Opt("GUICloseOnESC", 1) ; ESC closes GUI? (0 = no, 1 = yes) Opt("GUIOnEventMode", 1) ; Change to OnEvent mode Opt('MustDeclareVars', 1) OnAutoItExitRegister("_test_exit") Opt("GUIEventOptions", 1) ;0=default, 1=just notification, 2=GuiCtrlRead tab index Opt("WinTitleMatchMode", -2) ;1=start, 2=subStr, 3=exact, 4=advanced, -1 to -4=Nocase #include <GuiListBox.au3> #include <ListViewConstants.au3> #include <GuiListView.au3> #include <WindowsConstants.au3> #include <GUIConstantsEx.au3> #include <ColorConstants.au3> Global $__MCP_obj, $__MCP_GUI_hWnd, $idListView, $hListView Global $hMainWin test() Exit Func test() $hMainWin = GUICreate("Test window", 120, 100, @DesktopWidth / 2, -1) GUICtrlCreateButton("Hwnd", 10, 10, 40, 20) GUICtrlSetOnEvent(-1, "handle_1stTEST_btn") GUICtrlCreateButton("ID", 50, 10, 40, 20) GUICtrlSetOnEvent(-1, "handle_2ndTEST_btn") GUISetOnEvent($GUI_EVENT_CLOSE, "_test_exit") GUISetState(@SW_SHOW) While (1) Sleep(17) WEnd EndFunc ;==>test Func _myColorPicker($obj) logmsg("+++: $obj = 0x" & Hex($obj) & @CRLF) Local $flags = 0 Local $ww, $wh, $x, $y, $w, $h $__MCP_obj = $obj $ww = 350 $wh = 500 $x = 200 $y = 150 $__MCP_GUI_hWnd = GUICreate("myColorPicker", $ww, $wh, $x, $y, $flags) $x = 10 $y = 10 $w = 150 $h = 20 GUICtrlCreateButton("Set caller's color", $x, $y, $w, $h) GUICtrlSetOnEvent(-1, "__MCP_handle_SetColor_btn") $y += $h + 5 $w = $ww - 25 $h = $wh - 100 $idListView = GUICtrlCreateListView("", $x, $y, $w, $h, -1, BitOR($LVS_EX_GRIDLINES, $LVS_EX_FULLROWSELECT)) $hListView = GUICtrlGetHandle($idListView) $x = $ww / 2 - 50 $y = $wh - 60 $w = 100 $h = 25 GUICtrlCreateButton("Quit Popup", $x, $y, $w, $h) GUICtrlSetOnEvent(-1, "__MCP_handle_QUIT_btn") GUICtrlSetFont($idListView, 8.5, -1, -1, "courier new") _GUICtrlListView_AddColumn($idListView, "Name", 100) _GUICtrlListView_AddColumn($idListView, "Value", 100) _GUICtrlListView_AddColumn($idListView, "Sample", 100) _GUICtrlListView_SetColumnWidth($idListView, 0, 100) _GUICtrlListView_SetColumnWidth($idListView, 1, 80) logmsg("+++: $idListView = " & $idListView) logmsg("+++: $hListView = 0x" & Hex($hListView)) __MCP_populateListView($hListView) GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY") GUISetState(@SW_SHOW, $__MCP_GUI_hWnd) EndFunc ;==>_myColorPicker Func WM_NOTIFY($hWnd, $iMsg, $iwParam, $ilParam) #forceref $hWnd, $iMsg, $iwParam, $ilParam Local $hWndFrom, $iCode, $tNMHDR $tNMHDR = DllStructCreate($tagNMHDR, $ilParam) $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom")) $iCode = DllStructGetData($tNMHDR, "Code") Switch $hWndFrom Case $hListView Switch $iCode Case $NM_CUSTOMDRAW Local $iDrawStage, $tCustDraw $tCustDraw = DllStructCreate($tagNMLVCUSTOMDRAW, $ilParam) $iDrawStage = DllStructGetData($tCustDraw, 'dwDrawStage') Switch $iDrawStage Case BitOR(0, $CDDS_ITEMPREPAINT) ;, $CDDS_SUBITEM) setItemColor($tCustDraw, $hWndFrom) Return $CDRF_NOTIFYSUBITEMDRAW EndSwitch EndSwitch EndSwitch Return $GUI_RUNDEFMSG EndFunc ;==>WM_NOTIFY Func setItemColor($tCustDraw, $hWnd) Local $iIndex, $color, $iSubitem $iIndex = DllStructGetData($tCustDraw, 'dwItemSpec') ; item number $color = _GUICtrlListView_GetItemParam($hWnd, $iIndex) $iSubitem = DllStructGetData($tCustDraw, 'iSubItem') ; Here, I want to only change the color of the 3rd col, and not the 1st and 2nd cols DllStructSetData($tCustDraw, 'iSubItem', 2) ; always use the 3rd column (the 'sample' col) logmsg("+++: setItemColor($tCustDraw, 0x" & Hex($hWnd) & ") entered ... " _ & ", $iIndex = " & $iIndex & ", $iSubItem = " & $iSubitem & ", $color = " & Hex($color)) DllStructSetData($tCustDraw, 'clrText', $color) ; set the Text color DllStructSetData($tCustDraw, 'clrTextBk', bitnot($color)) ; set the background color EndFunc ;==>setItemColor Func logmsg($msg, $lnum = @ScriptLineNumber) ConsoleWrite("+++:" & $lnum & ": " & $msg & @CRLF) EndFunc ;==>logmsg Func __MCP_exit() GUIDelete($__MCP_GUI_hWnd) EndFunc ;==>__MCP_exit Func __MCP_handle_SetColor_btn() If (IsHWnd($__MCP_obj)) Then GUISetBkColor($COLOR_BLUE, $__MCP_obj) Else GUICtrlSetBkColor($__MCP_obj, $COLOR_BLUE) EndIf EndFunc ;==>__MCP_handle_SetColor_btn Func __MCP_populateListView($hWnd) Local $text, $parts, $iIndex Local Static $aItems[] = [ _ "BLACK | " & $CLR_BLACK & "|" & "", _ "BLUE | " & $CLR_BLUE & "|" & "", _ "RED | " & $CLR_RED & "|" & "", _ "WHITE | " & $CLR_WHITE & "|" & "", _ "YELLOW | " & $CLR_YELLOW & "|" & "" _ ] _GUICtrlListView_BeginUpdate($hWnd) _GUICtrlListView_DeleteAllItems($hWnd) For $ndx = 0 To UBound($aItems) - 1 $text = $aItems[$ndx] $parts = StringSplit($text, "|", 2) $parts[0] = StringStripWS($parts[0], 3) $parts[2] = StringStripWS($parts[2], 3) $iIndex = _GUICtrlListView_AddItem($hWnd, $parts[0], -1, $parts[1]) _GUICtrlListView_AddSubItem($hWnd, $iIndex, Hex($parts[1]), 1) _GUICtrlListView_AddSubItem($hWnd, $iIndex, $parts[0], 2) Next _GUICtrlListView_EndUpdate($hWnd) EndFunc ;==>__MCP_populateListView Func __MCP_handle_QUIT_btn() GUIDelete($__MCP_GUI_hWnd) EndFunc ;==>__MCP_handle_QUIT_btn Func handle_1stTEST_btn() _myColorPicker($hMainWin) EndFunc ;==>handle_1stTEST_btn Func handle_2ndTEST_btn() _myColorPicker(@GUI_CtrlId) EndFunc ;==>handle_2ndTEST_btn Func _test_exit() Exit EndFunc ;==>_test_exit
    • nacerbaaziz
      By nacerbaaziz
      Hello guys
      Today I'll give you three functions to manage the list View items
      These functions will help you to do some works in your list view items
      1. list view Read
      To get the selected item text
      2. listView_checke
      To checke an item
      3. isListViewChecked
      To see if the item is checked
      All of these functions will be illustrated by the following example
      You can download the include file from the link below
      Now with the example
      #include <easy_listView_functions.au3> #include <GUIConstantsEx.au3> #include <GuiListView.au3> #include <MsgBoxConstants.au3> Example() Func Example()  Local $idListview  GUICreate("ListView Get Item Checked State", 1000, 700)  $idListview = GUICtrlCreateListView("", 50, 30, 250, 120, 50)  _GUICtrlListView_SetExtendedListViewStyle($idListview, BitOR($LVS_EX_FULLROWSELECT, $LVS_EX_CHECKBOXES)) ; Add items $item1 = GUICtrlCreateListViewItem("item1", $idListview) $item2 = GUICtrlCreateListViewItem("item2", $idListview) _listview_Checke($idListview, "item1") $btn = GUICtrlCreateButton("&read", 100, 150, 50, 50) $btn2 = GUICtrlCreateButton("&if checked", 100, 200, 100, 50)  GUISetState(@SW_SHOW) while 1 switch GUIGetMSG() case $GUI_EVENT_CLOSE  GUIDelete() exit case $btn $read = _ListView_read($idListView) if $read then msgBox(0, "read listview", $read) else msgBox(0, "read listview", "no text ditected") endIf case $btn2 if _isListviewChecked($idListView, "item1") then msgBox(0, "get", "the item is checked") else msgBox(0, "get", "the item isn't checked") endIf endSwitch wend EndFunc   ;==>Example

      easy_listView_functions.au3
    • dascondor
      By dascondor
      So I having issues with this GUI/Listview. My main GUI works like it needs to but the ListView GUIs don't. The exit buttons do not work on them and om have a hard time getting them to work. And I'm trying to make the  listview GUI resizeable. But I'm not sure how to fix either of these issues any thoughts.
      #include <ButtonConstants.au3> #include <EditConstants.au3> #include <GUIConstantsEx.au3> #include <StaticConstants.au3> #include <WindowsConstants.au3> #include <File.au3> #include <ScreenCapture.au3> #include <MsgBoxConstants.au3> #include <WinAPIFiles.au3> #include <Array.au3> #include <GuiListView.au3> #include <GuiImageList.au3> #include <ListviewConstants.au3> #include 'MultiPing.au3' Opt("GUIOnEventMode", 1) #Region ;Declares ; Reads text file for the base list of IP's Global $aBase_IPlist = _FileReadToArray_mod(".\IP_List.txt") Global $replace2 = "Second" Global $replace3 = "Thrid" ;Global $userdata1 = GUICtrlRead($data1) ;Global $userdata2 = GUICtrlRead($data2) Global $savefolder = "C:\Users\" Global $paths = "\Desktop\PingChecks" Global $1stpaths = "\~~~Store" Global $2ndpaths = "~~~" Global $results = FileExists($savefolder & @UserName & $paths) ;Global $foldercheck = FileExists($savefolder & @UserName & $paths & $1stpaths & $userdata1 & $userdata2 & $2ndpaths) ;Global $savefile = "C:\Users\" & @UserName & "\Desktop\PingChecks\~~~Store" & $userdata1 & $userdata2 & "~~~\" #EndRegion ;Declares #Region ### START Koda GUI section ### Form= $IPMonkey = GUICreate("IP Monkey", 573, 254, -1, -1) GUISetIcon("C:\Users\Dlex\Pictures\monkeyicon.ico", -1) GUISetFont(16, 800, 0, "Arial") GUISetBkColor(0xFFFFFF) GUISetOnEvent($GUI_EVENT_CLOSE, "SpecialEvents") GUISetOnEvent($GUI_EVENT_MINIMIZE, "SpecialEvents") GUISetOnEvent($GUI_EVENT_MAXIMIZE, "SpecialEvents") GUISetOnEvent($GUI_EVENT_RESTORE, "SpecialEvents") $data1 = GUICtrlCreateInput("1", 184, 120, 89, 32, BitOR($GUI_SS_DEFAULT_INPUT, $ES_CENTER)) GUICtrlSetColor(-1, 0x000000) $data2 = GUICtrlCreateInput("23", 280, 120, 89, 32, BitOR($GUI_SS_DEFAULT_INPUT, $ES_CENTER)) GUICtrlSetColor(-1, 0x000000) $GOButton = GUICtrlCreateButton("GO", 80, 192, 75, 25) GUICtrlSetFont(-1, 10, 800, 0, "Arial") GUICtrlSetColor(-1, 0x000000) GUICtrlSetBkColor(-1, 0x00FF00) GUICtrlSetTip(-1, "Runs A Live Continuous Ping" & @CRLF & _ "Until Told Other Wise") GUICtrlSetOnEvent(-1, "GOButtonClick") $quickscan = GUICtrlCreateButton("Quick Scan", 224, 192, 107, 25) GUICtrlSetFont(-1, 12, 800, 0, "Arial") GUICtrlSetColor(-1, 0x000000) GUICtrlSetBkColor(-1, 0xFFFF00) GUICtrlSetOnEvent(-1, "quickscanClick") GUICtrlSetTip(-1, "Quickly Scans, Then Saves" & @CRLF & _ "Results In Your 'PingChecks' " & @CRLF & _ "Folder Under Your Store Number Folder") Global $exitbutton = GUICtrlCreateButton("Exit", 416, 192, 75, 25) GUICtrlSetFont(-1, 12, 800, 0, "Arial") GUICtrlSetColor(-1, 0x000000) GUICtrlSetBkColor(-1, 0xFF0000) GUICtrlSetTip(-1, "What Do You Think This Button Does?") GUICtrlSetOnEvent(-1, "exitbuttonClick") $titlebar = GUICtrlCreateLabel("IP Monkey", 16, 120, 107, 28) GUICtrlSetColor(-1, 0x000000) $Pic1 = GUICtrlCreatePic("C:\Users\Dlex\Pictures\monkeyicon-0.jpg", 16, 16, 100, 100) GUICtrlSetOnEvent(-1, "Pic1Click") $infobutton = GUICtrlCreateButton("?", 536, 8, 27, 25) GUICtrlSetColor(-1, 0x000000) GUICtrlSetBkColor(-1, 0xFF8000) GUICtrlSetTip(-1, "Unsure what to do?" & @CRLF & _ "This will get give you " & @CRLF & _ "the help for IP Monkey") GUICtrlSetOnEvent(-1, "infobuttonClick") $Whatstorelabel = GUICtrlCreateLabel("What Store?", 208, 56, 130, 28) GUICtrlSetColor(-1, 0x000000) GUISetState(@SW_SHOW) #EndRegion ### END Koda GUI section ### #Region ;ping gui ; ------ pinger GUI ------------------- Global $StopPing = 0 Local $Win_X = 1200, $Win_Y = 880 ; dimension of window Global $PingGui = GUICreate("IP Monkey", $Win_X, $Win_Y, -1, -1) GUISetOnEvent($GUI_EVENT_CLOSE, "SpecialEvents") Global $listview = GUICtrlCreateListView("", 10, 10, $Win_X - 20, $Win_Y - 40) GUICtrlSetFont(-1, 8) $button1 = GUICtrlCreateLabel("Hit Exit To Quit", 10, $Win_Y - 25, $Win_X - 20, 20, -1,$ES_CENTER) GUICtrlSetFont(-1, 10, 800) GUICtrlSetTip(-1, "exit") GUICtrlSetOnEvent(-1, 'SpecialEvents') GUICtrlSetStyle($listview, $LVS_ICON) ; + $LVS_NOLABELWRAP) GUISetState(@SW_HIDE) ; hidden at startup ; --------- end of pinger gui ------------- #EndRegion ;ping gui ; Generate colored square images $hImage = _GUIImageList_Create(30, 30) _GUIImageList_Add($hImage, _GUICtrlListView_CreateSolidBitMap($listview, 0xFFFF00, 30, 30)) ; yellow _GUIImageList_Add($hImage, _GUICtrlListView_CreateSolidBitMap($listview, 0xFF0000, 30, 30)) ; red _GUIImageList_Add($hImage, _GUICtrlListView_CreateSolidBitMap($listview, 0x00FF00, 30, 30)) ; green _GUICtrlListView_SetImageList($listview, $hImage, 0) While 1 Sleep(100) WEnd Func exitbuttonClick() MsgBox(0,'0','0') Exit EndFunc ;==>exitbuttonClick Func GOButtonClick() $userdata1 = GUICtrlRead($data1) $userdata2 = GUICtrlRead($data2) ; pass the wanted new octet replace_And_Go($userdata1, $userdata2) ; generate a list of new IP and Go EndFunc ;==>GOButtonClick Func infobuttonClick() EndFunc ;==>infobuttonClick Func Pic1Click() EndFunc ;==>Pic1Click Func quickscanClick() $userdata1 = GUICtrlRead($data1) $userdata2 = GUICtrlRead($data2) replace_And_Go2($userdata1, $userdata2) EndFunc ;==>quickscanClick Func SpecialEvents() Select Case @GUI_CtrlId = $GUI_EVENT_CLOSE _button1() Case @GUI_CtrlId = $GUI_EVENT_MINIMIZE Case @GUI_CtrlId = $GUI_EVENT_RESTORE Case @GUI_CtrlId = $GUI_EVENT_MAXIMIZE EndSelect EndFunc ;==>SpecialEvents #Region ; Main_GO/Replace_and_GO #cs ############################## second script ############################################# ; this is to ping continuously a list of IP addresses, get and display ping result "live" ; it simulates the dos "ping -t" command but performed simultaneously on many IP ; presenting the results in a ListView highlighting not responding devices with a red box #ce Func replace_And_Go($s_2, $s_3) ; Create a new array wit a new list of IP according to passed second and third octet Local $aNew_IPlist = $aBase_IPlist For $i = 0 To UBound($aNew_IPlist) - 1 $aNew_IPlist[$i][1] = StringReplace(StringReplace($aBase_IPlist[$i][1], $replace2, $s_2), $replace3, $s_3) Next GUISetState(@SW_HIDE, $IPMonkey) GUISetState(@SW_SHOW, $PingGui) ; pass the new list to the pinger Main_GO($aNew_IPlist) GUISetState(@SW_HIDE, $PingGui) GUISetState(@SW_SHOW, $IPMonkey) EndFunc ;==>replace_And_Go Func Main_GO($IPlist) HotKeySet("{esc}", "exitbuttonClick") $StopPing = 0 ; $IPlist = _FileReadToArray_mod(".\IP_List.txt") ; Reads text file for list of IP's ; ; the above command, it loads in the $IPlist array the values contained in the file IP_List.txt ; values in the file should be separated by a semicolon, something like in the following example: ; ; hostname1;192.168.0.1 ; hostname2;192.168.0.5 ; hostnameX;10.59.7.200 ; etc.... ; ; if values in the file are not separated by a semicolon, but another char is used, for example a comma, ; then just pass it as second parameter of the function: $IPlist = _FileReadToArray_mod(".\IP_List.txt", ",") ; _GUICtrlListView_BeginUpdate($listview) _GUICtrlListView_DeleteAllItems($listview) _GUICtrlListView_AddArray($listview, $IPlist) ; fill ListView _GUICtrlListView_EndUpdate($listview) While Not $StopPing ; 1 ; continuously ping addresses of the previously loaded file (IP_List.txt) Sleep(10) ; ; $IPlist is the array loaded with all the IP to be pinged (a 2d array in this case) ; | ; | 1 means the IP are in the second column of the $IPlist array (first colun is nr. 0) ; | | ; | | +--> 0 means return back an array loaded with results from all pinged addresses (responding and not responding) ; | | | if you use 1 then only responding addresses are loaded in the returned array [default] ; | | | if you use 2 then only NOT responding addresses are loaded in the returned array ; | | | In this case we do not need an array to be returned, we only need to perform all pings and pass results ; | | | directly (on the fly) to the "_refresh" callback function that will refresh the listview ; | | | ; | | | 0 means NO lookup name resolution must be performed ; | | | | ; | | | | +--> this is the callback function to be called for each pinged address each time the ping has finished ; | | | | | (see the MultiPing.au3 file for info on all passed params) ; | | | | | 6 parameters are passed to this function, but only 2 are used by the called function in this case: ; | | | | | [4] roundtrip of the responding ping or -1 if IP is down ; | | | | | [5] Index (position) of this IP within the caller's passed array ; | | | | | ; v v v v v _nPing($IPlist, 1, 0, 0, "_refresh") WEnd EndFunc ;==>Main_GO #EndRegion ; Main_GO/Replace_and_GO #Region ; QuickScan/Replace_and_GO2 Func replace_And_Go2($s_2, $s_3) ; Create a new array wit a new list of IP according to passed second and third octet Local $aNew_IPlist = $aBase_IPlist For $i = 0 To UBound($aNew_IPlist) - 1 $aNew_IPlist[$i][1] = StringReplace(StringReplace($aBase_IPlist[$i][1], $replace2, $s_2), $replace3, $s_3) Next GUISetState(@SW_HIDE, $IPMonkey) GUISetState(@SW_SHOW, $PingGui) ; pass the new list to the pinger QuickRun($aNew_IPlist) GUISetState(@SW_HIDE, $PingGui) GUISetState(@SW_SHOW, $IPMonkey) EndFunc ;==>replace_And_Go2 Func QuickRun($IPlist) $userdata1 = GUICtrlRead($data1) $userdata2 = GUICtrlRead($data2) HotKeySet("{esc}", "_button1") Local $Win_X = 1200, $Win_Y = 880 ; dimension of window $PingGui = GUICreate("IP Monkey" & "~~~" & @UserName & "~~~" & "Store" & $userdata1 & $userdata2 & "~~~" & @MON & "." & @MDAY & "." & @YEAR & "~~~" & @HOUR & "." & @MIN, $Win_X, $Win_Y, -1, -1) GUISetOnEvent($GUI_EVENT_CLOSE, "_button1", $PingGui) $listview = GUICtrlCreateListView("", 10, 10, $Win_X - 20, $Win_Y - 40) GUICtrlSetFont(-1, 8) GUICtrlSetStyle($listview, $LVS_ICON) ; + $LVS_NOLABELWRAP) ; Generate colored square images $hImage = _GUIImageList_Create(30, 30) _GUIImageList_Add($hImage, _GUICtrlListView_CreateSolidBitMap($listview, 0xFFFF00, 30, 30)) ; yellow _GUIImageList_Add($hImage, _GUICtrlListView_CreateSolidBitMap($listview, 0xFF0000, 30, 30)) ; red _GUIImageList_Add($hImage, _GUICtrlListView_CreateSolidBitMap($listview, 0x00FF00, 30, 30)) ; green _GUICtrlListView_SetImageList($listview, $hImage, 0) $button1 = GUICtrlCreateButton("Exit", 10, $Win_Y - 25, $Win_X - 20, 20) GUICtrlSetTip(-1, "End of program") GUICtrlSetOnEvent(-1, "exitbuttonClick") GUISetState(@SW_SHOW) ;~ $IPlist = _FileReadToArray_mod(".\IP_List.txt") ; Reads text file for list of IP's _GUICtrlListView_BeginUpdate($listview) _GUICtrlListView_AddArray($listview, $IPlist) ; fill ListView _GUICtrlListView_EndUpdate($listview) ;While 1 ; perform Pings and update ListView by the "_refresh" callback function $aFinalResult = _nPing($IPlist, 1, 0, 0, "_refresh") ;~ _ArrayDisplay($aFinalResult) ;DirCheck() EndFunc ;==>QuickRun #EndRegion ; QuickScan/Replace_and_GO2 #Region ; Misc Funcs (network) Func _refresh($Params) ; this receive ping results and displays them in the ListView _GUICtrlListView_SetItemImage($listview, $Params[5], 0) ; set colour to Yellow Sleep(50) ; a little wait If $Params[4] = -1 Then ; Device not responding to ping _GUICtrlListView_SetItemImage($listview, $Params[5], 1) ; set colour to RED _GUICtrlListView_EnsureVisible($listview, $Params[5]) ; Position view to this item Else ; Device responds to ping _GUICtrlListView_SetItemImage($listview, $Params[5], 2) ; set colour to GREEN EndIf EndFunc ;==>_refresh Func _button1() ; Button 1 clicked ;~ $StopPing = 1 Exit EndFunc ;==>_button1 #EndRegion ; Misc Funcs (network)
      MultiPing.au3
      IP_List.txt
    • elsemieni
      By elsemieni
      Hey hello.
      I came here with maybe too specific questions about uncommon things, but as people says, I don't lose anything trying to asking here
      There's long time that I have a little "experimental" idea: Use windows desktop and it icon system like old videogame consoles (where "sprites" are used to draw things on screen, can be manipulated/animated to make interesting things happen). Some of that inspiration came from another experiments from demoscene.
      Researching the possibilities of doing something like that (maybe not so intense) I found that the Windows Desktop uses a GuiListView to show and arrange icons (and of course, AutoIt provides UDF's for that  ). So, I'm used that UDF to create dummy icons (not putting files on Desktop, just modifiying the "GUI layer" of desktop for put non-working icons), setting custom values like coordinates, name and Icon (from a list of loaded icons in the GuiListView).  As you can see in next image works well in Windows XP... even in Windows 95 (that's not the case from Windows Vista to 10, but I already posted another question here about that... anyways, for now I'm working that with a isolated XP machine... sigh).

      Another video doing an animation with that:
      How I make that custom icons? Here:
      $hWnd = ControlGetHandle("Program Manager", "", "[CLASS:SysListView32; INSTANCE:1]") $newItem = _GUICtrlListView_AddItem ( $hWnd, "TEST", 32 ) ; with an icon of index 32 _GUICtrlListView_SetItemPosition ( $hWnd, $newItem, 300, 300 ) ; set some example property. Put in X=300 Y=300 Okay, so the next phase was changing the icons with custom ones. And here starts the issues. As AutoIT help says, icons from GuiListView came from a loaded GUIImageList, which, seeing past images I conclude that it's already preloaded with some sort of most used icons (something like an icon cache?). But If I modify it (or create another GUIImageList and then put into the GuiListView) the icons became corrupted and replaced with blank ones. (can be reverted deleting IconCache.db, just like when windows shows wrong icons in desktop).
      How I change icons? Here
      $hImage = _GUIImageList_Create(48, 48, 5) ; create an image list for 48x48 icons $newIcon = _GUIImageList_AddIcon($imageList, @SystemDir & "\shell32.dll", 110) ; just adding a new icon in the image list _GUICtrlListView_SetImageList($hWnd, $hImage, 0) ; $hwnd is the desktop hwnd Another option as workaround for setting icons was getting the desktop GUIImageList, and modifiyng it directly. I otbtain a GUIImageList handle, but ... without any images inside! (That's strange beacuse, when I set desktop item icons without altering the GUIImageList, it applies correctly). And finally if I try to add new ones, it returns -1 with @error setted.
      How I'm trying to get  desktop GUIImageList? Here.
      $imageList = _GUICtrlListView_GetImageList ( $hWnd, 0 ) MsgBox(0,_GUIImageList_GetImageCount ( $imageList ), $imageList) ; getting image count and GUIImageList handle $newIcon = _GUIImageList_AddIcon($imageList, @SystemDir & "\shell32.dll", 110) ; adding icons without success So, what is the question? There's something wrong I'm doing while trying to set the new icon set on desktop? Or desktop icons work in different way than the rest of the GuiListView's? Or there's something really stupid that I can't saw before that corrupts the icons?
      Also... if there's not known solution for that, do you have some idea for doing a workaround for that? Or another crazy idea? (Maybe putting real files instead dummy icons could be a solution ... a very slow one). Or even maybe (maybe not, I sure about that xD) do you want to help with this "experiment".
      Thanks in advance, have a good day
