I tried searching for an answer I found a lot about imagesearch.au3 and the such but I wasn't able to find a download for it, and I'm not totally convinced it would work for what I'm trying to do.



Background:

I use a software called EasyStone at work for generating machine files for engraving on my CNC machine. After drawing what needs to be engraved I then need to tool the file. Unfortunately to ensure accuracy and consistency of the engraving I need to engrave line by line rather than as a whole part.  Not really a problem but it is time consuming and I have to do approximately 1900 parts. Suffice to say doing even a few of these is incredibly boring and tedious.

I've already written a script that will draw all 1900 parts for me and another to generate shop drawings saving a significant amount of time which leaves me with what I feel should be the last piece of the puzzle, so far as computer work is concerned.

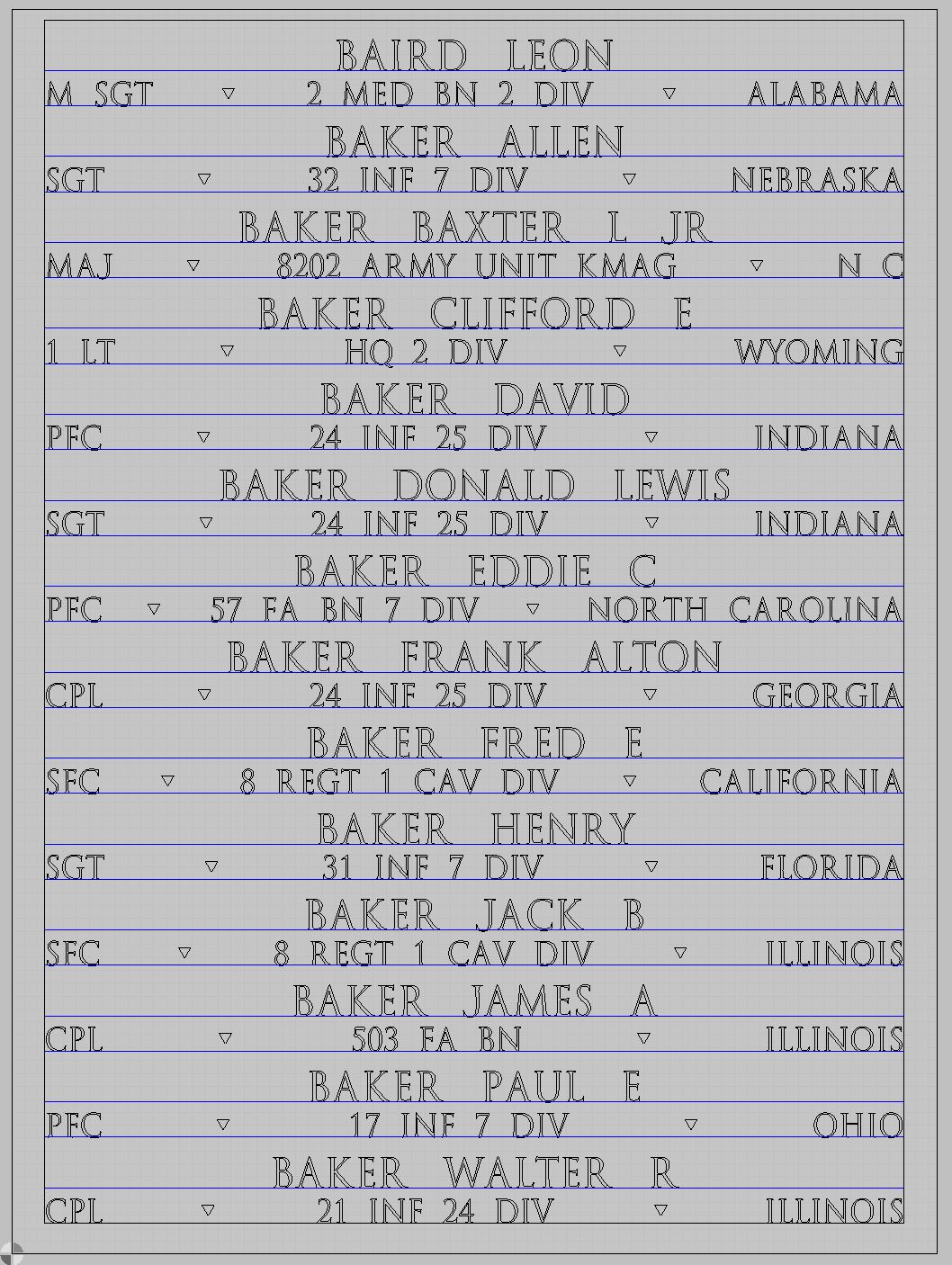

I've attached a screenshot of what I'm working with.

Goal: To select groups of 8 objects of text using AutoIT assigning a tool to those 8 objects and then repeating on the next group of 8 till all 4 groups have been tooled.

Problem: I can select ALL the text at once, but this won't do, tooling must be done for a maximum of 4 lines per tool path.

Details that might help:

  • EasyStone has the ability to select by color, type (line or text)
  • Each bit of text is its own object and they are not connected, whole words are treated as a single object.
  • I'll eventually have to select the triangles at some point as well, should be doable with what ever I use to find the text though.

What I've tried:

  • PixelSearch (for the text) - Only returned the coordinate of the first matching pixel. Managed to select the first text object
  • PixelSearch (for the blue lines) - Again only returned the first match. Managed to select 4 text objects around the line. Failed to select in some cases due to letters being in different locations based on what the text is.
  • Modifying the drawing so that each text object was a different color - Didn't work at all it changed colors in columns rather than rows due to how EasyStone components work.

Next actions:

  • Looping pixelsearch for the blue line modifying the Y values to start lower on each loop
  • Pixelsearch within coordinates around the blue line to find the text in case it moves.

What I'd like to know:

Is there an easier way to be looking for things like this or am I limited to pixelsearch?



Hope this all makes sense and I don't sound like an idiot I'm crazy.


Share this post


Link to post
Share on other sites



Thanks! Tesseract looks promising hope I can get it working.
