System Scan Report Tool

[spudw2k]

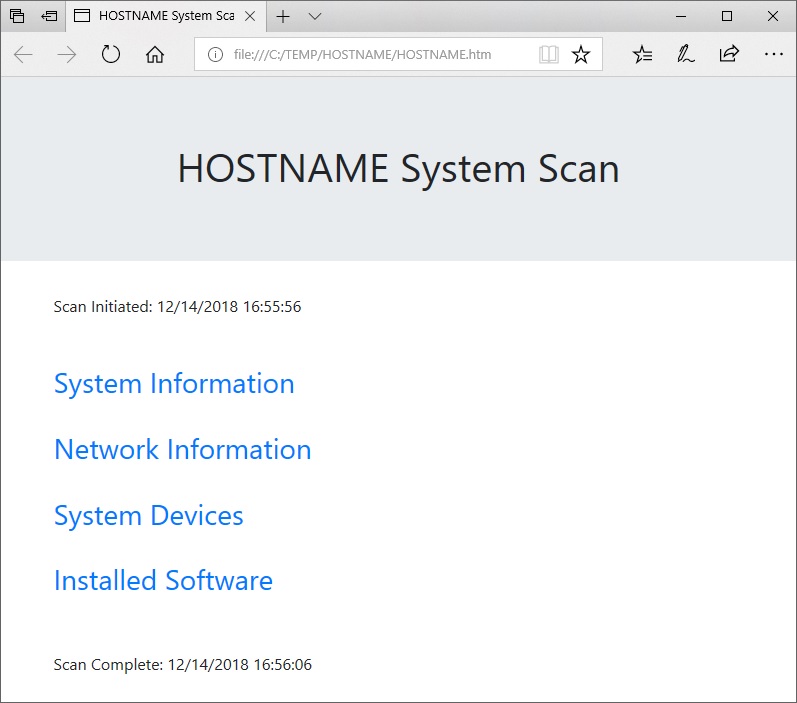

Was revisiting an old script I made for work years ago; it performs a local system scan and produces an HTML report.  the report was very basic and ugly...now it's less ugly, so I thought I'd share.

It collects system info (i.e. manufacturer, model, serial, CPU, RAM, BIOS ver., etc.), network card info, a device list & installed software list.

Requires DeviceAPI.au3 UDF by Weaponx

expandcollapse popup

#NoTrayIcon
;#RequireAdmin
#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_UseX64=n
#AutoIt3Wrapper_Res_Fileversion=0.2.2.0
;#AutoIt3Wrapper_Res_requestedExecutionLevel=asInvoker
#AutoIt3Wrapper_Run_Obfuscator=y
#Obfuscator_Parameters=/cs=0 /cn=0 /cf=0 /cv=0 /sf=1 /sv=1
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****
#NoAutoIt3Execute

Global $version = "0.2.2"
#cs - Version History
    0.2.2
    Bug fix
    [*] Corrected _WriteArrayToLog() destination file for debug

    0.2.1
    Minor Updates
    [+] Added System Info Attributes (OS, OS Version, Organization and Registered Owner)

    0.2.0
    Misc Updates
    [+] HTML Report Format - Initial Bootstrap CSS support
    [*] Minor report changes
    [*] Changed log write logic

    0.1.5
    Minor Updates
    [+] Added Obfuscation to Reduce Script Size
    [+] Set FileVersion to Match Script Version
    [+] Disabled external AutoIt script/code execution.

    0.1.4
    Significant Updates / Script Cleanup
    [-] Removed Omitted code from version 0.1.3
    [*] Code Cleanup
    [*] Optimized Network Info WMI Query
    [+] Added HTML Footer
    [*] Changed HTML Report Header and added timestamps
    [*] Changed Script name to SystemScan

    0.1.3
    Major Updates / Script Cleanup & HTML Report
    [-] Removed Omitted code from version 0.1.2
    [+] Added HTML Report Functions
    [+] Added Data Array Sort
    [*] Omitted Software & Device Hash Checking and Scan Force and Scan Version Reg Key
    [*] Omitted Uninstall String

    0.1.2
    Minor Updates / Script Cleanup
    [*] Changed All Collection Functions to Output Data Arrays
    [+] Created Array to Log File Method
    [-] Removed TimeZone from System Info Collection
    [*] Omitted User Name from System Info Collection
    [*] Omitted GUID Generation
    [*] Changed Scan Force to not remove or check Software and Device Signatures
    [*] Misc Code Cleanup
    [*] Omitted Software install date conversions

    0.1.1
    Minor Updates / Script Cleanup

    0.1
    Alpha Build
#ce

#Region - Initialization
;#AutoIt3Wrapper_Change2CUI=Y
#include <Array.au3> ;Include Native AutoIt Library for Array Functions
#include <DeviceAPI.au3> ;By Weaponx - https://www.autoitscript.com/forum/topic/77731-device-management-api/
#include <Constants.au3> ;Include Native AutoIt Library for AutoIt Constants
#include <Date.au3> ;Include Native AutoIt Library for Date/Time Functions
#include <Misc.au3> ;Include Native AutoIt Library for Misc. Functions (_Singleton())

;Initialize
Global $exitTimer = 0, $host = @ComputerName, $debug = 0 ;Define Global Variables for Timer, Hostname & Debug Flags
Global $destDir = @ScriptDir & "\" ;Define LogFile Destination
If Not _Singleton("DomainScan") Then Exit ;Enforce Singleton Execution
If Not FileExists($destDir) Then DirCreate($destDir) ;Create Destination Dir
Local $log = $destdir & "\" & @ComputerName & ".htm"
$log = FileOpen($log, 2)
FileDelete($destDir & "DomainScanLog.txt") ;Remove Debug Logfile

;Parse Command-Line Arguments for Debug and ScanForce Options
If $CMDLINE[0] Then
    If StringInStr($CMDLINERAW, "debug") Then $debug = 1

    ;Unused Function with Example Usage
    ;If StringInstr($CMDLINERAW,"/fileinfolist") Then   ;domainscan.exe /fileinfolist "C:\dir\file.txt"
    ;_FileInfoList($CMDLINE[$CMDLINE[0]])
    ;EndIf
EndIf
;==>Initialize
#EndRegion - Initialization

#Region - Main
;Establish Local WMI Connection
$oMyError = ObjEvent("AutoIt.Error", "MyErrFunc")
$objWMIService = ObjGet("winmgmts:{impersonationLevel=impersonate}!\\.\root\cimv2")
If Not IsObj($objWMIService) Then
    If $debug Then _DebugLog("Failed to Establish WMI Connection")
    _Exit()
EndIf
If $debug Then _DebugLog("Established WMI Connection")
;==>Establish WMI Connection

;Timeout Timer
$exitTimer = TimerInit()
AdlibRegister("_ExitTimer", 30000)
OnAutoItExitRegister("_Exit")
;==>Timeout Timer

;Collect System Data
_WriteHTMLReportHeader($destDir)
_AddSystemInfo($host)
_AddSystemNetworkInfo($host)
_AddSystemDevices($host)
_AddSystemInstalledSoft($host)
_WriteHTMLReportFooter($destDir)
_Exit()
;==>Collect System Data

;Save log to NAS
;==>Save log to NAS
#EndRegion - Main

#Region - User Defined Functions
Func _AddSystemInfo($hostname)
    ;Collect System Information
    If $debug Then _DebugLog("Collecting System Information")

    ;Execute WMI Queries
    $colItems = $objWMIService.ExecQuery("SELECT Name FROM Win32_Processor")
    For $objItem In $colItems
        $CPU = StringLeft(StringStripWS($objItem.name, 7), 64)
    Next
    $colItems = $objWMIService.ExecQuery("SELECT SerialNumber, SMBIOSBIOSVersion, ReleaseDate FROM Win32_BIOS")
    For $objItem In $colItems
        $Serial = $objItem.SerialNumber
        $BIOSVer = $objItem.SMBIOSBIOSVersion
        $ManufactureDate = $objItem.ReleaseDate
        $RealDate = ObjCreate("WbemScripting.SWbemDateTime")
        $RealDate.value = $ManufactureDate
        $ManufactureDate = StringRegExpReplace($RealDate.GetVarDate, "(\d{4,4})(\d{2,2})(\d{2,2})(\d{2,2})(\d{2,2})(\d{2,2})", "$2\/$3\/$1 $4:$5")
        $RealDate = 0
    Next
    $colItems = $objWMIService.ExecQuery("SELECT TotalPhysicalMemory, Manufacturer, Model, Domain, UserName FROM Win32_ComputerSystem")
    For $objItem In $colItems
        $RAM = Round($objItem.TotalPhysicalMemory / 1024 / 1024)
        $Manufacturer = $objItem.Manufacturer
        $Model = StringLeft(StringStripWS($objItem.Model, 2), 30)
        $Domain = StringLeft($objItem.Domain, StringInStr($objItem.Domain, ".") - 1)
    Next
        $colItems = $objWMIService.ExecQuery("SELECT Caption, Version, Organization, RegisteredUser, LastBootUpTime, CurrentTimeZone FROM Win32_OperatingSystem")
    For $objItem In $colItems
        $OS = $objItem.Caption
        $OSVersion = $objItem.Version
        $Organization = $objItem.Organization
        $RegisteredUser = $objItem.RegisteredUser
        $LastBootTime = $objItem.LastBootUpTime
        $RealDate = ObjCreate("WbemScripting.SWbemDateTime")
        $RealDate.value = $LastBootTime
        $LastBootTime = StringRegExpReplace($RealDate.GetVarDate, "(\d{4,4})(\d{2,2})(\d{2,2})(\d{2,2})(\d{2,2})(\d{2,2})", "$2\/$3\/$1 $4:$5")
        $RealDate = 0
    Next
    $colItems = 0

    ;Collect Local Administrator Members
    $localadmins = ""
    Dim $filter[1] = ["Groups"]
    $colGroups = ObjGet("WinNT://" & $hostname & "")
    $colGroups.Filter = $filter
    For $objGroup In $colGroups
        If $objGroup.Name = "Administrators" Then
            For $objUser In $objGroup.Members
                If $objUser.Name Then $localadmins &= $objUser.Name & "|"
            Next
        EndIf
    Next
    If StringRight($localadmins, 1) = "|" Then $localadmins = StringTrimRight($localadmins, 1)
    $localadmins = StringLeft($localadmins, 255)

    ;Create Data Array
    Dim $arrSysInfo[2][14] = [["OS", "OS Version", "Owner", "Organization", "Manufacturer", "Model", "Serial", "BIOS Version", "BIOS Date", "CPU", "RAM", "Domain", "Last Boot Time", "Local Admins"], _
            [$OS, $OSVersion, $RegisteredUser, $Organization, $Manufacturer, $Model, $Serial, $BIOSVer, $ManufactureDate, $CPU, $RAM, $Domain, $LastBootTime, $localadmins]]

    ;Save Collected Info
    If $debug Then _WriteArrayToLog($arrSysInfo, $destDir, "SystemInfo.CSV")

    $arrSysInfo[1][13] = StringReplace($arrSysInfo[1][13], "|", "</br>")

    _WriteArrayToHTML(__ArrayTranspose($arrSysInfo), $destDir, "System Information")

    If $debug Then _DebugLog("System Information Collected")
EndFunc   ;==>_AddSystemInfo

Func _AddSystemNetworkInfo($hostname)
    ;Collect System Network Information
    If $debug Then _DebugLog("Collecting System Network Information")

    ;Execute WMI Queries
    Dim $arrNetInfo[1][8] = [["Interface Name", "MAC", "IP", "Subnet", "Gateway", "DNS1", "DNS2", "WINS"]]
    Dim $netIdx = 1
    $colItems = $objWMIService.ExecQuery("SELECT IPAddress, Description, MACAddress, IPSubnet, DefaultIPGateway, DNSServerSearchOrder, WINSPrimaryServer FROM Win32_NetworkAdapterConfiguration Where IPEnabled = True")
    For $objItem In $colItems
        If $objItem.IPAddress(0) <> "0.0.0.0" Then
            $NIC = StringLeft($objItem.Description, 90)
            $MAC = $objItem.MACAddress
            $IP = $objItem.IPAddress(0)
            $Subnet = $objItem.IPSubnet(0)
            $Gateway = $objItem.DefaultIPGateway(0)
            $DNS1 = $objItem.DNSServerSearchOrder(0)
            $DNS2 = $objItem.DNSServerSearchOrder(1)
            $WINS = $objItem.WINSPrimaryServer(0)
            ReDim $arrNetInfo[$netIdx + 1][8]
            $arrNetInfo[$netIdx][0] = $NIC
            $arrNetInfo[$netIdx][1] = $MAC
            $arrNetInfo[$netIdx][2] = $IP
            $arrNetInfo[$netIdx][3] = $Subnet
            $arrNetInfo[$netIdx][4] = $Gateway
            $arrNetInfo[$netIdx][5] = $DNS1
            $arrNetInfo[$netIdx][6] = $DNS2
            $arrNetInfo[$netIdx][7] = $WINS
            $netIdx += 1
        EndIf
    Next
    $colItems = 0

    _ArraySort($arrNetInfo, 0, 1, UBound($arrNetInfo) - 1)

    ;Save Collected Data
    If $debug Then _WriteArrayToLog($arrNetInfo, $destDir, "NetworkInfo.CSV")

    _WriteArrayToHTML(__ArrayTranspose($arrNetInfo), $destDir, "Network Information")

    If $debug Then _DebugLog("System Network Information Collected")
EndFunc   ;==>_AddSystemNetworkInfo

Func _AddSystemInstalledSoft($hostname)
    ;Collect Installed Software Listing
    If $debug Then _DebugLog("Collecting Installed Software")

    ;Populate Software Collection Array
    Dim $arrSoft[1][3] = [["Software Title", "Version", "Install Date"]]
    Dim $appIdx = 1
    If @OSArch <> "X64" Then
        $y = 1
    Else
        $y = 2
    EndIf
    For $x = 1 To $y
        $keyIdx = 0 ;Index of Uninstall SubKeys
        If $x = 1 Then
            $regRoot = "HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall" ;Registry Tree for Uninstall Info
        Else
            $regRoot = "HKLM64\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall" ;Registry Tree for Uninstall Info
        EndIf
        While 1
            $keyIdx += 1 ;Increment Index each loop
            $keyName = RegEnumKey($regRoot, $keyIdx) ;Query Registry Key at Index $keyIdx

            If @error Then ExitLoop ;If not end of registry tree
            Local $appName = StringLeft(StringStripWS(RegRead($regRoot & "\" & $keyName, "DisplayName"), 7), 80) ;Get Application Name
            If $appName Then
                Local $versionNum = RegRead($regRoot & "\" & $keyName, "DisplayVersion") ;Get Version Number
                Local $installdate = RegRead($regRoot & "\" & $keyName, "InstallDate") ;Get Install Date
                If Not $versionNum Then $versionNum = ""
                ReDim $arrSoft[$appIdx + 1][3]
                $arrSoft[$appIdx][0] = $appName
                $arrSoft[$appIdx][1] = $versionNum
                $arrSoft[$appIdx][2] = $installdate
                $appIdx += 1
            EndIf
        WEnd
    Next

    _ArraySort($arrSoft, 0, 1, UBound($arrSoft) - 1)

    If $debug Then _DebugLog("Adding System Software")

    ;Save Collected Info
    If $debug Then _WriteArrayToLog($arrSoft, $destDir, "Software.CSV")

    _WriteArrayToHTML($arrSoft, $destDir, "Installed Software")
EndFunc   ;==>_AddSystemInstalledSoft

Func _AddSystemDevices($hostname)
    ;Collect Installed System Devices
    If $debug Then _DebugLog("Collecting System Devices")

    ;Populate Installed System Devices Array
    Dim $arrHW[1][3] = [["Device Name", "Class", "Manufacturer"]]
    $devIDX = 1
    _DeviceAPI_Open()
    _DeviceAPI_GetAllDevices() ;Build list of ALL device classes
    While _DeviceAPI_EnumDevices()
        ReDim $arrHW[$devIDX + 1][3]
        $arrHW[$devIDX][0] = _DeviceAPI_GetDeviceRegistryProperty($SPDRP_DEVICEDESC)
        $arrHW[$devIDX][1] = _DeviceAPI_GetClassName(_DeviceAPI_GetDeviceRegistryProperty($SPDRP_CLASSGUID))
        $arrHW[$devIDX][2] = _DeviceAPI_GetDeviceRegistryProperty($SPDRP_MFG)
        $devIDX += 1
    WEnd
    _DeviceAPI_DestroyDeviceInfoList() ;Cleanup for good measure
    _DeviceAPI_Close()

    _ArraySort($arrHW, 0, 1, UBound($arrHW) - 1)

    If $debug Then _DebugLog("Adding System Devices")

    ;Save Collected Info
    If $debug Then _WriteArrayToLog($arrHW, $destDir, "Devices.CSV")

    _WriteArrayToHTML($arrHW, $destDir, "System Devices")
EndFunc   ;==>_AddSystemDevices

Func __ArrayTranspose(ByRef $arr)
    If Not IsArray($arr) Then Return SetError(1, 0, 0)
    If Not UBound($arr, 0) = 2 Then Return SetError(2, 0, 0)
    Dim $arrTrans[UBound($arr, 2)][UBound($arr, 1)]
    For $x = 0 To UBound($arrTrans, 2) - 1
        For $y = 0 To UBound($arrTrans) - 1
            $arrTrans[$y][$x] = $arr[$x][$y]
        Next
    Next
    Return $arrTrans
EndFunc   ;==>__ArrayTranspose

Func _DebugLog($str)
    FileWriteLine($destDir & "DomainScanLog.txt", @HOUR & ":" & @MIN & ":" & @SEC & " - " & $str)
EndFunc   ;==>_DebugLog

Func _Exit()
    $exitTimer = 0
    $objWMI = 0
    FileClose($log)
    Exit
EndFunc   ;==>_Exit

Func _ExitTimer()
    $time = 1200000
    If $debug Then _DebugLog("Timer Check: " & TimerDiff($exitTimer) & @TAB & $time)
    If TimerDiff($exitTimer) > $time Then Exit
EndFunc   ;==>_ExitTimer

Func _Today()
    Return @YEAR & @MON & @MDAY
EndFunc   ;==>_Today

Func _WriteArrayToHTML($arr, $dest, $title)
    $xDim = UBound($arr, 1) - 1
    $yDim = UBound($arr, 2) - 1
    FileWriteLine($log, "<div class=""container""><h3><a href='#" & StringReplace($title," ","_") & "' data-toggle='collapse'>" & $title & "</a></h3>")
    FileWriteLine($log, "<div id='" & StringReplace($title," ","_") & "' class='collapse'><table border='0'>")
    $varRowColor = 0
    For $x = 0 To $xDim
        If $varRowColor = 0 Then
            $varRowColor = 1
            $varRowColorValue = "#9BCDFF"
        Else
            $varRowColor = 0
            $varRowColorValue = "#C4E1FF"
        EndIf
        FileWrite($log, "<tr bgcolor='" & $varRowColorValue & "'>")
        For $y = 0 To $yDim
            FileWrite($log, "<td>" & $arr[$x][$y] & "</td>")
        Next
        FileWrite($log, "</tr>" & @CRLF)
    Next
    FileWriteLine($log, "</table></div></div></br>")
EndFunc   ;==>_WriteArrayToHTML

Func _WriteArrayToLog($arr, $dest, $filename)
    $xDim = UBound($arr, 1) - 1
    $yDim = UBound($arr, 2) - 1
    For $x = 0 To $xDim
        For $y = 0 To $yDim
            FileWrite($destdir & "\" & @ComputerName & "_" & $filename, '"' & $arr[$x][$y] & '"')
            If $y < $yDim Then
                FileWrite($destdir & "\" & @ComputerName & "_" & $filename, ",")
            Else
                FileWrite($destdir & "\" & @ComputerName & "_" & $filename, @CRLF)
            EndIf
        Next
    Next
EndFunc   ;==>_WriteArrayToLog

Func _WriteHTMLReportHeader($dest)
    $title = @ComputerName & " System Scan"
    FileWriteLine($log, '<link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/css/bootstrap.min.css" integrity="sha384-Gn5384xqQ1aoWXA+058RXPxPg6fy4IWvTNh0E263XmFcJlSAwiGgFAW/dAiS6JXm" crossorigin="anonymous">')
    FileWriteLine($log, '<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.3.1/jquery.min.js"></script>')
    FileWriteLine($log, '<script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.14.3/umd/popper.min.js"></script>')
    FileWriteLine($log, '<script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.3/js/bootstrap.min.js"></script>')
    FileWriteLine($log, "<title>" & $title & "</title>" & @CRLF & _
            "<div class=""jumbotron jumbotron-fluid""><div class=""container""><center><h1>" & $title & "</h1></div></div>" & _
            "<div class=""container"">Scan Initiated: " & @MON & "/" & @MDAY & "/" & @YEAR & " " & @HOUR & ":" & @MIN & ":" & @SEC & "</br></br></br></div>")
EndFunc   ;==>_WriteHTMLReportHeader

Func _WriteHTMLReportFooter($dest)
    FileWriteLine($log, "</div></br><div class=""container"">Scan Complete: " & @MON & "/" & @MDAY & "/" & @YEAR & " " & @HOUR & ":" & @MIN & ":" & @SEC & "</div>")
    FileClose($log)
    ShellExecute($dest & "\" & @ComputerName & ".htm")
EndFunc   ;==>_WriteHTMLReportFooter

Func MyErrFunc()
    If $oMyError.number = -2147352567 Then Return 0
    If $debug Then _DebugLog("Intercepted a COM Error !" & @CRLF & @CRLF & "err.description is: " & @TAB & $oMyError.description)
    Local $err = $oMyError.number
    If $err = 0 Then $err = -1
    $g_eventerror = $err ; to check for after this function returns
EndFunc   ;==>MyErrFunc
#EndRegion - User Defined Functions

#Region - Functions Not Implemented
;Func _AddFileInfo($hostname,$file)
;   If Not FileExists($file) Then Return 0
;   $attribs = FileGetAttrib($file)
;   $size = FileGetSize($file)
;   $version = FileGetVersion($file)
;   $modtime = FileGetTime($file,0,1)
;   $cretime = FileGetTime($file,1,1)
;   $acctime = FileGetTime($file,2,1)
;EndFunc

;Func _FileInfoList($filelist)
;   If Not FileExists($filelist) Then Return 0
;   Dim $arrList
;   _FileReadToArray($filelist,$arrList)
;   For $x = 1 to $arrList[0]
;       ;_AddFileInfo(@ComputerName,$arrList[$x])
;   Next
;EndFunc
#EndRegion - Functions Not Implemented



The script produces a report that looks like this.

Edited January 27, 2023 by spudw2k
Whoops, corrected _WriteArrayToLog() destination file for debug function

[Gianni]

Hi @spudw2k, thanks for sharing....

P.S.
I had to look for DeviceAPI.au3
I found one here: https://www.autoitscript.com/forum/topic/183896-automation-for-modifying-hardware-settings-in-device-manager-properties/?do=findComment&comment=1320928



[spudw2k]

@Chimp Oh dear, I forgot to add the source for that. Thank you for pointing that out and tracking it down.  I added a comment to the source code and OP.



2023/01/27 - Just made correction to _WriteArrayToLog() function.  It was overriding the HTM content instead of creating CSVs as intended.

Edited January 27, 2023 by spudw2k

[GatorGuy]

Hi @spudw2k,

great start to a fantastic utility!  Could you suggest how the HTML could be done without using the external scripts (ie native html).  Wonder if you have any enhancements since  - such as user and disk info?

[spudw2k]

@GatorGuy Thanks for your interest.  I hope it provides use to you.

I am not sure what you mean by HTML without external scripts.  Can you elaborate?  I am not using any external autoit scripts to generate the HTML report that is produced.  Are you referring to the JS used in the HTML source of the report?  I suppose they could be downloaded and the content written to the HTML source instead.

I have not added any new enhancements since the last (bug fix) update.  I could certainly work on that if you have any thoughts on what you would like to see incorporated in the report.

Edited April 24, 2023 by spudw2k
