AutoIT and msi

[ur]

In windows installer/msi, we can add custom actions using vbscript directly.

Now, they provide support for powershell also.

Where, we can access data in the installer using this code like properties,product code, installation folder,etc.

But there is no option to use by AutoIT directly.(As far as I know)

So, till now, I am compiling the autoit exe and calling it in msi using below option of launching an exe.

But, this way, I can't access msi properties inside it.

Any idea on how to access msi data inside it, so that I can disable some msi UI buttons using the autoit code.



Edited October 25, 2019 by ur

[Jos]

Please simply post the code here in a codebox instead of external images. I for one am reluctant to click on external links to have to look at an image.

Jos

[ur]

Hi @Jos

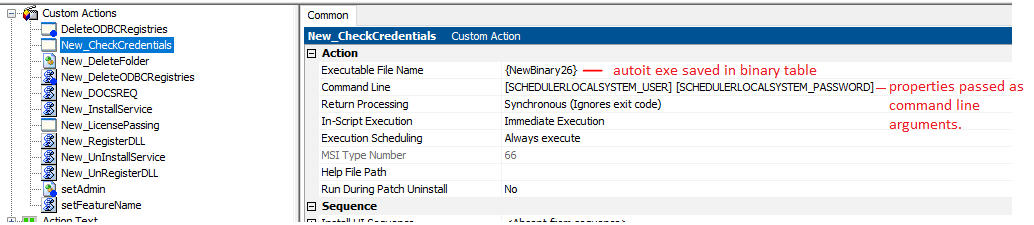

Sure, but above snaps not of code, I am showing the options in Installshield tool.

And, is there any possibility to increase my attachment limit as it is exceeded.

[Jos]

Well you can share all required info here either way. So show the working vbs and the result so we can understand what you are looking for.

Jos

[ur]

If using vbscript we can use properties as in msi embedded code using.

var1 = Session.Property("PROPERTY1")

Session.Property("PROPERTY2")="somedata"

Is there any alternate in autoit for msi like that?

[ur]

In the below AutoIT code, I have compiled it as exe and using in the msi customaction type "launch exe from binary table"

The below code will check whether the credentials provided in the installer screens by user are correct or not.

I am passing the data using command line arguments as I don't find option to access msi database from autoit.

expandcollapse popup

#include <MsgBoxConstants.au3>
#include <StringConstants.au3>

if ($CmdLine[0]<2) Then
  Msg("Please enter both username and password")
  Exit(1)
EndIf

if ((StringLen(StringStripWS($CmdLine[1], $STR_STRIPLEADING + $STR_STRIPTRAILING))=0) or (StringLen(StringStripWS($CmdLine[2], $STR_STRIPLEADING + $STR_STRIPTRAILING))=0)) Then
  Msg("Please enter both username and password")
  Exit(1)
EndIf

$user = StringStripWS($CmdLine[1], $STR_STRIPLEADING + $STR_STRIPTRAILING)
$password = StringStripWS($CmdLine[2], $STR_STRIPLEADING + $STR_STRIPTRAILING)

if ((StringLen($user)=0) or (StringLen($password)=0)) Then
  Msg("Please enter both username and password")
  Exit(1)
EndIf

$domain = @ComputerName
if(StringInStr($user,"\",2) > 0) then
    if not (StringCompare ( StringSplit($user,"\")[1], ".")=0) then
        $domain = StringSplit($user,"\")[1]
    EndIf
    $user = StringSplit($user,"\")[2]
EndIf

;MsgBox(0,$domain&"\"&$user,$password)

if _ValidUserPass($user,$domain,$password) Then
    Msg("Credentials are working",False)
Else
    Msg("Credentials are Invalid!")
EndIf


Func _ValidUserPass($username, $computer, $password)
    Local $valid = True
    RunAs($username, $computer, $password, 0, @ComSpec & " /c  echo test", @SystemDir, @SW_Hide)
    If @error Then $valid = False
    Return $valid
EndFunc

Func Msg($sMsg,$error=True)
    if ($error=True) then
        MsgBox($MB_ICONERROR,"Authentication Failed!",$sMsg)
    Else
        MsgBox($MB_ICONINFORMATION,"Authentication Successful!",$sMsg)
    EndIf
EndFunc

But now, the user is asking to disable next button if it fails instead of error messages.

So far, so how to achieve this, i.e., to control msi tables data from autoit

[abberration]

I'm not sure if this will help you or not, but this is a neat resource reader/extractor:



[ur]

No, I think you mistook me.

In simple words, windows installer (.msi files) are used to install our resources on windows machine.

As installer format provided by Microsoft.

Internally, it is just a set of tables.

Like, file table will  have details where to install and what to install.

Registry table contains what are the registries to apply.

If we need more logic, we can embed any vbscript or powershell files inside it.

As, we can write this vbscript code directly, we can access these msi tables from our vbscript code.Like below.

 var1 = Session.Property("ProductCode")

Like this, is there any option in autoit to access the proerties/any msi table data from autoit code.?

[Zedna]

Add third commandline parameter = MSI process full path+name and in AutoIt use this to find GUI window and use ControlDisable() on that GUI for disabling of particular Next button.

Edited October 25, 2019 by Zedna

[Nine]

1 hour ago, ur said:

As, we can write this vbscript code directly, we can access these msi tables from our vbscript code.Like below.

 var1 = Session.Property("ProductCode")

Like this, is there any option in autoit to access the proerties/any msi table data from autoit code.?

Like this :

$sMSI = "YourProduct.msi"
$oInstaller = ObjCreate("WindowsInstaller.Installer")
$oDB = $oInstaller.OpenDataBase($sMSI, 0)
$oView = $oDB.OpenView("SELECT Property,Value FROM Property WHERE Property = 'ProductCode'")
$oView.Execute()
$oRecords = $oView.Fetch
if not IsObj ($oRecords) then Exit MsgBox ($MB_SYSTEMMODAL,"","Error reading msi Table")
$sValue = $oRecords.StringData(2)
ConsoleWrite($sValue & @CRLF)



Edited October 25, 2019 by Nine

[ur]

3 hours ago, Nine said:

Like this :

$sMSI = "YourProduct.msi"
$oInstaller = ObjCreate("WindowsInstaller.Installer")
$oDB = $oInstaller.OpenDataBase($sMSI, 0)
$oView = $oDB.OpenView("SELECT Property,Value FROM Property WHERE Property = 'ProductCode'")
$oView.Execute()
$oRecords = $oView.Fetch
if not IsObj ($oRecords) then Exit MsgBox ($MB_SYSTEMMODAL,"","Error reading msi Table")
$sValue = $oRecords.StringData(2)
ConsoleWrite($sValue & @CRLF)



This is for opening an external msi.
But is there any code for running inside msi itself through custom action?

[Nine]

2 hours ago, ur said:

But is there any code for running inside msi itself through custom action?

It is like asking to have AutoIt being part of Excel scripting language inside itself.  Can you understand, it is not possible ? But you can do pretty much do all you want outside of it.

[Jos]

I am still missing the requested  VBS code (not the oneliner) that gets you the information from the installer so we can understand what you do exactly.

Jos

[ur]

I don't have any vbscript code for that.

Just I am telling vbscript as an example.

vbscript and powershell has direct access to msi database if we embed them as custom action(embedded code) inside msi.



But, autoit (when I embed the exe launching inside msi custom action), how to get access to the database?

[Jos]

As i have no knowledge of what you are talking about, and you haven't provided any example of what you say is working in vbs & powershell, there isn't much I can do here as I am not going to spent time of researching this myself.

Jos



[Deye]



On 10/25/2019 at 1:18 PM, ur said:

Is there any alternate in autoit for msi like that?

I dont think you will find any built autoit snippets that deal with msi properties

Try maybe  ORCS MSI Editor or searching  msfn

Maybe you will find there some old posts that relate with what you are looking for



[ur]

It seems, no support to interact with msi database through autoit directly.

So, at present, I created a vbscript through which I am calling autoit and using the return values from autoit, I am setting the properties of msi (like disabling next button using) using vbscript.



My vbscript code.



Dim oFSO : Set oFSO = CreateObject("Scripting.FileSystemObject")
Dim outputFile : outputFile = Session.Property("SUPPORTDIR") & "\autoitexe.exe"

If oFSO.fileExists(outputFile) Then
    Dim objShell : Set objShell = CreateObject("WScript.Shell")
    user = Session.Property("SCHEDULERLOCALSYSTEM_USER")
    password = Session.Property("SCHEDULERLOCALSYSTEM_PASSWORD")
    iReturn = objShell.Run(""""&outputFile&""" "& user &" "& password,0,True)
    if (iReturn = 1) then
       'MsgBox iReturn
       Session.Property("SCHEDULER_ENABLE_NEXT") = "0"
       'MsgBox iReturn
    else
        Session.Property("SCHEDULER_ENABLE_NEXT") = "1"
    end if
    Set objShell = Nothing
End If

Set oFSO = Nothing

and the code for my autoit exe.

expandcollapse popup

#include <MsgBoxConstants.au3>
#include <StringConstants.au3>

if ($CmdLine[0]<2) Then
  Msg("Please enter both username and password")
  Exit(1)
EndIf

if ((StringLen(StringStripWS($CmdLine[1], $STR_STRIPLEADING + $STR_STRIPTRAILING))=0) or (StringLen(StringStripWS($CmdLine[2], $STR_STRIPLEADING + $STR_STRIPTRAILING))=0)) Then
  Msg("Please enter both username and password")
  Exit(1)
EndIf

$user = StringStripWS($CmdLine[1], $STR_STRIPLEADING + $STR_STRIPTRAILING)
$password = StringStripWS($CmdLine[2], $STR_STRIPLEADING + $STR_STRIPTRAILING)

if ((StringLen($user)=0) or (StringLen($password)=0)) Then
  Msg("Please enter both username and password")
  Exit(1)
EndIf

$domain = @ComputerName
if(StringInStr($user,"\",2) > 0) then
    if not (StringCompare ( StringSplit($user,"\")[1], ".")=0) then
        $domain = StringSplit($user,"\")[1]
    EndIf
    $user = StringSplit($user,"\")[2]
EndIf

;MsgBox(0,$domain&"\"&$user,$password)

if _ValidUserPass($user,$domain,$password) Then
    Msg("Credentials are working",False)
    Exit(0)
Else
    Msg("Credentials are Invalid!")
    Exit(1)
EndIf


Func _ValidUserPass($username, $computer, $password)
    Local $valid = True
    RunAs($username, $computer, $password, 0, @ComSpec & " /c  echo test", @SystemDir, @SW_Hide)
    If @error Then $valid = False
    Return $valid
EndFunc

Func Msg($sMsg,$error=True)
    if ($error=True) then
        MsgBox($MB_ICONERROR,"Authentication Failed!",$sMsg)
    Else
        ;MsgBox($MB_ICONINFORMATION,"Authentication Successful!",$sMsg)
    EndIf
EndFunc



Thank you very much guys, for your help

Edited October 30, 2019 by ur

[Earthshine]

why cant the installer use custom actions and do it there in code? or just do it in vbscript--as that looks like your package manager uses (ugh)

Edited October 30, 2019 by Earthshine
