@Inpho : I hope one of the ListView gurus will be able to solve your problem.
Meanwhile, there's a great thread from LarsJ, dedicated to Virtual listviews, at this adress, maybe it will help you.

Ok, time for me to post a 2nd script (always at the beginning of the thread) including the Edit part. It should be online before the end of the day :)

Link to post
Share on other sites
  • Replies 50
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

Hi everybody The script below (901f) allows to wander easily through a listview, selecting any item or subitem by using the 4 direction keys. The Enter key is also managed and allows to fire an e

Version 901u (Jan 6, 2020) 1 functionality added : Natural sort. Thanks to jchd for the idea and Melba23 for his function ArrayMultiColSort() included in the script. Czardas read this thread

@jugador : that's great ! It will please mikell too, because his first wish was that people could reuse, for their personal need, the script core (901f, found at the very beginning of 1st post). Tha

Posted Images

Inpho, A virtual listview can only be used for many rows, not many columns. If you need many columns, look at this example.

Link to post
Share on other sites

Very useful microtool ! I work a lot with various types of CSV and ok you have libreoffice or exel but this is much more quicker !

I have often pipe "|" separated files, so I modified:

GUICtrlCreateGroup(" Import options ", 144, 10, 161, 89)
    Local $idDelimiter = GUICtrlCreateCombo(" |  pipe delimited", 154, 32, 141, 25, BitOR($CBS_DROPDOWNLIST,$CBS_AUTOHSCROLL)) ; not $CBS_DROPDOWN that makes it editable
    GUICtrlSetData($idDelimiter, " ;  semicolon|      tab| ,  comma delimited")
    Local $idHeaders1stRow = GUICtrlCreateCheckbox("1st row = Headers", 154, 66, 133, 21)
    GUICtrlSetState(-1, $GUI_CHECKED)
    GUICtrlCreateGroup("", -99, -99, 1, 1)

But as in this very old post I am unable to put the "|" entry in a place other than the first.

Any idea ?

Link to post
Share on other sites

@t0nZ: glad you liked the script :)

Pipe was also used as a delimiter in the first versions of the script (along with comma, semicolon, tab). I took it away because natively it would have interfered with :

1) GUICtrlSetData 2nd parameter as you mentioned (default separator is pipe)
2) Listview headers (default separator is pipe)
3) Listview items/subitems (default separator is pipe)
4) Content of the imported file : for example a csv file (pipe delimited) containing a pipe in one cell
5) Pipe is used in RegExp (during the script)

Some of these cases are already solved in the actual script, I need to check them again.


9 hours ago, t0nZ said:

I am unable to put the "|" entry in a place other than the first.

This concerns case 1) and the first versions of the script should do it :

; actual version (without pipe as delimiter)
Local $idDelimiter = GUICtrlCreateCombo(" ,  comma delimited", 154, 32, 141, 25, _
    BitOR($CBS_DROPDOWNLIST,$CBS_AUTOHSCROLL))
GUICtrlSetData($idDelimiter, " ;  semicolon|      tab")

; first versions (with pipe as delimiter)
Local $idDelimiter = GUICtrlCreateCombo(" ,  comma delimited", 154, 32, 141, 25, _
    BitOR($CBS_DROPDOWNLIST,$CBS_AUTOHSCROLL))
Local $sDataSeparator = Opt("GUIDataSeparatorChar", "*") ; changing "|" (default) to "*"
GUICtrlSetData($idDelimiter, " ;  semicolon*      tab* | pipe")
Opt("GUIDataSeparatorChar", $sDataSeparator) ; reset original Data Separator to "|"

But it shouldn't be enough to export without problem, depending on the input file. I'll rework it soon to include again pipe as delimiter and have it worked in all cases.

Edited by pixelsearch
Link to post
Share on other sites

Fantastic @pixelsearch , I will be glad to test your next version.

In the meanwhile I was thinkin', for me at least, a quick & dirty solution, like load a CSV with any type of separator, convert it to, let me say, "standard" comma separated, and reconvert to the original source separator when saving....





Link to post
Share on other sites

Hi everybody :)
New version 901p (Dec 25, 2019)

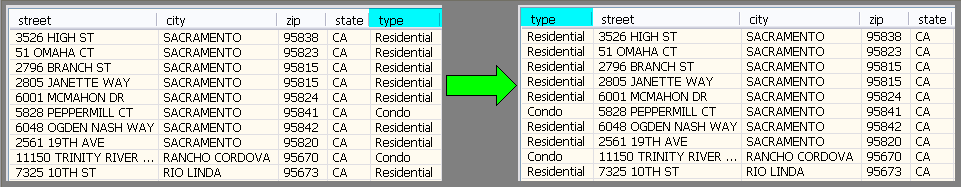

1 functionality added : now you can drag headers to reorder columns (useful if you need for example col 0 near col 5 while editing) . The exported CSV file will be saved according to the new columns order.


Download link at the end of 1st post

Edited by pixelsearch
Link to post
Share on other sites

Hi everybody :)

New version 901s (Dec 30, 2019)

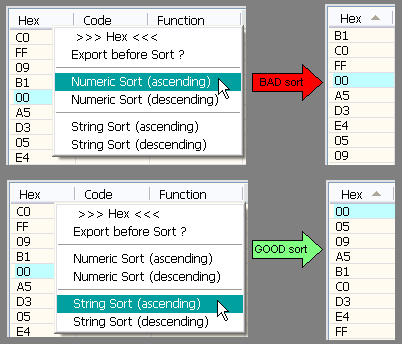

1 functionality added : String sort (right click on column header)

Numeric sort is alright in most cases, but sometimes we also need a String sort like shown in the following picture. Both ways of sorting (numeric and string) are found in this new release.


Download link at the end of 1st post

Edited by pixelsearch
Link to post
Share on other sites

@ptrex : do you mean multi-line headers ?
I think LarsJ wrote a script allowing this feature but it's not really easy to script and it's not short code either.

The useful features I'll probably add will be related to the context menu that appears when you right click a column header (the actual "sort" context menu). They should be easy to script... but not before 2020 :)

A very happy year end to all of you  :sorcerer:

Edited by pixelsearch
Link to post
Share on other sites

@pixelsearch

was in need of "Edit Listview"
so modified your code slight bit using flag & it work :thumbsup:
Sample code

#include <GUIConstantsEx.au3>
#include <GuiEdit.au3>
#include <GuiListView.au3>
#include <WindowsConstants.au3>

; #############
Global $g_hEdit, $g_sSubItemText_Old = ""
Global $g_iItem = -1, $g_iSubItem = -1, $g_iItemEdit = -1, $g_iSubItemEdit = -1
Global $hGUI = GUICreate("Wandering through ListView (901f)", 460, 500)
Global $idListView = GUICtrlCreateListView _
    ("      Col 0       |    Col 1|    Col 2|    Col 3", 15, 60, 430, 400)
Global $hListView = GuiCtrlGetHandle($idListView)

For $iRow = 0 To 99
    $sRow = StringFormat("%2s", $iRow)
    GUICtrlCreateListViewItem( _
        "Row " & $sRow & " / Col 0 |" & _
        "Row " & $sRow & " / Col 1 |" & _
        "Row " & $sRow & " / Col 2 |" & _
        "Row " & $sRow & " / Col 3", $idListView)
Next

Global $g_iColumnCount = _GUICtrlListView_GetColumnCount($idListView) -1
; #############

; #############
Local $Id_ButtonA = GUICtrlCreateButton("Edit", 10, 5, 40, 22)

Local $k_Flag = 0

Local $idDummy_Enter = GUICtrlCreateDummy()
Local $idDummy_Esc = GUICtrlCreateDummy()

Local $aAccelKeys[2][2] = [["{ENTER}", $idDummy_Enter], ["{ESC}", $idDummy_Esc]]
GUISetAccelerators($aAccelKeys)
; #############


GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY")
GUISetState(@SW_SHOW)

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            GUIDelete($hGUI)
            Exit

        Case $Id_ButtonA
            If $k_Flag = 0 Then
                $k_Flag = 1
                Start_Edit()
            EndIf
        Case $idDummy_Esc
            If $k_Flag = 1 Then
                $k_Flag = 0
                If $g_iItemEdit > -1 Then End_Edit(0)
            EndIf
        Case $idDummy_Enter
            If $k_Flag = 1 Then
                $k_Flag = 0
                If $g_iItemEdit > -1 Then End_Edit(1)
            EndIf
    EndSwitch
WEnd

;=====
Func WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam

    Local $tNMHDR, $hWndFrom, $iIDFrom, $iCode
    $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    $hWndFrom = DllStructGetData($tNMHDR, "hWndFrom")
    $iCode = DllStructGetData($tNMHDR, "Code")

    Static $bMouseDown = False, $bNotXP = Not (@OSVersion = "WIN_XP")

    Switch $hWndFrom
        Case $hListView
            Switch $iCode

                Case $NM_CUSTOMDRAW
                    Local $tCustDraw = DllStructCreate($tagNMLVCUSTOMDRAW, $lParam)
                    Local $iDrawStage = DllStructGetData($tCustDraw, "dwDrawStage")
                    If $iDrawStage = $CDDS_PREPAINT Then Return $CDRF_NOTIFYITEMDRAW
                    If $iDrawStage = $CDDS_ITEMPREPAINT Then Return $CDRF_NOTIFYSUBITEMDRAW
                    Local $iItem = DllStructGetData($tCustDraw, "dwItemSpec")
                    Local $iSubItem = DllStructGetData($tCustDraw, "iSubItem")
                    Local $iColor = 0xFF000000 ; this is $CLR_DEFAULT in ColorConstants.au3
                    If $iItem = $g_iItem And $iSubItem = $g_iSubItem Then
                        $iColor = 0xFFFFC0 ; light blue for 1 subitem (BGR)
                    EndIf
                    DllStructSetData($tCustDraw, "clrTextBk", $iColor)
                    Return $CDRF_NEWFONT

                Case $LVN_KEYDOWN
                    If $bMouseDown Or $g_iItem = -1 Then Return 1 ; don't process
                    Local $tInfo = DllStructCreate($tagNMLVKEYDOWN, $lParam)
                    Local $iVK = DllStructGetData($tInfo, "VKey")
                    Switch $iVK
                        Case $VK_RIGHT
                            If $g_iSubItem < $g_iColumnCount Then
                                $g_iSubItem += 1
                                If $bNotXP Then _GUICtrlListView_RedrawItems($hListview, $g_iItem, $g_iItem)
                            EndIf
                        Case $VK_LEFT
                            If $g_iSubItem > 0 Then
                                $g_iSubItem -= 1
                                If $bNotXP Then _GUICtrlListView_RedrawItems($hListview, $g_iItem, $g_iItem)
                            EndIf
                        Case $VK_SPACE ; spacebar would select the whole row
                            Return 1
                    EndSwitch

                Case $NM_RELEASEDCAPTURE
                    $bMouseDown = True
                    Local $iItemSave = $g_iItem
                    Local $aHit = _GUICtrlListView_SubItemHitTest($hListView)
                    $g_iItem = $aHit[0]
                    $g_iSubItem = $aHit[1]
                    If $g_iItem = -1 And $iItemSave > -1 Then
                        _GUICtrlListView_RedrawItems($hListview, $iItemSave, $iItemSave)
                    EndIf

                Case $LVN_ITEMCHANGED
                    Local $tInfo = DllStructCreate($tagNMLISTVIEW, $lParam)
                    Local $iNewState = DllStructGetData($tInfo, "NewState")
                    Switch $iNewState
                        Case BitOr($LVIS_FOCUSED, $LVIS_SELECTED)
                            $g_iItem = DllStructGetData($tInfo, "Item")
                            _GUICtrlListView_SetItemSelected($hListview, $g_iItem, False)
                    EndSwitch

                Case $NM_CLICK, $NM_RCLICK
                    $bMouseDown = False

            EndSwitch
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY

;=====
Func Start_Edit()
    If $g_iSubItem <> 0 Then
        $g_aRect = _GUICtrlListView_GetSubItemRect($hListView, $g_iItem, $g_iSubItem)
    Else ; column 0 needs _GUICtrlListView_GetItemRect() in case it has been dragged elsewhere (LarsJ)
        $g_aRect = _GUICtrlListView_GetItemRect($hListView, $g_iItem, 2) ; 2 = bounding rectangle of the item text
    EndIf

    $g_iItemEdit = $g_iItem
    $g_iSubItemEdit = $g_iSubItem
    $g_sSubItemText_Old = _GUICtrlListView_GetItemText($hListView, $g_iItem, $g_iSubItem)

    $g_hEdit = _GUICtrlEdit_Create($hListView, $g_sSubItemText_Old, $g_aRect[0], $g_aRect[1], $g_aRect[2]-$g_aRect[0], $g_aRect[3]-$g_aRect[1], BitOR($WS_CHILD, $WS_VISIBLE, $ES_AUTOHSCROLL, $ES_LEFT))

    _GUICtrlEdit_SetSel($g_hEdit, 0, -1) ; select all text
    _WinAPI_SetFocus($g_hEdit)
EndFunc   ;==>Start_Edit

;=====
Func End_Edit($iUpdate_Text)
    Local $sText = (($iUpdate_Text) ? (_GUICtrlEdit_GetText($g_hEdit)) : ($g_sSubItemText_Old))

    _GUICtrlListView_SetItemText($hListView, $g_iItemEdit, $sText, $g_iSubItemEdit)
    _WinAPI_DestroyWindow($g_hEdit)
    If $g_iItemEdit <> $g_iItem Or $g_iSubItemEdit <> $g_iSubItem Then
        _GUICtrlListView_RedrawItems($hListView, $g_iItemEdit, $g_iItemEdit)
    EndIf
    $g_iItemEdit = -1 ; -1 means no pending edition (+++)
EndFunc   ;==>End_Edit



Link to post
Share on other sites

Hi everybody :)

New Version 901t (Jan 3, 2020)

3 functionalities added : Rename Header , Insert Column , Delete Column  (right click on column header to display its context menu)

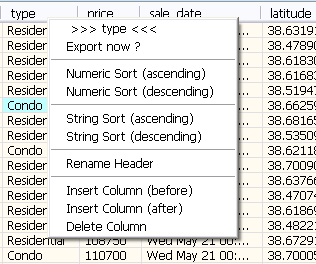

Here is an example after we right click the "type" header (please note how >>> type <<< appears at 1st line in the context menu, so the user is 100% sure of the involved column)

2nd line "Export now ?" is recommended in case you gonna Sort or Delete this column (a warning will appear if you choose to delete)

Microsoft made it a bit difficult to insert natively a column before column 0, as discussed here.
If you really want to do this, just insert a column after column 0, then drag its header at the very left to switch both leftmost columns.

Download link at the end of 1st post

Link to post
Share on other sites

Just as an information for people who may have some difficulties with the english language ;) :
I have published a thread in the german forum with a translation of the main instructions (in accordance with the author !).
https://autoit.de/thread/86733-csv-file-editor/

The download link etc. remains of course in this main thread of @pixelsearch .

To the moderators : I hope that it is allowed in this case.


"In the beginning the Universe was created. This has made a lot of people very angry and been widely regarded as a bad move."

Link to post
Share on other sites

Added 2 modifications to make it more universal

line 44 added a SPACE as delimiter

GUICtrlSetData($idDelimiter, " ;  semicolon*      tab* | pipe*   space") ; ptrex

line 675 added more file filter options

"CSV files (*.csv))|Text (*.txt))|Log (*.log)|All (*.*)", _ ; ptrex



To skip X number of header rows you need to create variable that holds the number ...

And modify line 801



For $i = $iFirstItem + 4 To $iRows - 1 ; ptrex + 4 to skip 6 rows (0 to 4 + 1 Header Row)

And line 997

For $i = 0 + 4 To $iBound -1    ; ptrex replaced 0 to  5 to skip 6 Rows



Edited by ptrex
