Control Click Menu Button Question - (Moved)

[JohnTWI]

I am trying to click a button from a menu. The code below clicks the center button of the menu (the rotate 45 degrees button). I would like to click on the "PDF" button four buttons to the right.

 ControlClick("", "", "[CLASS:ToolBarWindow32; INSTANCE:1; ID:59392]")



Thank you in advance

[Nine]

Try using :

_GUICtrlToolbar_ButtonCount

See if you have access to individual button, if so then use the UDF to loop thru the toolbar until you find the PDF button.

Edit : just so you understand, controlClicking a toolbar control will simply click in the center of it...

Edited August 25, 2020 by Nine

[JLogan3o13]

Moved to the appropriate forum, as the Developer General Discussion forum very clearly states:

Quote

General development and scripting discussions.

---

Do not create AutoIt-related topics here, use the AutoIt General Help and Support or AutoIt Technical Discussion forums.

Moderation Team

Edited August 25, 2020 by JLogan3o13

[Zedna]

Use Au3Info.exe - ToolBar page where is shown: Index/CommandID/Text

Use these information by ControlCommand(..., "SendCommandID", ...)

Quote

Simulates the WM_COMMAND message. Usually used for ToolbarWindow32 controls - use the ToolBar tab of Au3Info to get the Command ID.

https://www.autoitscript.com/autoit3/docs/functions/ControlCommand.htm



Edited August 25, 2020 by Zedna

[JohnTWI]

Zedna

Do you have an example? I am still not getting the syntax to select a specific button via ControlCommand

Thank you in advance

[Zedna]

; Title/Text (of target app) params should be given accordingly
; 1234 -> Command ID from Au3Info/ToolBar
ControlCommand("", "", "ToolBarWindow321", "SendCommandID", 1234)



or this  - your way of identifying of ToolBar control:

ControlCommand("", "", "[CLASS:ToolBarWindow32; INSTANCE:1; ID:59392]", "SendCommandID", 1234)



Edited August 25, 2020 by Zedna

[JohnTWI]

Zedna - thank you for the feedback

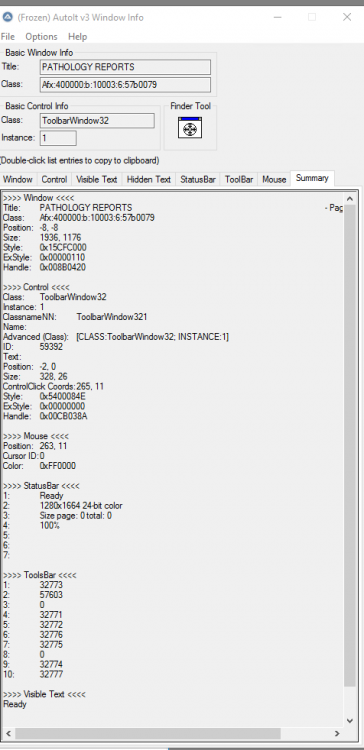

I tried code below, did not work, attaching screen shot of Summary Tab, I am looking to click on the PDF button

ControlCommand("", "", "ToolBarWindow321", "SendCommandID", 32777)

[Zedna]

Try this

ControlCommand("PATHOLOGY REPORTS", "", "ToolBarWindow321", "SendCommandID", 32777)

or this

ControlCommand("PATHOLOGY REPORTS", "", "ToolBarWindow321", "SendCommandID", "32777")



EDIT:

and try every Command ID for toolbar buttons 1-10 to see if some buttons will work

Edited August 25, 2020 by Zedna

[JohnTWI]

Zedna

I tried the following, with and without quotes no luck

        ControlCommand("PATHOLOGY REPORTS", "", "ToolBarWindow321", "SendCommandID", 32773)
        ControlCommand("PATHOLOGY REPORTS", "", "ToolBarWindow321", "SendCommandID", 57603)
        ControlCommand("PATHOLOGY REPORTS", "", "ToolBarWindow321", "SendCommandID", 0)
        ControlCommand("PATHOLOGY REPORTS", "", "ToolBarWindow321", "SendCommandID", 32777)
        ControlCommand("PATHOLOGY REPORTS", "", "ToolBarWindow321", "SendCommandID", 32771)
        ControlCommand("PATHOLOGY REPORTS", "", "ToolBarWindow321", "SendCommandID", 32776)
        ControlCommand("PATHOLOGY REPORTS", "", "ToolBarWindow321", "SendCommandID", 32774)

[Nine]

Mind running it :

#include <Constants.au3>
#include <GuiToolbar.au3>

Local $hWnd = WinGetHandle("PATHOLOGY REPORTS")
Local $hCtrl = ControlGetHandle($hWnd, "", "ToolbarWindow321")
ConsoleWrite ($hWnd & "/" & $hCtrl & @CRLF)
ConsoleWrite (_GUICtrlToolbar_ButtonCount ($hCtrl) & @CRLF)

For $i = 0 to _GUICtrlToolbar_ButtonCount ($hCtrl)-1
  $b = _GUICtrlToolbar_IndexToCommand($hCtrl,$i)
  $t = _GUICtrlToolbar_GetButtonText($hCtrl,$b)
  ConsoleWrite ($i & "/" & $b & "/" & $t & @CRLF)
Next

So we know more about this toolbar.  Post console result.

Edited August 25, 2020 by Nine

[JohnTWI]

Results posted below, also the document is a .csd file



>"C:\Program Files (x86)\AutoIt3\SciTE\..\autoit3.exe" /ErrorStdOut "C:\ProductionVER2\zzzButtonTester.au3"
0x005304E8/0x00590164
16
0/32773/
1/57603/
2/0/
3/32771/
4/32772/
5/32776/
6/32775/
7/0/
8/32774/
9/32777/
10/32778/
11/32780/
12/0/
13/32789/
14/57607/
15/57664/
>Exit code: 0    Time: 0.2402

[Nine]

Looking good. Add this at the end of the script, let's see if that works :

ConsoleWrite (ControlCommand($hWnd, "", $hCtrl, "SendCommandID", 32789) & @CRLF)



Edited August 25, 2020 by Nine

[JohnTWI]

I pasted after the Next

>"C:\Program Files (x86)\AutoIt3\SciTE\..\autoit3.exe" /ErrorStdOut "C:\ProductionVER2\zzzButtonTester.au3"
0x005304E8/0x00590164
16
0/32773/
1/57603/
2/0/
3/32771/
4/32772/
5/32776/
6/32775/
7/0/
8/32774/
9/32777/
10/32778/
11/32780/
12/0/
13/32789/
14/57607/
15/57664/
0
>Exit code: 0    Time: 0.2491

[JohnTWI]

Sorry forgot to add it did not click the PDF button

[Nine]

Hmm, then add those lines instead :

WinActivate ($hWnd)
WinWaitActive ($hWnd)

_GUICtrlToolbar_ClickButton  ($hCtrl, 32789, "left", True)



[JohnTWI]

That worked

Thank you

“Petit a petit, l’oiseau fait son nid”

[Nine]

 À la prochaine !
