_GUICtrlRichEdit_AutoDetectURL() UDF example not working

[Sunblood]

This is the built-in example script from the _GUICtrlRichEdit_AutoDetectURL UDF. The GUI shows up and the hyperlink is formatted properly, but nothing happens when the link is clicked (no "Invoke your web browser" message box appears)

expandcollapse popup

#include <GUIConstantsEx.au3>
#include <GuiRichEdit.au3>
#include <MsgBoxConstants.au3>
#include <WindowsConstants.au3>

Global $g_hRichEdit

Example()

Func Example()
    Local $hGui, $iMsg
    $hGui = GUICreate("Example (" & StringTrimRight(@ScriptName, StringLen(".exe")) & ")", 320, 350, -1, -1)
    $g_hRichEdit = _GUICtrlRichEdit_Create($hGui, "This is a test.", 10, 10, 300, 220, _
            BitOR($ES_MULTILINE, $WS_VSCROLL, $ES_AUTOVSCROLL))
    GUISetState(@SW_SHOW)

    GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY")
    _GUICtrlRichEdit_SetEventMask($g_hRichEdit, $ENM_LINK)

    _GUICtrlRichEdit_AutoDetectURL($g_hRichEdit, True)
    _GUICtrlRichEdit_AppendText($g_hRichEdit, @CRLF & "http://www.autoitscript.com")
    While True
        $iMsg = GUIGetMsg()
        Select
            Case $iMsg = $GUI_EVENT_CLOSE
                _GUICtrlRichEdit_Destroy($g_hRichEdit) ; needed unless script crashes
                ; GUIDelete()   ; is OK too
                Exit
        EndSelect
    WEnd
EndFunc   ;==>Example

Func WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam
    Local $hWndFrom, $iCode, $tNMHDR, $tEnLink, $iCpMin, $iCpMax, $tMsgFilter
    $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom"))
    $iCode = DllStructGetData($tNMHDR, "Code")
    Switch $hWndFrom
        Case $g_hRichEdit
            Select
                Case $iCode = $EN_LINK
                    $tMsgFilter = DllStructCreate($tagMSGFILTER, $lParam)
                    If DllStructGetData($tMsgFilter, "msg") = $WM_LBUTTONUP Then
                        $tEnLink = DllStructCreate($tagENLINK, $lParam)
                        $iCpMin = DllStructGetData($tEnLink, "cpMin")
                        $iCpMax = DllStructGetData($tEnLink, "cpMax")
                        MsgBox($MB_SYSTEMMODAL, "", "Invoke your web browser here and point it to " & _GUICtrlRichEdit_GetTextInRange($g_hRichEdit, $iCpMin, $iCpMax))
                    EndIf
            EndSelect
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY



[Nine]

Tested both on Win7 and Win10, and it is working as expected.  Do you have the latest version of AutoIt ?

[Sunblood]

I have the latest public release from March 2018 (3.3.14.5)

Windows 10 Pro x64 20H2.

Edited March 23, 2021 by Sunblood

[Nine]

Can you try on another computer ?  Because I cannot debug something that is working...

[Sunblood]

Same thing on a work PC running Windows 10 Enterprise x64 1909 (also with the latest public autoit)

Edited March 23, 2021 by Sunblood

[Nine]

Ok.  I was able to replicate your problem when running x64.  If you run it x86, the problem is not showing.

[Sunblood]

Hum okay. I'm using x64 to compile as Windows Defender tends to flag the x86 version as malicious (and of course it is not.)

Is this something that can be fixed for x64? I can use beta versions if need be.

[Nine]

Yes problem seems to be resolved in beta v3.3.15.3 (both on Win7 and Win10 btw).

[Sunblood]

x86 Beta works as expected.

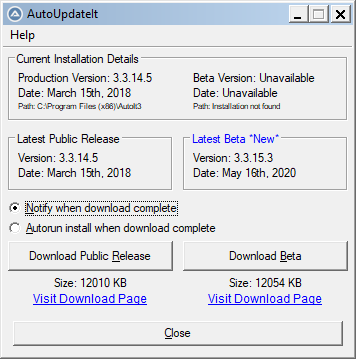

This is what I get with x64 Beta:
