ScreenColorPicker snap color from screen with the mouse pointer


Recommended Posts

ScreenColorPicker  snap color from screen with the mouse pointer to clipboard

:idea:  the idea comes from @Melba23's Magnify  post. Thanks for that!            image.png.f4e96493f19d6e1c194ebcfe3e492a7d.png

;https://www.autoitscript.com/forum/topic/209412-screencolorpicker-snap-color-from-screen-with-the-mouse-pointer/

#AutoIt3Wrapper_AU3Check_Parameters=-d -w 1 -w 2 -w 3 -w- 4 -w 5 -w 6 -w- 7
;ScreenColorPicker.au3
;snap color from screen with the mouse pointer
#NoTrayIcon
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <StaticConstants.au3>
#include <WinAPI.au3>
#include <Misc.au3>
#include <StringConstants.au3>
#include <TrayConstants.au3>

; to avoid running it multiple times!
If _Singleton(@ScriptName, 1) = 0 Then Exit

Opt("TrayMenuMode", 3) ; These are options 1 and 2 for TrayMenuMode.

Global $hMag_GUI, $hMagDC, $hDeskDC, $hPen, $oObj, $aMouse_Pos[2], $iLast_Mouse_X = 0, $iLast_Mouse_Y = 0
Local $mColor, $hColor_Win, $ColorLabel, $ColorRec

TraySetIcon(StringLeft(@AutoItExe, StringInStr(@AutoItExe, "\", $STR_NOCASESENSEBASIC, -1) - 1) & "\Icons\MyAutoIt3_Red.ico")
TraySetToolTip("ColorPicker")

#Region === Tray_Menu ===
;~ Local $idPaused = TrayCreateItem("Pause", -1, -1, $TRAY_ITEM_RADIO)
;~ TrayItemSetState(-1, $TRAY_UNCHECKED)
Local $TrayColorPicker = TrayCreateItem("ColorPicker")
Local $TrayHelp = TrayCreateItem("Help")
TrayCreateItem("") ; Create a separator line.
Local $TrayExit = TrayCreateItem("Exit")
#EndRegion === Tray_Menu ===

Local $hDLL = DllOpen("user32.dll")

While 1
    Switch TrayGetMsg()
        Case $TRAY_EVENT_PRIMARYDOUBLE ;* ColorPicker
            ColorPicker()

        Case $TrayColorPicker ; ColorPicker
            ColorPicker()

        Case $TrayHelp ; Help
            HelpInfo()

        Case $TrayExit ; Exit
            GoToExit()

    EndSwitch

    ;if END key close ColorPicker
    If _IsPressed("23", $hDLL) Then
        Sleep(300)
        ColorPicker()
    EndIf

    Sleep(50)
WEnd

GoToExit()
;----------------------------------------------------------------------------------------
Func GoToExit()    ; exit
    CloseColorPicker()
    DllClose($hDLL)
    Exit
EndFunc   ;==>GoToExit
;----------------------------------------------------------------------------------------
Func ColorPicker()

    ; Create Color GUI
    $hColor_Win = GUICreate("Color", 100, 30, 0, 0, $WS_POPUP, BitOR($WS_EX_TOOLWINDOW, $WS_EX_TOPMOST))
    GUICtrlCreateLabel("Label1", 0, 0, 100, 30, $SS_BLACKFRAME)
    $ColorLabel = GUICtrlCreateLabel(" ", 26, 7, 74, 20)
    $ColorRec = GUICtrlCreateLabel(" ", 1, 1, 25, 28)
    GUICtrlSetFont($ColorLabel, 10, 600, 0, "Consolas")
    GUICtrlSetBkColor($ColorLabel, $GUI_BKCOLOR_TRANSPARENT)
    GUISetState(@SW_SHOW, $hColor_Win)

    ; Create MAG GUI
    $hMag_GUI = GUICreate("MAG", 100, 100, 0, 0, $WS_POPUP, BitOR($WS_EX_TOOLWINDOW, $WS_EX_TOPMOST))
    GUISetState(@SW_SHOW, $hMag_GUI)

    ; Get device context for Mag GUI
    $hMagDC = _WinAPI_GetDC($hMag_GUI)
    If @error Then Exit
    ; Get device context for desktop
    $hDeskDC = _WinAPI_GetDC(0)
    If @error Then
        _WinAPI_ReleaseDC($hMag_GUI, $hMagDC)
        Exit
    EndIf

    ; Create pen
    $hPen = _WinAPI_CreatePen($PS_SOLID, 5, 0x7E7E7E)
    $oObj = _WinAPI_SelectObject($hMagDC, $hPen)

    While 1

        ; Check if cursor has moved
        $aMouse_Pos = MouseGetPos()
        If $aMouse_Pos[0] <> $iLast_Mouse_X Or $aMouse_Pos[1] <> $iLast_Mouse_Y Then
            ; Redraw Mag GUI
            Loupe($aMouse_Pos)
            ; Reset position
            $iLast_Mouse_X = $aMouse_Pos[0]
            $iLast_Mouse_Y = $aMouse_Pos[1]
        EndIf

        Select
            Case _IsPressed("02", $hDLL) Or _IsPressed("10", $hDLL) ; 02 = Right mouse button ; 10 = SHIFT key
                TakeSnap()
                Return

            Case _IsPressed("23", $hDLL) ;23 END key
                TakeSnap()
                Return

            Case _IsPressed("1B", $hDLL) ;1B = ESC key
                CloseColorPicker()
                Return

            Case _IsPressed("25", $hDLL) ; 25 = LEFT ARROW key
                MouseMove($aMouse_Pos[0] - 1, $aMouse_Pos[1])
                Sleep(100)

            Case _IsPressed("26", $hDLL) ; 26 = UP ARROW key
                MouseMove($aMouse_Pos[0], $aMouse_Pos[1] - 1)
                Sleep(100)

            Case _IsPressed("27", $hDLL) ; 27 = RIGHT ARROW key
                MouseMove($aMouse_Pos[0] + 1, $aMouse_Pos[1])
                Sleep(100)

            Case _IsPressed("28", $hDLL) ; 28 = DOWN ARROW key
                MouseMove($aMouse_Pos[0], $aMouse_Pos[1] + 1)
                Sleep(100)

        EndSelect

    WEnd

EndFunc   ;==>ColorPicker
;----------------------------------------------------------------------------------------
Func Loupe($aMouse_Pos)
    Local $iX, $iY

    ; Fill Mag GUI with 10x expanded contents of desktop area (5 pixels around mouse)
    DllCall("gdi32.dll", "int", "StretchBlt", _
            "int", $hMagDC, "int", 0, "int", 0, "int", 100, "int", 100, _
            "int", $hDeskDC, "int", $aMouse_Pos[0] - 5, "int", $aMouse_Pos[1] - 5, "int", 10, "int", 10, _
            "long", $SRCCOPY)

    ; Original 10 x 10 expanded to 100 x 100 - 10x magnification

    $mColor = PixelGetColor($aMouse_Pos[0], $aMouse_Pos[1])
    $mColor = "0x" & Hex($mColor, 6) ;  * <--------------  color converted to hexadecimal
    GUICtrlSetData($ColorLabel, $mColor)
    GUICtrlSetBkColor($ColorRec, $mColor)

    ; Keep Mag GUI on screen
    If $aMouse_Pos[0] < (@DesktopWidth - 120) Then
        $iX = $aMouse_Pos[0] + 20
    Else
        $iX = $aMouse_Pos[0] - 120
    EndIf
    If $aMouse_Pos[1] < (@DesktopHeight - 150) Then
        $iY = $aMouse_Pos[1] + 20
    Else
        $iY = $aMouse_Pos[1] - 120
    EndIf
    WinMove($hMag_GUI, "", $iX, $iY, 100, 100)
    WinMove($hColor_Win, "", $iX, $iY + 100)

EndFunc   ;==>Loupe
;----------------------------------------------------------------------------------------
Func TakeSnap()
    ClipPut($mColor)
    ConsoleWrite($mColor & @CRLF)
    WinMove($hColor_Win, "", @DesktopWidth - 120, @DesktopHeight - 75)
    GUISetState(@SW_HIDE, $hMag_GUI)
    WinWait("[CLASS:#32768]", "", 1)
    If WinExists("[CLASS:#32768]") Then Send("{ESC}")
    Sleep(3000)
    CloseColorPicker()
EndFunc   ;==>TakeSnap
;----------------------------------------------------------------------------------------
Func CloseColorPicker()
    ; Clear up Mag GUI
    _WinAPI_SelectObject($hMagDC, $oObj)
    _WinAPI_DeleteObject($hPen)
    _WinAPI_ReleaseDC(0, $hDeskDC)
    _WinAPI_ReleaseDC($hMag_GUI, $hMagDC)
    GUIDelete($hMag_GUI)
    GUIDelete($hColor_Win)
EndFunc   ;==>CloseColorPicker
;----------------------------------------------------------------------------------------
Func HelpInfo()

    Local $Msg = @CRLF & "HotKey {END} call ColorPicker." & @CRLF & @CRLF _
             & "During ColorPicker is active" & @CRLF & @CRLF _
             & "{END} or {SHIFT} or Right mouse button" & @TAB & @CRLF _
             & "snap the Color to clipboard " & @CRLF & @CRLF _
             & "{LEFT}, {UP}, {RIGHT}, {DOWN}" & @CRLF _
             & "moves the mouse by 1 pixel" & @CRLF & @CRLF _
             & "{ESC} close ColorPicker to tray" & @CRLF & @CRLF _
             & "--->  Press {ESC} to exit  <---  " & @CRLF _
             & " " & @CRLF

    ToolTip($Msg, @DesktopWidth / 2, @DesktopHeight / 5, "info", 1)
    GUICtrlSetFont(-1, 14, 600, 0, "Arial")

    Do
        Sleep(100)
    Until _IsPressed("1B", $hDLL) ; 1B ESC key

    ToolTip("")

EndFunc   ;==>HelpInfo



Please, leave your suggestion , comments , experiences here.

Thank you!  :)



Edited by ioa747
Link to post
Share on other sites

Hi @ioa747,

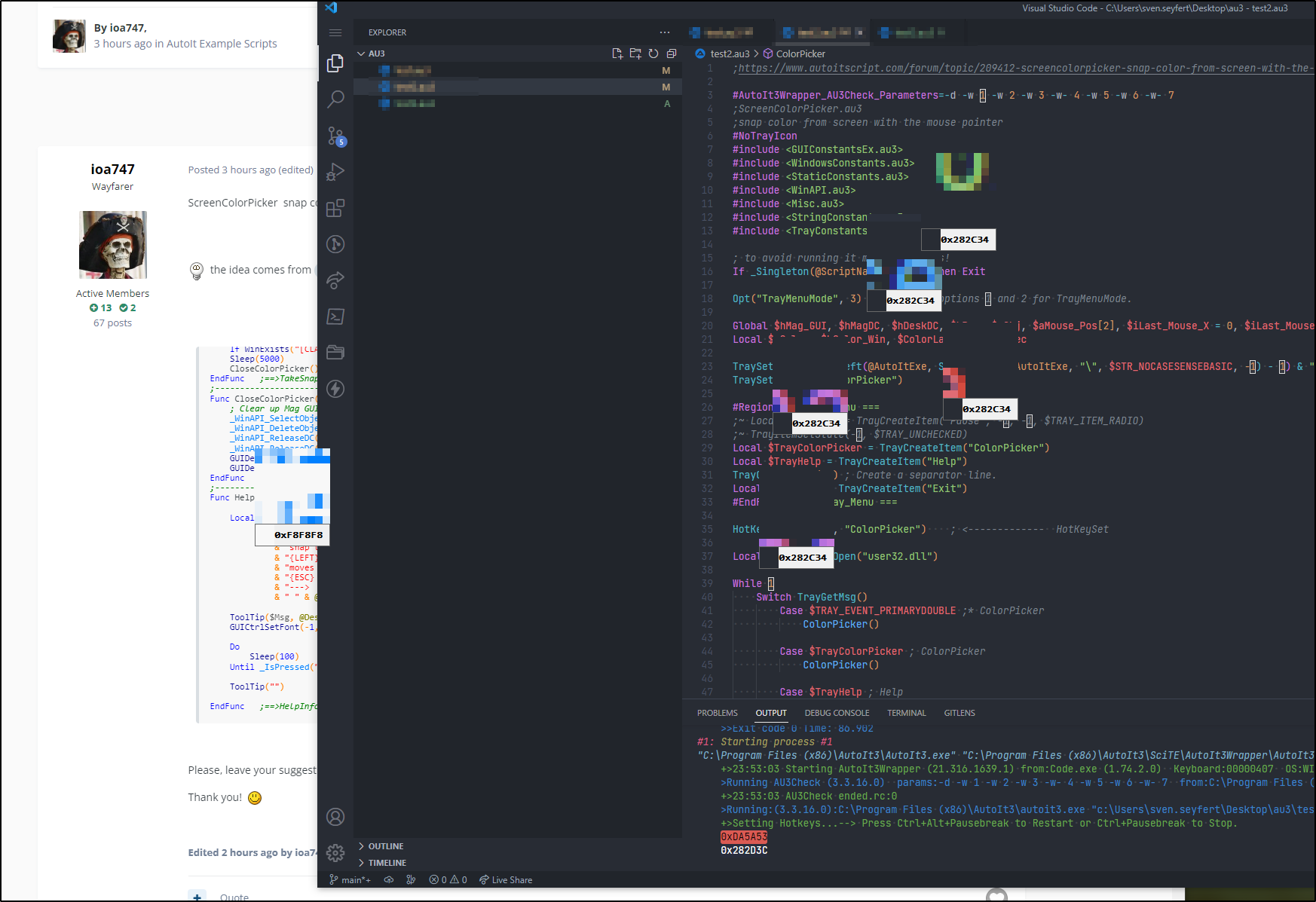

what I like is the Loupe() and the general idea 👍 . What I don't like or at least just do not understand is, the HotKeySet("{END}", "ColorPicker") on line 35. Each time I press end, the picker image is freezed. Is this intended and if yes, why and for what?


Besides that, good job 😀 . As I small suggestion regarding code improvement, I would say you could restructure your code a bit more.

Best regards
Sven

________________
Stay innovative!

Stay innovative!

Spoiler

🌍 Au3Forums

📊 AutoIt limits/defaults

💎 Code Katas: [...] (comming soon)

🎭 Collection of GitHub users with AutoIt projects

🐞 False-Positives

🔍 Forum search

🔮 Me on GitHub

💬 Opinion about new forum sub category

 📑 UDF wiki list

✂ VSCode-AutoItSnippets

📑 WebDriver FAQs

👨‍🏫 WebDriver Tutorial (coming soon)

Link to post
Share on other sites
5 hours ago, SOLVE-SMART said:

What I don't like or at least just do not understand is, the HotKeySet("{END}", "ColorPicker") on line 35.

:oops:  You have right !!

With HotKeySet the script flow was trapped in loop.

I replace the code.   Thank you very much for response and your suggestion!  :)
