Question about listview

[lucio69f]

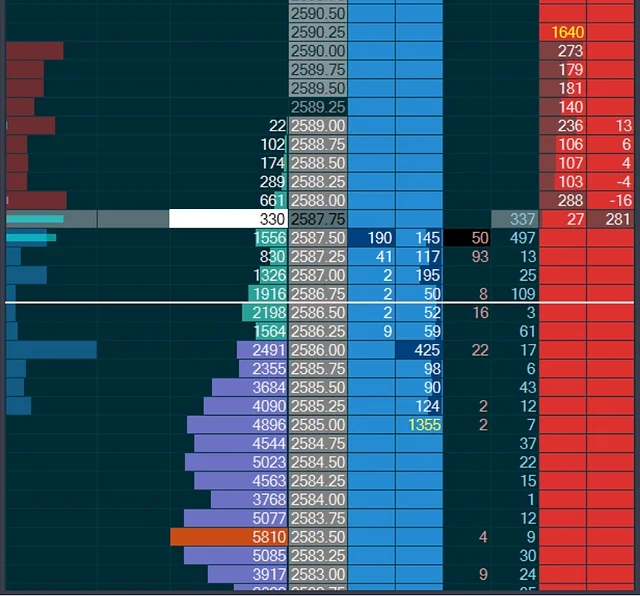

Hi , is  possible with autoit listview  have this grade of personalization of listview like in this  foto,  create a histogram  and  have possibility to click  in cell like button is possible ?



thanks

[Nine]

Yes, you need to ownerdraw all the cells accordingly.

https://learn.microsoft.com/en-us/dotnet/desktop/winforms/controls/controls-with-built-in-owner-drawing-support?view=netframeworkdesktop-4.8

[ioa747]

there is also the fake mode

#include <Array.au3>

Local $sTxt = "Apple, Avocado, Apricot, Abiu, Blackberry, Bael, Cranberry, Cherry, Dates, Dragonfruit, Fig, Guava, Grapes, Grapefruit"

$aFruit = StringSplit($sTxt, ", ", $STR_ENTIRESPLIT + $STR_NOCOUNT)
_ArrayColInsert($aFruit, 1)
_ArrayColInsert($aFruit, 1)

For $i = 0 To UBound($aFruit) -1
    $aFruit[$i][1] = Random(0, 10000, 1)
    $aFruit[$i][2] = _fBar($aFruit[$i][1])
Next

_ArrayDisplay($aFruit)

;----------------------------------------------------------------------------------------
Func _fBar($iNumber, $iUnitCnt = 200)
    Local $sResult, $iCnt
    $iCnt = $iNumber / $iUnitCnt
    For $i = 1 To $iCnt
        $sResult &= "|"
    Next
    Return $sResult
EndFunc   ;==>_fBar



[lucio69f]

@Nine, sorry but not understund  how  is possible to do that  but  thanks  for support

@ioa747, o nice  trick  but i must use color for identify volum up and  volume down  but thanks for support

[Nine]

@lucio69f Alright, I must admit that the link I gave you was NOT the best I could give you.  So I made a minimalist example to show you how to display color easily in ListView:

expandcollapse popup

#include <GUIConstants.au3>
#include <GuiListView.au3>

Global $hListView, $aColors[3][3]

_Example()

Func _Example()
  Local $hGUI = GUICreate("Colored ListView", 350, 250)
  Local $idListView = GUICtrlCreateListView("Number|Number|Number", 5, 5, 300, 150)
  $hListView = GUICtrlGetHandle($idListView)
  GUICtrlCreateListViewItem('1|1|1', $idListView)
  GUICtrlCreateListViewItem('2|2|2', $idListView)
  GUICtrlCreateListViewItem('3|3|3', $idListView)

  ; set background colors
  $aColors[0][1] = 0xFFAAFF
  $aColors[1][2] = 0x00AA00
  $aColors[2][0] = 0xCCCCCC

  GUIRegisterMsg($WM_NOTIFY, WM_NOTIFY)
  GUISetState()

  While True
    Switch GUIGetMsg()
      Case $GUI_EVENT_CLOSE
        Exit
    EndSwitch
  WEnd

EndFunc   ;==>_Example

Func WM_NOTIFY($hWnd, $Msg, $wParam, $lParam)
  Local $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
  Switch $tNMHDR.hWndFrom
    Case $hListView
      Switch $tNMHDR.Code
        Case $NM_CUSTOMDRAW
          Local $tCustDraw = DllStructCreate($tagNMLVCUSTOMDRAW, $lParam)
          Local $iDrawStage = $tCustDraw.dwDrawStage
          If $iDrawStage = $CDDS_PREPAINT Then Return $CDRF_NOTIFYITEMDRAW
          If $iDrawStage = $CDDS_ITEMPREPAINT Then Return $CDRF_NOTIFYSUBITEMDRAW
          Local $iSubItem = $tCustDraw.iSubItem
          Local $iItem = $tCustDraw.dwItemSpec
          If $aColors[$iItem][$iSubItem] Then
            $tCustDraw.clrTextBk = $aColors[$iItem][$iSubItem]
          Else
            $tCustDraw.clrTextBk = 0xFFFFFF
          EndIf
          Return $CDRF_NEWFONT
      EndSwitch
  EndSwitch
  Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY

Hope that helps a bit more.  MSDN has all the info that you need to understand the process of owner drawing a list view.

Edited November 17, 2023 by Nine
clean up code

[lucio69f]

woow  is very complicated 😨 i suppose not  exist another  way ?? right?

[Andreik]

I think there is a UDF for ListViews made by Melba (use the search feature of the forum) but I'm not sure how much can be customized. Anyway it's a good start.

Edit: here is the link



Edited November 16, 2023 by Andreik

[lucio69f]

wooooooooow

When I see these UDFs, I really feel stupid. Congratulations, he's truly a great programmer. I wouldn't even get there in a million years, I suppose. Do you think it's possible, through this UDF, to have a kind of colored histogram in the ListView and make a cell clickable with one command, and the cell next to it clickable with another command?

[Andreik]

By default I don't think it has all the features that you need but you can try to understand the logic and customize some functions to achieve your goal.

[lucio69f]

1 hour ago, Andreik said:

By default I don't think it has all the features that you need but you can try to understand the logic and customize some functions to achieve your goal.

woow  you belive  in me  so much  , i love  you , but  i am very  bad  programmer    but  thanks

[Andreik]

Isn't you the one who wanted multithreaded sockets few days ago? So you can't say anymore that you are a bad programmer. You just need to try.

[lucio69f]

😁yes it's me but the udf of the multithread i assure is much easier

Edited November 16, 2023 by lucio69f

[Andreik]

I think @jchd patented (at least on the forum) the expression "threads are evil" and this is true in most cases. So I doubt it's as easy as you say but good luck.

[argumentum]

You can IPC between scripts. Try the Fork UDFish thing I put together. It may be useful to you.
( I am a copy'n'paste programmer if possible )

[jchd]

8 hours ago, Andreik said:

I think @jchd patented (at least on the forum) the expression "threads are evil"

I'm only the messenger : https://www2.eecs.berkeley.edu/Pubs/TechRpts/2006/EECS-2006-1.pdf

[Andreik]

Thanks, I'll have a nice reading.

[lucio69f]

18 hours ago, argumentum said:

You can IPC between scripts. Try the Fork UDFish thing I put together. It may be useful to you.
( I am a copy'n'paste programmer if possible )

Nice i  will study  for the moment i use  a thread of  this https://github.com/jesobreira/authread  ,    the  first i find   but  sure i look your

9 hours ago, jchd said:

I'm only the messenger : https://www2.eecs.berkeley.edu/Pubs/TechRpts/2006/EECS-2006-1.pdf

thanks  for this paper i read soon,but sometimes it is undeniable that threads are needed

18 hours ago, Andreik said:

I think @jchd patented (at least on the forum) the expression "threads are evil" and this is true in most cases. So I doubt it's as easy as you say but good luck.

i assure  is  easy , obviously for my simple project

[argumentum]

1 hour ago, lucio69f said:

for the moment i use  a thread of  this https://github.com/jesobreira/authread  ,    the  first i find

I looked at the code and is forking with an INI file as the IPC that's read every 250 ms.
Awful code. Don't believe a claim unless you concur.  The only thread in that code is the name.

[lucio69f]



2 hours ago, argumentum said:

I looked at the code and is forking with an INI file as the IPC that's read every 250 ms.
Awful code. Don't believe a claim unless you concur.  The only thread in that code is the name.

thanks  i just started  with this UDF i try for the momenti with  this  but  after  read  your UDF  if  is  easy  , to use  i could  switch , thanks again
