Help whit Treeview

[buster25]

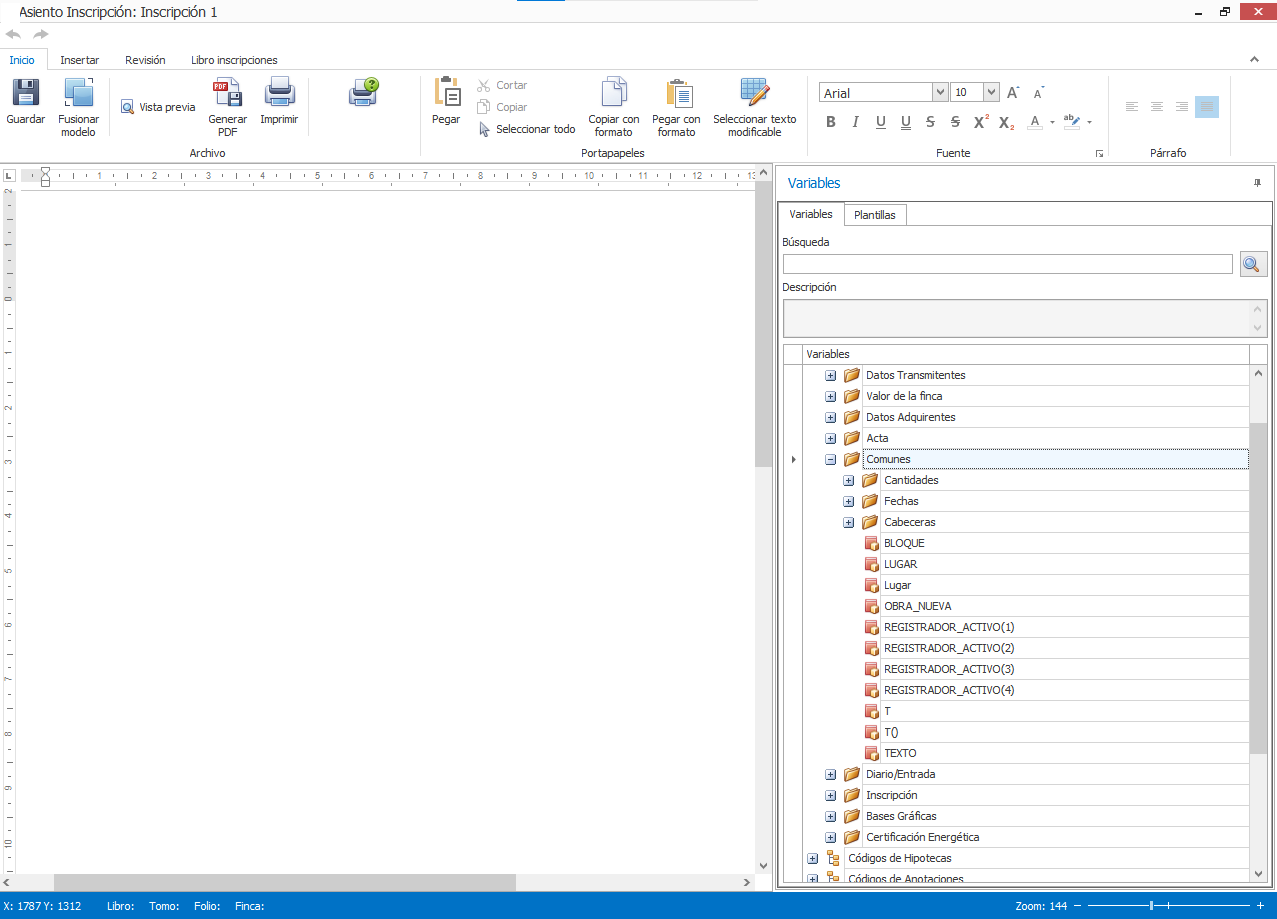

Hello everyone, sorry for my English. I have this Treewiew and the following code:

expandcollapse popup

#cs
>>>> Window <<<<
Title:  Asiento Inscripción: Inscripción 1
Class:  WindowsForms10.Window.8.app.0.a07288_r60_ad1
Position:   -8, -8
Size:   1296, 936
Style:  0x17CF0000
ExStyle:    0x00010100
Handle: 0x0000000001B20C7E

>>>> Control <<<<
Class:  WindowsForms10.Window.8.app.0.a07288_r60_ad1
Instance:   12
ClassnameNN:    WindowsForms10.Window.8.app.0.a07288_r60_ad112
Name:   treeLVariables
Advanced (Class):   [NAME:treeLVariables]
ID: 40632432
Text:
Position:   786, 321
Size:   485, 539
ControlClick Coords:    104, 164
Style:  0x56010000
ExStyle:    0x00000000
Handle: 0x00000000026C0070

>>>> Mouse <<<<
Position:   890, 508
Cursor ID:  0
Color:  0xFFFFFF

>>>> StatusBar <<<<

>>>> ToolsBar <<<<

>>>> Visible Text <<<<
52236415: UCEditorView
Variables
23935809: UCTreeVariablesView
Variables
Búsqueda
Texto largo
Descripción


>>>> Hidden Text <<<<
#ce

Func click()
    WinActivate("[CLASS:WindowsForms10.Window.8.app.0.a07288_r60_ad1]", "")
    $hTreeView = ControlGetHandle("", "", "[CLASS:WindowsForms10.Window.8.app.0.a07288_r60_ad1; INSTANCE:12]")
    ConsoleWrite ( "Handle TreeView " & $hTreeView & @CRLF)
    _GUICtrlTreeView_Expand($hTreeView, 0, False)
    $hItemFound = _GUICtrlTreeView_FindItem($hTreeView, "BLOQUE")
    ConsoleWrite ( "Item Found " & $hItemFound & @CRLF)
    _GUICtrlTreeView_SelectItem($hTreeView,$hItemFound)
    _GUICtrlTreeView_ClickItem($hTreeView, $hItemFound, "left", False, 2)
EndFunc

The code doesn't work, could you help me with it?

[ioa747]

Func click()
    $hWnd = WinActivate("[CLASS:WindowsForms10.Window.8.app.0.a07288_r60_ad1]", "")
    ConsoleWrite("$hWnd=" & $hWnd & @CRLF)
    $hTreeView = ControlGetHandle($hWnd, "", "[CLASS:WindowsForms10.Window.8.app.0.a07288_r60_ad1; INSTANCE:12]")
    ConsoleWrite("Handle TreeView " & $hTreeView & @CRLF)
    _GUICtrlTreeView_Expand($hTreeView, 0, False)
    $hItemFound = _GUICtrlTreeView_FindItem($hTreeView, "BLOQUE")
    ConsoleWrite("Item Found " & $hItemFound & @CRLF)
    _GUICtrlTreeView_SelectItem($hTreeView, $hItemFound)
    _GUICtrlTreeView_ClickItem($hTreeView, $hItemFound, "left", False, 2)
EndFunc   ;==>click

does the console return the values? which ones?

Edit:
it doesn't look like an ordinary TreeView32



Edited January 9, 2024 by ioa747

[buster25]

Thanks ioa747. Console returns:

"$hWnd=0x00C10E0A
Handle TreeView 0x00B902E2
Item Found 0x00000000"

and  _GUICtrlTreeView_Expand SelectItem and ClickItem as no effect

[ioa747]

is Expand et ?

[buster25]

Expand not work

[ioa747]

try with
https://www.autoitscript.com/autoit3/docs/functions/ControlTreeView.htm

like

$sTViewPath = "one|two|three"

Local $aPath = StringSplit($sTViewPath, "|", 1)
Local $tmpPath = ""
For $i = 1 To $aPath[0]
    $tmpPath &= $aPath[$i] & "|"
    ConsoleWrite("$tmpPath=" & StringTrimRight($tmpPath, 1) & @CRLF)
    ControlTreeView($hWnd, "", $hTreeView, "Expand", StringTrimRight($tmpPath, 1))
    ControlTreeView($hWnd, "", $hTreeView, "Select", StringTrimRight($tmpPath, 1))
    Sleep(50)
Next



Edited January 9, 2024 by ioa747

[buster25]

Thanks, but not work

$hWnd = WinActivate("[CLASS:WindowsForms10.Window.8.app.0.a07288_r60_ad1]", "")
$hTreeView = ControlGetHandle($hWnd, "", "[CLASS:WindowsForms10.Window.8.app.0.a07288_r60_ad1; INSTANCE:12]")
$hItemFound = ControlTreeView ( $hTreeView, "treeLVariables", "[CLASS:WindowsForms10.Window.8.app.0.a07288_r60_ad1; INSTANCE:12]", "GetItemCount" , "#1|#2")
ConsoleWrite("Item Found " & $hItemFound & @CRLF)

any idea ??

[ioa747]

$hWnd = WinActivate("[CLASS:WindowsForms10.Window.8.app.0.a07288_r60_ad1]", "")
$hTreeView = ControlGetHandle($hWnd, "", "[CLASS:WindowsForms10.Window.8.app.0.a07288_r60_ad1; INSTANCE:12]")
ControlTreeView ( $hWnd, "", $hTreeView, "Expand" , "#0")
ControlTreeView ( $hWnd, "", $hTreeView, "Select" , "#0")
Sleep(50)

$iItemCnt = ControlTreeView ( $hWnd, "", $hTreeView, "GetItemCount" , "#0")
ConsoleWrite("Item Count " & $iItemCnt & @CRLF)



Edited January 9, 2024 by ioa747
correction

[buster25]

Thanks ioa747, no effect 😔

[Nine]

Some systreeview32 requires x64

[buster25]

Does it mean that it compiles x64?

[Nine]

No just use wrapper x64

#AutoIt3Wrapper_UseX64=y

at beginning of script

[buster25]

without succes 😪

[Nine]

Like @ioa747 said, it does not seem to be a standard TreeView, and since nothing works, you may need to use UIAutomation.
