Combo problem using CBS_DROPDOWNLIST (artefacts)

[cyberyeye]

Hi there !

I'm using Windows 24h2 (dark mode) using latest AutoIT stable version (v3.3.18.0)

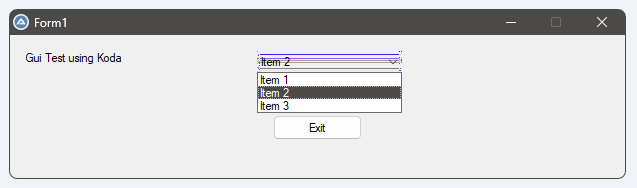

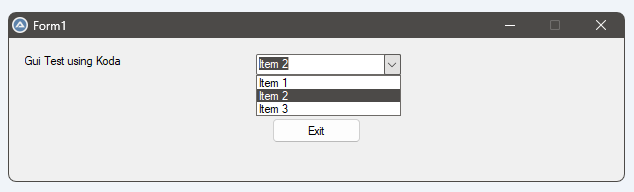

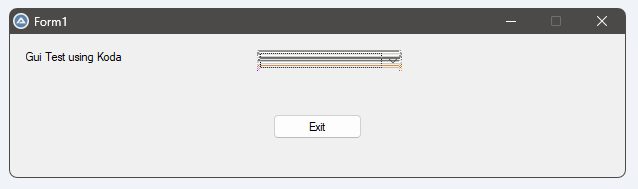

Here's a minimal GUI done quickly using Koda to demonstrate the rendering problem when using any combobox with style : $CBS_DROPDOWNLIST. The combo appears visually corrupted as shown on the two screen capture : is there another recommended style or know workaround to fix this and having combobox "read‑only" without these visual rendering problem ?



#include <ButtonConstants.au3>
#include <ComboConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#Region ### START Koda GUI section ### Form=
$Gui = GUICreate("Form1", 615, 143, 192, 124)
$Combo1 = GUICtrlCreateCombo("", 247, 16, 145, 25, $CBS_DROPDOWNLIST)
GUICtrlSetData(-1, "Item 1|Item 2|Item 3")
$Label1 = GUICtrlCreateLabel("Gui Test using Koda", 16, 16, 100, 17)
$Button1 = GUICtrlCreateButton("Exit", 263, 80, 89, 25)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE,$Button1
            GUIDelete($Gui)
            Exit

    EndSwitch
WEnd



[cyberyeye]

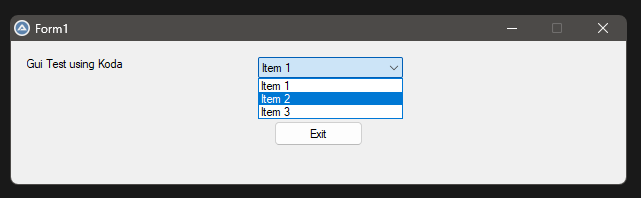

If I remove style: $CBS_DROPDOWNLIST there is not anymore these visual rendering/artefact problem.

[cyberyeye]

Finally I found a kind of "workaround" from an old script wrote near 10 years ago 😄
adding :

DllCall("UxTheme.dll", "int", "SetWindowTheme", "hwnd", GUICtrlGetHandle($Combo1), "wstr", 0, "wstr", 0)

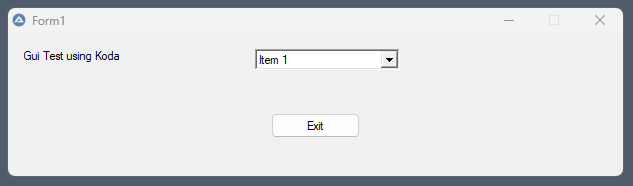

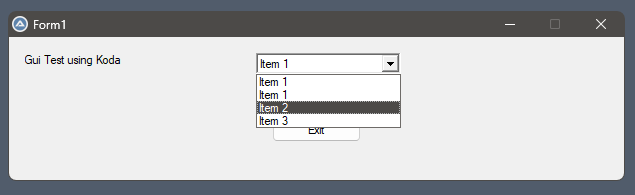

to set/force a classic style to the combo = fix this visual glitches for combo when using  $CBS_DROPDOWNLIST


#include <ButtonConstants.au3>
#include <ComboConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#Region ### START Koda GUI section ### Form=
$Gui = GUICreate("Form1", 615, 143)
$Combo1 = GUICtrlCreateCombo("Item 1", 247, 16, 145, 25, $CBS_DROPDOWNLIST)
GUICtrlSetData(-1, "Item 1|Item 2|Item 3")
; apply classic style to combo <= the fix
DllCall("UxTheme.dll", "int", "SetWindowTheme", "hwnd", GUICtrlGetHandle($Combo1), "wstr", 0, "wstr", 0)
$Label1 = GUICtrlCreateLabel("Gui Test using Koda", 16, 16, 100, 17)
$Button1 = GUICtrlCreateButton("Exit", 263, 80, 89, 25)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE,$Button1
            GUIDelete($Gui)
            Exit

    EndSwitch
WEnd

Clearly this is *not* a real solution but at least this "workaround" fixed my problem 👍

Maybe @Jos could check if there is a problem introduce by Windows 11 when using : GUICtrlCreateCombo + $CBS_DROPDOWNLIST ? Probably another Miscrosoft insanity.

[Nine]

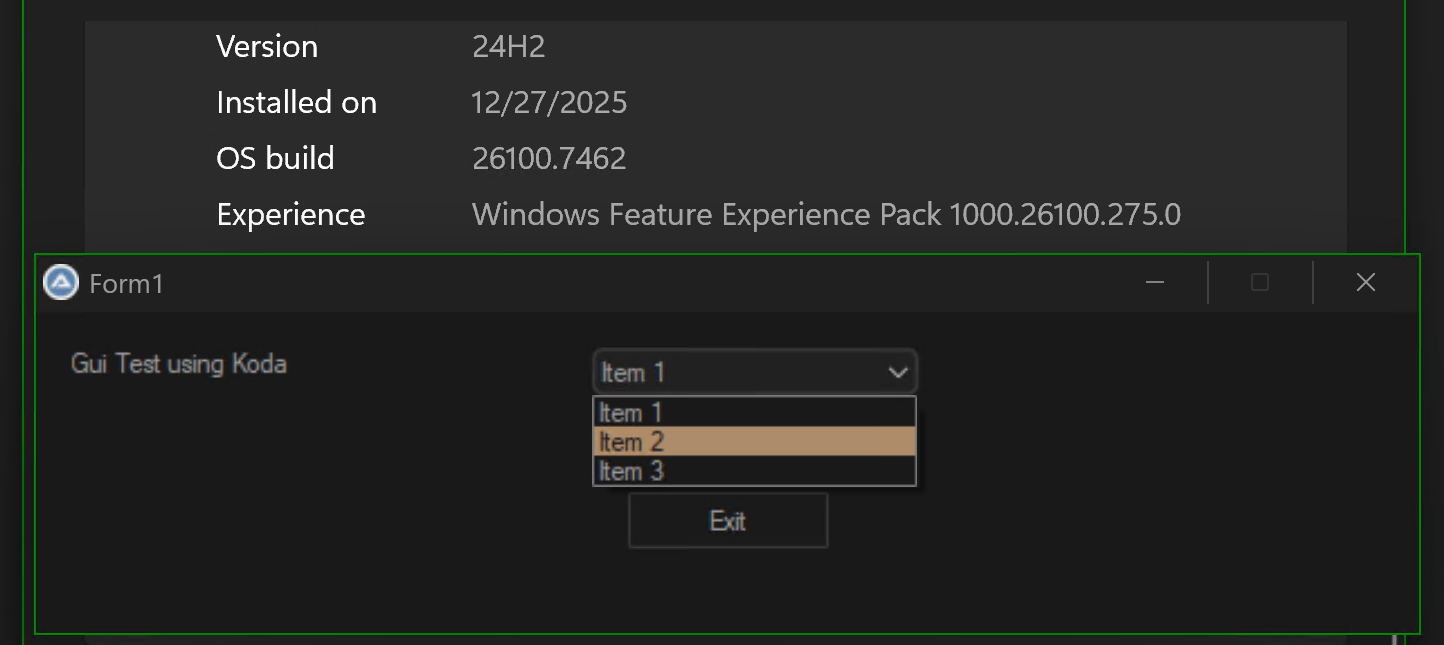

@cyberyeye  FYI, I do not get your glitch when running your first script.  So it seems that your overall choice of theme in Windows 11 is interfering with AutoIt (just a guess though).

[Jos]

2 hours ago, cyberyeye said:

Maybe @Jos could check if there is a problem introduce by Windows 11

Highly doubt he's able/capable, and guess you mean somebody else! 😉

[argumentum]

4 hours ago, cyberyeye said:

1 hour ago, Nine said:

it seems that your overall choice of theme in Windows 11 is interfering with AutoIt (just a guess though).

I too believe that you're using a theme that is not shipped with Windows 11. I use them all the time.

But in any case, is a win32control and AutoIt just loads it. Not an AutoIt specific problem from my train of thought.

Check for file corruption in your PC ? Other than that, I have no idea.

[cyberyeye]

I have reinstalled from scratch (clean install) Windows 11 (24h2 ltsc) and it works now perfectly ! In my previous win11 installation no doubt I most probably uninstalled a components such as "Get Help" or "Feedback" (or another one of this kind of categorie) wich was providing some api and then I had this visual artefact problem.

Now it works like a charm : sorry for having asked such a dumb question😅and thanks to all for your answer 👍

Edit: before doing a clean install i have tested using dism (restore health) and sfc : both showed no errors ! Also I was using (and i am still using) original Dark theme from OS.

Edited January 22 by cyberyeye
