BSBAL18

Existing GUI Data

8 posts in this topic

I have one question that is basic that i cannot seem to find ANYWHERE around the forum. If i have an existing GUI (say some normal application is running). I can get information on the GUI, move it, resize it, etc etc. However, the one thing i am trying to do is to read the GUI's textbox/buttonText/combo box details. How would I go about doing this? Basically just gathering information from WITHIN the GUI itself, beyond the amatuer 'GetWinText' and other 'Get's. My main concern is reading a ever-changing combobox and being able to 'check' the items i want, which can appear in random order. ANy direction would be appreciated, even if its just 'look at the topic <x> in the help file'.

Share this post


Link to post
Share on other sites



#2 ·  Posted (edited)

Welcome to AutoIt and the forum!

Please have a look a the "ControlCommand" function.

Edited by water

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2017-04-18 - Version 1.4.8.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2017-02-27 - Version 1.3.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

i use the below...

curTitle = .WinGetTitle("[active]")

curTxt = .WinGetText("[active]")

testControl = .ControlGetText(curTitle, curTxt, "717")

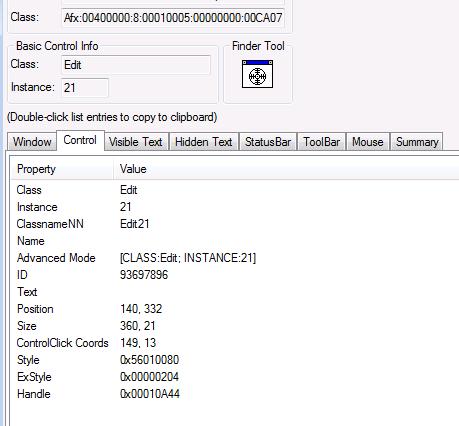

i used winInfo to get the ID, and its just a textbox on the GUI... but the @error always kicks (doesnt tell me anything) and the TextControl var returns a "" (which from doc means it errored).

Nothing seems to be working. The curTitle and curTxt works when i watch the vars... but after that, it doesnt return anything.... Thoughts?

Share this post


Link to post
Share on other sites

Could you please post the real code you use? The code you posted will raise syntax errors and therefore never run.

A screenshot of the GUI you want to automate would be fine too.


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2017-04-18 - Version 1.4.8.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2017-02-27 - Version 1.3.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

Public Sub ProcessEntries()

Dim oAutoIt As New AutoItX3

Dim curText As String

Dim curTitle As String

Dim curData As String

oAutoIt.Sleep 4000

'This works just fine

curTitle = oAutoIt.WinGetTitle("[active]")

curText = oAutoIt.WinGetText("[active]")

'This doesnt work at all (either using the ID in a string, or as a nonString

curData = oAutoIt.ControlGetText(curTitle, curText, "93697896")

err = oAutoIt.Error

'In the above test....

' curData returns ""

' Err returns... 1

' Description: ""

' HelpContext: 0

' HelpFile: ""

' LastDllError: 0

' Number: 1

' Source: ""

Stop 'used for watching the vars

End Sub

post-68788-0-28044600-1323443162_thumb.j

post-68788-0-53014400-1323443167_thumb.j

Share this post


Link to post
Share on other sites

You seem to use AutoItObject. Is this intended?


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2017-04-18 - Version 1.4.8.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2017-02-27 - Version 1.3.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

Yes, i use it through Microsoft Office Excel VBA programming because i use Excel as a data reference to easily loop through and populate the cells with data as the automation is running.

Share this post


Link to post
Share on other sites

Unfortunately I can't help you with this. But maybe you get some answer on the


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2017-04-18 - Version 1.4.8.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2017-02-27 - Version 1.3.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites
