Proper way to refresh lots of controls?

[telmob 2]

I have a GUI that creates lots of controls if i press a button (lets call it the 'next' button).

When i press Next, lot's of items show and the previous items (inside the same page) hide.

But i have 4 pages of different controls. So, when i press the next button, all the pages render (slowly) and only after rendering the controls appear correctly placed and hidden.

My code is organized as follows (just an example, i have hundreds of controls):

Func First()
$Form
$combo1
$combo2
$combo3

For $i = $combo1 To $combo3
GUICtrlSetState($i, $GUI_HIDE)
Next
_NextFunc()
EndFunc


Func _NextFunc()
$combo4
$combo5
$input1
$input2
$combo6
$combo7

For $i = $combo4 To $combo7
GUICtrlSetState($i, $GUI_SHOW)
Next
EndFunc

What is the proper way to show and hide controls without the huge lag?

When i had the _NextFunction in a GUI of it's own and outside the function tag, it was much faster.

Should I GUICtrlSetState(-1, $GUI_HIDE) all the controls? I have hundreds.

[water 2,500]

Can you post a screenshot of your GUI so we can suggest a proper solution?

[telmob 2]

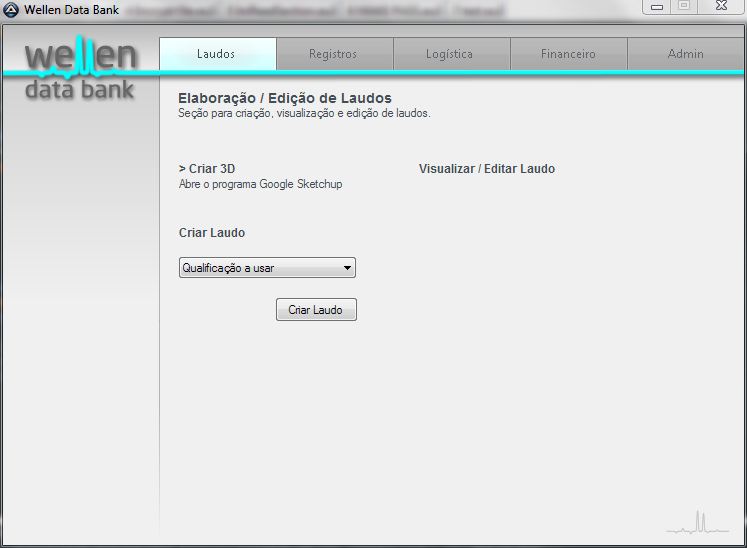

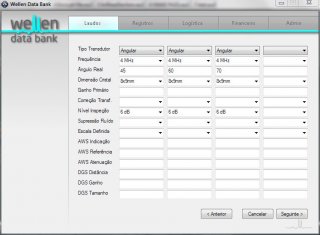

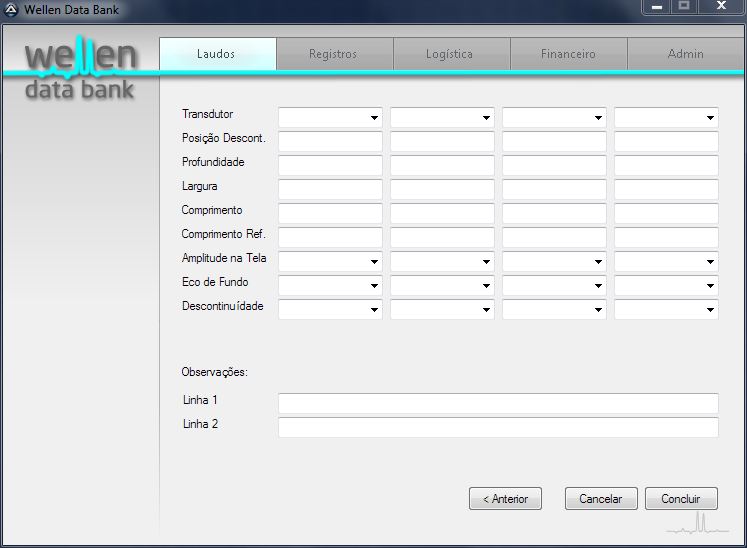

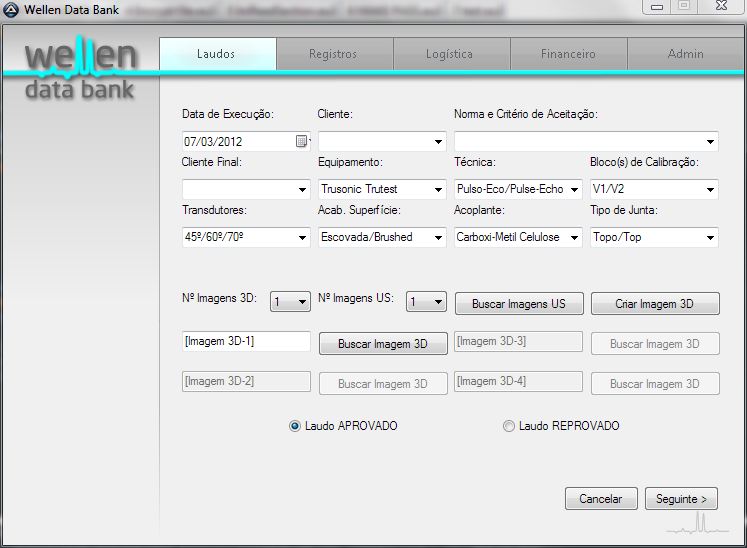

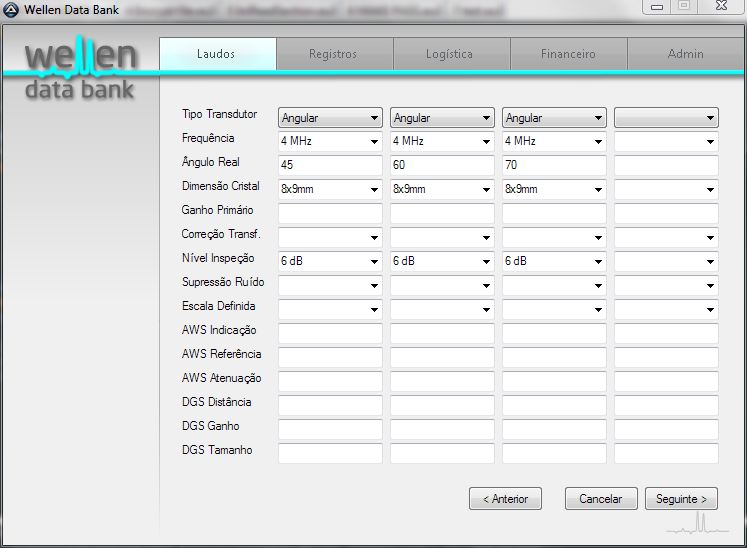

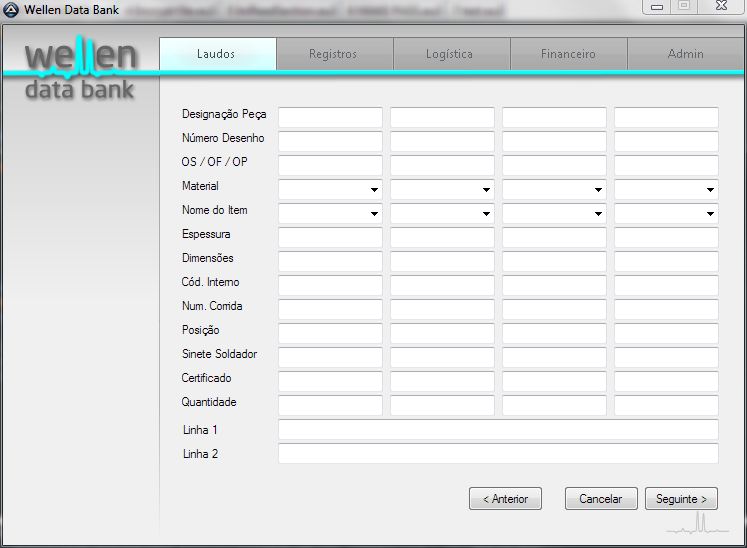

Sure!

Here you go.

[water 2,500]

As I suggested I would try to store the ControlIDs in an array (one for each "page"). Then you can loop through the array for page 1 and disable all control plus loop through the array for page 2 and enable all controls.

Seems to become a quite complex script just by the amount of controls

[telmob 2]

So many things going on in my mind related to this darn script i completely forgot to update my script following your suggestion.

Just a couple of questions though... how to i update a specific control data and how do i extract a specific control data?

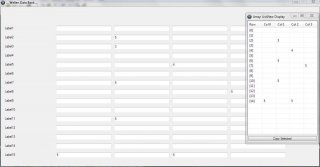

If you see the window below, if i input data randomly, the listview does not update properly.

[water 2,500]

I assume the value "5" in row 2, column 2 is the last you entered (that's the only one missing from the displayed array)? You have to tell AutoIt that you have finished entering data using a finished button or something similar.

[telmob 2]

Can you tell me how to read a specific control and how to set data to a specific control in the array?

[water 2,500]

GUICtrlRead reads the data from a control, GUICtrlSetData modifies the data of a control.

If you read the code of my example you will see that there is a two dimensional array holding the ControlIDs and a two dimensional array holding the data of the control.

Edited March 7, 2012 by water

[telmob 2]

Yes, i know that, i just want to know how i can use GUICtrlRead and GUICtrlSetData in a specific control in your array.

For example, how can i read the control in the second line and second column?

[water 2,500]

GUICtrlRead($aGUIControls[1][1]) - because the array starts with index 0.

[telmob 2]

Ohh... now i understood

Well... it seems i need some hours to spend to do this this. lol

Thanks water!

[water 2,500]

If you like I can add some comments to my original code so you can easily understand how it is done.

[telmob 2]

Well, if you don't mind, i sure would apreciate it

[water 2,500]

Done.

[telmob 2]

Thank you so much man!
