egas

Plink and StdinWrite

Recommended Posts

egas

Good day everyone,

I am having some difficulty sending keystrokes to plink.

What I am trying to do is automate an SSH task to a Cisco device.

While I am not a scripting guru, I have some experience with writing scripts, however none with AutoIt.

$PPID = Run(@comspec & " /c" & "C:\Tools\Putty\plink.exe -ssh 10.10.10.10","",@SW_MAXIMIZE,7)
StdinWrite($PPID, "admin")
Sleep(5000)
Exit

Above is my exact code with the exception of the IP address. The plink window lauches, but it does not send the keystrokes. What am I missing?

Any feedback will be greatly appreciated. Thank you.

Share this post


Link to post
Share on other sites
spudw2k

It might be a timing issue.  Try putting in a delay before the StdInWrite command.

The way I did this (many years ago), is I put in a StdOutRead loop until I received successful login indication.

I always recommend responding based on feedback rather than a timed execution.

Share this post


Link to post
Share on other sites
iamtheky

I use plink like this to perform a grep:

$Connection = "plink.exe -ssh COMPUTERNAME -l USERNAME -pw PASSWORD"
$log_dir = @ScriptDir & "\" & @MON & @MDAY & @YEAR & "\"

$log = ">" & $log_dir & "\REMOTE_LOGIN.log"
$Command1 = "grep -i -P '(extraweb__authen HTTP)' /var/log/daily.log"
runwait('cmd /c ' & $Connection & ' ' & $Command1 & $log)



Edited by boththose

,-. .--. ________ .-. .-. ,---. ,-. .-. .-. .-.
|(| / /\ \ |\ /| |__ __||| | | || .-' | |/ / \ \_/ )/
(_) / /__\ \ |(\ / | )| | | `-' | | `-. | | / __ \ (_)
| | | __ | (_)\/ | (_) | | .-. | | .-' | | \ |__| ) (
| | | | |)| | \ / | | | | | |)| | `--. | |) \ | |
`-' |_| (_) | |\/| | `-' /( (_)/( __.' |((_)-' /(_|
'-' '-' (__) (__) (_) (__)

Share this post


Link to post
Share on other sites
egas

It might be a timing issue.  Try putting in a delay before the StdInWrite command.

The way I did this (many years ago), is I put in a StdOutRead loop until I received successful login indication.

I always recommend responding based on feedback rather than a timed execution.

@spudw2k, thanks for the feedback.

The loop to wait for feedback makes sense, but it doesn't that long to connect.

$PPID = Run("C:\Tools\Putty\plink.exe -ssh 172.19.190.2", "", @SW_SHOWDEFAULT)
Sleep(10000)
StdinWrite($PPID, "admin")
ProcessClose($PPID)
Exit

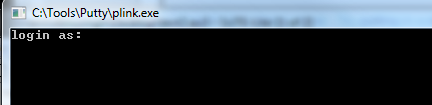

I read where @comspec is only needed to run internal commands like dir, so I switched to the the standard run function. I am able to get the command window, but it still isn't sending the keystrokes for admin.

plink4.thumb.PNG.4e6b709082f2c2be13fd4b7

Any other ideas?

Share this post


Link to post
Share on other sites
egas

Hey @boththose, thanks for the feedback.

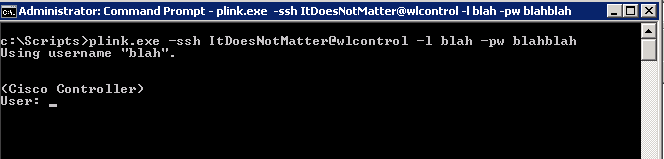

Unfortunately, the cisco box I'm trying to connect to does not work with the username and password switches.

plink5.thumb.PNG.6ae16b71ac029466831dda3

So what I concluded that I need to do is figure out a way to send keystrokes to plink and simulate the session.



Share this post


Link to post
Share on other sites
iamtheky

sux, ive only accomplished that via a putty session called from plink.

as described here in 7.2.1:

http://the.earth.li/~sgtatham/putty/0.60/htmldoc/Chapter7.html

Edited by boththose
found a link

,-. .--. ________ .-. .-. ,---. ,-. .-. .-. .-.
|(| / /\ \ |\ /| |__ __||| | | || .-' | |/ / \ \_/ )/
(_) / /__\ \ |(\ / | )| | | `-' | | `-. | | / __ \ (_)
| | | __ | (_)\/ | (_) | | .-. | | .-' | | \ |__| ) (
| | | | |)| | \ / | | | | | |)| | `--. | |) \ | |
`-' |_| (_) | |\/| | `-' /( (_)/( __.' |((_)-' /(_|
'-' '-' (__) (__) (_) (__)

Share this post


Link to post
Share on other sites
gruntydatsun

You could just activate the console window then send key strokes directly to it.

WinActivate("Administrator:Command Prompt","<Cisco Controller>")
Send("Keystrokesgohere")

but stdin is probably not writing to standard io because  you haven't included $STDIN_CHILD in the run statement like this:


$PPID = Run("C:\Tools\Putty\plink.exe -ssh 172.19.190.2", "", @SW_SHOWDEFAULT,$STDIN_CHILD)



Share this post


Link to post
Share on other sites
egas

Hey @gruntydatsun, thanks for the feedback.

I didn't include the $STDIN_CHILD, but reason was because the script was not running. However, I learnt that I needed to do this:

#include <Constants.au3>

Then I started seeing some progress! But it was short lived because as it would hang at the password prompt.

#include <Constants.au3>
;$PPID = Run(@comspec & " /c" & "C:\Tools\Putty\plink.exe -ssh 172.19.190.2","",@SW_SHOWDEFAULT,7)
$PPID = Run("C:\Scripts\plink.exe -ssh wlcontrol", "", @SW_SHOWDEFAULT, $STDIN_CHILD)
Sleep(10000)
StdinWrite($PPID, "first_prompt" & @CRLF)
Sleep(5000)
StdinWrite($PPID, "second_prompt"& @CRLF)
Sleep(15000)
StdinWrite($PPID, "password"& @CRLF)
Sleep(30000)
StdinWrite($PPID, "ping 172.16.1.169"& @CRLF)
Sleep(1000)
StdinWrite($PPID, "logout "& @CRLF)
Sleep(5000)
ProcessClose($PPID)
Exit

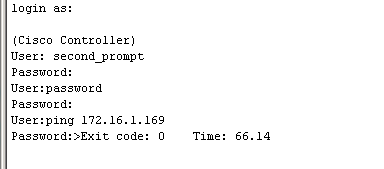

This is the output.



plink6.thumb.PNG.1efbb9d06a5d5c7256d08f8
