Get Progress Bar in GUI

[DigDeep]

I would need some urgent help here please...

Activities performed below:

Start button pressed > GUI Lable shows Text message > activities start > When download starts, it shows the Progressbar with the Filesize remaining and Percentage completed and Progressbar moving.

All the above activites happen except the Progressbar does not show any progress nor any Percentage and filesize.

For some reason, I am not able to fit the _GetDisplaySize  after the $Totalsize1.



expandcollapse popup

#RequireAdmin
#NoTrayIcon


#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <ProgressConstants.au3>
#include <ButtonConstants.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>

Global $iPlaces

Func _GetDisplaySize($iTotalDownloaded, Const $iPlaces) ; Get file size
    Local Static $aSize[4] = ["Bytes remaining...", "KB remaining...", "MB remaining...", "GB remaining..."]
    For $i = 0 To 3
        $iTotalDownloaded /= 1024
        If (Int($iTotalDownloaded) = 0) Then Return Round($iTotalDownloaded * 1024, $iPlaces) & " " & $aSize[$i]
    Next
EndFunc   ;==>_GetDisplaySize

Func VLC()
$Lable1 = GUICtrlCreateLabel(@CRLF & @CRLF & 'Installing VLC Player...', 232, 112, 345, 193)
                    GUICtrlSetFont(-1, 11, 400, 0, "Arial")

    Local $sfldr = "C:\Temp"
        DirCreate($sfldr)
                Local $Src = "http://get.videolan.org/vlc/2.2.4/win32/vlc-2.2.4-win32.exe" ;Set URL
                $Dest = $sfldr & '\vlc.exe' ;Set folder
        $Down = InetGet($Src, $Dest, 1, 1) ;Forces a reload from the remote site and return immediately and download in the background
        $SrcSize1 = InetGetSize($Src) ;Get file size

     Local $idProgressbar1 = GUICtrlCreateProgress(288, 256, 238, 17)
    GUICtrlSetColor(-1, 32250); not working with Windows XP Style

While Not InetGetInfo($Down, 2) ;Loop until download is finished
        Sleep(3000) ;Sleep for half a second to avoid flicker in the progress bar
        $GetBytes1 = InetGetInfo($Down, 0) ;Get bytes received
        $Percentage1 = Int($GetBytes1 / $SrcSize1 * 100) ;Calculate percentage
        $Totalsize1 = $SrcSize1 - $GetBytes1
WEnd
EndFunc


$Form2 = GUICreate("Form2", 626, 491, 466, 301)
$Start = GUICtrlCreateButton("Start", 264, 416, 75, 25)
$Label1 = GUICtrlCreateLabel("Label1", 112, 40, 388, 361)
    GUISetState(@SW_SHOW)

While 1
    $nMsg = GUIGetMsg()
    Select
        Case $nMsg = $GUI_EVENT_CLOSE
            Exit

        Case $nMsg = $Start
VLC()

    EndSelect
WEnd



[DigDeep]

I added the below line and now I am able to see the Progressbar moving along with the download. But I am still not able to figure out the _GetDisplaySize...

$Totalsize1 = $SrcSize1 - $GetBytes1
GUICtrlSetData($idProgressbar1, $Percentage1)

[spudw2k]

I don't see where you are calling or assigning the output from _GetDisplaySize.   Where do you expect it to display?

[R0G]

Try this:

expandcollapse popup

#RequireAdmin
#NoTrayIcon

#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <ProgressConstants.au3>
#include <ButtonConstants.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>

Global $iPlaces

main()

Func main()

    $Form2 = GUICreate("Form2", 626, 491, 466, 301)
    $Start = GUICtrlCreateButton("Start", 264, 416, 75, 25)
    $Label1 = GUICtrlCreateLabel("Label1", 112, 40, 388, 361)
    GUISetState(@SW_SHOW)

    While 1
        $nMsg = GUIGetMsg()
        Select
            Case $nMsg = $GUI_EVENT_CLOSE
                Exit
            Case $nMsg = $Start
                VLC()
        EndSelect
    WEnd
EndFunc

Func VLC()
    $Lable1 = GUICtrlCreateLabel(@CRLF & @CRLF & 'Installing VLC Player...', 232, 112, 345, 193)
    $LBL_Percent = GUICtrlCreateLabel("0%", 232, 256, 45, 30)
    GUICtrlSetFont(-1, 11, 400, 0, "Arial")
    Local $sfldr = "C:\Temp"
    DirCreate($sfldr)
    Local $Src = "http://get.videolan.org/vlc/2.2.4/win32/vlc-2.2.4-win32.exe" ;Set URL
    $Dest = $sfldr & '\vlc.exe' ;Set folder
    $Down = InetGet($Src, $Dest, 1, 1)
    $SrcSize1 = InetGetSize($Src) ;Get file size
    Local $idProgressbar1 = GUICtrlCreateProgress(288, 256, 238, 17)
    GUICtrlSetColor(-1, 32250); not working with Windows XP Style
    Local $Size = InetGetSize($Src,1) ;get the size of the update
    While Not InetGetInfo($Down, 2)
        Local $Percent = Round((InetGetInfo($Down,0)/$Size)*100,1)
        GUICtrlSetData($idProgressbar1,$Percent)
        GUICtrlSetData($LBL_Percent,$Percent & "%")
        Sleep(100)
    WEnd
    GUICtrlSetData($Lable1,"Download Complete")
EndFunc



Edited February 9, 2017 by R0G

[SyedHamza]

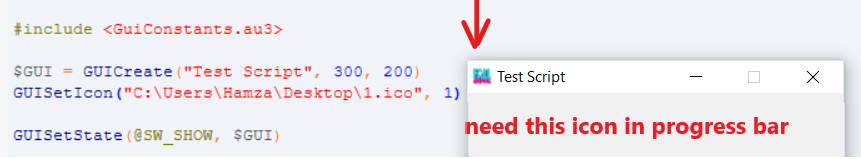

i wanna set icon for my progress bar, how i do it?

for example, it my progress bar

  Quote

ProgressOn("Fall Guys: Ultimate Knockout", "Setup", "Connecting to server...")

 For $var1 = 0 To 30
     ProgressSet($var1)
     Sleep(200)
 Next

which and where I insert the command to do this

[Jos]

@SyedHamza

Please do not Cross post your question and stick to one!

Jos
