Small suggestion. Perhaps make some tutorial videos on the general use of the product.
I got a bit confused when using the Form Builder, when adding code to a button. I double clicked the button, clicked save, then saved it as an au3 script for good measure. Upon running the form it launched the MSGbox code that I had included when the form loaded. I had interpreted it as an on button click action rather than a form load action.
I know better now, but that is why I suggested the above.
Thank you for all the work you have put into this project. If I knew enough about autoit to help I would do so. Instead, I would like to help by testing from an end user point of view if that will work.


Spoiler



"If a vegetarian eats vegetables,What the heck does a humanitarian eat?"

"I hear voices in my head, but I ignore them and continue on killing."

"You have forced me to raise the indifference warning to beige, it's a beige alert people. As with all beige alerts please prepare to think about the possibility of caring."

An optimist says that giving someone power DOESN'T immediately turn them into a sadist. A pessimist says that giving someone power doesn't IMMEDIATELY turn them into a sadist.





Share this post


Link to post
Share on other sites

Yeah the ISN would definitely benefit from tutorial videos, but as a "one man show" i don´t have the time to make such videos.
(And you really don´t want to hear me speaking english :D:D )

But if anyone is interessted to make such videos, i will support them as good as i can.

And about extracode: Yeah it´s different here in the ISN than Visual Studio. Extracode means only "add you own au3 code to (below) the control). You can see it in the "generate au3 code" window in the form studio how it´s managed.
And as a Tipp: You do not need to copy past the gui code from the formstudio to your script. Simply include the .isf file as an include! (see testproject)

Edited by ISI360

Share this post


Link to post
Share on other sites

Latest hotfix for version 1.07 is online now! (20180315)
Fixes the hotkey problems Rex reported and a problem with the msgbox generator.

Share this post


Link to post
Share on other sites

Hi ISI

I still have problems with the Ctrl + F5, the studio marks the line as it should , but don't jump to the line :(

When I have lots of warns/errors and I scroll up to pick the first error, and double click at it, I get thrown to the last line in the error panel, and the code window don't move an inch.

Any idea on what could create such error?

It first started after updating to previous version, I just tried to reinstall 1.6 (20170928) and with that version there's no problem, it jumps to the err line as it should.

Also, it seems that the auto compleat functions fails for the same scripts.

Cheers
/Rex

Edited by Rex
Adde info

Share this post


Link to post
Share on other sites

Just want to inform you that a new hotfix update for version 1.07 is out now!

Fixes:
- Fixed error jumping reported by Rex (Also marks now the "selected" error in the console output window)
- API update to AutoIt 3.3.14.4
- .exe files are now compiled with AutoIt 3.3.14.4
- Updated French translation (thx to Swirti)
- Updated "Testproject"
- Litte new feature: If you write a new include, autocomplete show you now the autoit includes (when you type #include <) OR files from your project (when you type #include ")

Share this post


Link to post
Share on other sites

Wow I really like the Project Debug window.  The window that displays runtime, PID, Stop; and Details button.  I think the summery and Detail button is exceptionally useful.

Unfortunately my project involves many windows that fill my screen sometimes and that extra window on top gets in my way.

I'd really like to hide that window.  Is there a good way to hide the Project Debug window?

Edited by Xandy

Share this post


Link to post
Share on other sites

In the Search/replace text dialog (To find a string of text) the minimize, maximize, close icons (at the top right of dialog) do not activate on mouse click.

I press them, nothing happens.  If I press quickly enough Search/replace text dialog maximizes, but it does not matter which icon mouse is over.

http://songersoft.com/graphics/ISN_Find_Dialog.jpg

I just thought you should know and maybe you can reproduce the problem.

I really like this program and the features you've added since I first started using it.  :)

Edited by Xandy

Share this post


Link to post
Share on other sites

I found unexpected behavior.  (It's difficult to navigate a file dialog when you can't see the folder names)

I opened up ISN to create a new project using my existing .au3 file.

Under ProjectMode: Create a new project button.  Select Radio: Create new project from an existing au3 file, then select the file browse [...] button

In the "Choose file" dialog: folder names are not displayed unless they are the selected file or group.

Short video:

Spoiler





Edited by Xandy

Share this post


Link to post
Share on other sites

@Xandy: Thanks for the video. Yeah i know that error...problem is i can´t do much against it. The problem is caused by the Skin used in the "black theme". If you use the ISN without a Skin it works normal. So the problem here is anywhere in the .msstyles file and i have no plan how i could fix this :( (And i think the USkin System (which the ISN uses for skinning) was orginally designed for windows XP :(

@masvil: The ISN AutoIt Studio has it´s own GUI builder included and does not need Koda. (It´s the ISN Form Studio 2)
Just create an .isf file (file the File menu) and open it ;) (Or see the testproject)

Share this post


Link to post
Share on other sites

Good news about your probelm @Xandy: By random i saw that this problem does not happen if i use the _WinAPI_OpenFileDlg function for open file dialogs. (And not the native FileOpenDialog). It´s not the same dialog, but hey it works and the text is readable at all ;)

So i will include this with the next hotfix update. (Without skin...the current dialog. With skin the _WinAPI_OpenFileDlg Dialog)




Edited by ISI360

Share this post


Link to post
Share on other sites

Hey, ISN AutoIt Studio is amazing, migrating most projects over to it. Thanks so much for creating it.



A small problem; when creating a GUI with buttons using the $BS_ICON style, there isn't an option for icon size in FormStudio so I have to manually edit the .isf file afterwards to make it use a small icon.

Also, please could you add a link to this thread in the old thread? Searching AutoIt forums for "isn" doesn't seem to return this new thread in the results (12 pages of search results and a 10 second timer between changing pages in search results made it too time-consuming to check properly :p)

Share this post


Link to post
Share on other sites

Hi!

Thanks for your feedback! ;)

Editing the .isf manualy is no good idea cuase it will be overwritten when you next save the file with the form studio.
But you can do the following: I guess you set the Icons with GUICtrlSetImage, or? Just add your "Icon"-Code as Extracode the the control.
Extracode is simply AutoIt code which will be "placed" after the CreateControl Code.
So simply create your button and insert the GUICtrlSetImage Code as Extracode to the button.

And the old ISN Thread is already locked for editing. But on the last page is an info to this thread.

Edited by ISI360

Share this post


Link to post
Share on other sites

I've run into a bug with the latest version (it may have been there in older versions I've just haven't used the toolbar control in an ISN project before.)

To recreate the error,

  1. create a new temporary project.
  2. add a form to the project.
  3. add a toolbar control to the form.
    At this point if you test the form things are fine.
  4. Open the GUI Properties Dialog
  5. Click OK without changing anything.
    Now when you try testing the form you get the following error.
$toolbar99 = _GUICtrlToolbar_Create($$TestForm,$TBSTYLE_FLAT,0)
$toolbar99 = _GUICtrlToolbar_Create(^ ERROR

Error: Badly formated variable or macro.

An extra $ has been added before the form variable, the StatusBar control does the same thing.

I believe the problem is in Data\Plugins\formstudio2\Includes\converter.au3 at lines 1182 and 1190

; Line 1182
FileWriteLine($file, $IDSTRING & '_GUICtrlToolbar_Create($' & _IniReadEx($Cache_Datei_Handle, "gui", "handle", "hgui") & ',' & $genstyle & ',' & $genexstyle & ')')

; Line 1190
FileWriteLine($file, $IDSTRING & '_GUICtrlStatusBar_Create($' & _IniReadEx($Cache_Datei_Handle, "gui", "handle", "hgui") & ', -1, "",' & $genstyle & ',' & $genexstyle & ')')

Line 1182 and 1190 are the only lines with a $ before the handle, my quick look indicates it should be using the handle with dollar hand back function so the lines would become:

; Line 1182
FileWriteLine($file, $IDSTRING & '_GUICtrlToolbar_Create(' & _Handle_mit_Dollar_zurueckgeben(_IniReadEx($Cache_Datei_Handle, "gui", "handle", "hgui")) & ',' & $genstyle & ',' & $genexstyle & ')')

; Line 1190
FileWriteLine($file, $IDSTRING & '_GUICtrlStatusBar_Create(' & _Handle_mit_Dollar_zurueckgeben(_IniReadEx($Cache_Datei_Handle, "gui", "handle", "hgui")) & ', -1, "",' & $genstyle & ',' & $genexstyle & ')')

Maybe just removing the $ would have been enough, but I thought this would be safer, and it seems to work for me.


Edited by xrxca

By far, the worst four letter word (swear word) out there has to be USER

Share this post


Link to post
Share on other sites

Thanks for your detailed infos! Its correct the way you edit the script!
A user in my forum reported this error too. (Link)
And a fixed .exe for the formstudio is available here. (Will be included in the next update)

Edited by ISI360

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Similar Content

    • By TheSaint
      As many of you may not be aware, of much about AutoIt's humble beginnings, and aspects related to the first GUI version of AutoIt, I thought it might be nice to create a historical reference here for all the many GUI creators that have been created by various people over the years.
      NOTE - While one could argue, that this topic might be better placed in one of the Chat forums, I would argue, that it links to heaps of good code. While much may be redundant in that code, it is still interesting and forms a great perspective. Many are bound to find useful elements at the very least.
      Koda, is no doubt the most well-known GUI creator now, but there was a time, when CyberSlug's legendary GUIBuilder (first known as AutoBuilder) ruled the roost, and AutoIt coder's saw it as a Godsend. AutoIt coding was much simpler back then of course.
      Below, will be a timeline, of any AutoIt GUI creators listed in forum pages. It will be added to by myself as I find them or as others here find them and place a link in a subsequent post ... PLEASE HELP! Comments welcome too.
      (Also note, that this is also intended to include updates, branches etc by others)
      Apr 20 2004 - AutoBuilder by CyberSlug.
      Sep 27 2004 - An interesting topic, where CyberSlug talks about the future of AutoBuilder (etc) and renaming to GUIBuilder and you see the first mentions and links to updates by others (including myself & livewire).
      Nov 05 2004 - A topic where lookfar is working on a SciTE replacement, talks about starting a Form Designer.
      Aug 10 2005 - GuiBuilder first update by TheSaint.
      Sep 26 2005 - GUIBuilder updates by livewire (he also talks about transferring his efforts to Koda).
      Nov 02 2005 - KODA FormDesigner v1.3 by lookfar
      Nov 03 2005 - Seemingly interesting topic about forms by tonedeaf
      Dec 26 2005 - AutoIt Studio(beta) by BillLuvsU
      Jan 09 2006 - AutoBuilder update (or branch) by _^__darkbytez (livewire also posts).
      Feb 19 2006 - Koda v1.5 by lookfar
      Sep 07 2006 - Koda v1.7.3.0 by Lazycat
      Jan 07 2007 - Form/GUI Builder by FlintBrenick
      Jun 10 2007 - Gorganizer by _Kurt (more of an assister than actual GUI maker)
      Jun 27 2007 - Basic GUI Designer by Mast3rpyr0
      May 03 2008 - Autoit Programmer's Desktop (APD) by Ealric
      Jul 11 2008 - Gui Designer by Alek
      Aug 11 2008 - Gorganizer update by _Kurt
      Jun 19 2009 - Easy GUI by Mat
      Aug 13 2009 - GUI Script Creator by Pandemic (not sure this qualifies, but it made me think of templates)
      Aug 16 2010 - Creation Gui by AZJIO
      Jan 22 2012 - ISN AutoIt Studio by ISI360 (includes ISN Form Studio 2, a GUI editor)
      Mar 19 2012 - Arduino GUI Programmer by nikosliapis (creates a specific type of GUI)
      Aug 01 2012 - GuiBuilder Resurrected update/branch to GUIBuilder by baroquebob
      Dec 01 2012 - Form Builder beta (v1.0.6) by BuckMaster
      Jan 12 2015 - GUIBuilderNxt update by jaberwacky of GUIBuilder v0.8 (as a new prototype, modified to work with latest AutoIt) (not a update to the Resurrected version)
      Aug 12 2016 - The GuiBuilder Return by DFerrato as an update to GUIBuilder,
      Jan 17 2017 - GUIBuilder Project by TheSaint (a work in progress based on CyberSlug's original ... and later versions, updated by Roy, TheSaint & others).
      May 29 2019 - The GuiBuilder Return by DFerrato as an update to GUIBuilder, His new and improved version.
      There are a significant number of creators/designers that have been started and never completed.
      +++++ STILL UNDER CONSTRUCTION +++++
      P.S. Well that's it from me tonight. I know of at least one other major creator, but cannot recall it's name or the name of the coder, though I think it starts with 'L'. Bound to be a few I've missed, and some I cannot seem to find their first appearance here (Koda, Form Builder, etc), but there may be an obvious reason for that. Will probably rely on feedback from others now that I've got the ball rolling.
      NOTE - If anyone wants to discuss any of these programs above or give some background history, then by all means do so. I will cross-reference (link to) any important comments.
    • By ISI360
      Hi!
      Today I want to show you my current AutoIt project: The ISN AutoIt Studio.



      The ISN AutoIt Studio is a complete IDE made with AutoIt, for AutoIt!
      It includes a GUI designer, a code editor (with syntax highlighting, auto complete & intelisense), a file viewer, a backup system, trophies and a lot more features!!

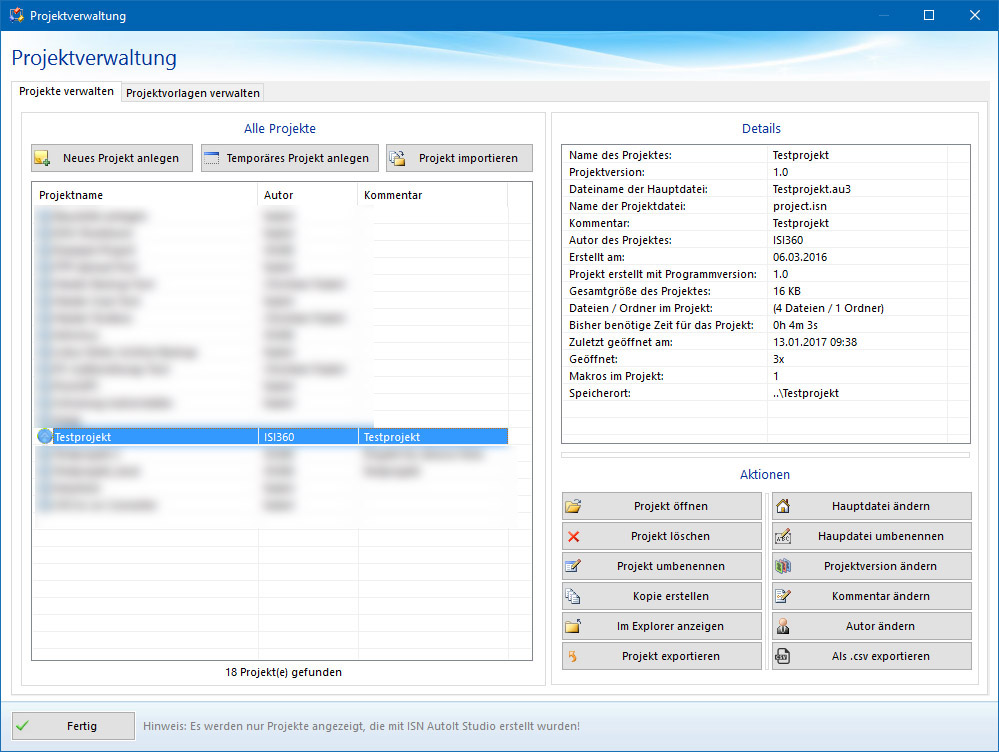

      Here are some screenshots:
