Skysnake

Automate C legacy GUI - ControlCommand & ControlClick not working

Recommended Posts

I need to automate a specific GUI from a legacy system written in C.

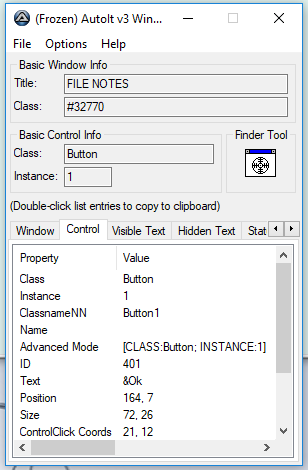

The spy tool gives me this


I use this code

Local $swintit = WinGetTitle("[active]")
    ConsoleWrite("active Window " & $swintit & @CRLF)

    If $swintit = "FILES NOTES" Then ; If $swintit = "FILES NOTES" Then
        ; got Window, now atomate
        ConsoleWrite("got Window " & @CRLF)

        ; now focus, then click :)

        ;EditPaste
        ;ControlCommand("FILES NOTES", "", 404, $acno) ; paste acno
        GUICtrlSetState(404, $GUI_Focus)
        ControlCommand("FILES NOTES", "", 404, $acno) ; paste acno
        GUICtrlSetState(401, $GUI_Focus)
        ControlClick("FILES NOTES", "", 401, $acno) ; click okay

    EndIf ; If $swintit = "FILES NOTES" Then

The idea is to paste the acno value into the edit box, then click an Okay button.

I get a console write that the active Window is as expected, but my loop completes without ever writing anything into the GUI.

I also tried the control ID as text "404" - same result

What am I missing?

Skysnake




Skysnake

Why is the snake in the sky?

Share this post


Link to post
Share on other sites

Not sure that you can use the ID number from AU3Info like that. Instead I would use the info under advanced mode, Also, there seems to be some syntax issues in your code.

Have you tried either of these methods? --

ControlSetText("FILES NOTES", "", "[CLASS:Edit, INSTANCE:1]", $acno)

or

ControlFocus("FILES NOTES", "", "[CLASS:Edit, INSTANCE:1]")
ControlCommand("FILES NOTES", "", "[CLASS:Edit, INSTANCE:1]", "EditPaste", $acno) ; paste acno



Share this post


Link to post
Share on other sites

Thx. :)

Same result. Copied your code directly into my script, still does nothing.

Please just point me in some direction? What can I use? I have never done this and feel a bit lost.

Based on the overwhelming responses I am guessing this is not a common activity :)

Thanks again.

Skysnake


Skysnake

Why is the snake in the sky?

Share this post


Link to post
Share on other sites

Hello. try to show more information of AutoIt v3 Window Info to be sure what kind of control you're trying to handle.



Saludos

Share this post


Link to post
Share on other sites

you have no logging or debug messages in msgbox form even in the area you want to test. does it find your dialog form even?


My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites

Am I making some kind logic error?

I am running Win10 64 bit.



The legacy software was designed for Windows XP and is 32 bit. (It still works on the Win 10 64 bit box)



Modified code

Local $retunValue = 0, $returnedError

    ConsoleWrite("got $acno " & $acno & @CRLF)

    Local $swintit = WinGetTitle("[active]")
    ConsoleWrite("active Window [" & $swintit & "]" & @CRLF)
    Local $hWin = WinGetHandle("[active]")
    WinActivate($hWin)

    ;active Window [FILE NOTES]
    If $swintit = "FILE NOTES" Then ; If $swintit = "FILES NOTES" Then
        ; got Window, now atomate
        ConsoleWrite("got Window " & @CRLF)

        ; now focus, then click :)

        ;EditPaste
        ;ControlCommand("FILES NOTES", "", 404, $acno) ; paste acno
        $retunValue = ControlFocus("FILE NOTES", "", "[CLASS:Edit, INSTANCE:1]")
        ConsoleWrite("10 $retunValue " & $retunValue & @CRLF)
        $returnedError = @error
        ConsoleWrite("10 @error " & $returnedError & @CRLF)
        $retunValue = ControlCommand("FILE NOTES", "", "[CLASS:Edit, INSTANCE:1]", "EditPaste", $acno) ; paste acno
        ConsoleWrite("20 $retunValue " & $retunValue & @CRLF)
        $returnedError = @error
        ConsoleWrite("20 @error " & $returnedError & @CRLF)
        Sleep(250)
        $retunValue = ControlFocus("FILE NOTES", "", "[CLASS:Edit, INSTANCE:1]")
        ConsoleWrite("30 $retunValue " & $retunValue & @CRLF)
        $returnedError = @error
        ConsoleWrite("30 @error " & $returnedError & @CRLF)
        $retunValue = ControlClick("FILE NOTES", "", "[CLASS:Edit, INSTANCE:1]")
        ConsoleWrite("40 $retunValue " & $retunValue & @CRLF)
        $returnedError = @error
        ConsoleWrite("40 @error " & $returnedError & @CRLF)
        Sleep(1000)

    EndIf ; If $swintit = "FILE NOTES" Then



Console Output
got $acno AP0050
active Window [FILE NOTES]
got Window
10 $retunValue0
10 @error 0
20 $retunValue0
20 @error 0
30 $retunValue0
30 @error 0
40 $retunValue0
40 @error 0



Edited by Skysnake

Skysnake

Why is the snake in the sky?

Share this post


Link to post
Share on other sites

Share this post


Link to post
Share on other sites

Share this post


Link to post
Share on other sites

Changes made as suggested.  :)

Still no usable result

updated code, with #RequireAdmin at the top

Local $returnValue = 0, $returnedError

    ConsoleWrite("got $acno " & $acno & @CRLF)

    Local $swintit = WinGetTitle("[active]")
    ConsoleWrite("active Window [" & $swintit & "]" & @CRLF)
    Local $hWin = WinGetHandle("[active]")
    WinActivate($hWin)

    ;active Window [FILE NOTES]
    If $swintit = "FILE NOTES" Then ; If $swintit = "FILES NOTES" Then
        ; got Window, now atomate
        ConsoleWrite("got Window " & @CRLF)

        ; now focus, then click :)

        ;EditPaste
        ;ControlCommand("FILES NOTES", "", 404, $acno) ; paste acno
        $returnValue = ControlFocus("FILE NOTES", "", "[CLASS:Edit, INSTANCE:1]")
        $returnedError = @error
        ConsoleWrite("110 @error " & $returnedError & @CRLF)
        ConsoleWrite("110 $returnValue " & $returnValue & @CRLF)

;~      $returnValue = ControlCommand("FILE NOTES", "", "[CLASS:Edit, INSTANCE:1]", "EditPaste", $acno) ; paste acno
;~      ConsoleWrite("20 $returnValue " & $returnValue & @CRLF)
;~      $returnedError = @error
;~      ConsoleWrite("20 @error " & $returnedError & @CRLF)

        $returnValue = ControlClick("FILE NOTES", "", "[CLASS:Edit, INSTANCE:1]", "", Default, 21, 9) ; paste acno
        $returnedError = @error
        ConsoleWrite("210 @error " & $returnedError & @CRLF)
        ConsoleWrite("210 $returnValue ControlClick " & $returnValue & @CRLF)

        $returnValue = ControlSetText("FILE NOTES", "", "[CLASS:Edit, INSTANCE:1]", $acno) ; paste acno
        $returnedError = @error
        ConsoleWrite("220 @error " & $returnedError & @CRLF)
        ConsoleWrite("220 $returnValue ControlSetText " & $returnValue & @CRLF)

        Sleep(250)
        $returnValue = ControlFocus("FILE NOTES", "", "[CLASS:Edit, INSTANCE:1]")
        $returnedError = @error
        ConsoleWrite("230 @error " & $returnedError & @CRLF)
        ConsoleWrite("230 $returnValue " & $returnValue & @CRLF)
        $returnValue = ControlClick("FILE NOTES", "", "[CLASS:Edit, INSTANCE:1]")
        $returnedError = @error
        ConsoleWrite("240 @error " & $returnedError & @CRLF)
        ConsoleWrite("240 $returnValue " & $returnValue & @CRLF)
        Sleep(1000)

    EndIf ; If $swintit = "FILE NOTES" Then

Console output

55 IsAdmin Admin rights are detected
_clickGui 09-Apr-18 4:48:30 PM
got $acno ACNO
active Window [FILE NOTES]
got Window
110 @error 0
110 $returnValue 0
210 @error 0
210 $returnValue ControlClick 0
220 @error 0
220 $returnValue ControlSetText 0
230 @error 0
230 $returnValue 0
240 @error 0
240 $returnValue 0



Edited by Skysnake

Skysnake

Why is the snake in the sky?

Share this post


Link to post
Share on other sites

LOL. ok. Back up for a minute. You look for your text, then do something, however, what if there are other windows present while running? you are not looping through the processes. Your method of getting your window needs lots of work and can be done with a run, or runwait command probably, then a simple controlclick

what is the name of the process you run? we can go from there. Your code is really not up to the task as is.

Edited by Earthshine

My resources are limited. You must ask the right questions



Share this post


Link to post
Share on other sites
2 hours ago, Skysnake said:

$returnValue = ControlSetText("FILE NOTES", "", "[CLASS:Edit, INSTANCE:1]", $acno) ; paste acno

To separate the properties you need to use ";" but not ","

$returnValue = ControlSetText("FILE NOTES", "", "[CLASS:Edit;INSTANCE:1]", $acno) ; paste acno

Or simply

$returnValue = ControlSetText("FILE NOTES", "", "Edit1", $acno) ; paste acno



Share this post


Link to post
Share on other sites
20 hours ago, InnI said:

To separate the properties you need to use ";" but not ","

Hmm. thx. will try. The devil is always in the detail. :)




Skysnake

Why is the snake in the sky?

Share this post


Link to post
Share on other sites
