Capture Screenshot hidden window is not working


Recommended Posts

(My English is not good,  I use Google translate)

Hi,

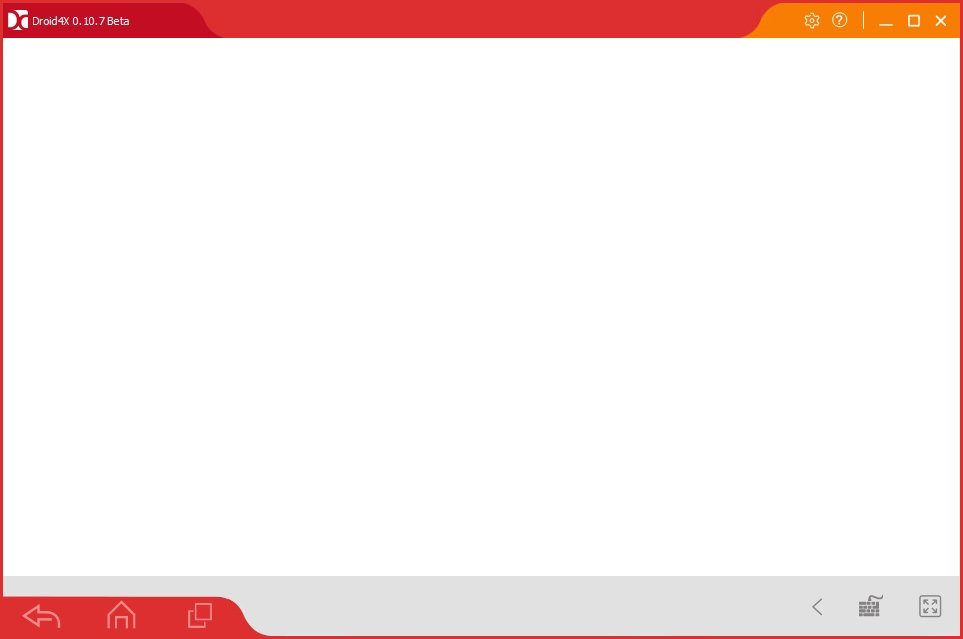

 I want Capture Screenshot hidden window, my script is fine with all the software until I try to take the Droid4X screenshot. I can't capture it completely (You see the picture for more clarity)

Do you have any ideas to help me?

Thannks  All !!!

My Script

Func Screenshot_Handle($WinHandle)

    _GDIPlus_Startup()

    Local $aPos = WinGetPos($WinHandle)
    $iWidth = $aPos[2]
    $iHeight = $aPos[3]
    Local $hDDC = _WinAPI_GetDC($WinHandle)
    Local $hCDC = _WinAPI_CreateCompatibleDC($hDDC)

    $hBMP = _WinAPI_CreateCompatibleBitmap($hDDC, $iWidth, $iHeight)


    _WinAPI_SelectObject($hCDC, $hBMP)
    DllCall("User32.dll", "int", "PrintWindow", "hwnd", $WinHandle, "hwnd", $hCDC, "int", 0)
    _WinAPI_BitBlt($hCDC, 0, 0, $iWidth, $iHeight, $hDDC, 0, 0, $__SCREENCAPTURECONSTANT_SRCCOPY)



_ScreenCapture_SaveImage("window.bmp", $hBMP)


    _WinAPI_ReleaseDC($WinHandle, $hDDC)
    _WinAPI_DeleteDC($hCDC)
    _WinAPI_DeleteObject($hBMP)
    _GDIPlus_Shutdown()

    Return ""
EndFunc




Link to post
Share on other sites
  • Moderators

kenc,

Welcome to the AutoIt forums.

Please do not bump your own threads within 24 hours.

Remember this is not a 24/7 support forum - those who answer are only here because they like helping others and have some time to spare.  You just have to wait until someone who knows something about your particular problem, and is willing to help, comes online.  Be patient and someone will answer eventually.

M23



Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Link to post
Share on other sites

What is the Android application you are trying to emulate with Droid4x ?  Can you do a manual screen capture ?  Have you tried using _ScreenCature_* functions ?

Edit : you do not have any error detection in your script, would be a good idea to add some...

Edited by Nine
Link to post
Share on other sites
10 hours ago, Nine said:

What is the Android application you are trying to emulate with Droid4x ?  Can you do a manual screen capture ?  Have you tried using _ScreenCature_* functions ?

Edit : you do not have any error detection in your script, would be a good idea to add some...

@Nine:  _ScreenCature_* functions still works normally. But as I said above, I want to take a picture of the inactive  window. (All Android apps are faulty)

Link to post
Share on other sites
