Old list stay visible when should change - (Moved)

Recommended Posts

Hi,

Since a long time I read lots of topics on this forum as a visitor and found most of the searched answers; thank you!

Now I'm out of topic to read about what I'm looking for (or just not found), I come to ask for some help about my script.

I'm new and not completely sure if the topic is at the correct place.

  • Description of the script: this script create 3 control lists
    • The first list displays years, those years are folders, in each, a ".ini" file named with months contains data (id of bills)
    • The second list displays months, those months are ".ini" files (indicated here up) containing data (id of bills)
    • The third list displays bills, those bills are ".ini" files containing data
  • Folders & files structure
    • root folder:
      • main.au3 (Autoit script)
      • Data (folder):
        • Bills (folder):
          • ".ini" files containing data
        • Budgets (folder):
          • 2021 (folder)
            • ".ini" files named with months and containing data (id of bills)
          • 2022 (folder)
            • empty
          • 2023 (folder)
            • empty
  • How running program works
    • A year is selected and months linked to this year are listed in the second list
    • Then a month is selected and bills linked to this month are listed in the last list
  • My problem
    • When I've selected a month, bills display, then I select another year, the last bills stay visible in the list, it should disapear

The question is, what do I miss to hide/delete the bills list when another selection starts, or, where is the mistake?

Here is the code:

#include <ButtonConstants.au3>
#include <GUIConstantsEx.au3>
#include <GUIListBox.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>
#include <File.au3>
#include <Array.au3>
#include <GuiListView.au3>

Opt('MustDeclareVars', 1)
Opt('GUIOnEventMode', 1)

Global $ArrayDataBudgetList[12], $ArrayDataBillList[200], $ArrayDataYearList[100]
Global $FormHome
Global $GroupBanner, $GroupFunctionsArea
Global $LabelProgramTitle, $LabelTest
Global $ButtonNewBudget, $ButtonNewBill, $ButtonEditBill
Global $ListBudget, $ListBill, $ListYear, $idItem[200], $selectedYear, $selectedBudget
Global $nMsg, $MsgBoxQuit
Global $iniBudget, $iniBill

Main()

Func Main()
   CreateMainWindow()
   LaunchDisplayFromYear()
   While 1
      Sleep(10)
   WEnd
EndFunc

Func On_Close_Main()
   $MsgBoxQuit = MsgBox (4, '/!\QUIT/!\'' ,'Are you sure you want to quit?')
   If $MsgBoxQuit = 6 Then
      Exit ;answer is YES
   EndIf
EndFunc

Func LaunchDisplayFromYear()
   _GUICtrlListView_DeleteAllItems($ListYear)
   $ArrayDataYearList = GetDataYearList()
   FillYearsList()
EndFunc

Func DisplayBudgets()
   _GUICtrlListView_DeleteAllItems($ListBudget) ;Free space to display next bill list
   $selectedYear = StringTrimRight(GUICtrlRead(GUICtrlRead($ListYear)), 1)
   $ArrayDataBudgetList = GetDataBudgetList()
   FillBudgetsList()
EndFunc

Func DisplayBills()
   _GUICtrlListView_DeleteAllItems($ListBill) ;Free space to display next bills
   $selectedBudget = StringTrimRight(GUICtrlRead(GUICtrlRead($ListBudget)), 1)
   GetDataBillList()
   FillBillsList()
EndFunc

Func FillYearsList()
   For $i = 1 TO UBound($ArrayDataYearList, $UBOUND_ROWS)-1 Step 1
      If $ArrayDataYearList[$i] <> '' Then
         $idItem[$i] = GUICtrlCreateListViewItem($ArrayDataYearList[$i], $ListYear)
         GUICtrlSetOnEvent(-1, 'DisplayBudgets')
      EndIf
   Next
EndFunc

Func FillBudgetsList()
   For $i = 1 TO UBound($ArrayDataBudgetList, $UBOUND_ROWS)-1 Step 1 ;Fill list of budgets
      If $ArrayDataBudgetList[$i] <> '' Then
         $idItem[$i] = GUICtrlCreateListViewItem($ArrayDataBudgetList[$i], $ListBudget)
         GUICtrlSetOnEvent(-1, 'DisplayBills')
      EndIf
   Next
EndFunc

Func FillBillsList()
   For $i = 1 TO UBound($ArrayDataBillList, $UBOUND_ROWS)-1 Step 1
      If $ArrayDataBillList[$i] <> '' Then
         $idItem[$i] = GUICtrlCreateListViewItem($ArrayDataBillList[$i], $ListBill)
      EndIf
   Next
EndFunc

Func GetDataYearList()
   If FileExists('./Data/Budgets') Then
      Return _FileListToArray('./Data/Budgets/')
   EndIf
EndFunc

Func GetDataBudgetList()
   If FileExists('./Data/Budgets/' & $selectedYear) Then
      Return _FileListToArray('./Data/Budgets/' & $selectedYear & '/')
   EndIf
EndFunc

Func GetDataBillList()
   If $selectedBudget <> Null Then
      For $i = 1 TO UBound($ArrayDataBillList, $UBOUND_ROWS)-1 Step 1
         If FileExists('./Data/Budgets/' & $selectedYear & '/' & $selectedBudget) Then
            Local $id = IniRead('./Data/Budgets/' & $selectedYear & '/' & $selectedBudget, '1-' & $i, 'BillsId', '')
         EndIf
         If $id <> '' Then
            If FileExists('./Data/Bills/' & $id & '.ini') Then
               _ArrayInsert($ArrayDataBillList, $i, IniRead('./Data/Bills/' & $id & '.ini', '1', 'CompanyName', ''))
            EndIf
         EndIf
      Next
   EndIf
EndFunc

Func CreateMainWindow()
   #Region ### START Koda GUI section ### Form=C:\Users\Cédric\Desktop\GoogleDrive\ME\Projects\1_ON_FinanceApp\home.kxf
   $FormHome = GUICreate('Home', 1520, 1000, 200, 10)
   GUISetOnEvent($GUI_EVENT_CLOSE, 'On_Close_Main')
   $GroupBanner = GUICtrlCreateGroup('', 10, 10, 1500, 100)
   $LabelProgramTitle = GUICtrlCreateLabel('programTitle', 32, 24, 62, 17)
   $ListYear = GUICtrlCreateListView('Year', 10, 120, 250, 800)
   _GUICtrlListView_SetColumnWidth($ListYear, 0, 246)
   $ListBudget = GUICtrlCreateListView('Budgets', 270, 120, 250, 800)
   _GUICtrlListView_SetColumnWidth($ListBudget, 0, 246)
   $ListBill = GUICtrlCreateListView('Bills|Tests', 530, 120, 720, 800)
   $GroupFunctionsArea = GUICtrlCreateGroup('', 1260, 114, 250, 806)
   $ButtonNewBudget = GUICtrlCreateButton('New Budget', 1270, 130, 230, 30)
   $ButtonNewBill = GUICtrlCreateButton('New Bill', 1270, 170, 230, 30)
   $ButtonEditBill = GUICtrlCreateButton('Edit Bill', 1270, 210, 230, 30)
   GUISetState(@SW_SHOW)
   #EndRegion ### END Koda GUI section ###
EndFunc



Within the folowing folders I've created some test files with the indicated content:

  • in ./Data/Bills/2968108.ini
    [1]
    CompanyName=SwissCaution
    DueDate=31.12.2020
    Amount=126.5
    Splited=0
    Status=Active
  • in ./Data/Bills/F-206-2543-18.ini
    [1]
    CompanyName=Company Test
    DueDate=31.12.2020
    Amount=37.65
    Splited=0
    Status=Active
  • in ./Data/Budgets/2021/january.ini
    [1]
    Month=january
    Year=2021
    Status=Active
    [1-1]
    BillsId=2968108
    [1-2]
    BillsId=F-206-2543-18



Do you have any idea?



Share this post


Link to post
Share on other sites

Moved to the appropriate forum, as the Developer General Discussion forum very clearly states:

Quote

General development and scripting discussions.


Do not create AutoIt-related topics here, use the AutoIt General Help and Support or AutoIt Technical Discussion forums.

Moderation Team


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

This should do it:

Func DisplayBills()
   _GUICtrlListView_DeleteAllItems($ListBill) ;Free space to display next bills
   $selectedBudget = StringTrimRight(GUICtrlRead(GUICtrlRead($ListBudget)), 1)
   $ArrayDataBillList=""
   Global $ArrayDataBillList[200]
   GetDataBillList()
   FillBillsList()
EndFunc

You have an array which is not cleared, and therefore all items in it are added to the Listview.

Share this post


Link to post
Share on other sites

Hi, Dan_555,

Thanks for your answer.

I tried this, it doesn't work.

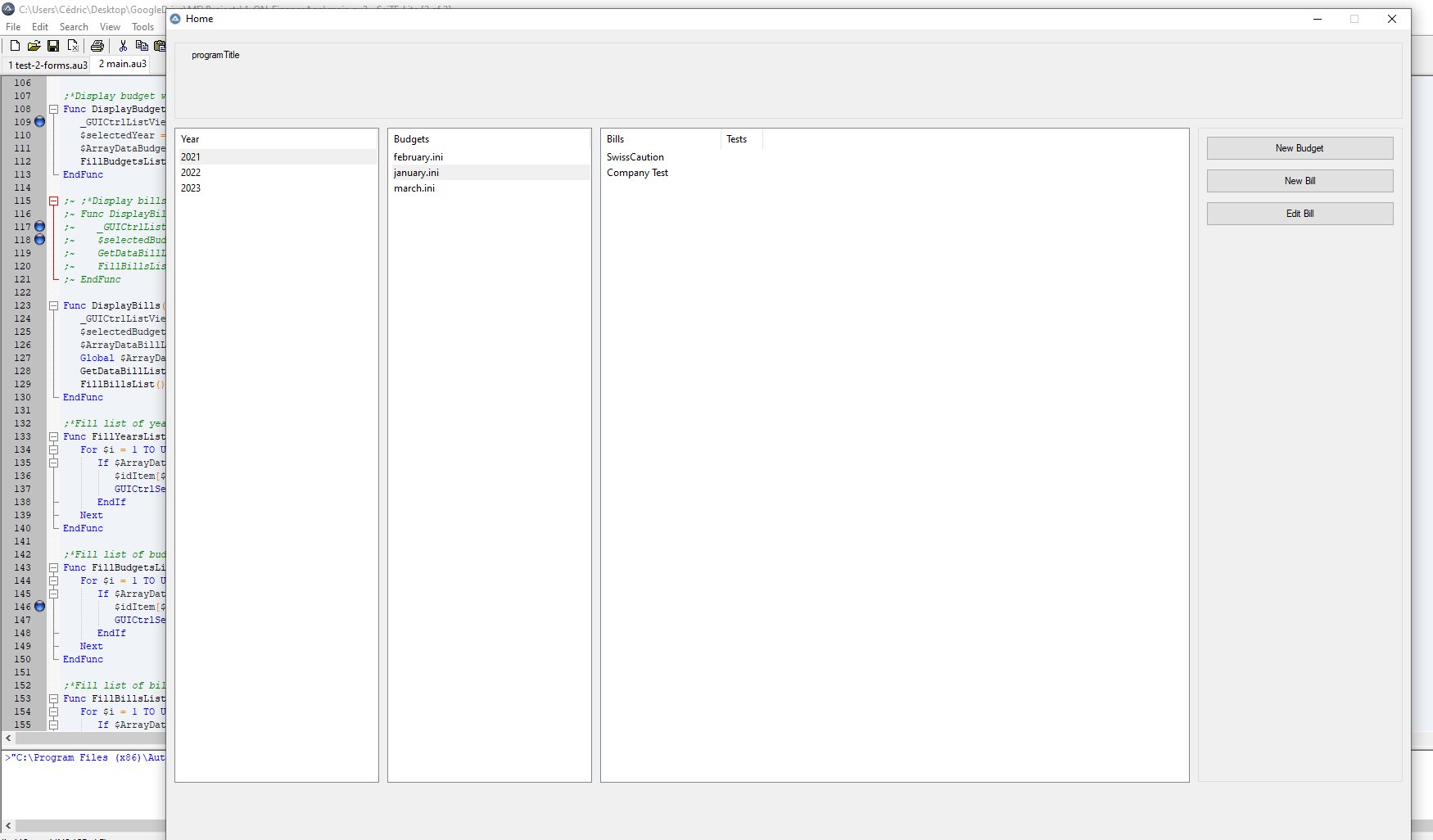

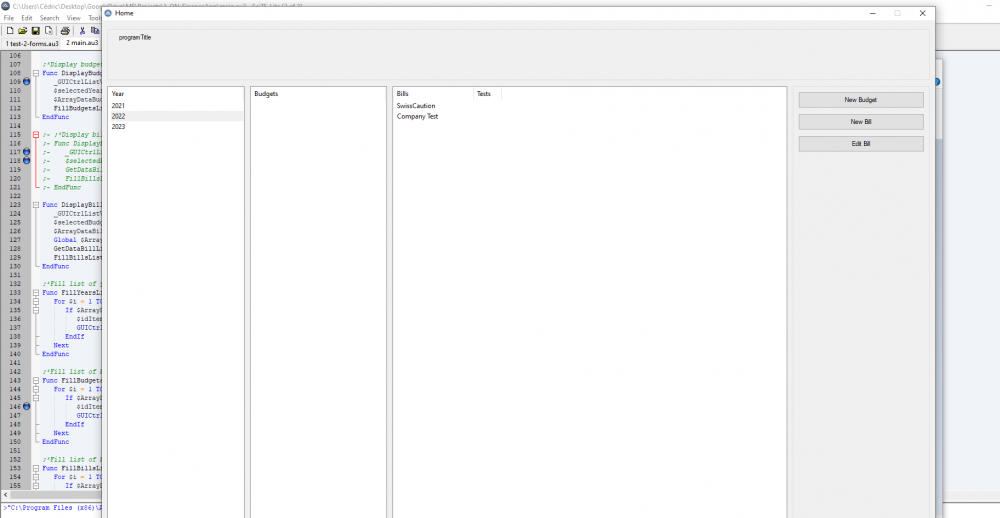

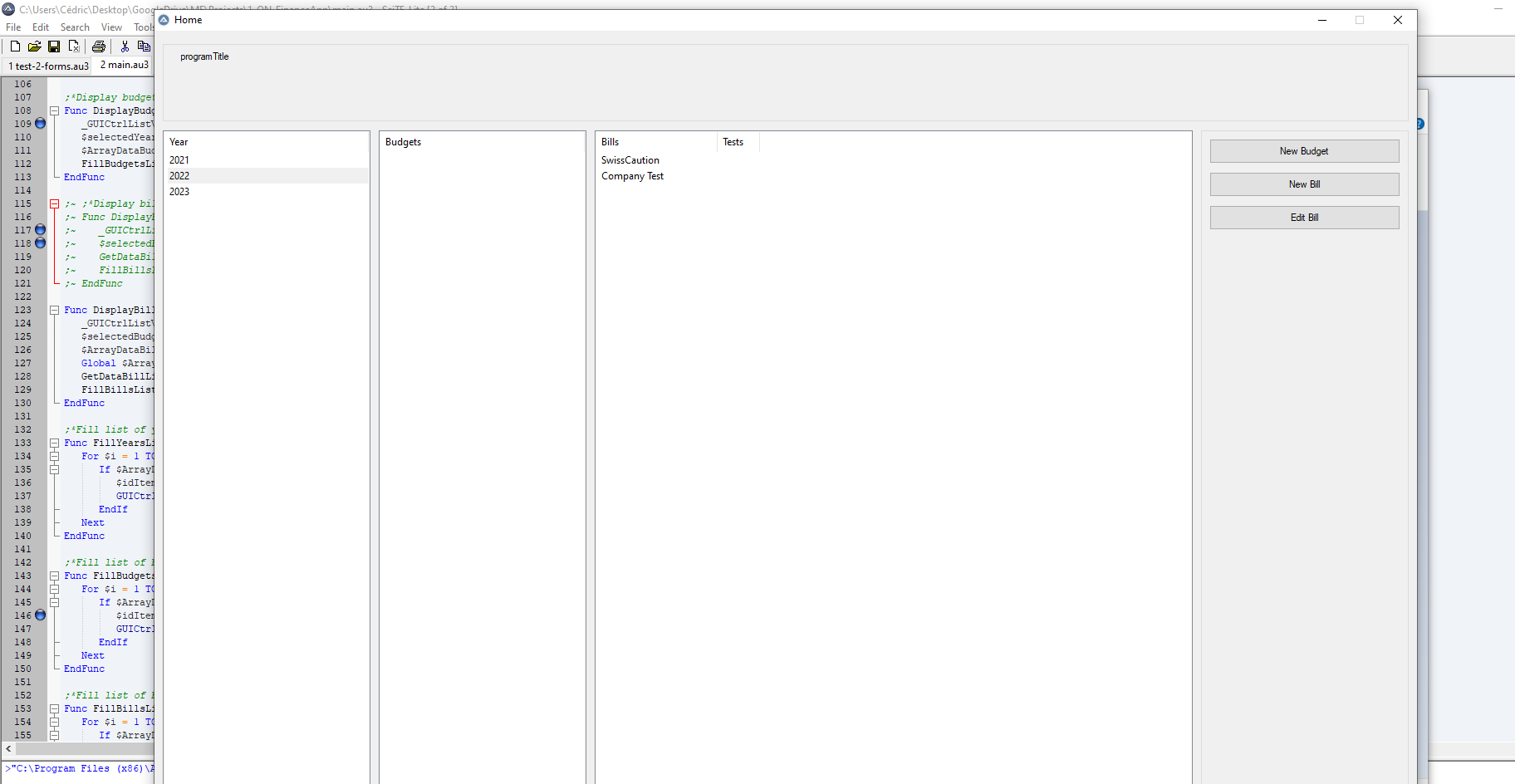

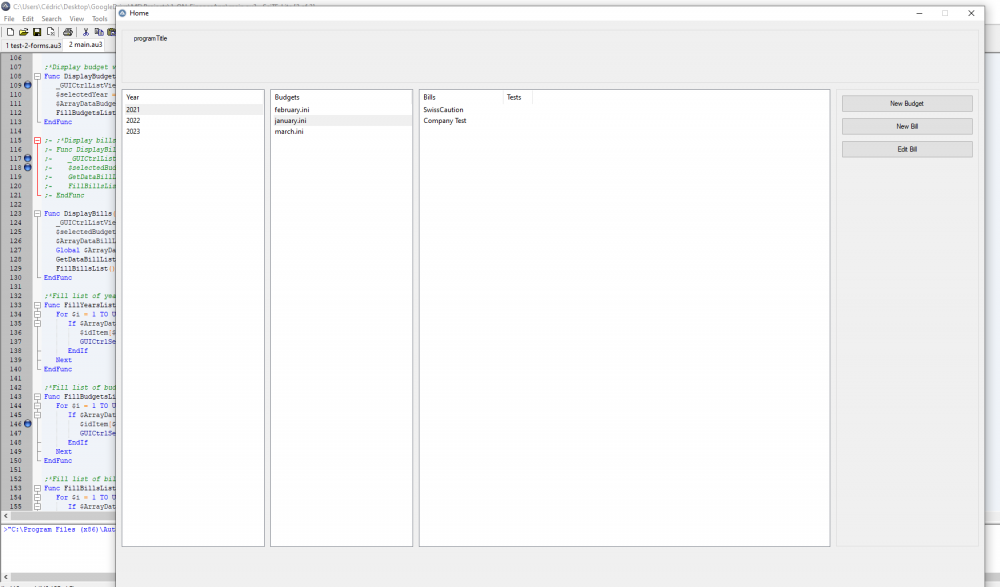

I've linked print screen with a selected year and month that contains bills, (picture test-ok.png), and another with a selected year that contains nothing the bill list stay visible even no month is selected (picture test-nok.png).



Share this post


Link to post
Share on other sites

Could you create the Data folder structure with the ini files, zip that into a file and attach it in OP, so we can test more easily your code.

Share this post


Link to post
Share on other sites

Replace those 2 func with this :

Func DisplayBudgets()
   _GUICtrlListView_DeleteAllItems($ListBudget) ;Free space to display next bill list
   _GUICtrlListView_DeleteAllItems($ListBill) ;Free space to display next bills
   $selectedYear = StringTrimRight(GUICtrlRead(GUICtrlRead($ListYear)), 1)
   $ArrayDataBudgetList = GetDataBudgetList()
   FillBudgetsList()
EndFunc

Func DisplayBills()
   _GUICtrlListView_DeleteAllItems($ListBill) ;Free space to display next bills
   Global $ArrayDataBillList[200]
   $selectedBudget = StringTrimRight(GUICtrlRead(GUICtrlRead($ListBudget)), 1)
   GetDataBillList()
   FillBillsList()
EndFunc
