Non-Control Buttons and Mouse Clicks


Recommended Posts

I work in Health Care IT and I am trying to make an automation for our Pharmacy Big Boards. We use a program call Epic Hyperspace to display the information they need on the Board. I have everything up to an including logging in however once in there are buttons that need to be selected however they are not standard control type buttons for me to code to click them.

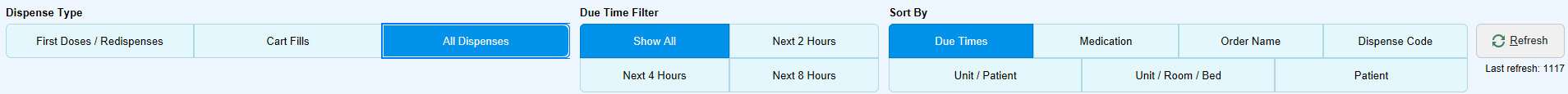

Here is an image of what I am talking about:


The three selected buttons are the one that need to be selected every time that it first comes up. I do know that the applications does use IE in some form on the window as it shows Internet Explorer_Server in the control class however I have no way to see the IE code only what is being displayed.

I did think about mouse positioning but unfortunately the RX Board displays are not standard and different sizes so I am not sure how to click the location taking that into account.

If anyone has any ideas I would love to hear them.

Link to post
Share on other sites

Follow up to this issue and the vendor was able to provide the the control elements for the buttons. I assume I can use the IEAction to click this button. Here is the Element control ID for the button ctl_DispenseQueue_3_togAllDispenses.

Can someone confirm?

Link to post
Share on other sites

If the GUI is an HTML page embedded in the application by a BrowserControl, as it appears to be, before you can manage the components of that page you must create a reference to that embedded BrowserControl in your AutoIt script. To do this you can use _IEAttach. Read the help of that command. I don't have that application Epic Hyperspace you want to manage, but using the AutoIt help program as a "guinea pig", I can give a simple example to get you started. In fact the Help program has a BrowserControl incorporated and therefore you should proceed more or less in the same way. Before running this little script you need to open the AutoIt help and leave it open. You should also change the "AutoIt Help (v3.3.14.5)" string if your help version is different. Just as a simple example, the script will change the background color of the page displayed in the help. You should try something similar with your program...
#include <IE.au3>
Local $hWND = WinGetHandle("AutoIt Help (v3.3.14.5)") ; handle of the Hlp window
MsgBox(0, "Debug", IsHWnd($hWND))
Local $oIE = _IEAttach($hWND, "embedded") ; get reference to the embedded BrowserControl
MsgBox(0, "Debug", IsObj($oIE))
Local $oBody = $oIE.document.body ; get a reference of the <body>
MsgBox(0, "Debug", IsObj($oBody))
$oBody.style.background = "red" ; mchange background color



small minds discuss people average minds discuss events great minds discuss ideas.... and use AutoIt....

Link to post
Share on other sites
2 hours ago, NoblePrimus said:

Follow up to this issue and the vendor was able to provide the the control elements for the buttons. I assume I can use the IEAction to click this button. Here is the Element control ID for the button ctl_DispenseQueue_3_togAllDispenses.

Can someone confirm?

once you have the reference to the BrowserControl in the $oIE variable, you have to get a also a reference to that button by it's ID:

Local $oButton1 = _IEGetObjById($oIE, "ctl_DispenseQueue_3_togAllDispenses")

and then you can use the IEAction function to click that button:

_IEAction($oButton1, "click")



small minds discuss people average minds discuss events great minds discuss ideas.... and use AutoIt....

Link to post
Share on other sites

Thanks for the response. However I am having issue where the button is not found. I created a debug for the button and I get 0 as a response.

Local $hWND = WinGetHandle("[CLASS:ThunderRT6MDIForm]") ; handle of the Hlp window
MsgBox(0, "Debug", IsHWnd($hWND))
Local $oIE = _IEAttach($hWND, "embedded") ; get reference to the embedded BrowserControl
MsgBox(0, "Debug", IsObj($oIE))
Local $oButton1 = _IEGetObjById($oIE, "ctl_DispenseQueue_3_togAllDispenses")
MsgBox(0, "Debug", IsObj($oButton1))
_IEAction($oButton1, "click")

I went ahead and grabbed the summary of the window but I am not sure if this will help figure it out.

>>>> Window <<<<
Title:    Hyperspace - WCH IP PHARMACY - UC Health TST Environment - CLIENT B.
Class:    ThunderRT6MDIForm
Position:    50, 25
Size:    1820, 990
Style:    0x16CF0000
ExStyle:    0x00040100
Handle:    0x0000000000050728

>>>> Control <<<<
Class:    Internet Explorer_Server
Instance:    1
ClassnameNN:    Internet Explorer_Server1
Name:
Advanced (Class):    [CLASS:Internet Explorer_Server; INSTANCE:1]
ID:
Text:
Position:    5, 86
Size:    1794, 860
ControlClick Coords:    98, 53
Style:    0x56000000
ExStyle:    0x00000000
Handle:    0x00000000000306E4

>>>> Mouse <<<<
Position:    103, 139
Cursor ID:    2
Color:    0x33A7EE

>>>> StatusBar <<<<

>>>> ToolsBar <<<<

>>>> Visible Text <<<<
Dispense Queue: WCH CENTRAL PHARMACY


>>>> Hidden Text <<<<
LefterForm
Text1
txtFocus
Form1
Frame1
txtFocus
Search


Link to post
Share on other sites

Try to read the body.  You may get html tags and ids that you are looking for...

Local $hWND = WinGetHandle("[CLASS:ThunderRT6MDIForm]") ; handle of the Hlp window
MsgBox(0, "Debug", IsHWnd($hWND))
Local $oIE = _IEAttach($hWND, "embedded") ; get reference to the embedded BrowserControl
MsgBox(0, "Debug", IsObj($oIE))
ConsoleWrite (_IEBodyReadHTML($oIE))



Link to post
Share on other sites

Ok that was my mistake here is what It showed me:

<div class="offscrn"><div tabindex="-1" class="offscrn" id="__zFocusSafetyNetEl"></div></div>
<div class="offscrn" id="sojFTraps"><div class="clearLabel _reusable" id="ctl_8" aria-hidden="true" aria-label="" data-zfocuscatcher="1"></div></div>
<form id="formShell" role="presentation" aria-label="" action="./AutoLogin.aspx" method="post">
<div class="aspNetHidden">
<input name="__VIEWSTATE" id="__VIEWSTATE" type="hidden" value="Vhih5kyhQ1Q2StdQ+2vMSitm9lsgtDv8ADe3Jq7tD1qZLMyYn7Ar3Vk1Kj94n/MXr9bX80FcxVEfmSfmOgR1chOFpj+dQc/g7X1aXtmGT/Q=">
</div>

<div class="aspNetHidden">

<input name="__VIEWSTATEGENERATOR" id="__VIEWSTATEGENERATOR" type="hidden" value="B96A4CE6">
</div>

<script src="/HSWeb_tst_950-7/Assets/Core/Scripts/Shell.cjs" type="text/javascript"></script>
<script src="/HSWeb_tst_950-7/Shell/Scripts/CoreSet4.cjs" type="text/javascript"></script>
<script src="/HSWeb_tst_950-7/Shell/Handlers/ServiceProxyLoader.ashx?mode=f" type="text/javascript"></script>
<script src="/HSWeb_tst_950-7/Shell/Scripts/DelayedCoreSet.cjs" type="text/javascript"></script>
<script src="/HSWeb_tst_950-7/Assets/Core/Scripts/Data/SearchAsYouType/Soundexer/EnglishSoundexer.js" type="text/javascript"></script>
<script src="/HSWeb_tst_950-7/Assets/Core/Scripts/Shell/Host/VBHost.js" type="text/javascript"></script>
<script src="/HSWeb_tst_950-7/Shell/Scripts/CommonSet.cjs" type="text/javascript"></script>
<script src="/HSWeb_tst_950-7/Views/Core/Shell/VBShellView/VbShellView.cjs" type="text/javascript"></script>

<script type="text/javascript">
//<![CDATA[
Epic.Core.Web.ClientSettings={};Epic.Core.Web.ClientSettings.TerminalMode=2;Epic.Core.Web.ClientSettings.ScreenReaderEnabled=false;Epic.Core.Web.ClientSettings.EncryptionEnabled=false;Epic.Core.Web.ClientSettings.IsClipboardSecurityEnabled=true;Epic.Core.Web.UserSettings={"PopupSuppressionKeys":{},"IsHyperspacePersonalizationLicensed":true,"ApplicationNameTagCategory":"1","ApplicationNameTagTitle":"Epic","ZeroStateBrandingEnabled":true};$$_zzTop.Epic.Core.Data.Web.TypeInfo._setNewTypesMetadata("{\"tp\":[{\"nm\":\"VBShellViewBehavior:#Epic.Core.Shell.Web.Views\",\"nf\":[\"Epic.Core.Shell.Web.Views.VBShellViewBehavior, Epic.Core.Shell.Web.Views, Version=95.0.0.0, Culture=neutral, PublicKeyToken=null\",\"Epic.Core.Shell.Web.Views.VBShellViewBehavior\"],\"pr\":[{\"pn\":\"SkillManager\",\"st\":false,\"oop\":false,\"f\":\"d\"},{\"pn\":\"ShellData\",\"st\":false,\"oop\":false},{\"pn\":\"PreloadedTimeZoneData\",\"st\":false,\"oop\":false},{\"pn\":\"VBWorkspace\",\"st\":false,\"oop\":false},{\"pn\":\"ShellSettings\",\"st\":false,\"oop\":false},{\"pn\":\"ViewCustomizationAgent\",\"st\":false,\"oop\":false},{\"pn\":\"SidebarWidthSize\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"HasViewCustomizations\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"SaveSidebarWidth\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"UALViewState\",\"st\":false,\"oop\":false},{\"pn\":\"ViewValidationErrors\",\"st\":false,\"oop\":false},{\"pn\":\"UpdatableBindables\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"TemporaryDynamicINIRecord\",\"st\":false,\"oop\":false},{\"pn\":\"FileExportHelper\",\"st\":false,\"oop\":false},{\"pn\":\"_needsContentElementWrapper\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"SyncToWeb\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IsAllowedInWebShellExternally\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"AdditionalViewAccessInfoStrings\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"MinWidthRangeMin\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"MinWidthRangeMax\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"AcquiredInfoMetadata\",\"st\":false,\"oop\":false}]},{\"nm\":\"VBSkillManager:#Epic.Core.Shell.Web\",\"nf\":[\"Epic.Core.Shell.Web.VBSkillManager, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"/Assets/Core/Scripts/Shell/Skill/SkillManagerBase:SkillManagerBase\"],\"pr\":[{\"pn\":\"Skills\",\"st\":false,\"oop\":false},{\"pn\":\"SkillState\",\"st\":false,\"oop\":false},{\"pn\":\"StartupSkillActions\",\"st\":false,\"oop\":false},{\"pn\":\"ClientOnlySkills\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"Subscriptions\",\"st\":false,\"oop\":false}]},{\"nm\":\"TrackableMapOfSkill:#Epic.Core.Data\",\"nf\":[\"Epic.Core.Data.TrackableMap`1[[Epic.Core.Shell.Web.Skill, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null]], Epic.Core.Data, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"/Assets/Core/Scripts/Data/Serialization/TrackableMap.js:TrackableMap\"],\"pr\":[{\"pn\":\"SyncDictionary\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"Collection\",\"st\":false,\"oop\":false,\"f\":\"d\"},{\"pn\":\"SerializedKeys\",\"st\":false,\"oop\":false,\"f\":\"r\"}]},{\"nm\":\"ListOf<Skill:#Epic.Core.Shell.Web>\",\"nf\":[\"Epic.Core.Data.TrackableCollection`1[[Epic.Core.Shell.Web.Skill, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null]], Epic.Core.Data, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"\",\"1\",\"\",\"Skill:#Epic.Core.Shell.Web\"]},{\"nm\":\"Skill:#Epic.Core.Shell.Web\",\"nf\":[\"Epic.Core.Shell.Web.Skill, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"/Assets/Core/Scripts/Shell/Skill/Skill:SealedSkill\"]},{\"nm\":\"BarcodeManagerSkill:#Epic.Common.Barcode.Scanning.Web\",\"nf\":[\"Epic.Common.Barcode.Scanning.Web.BarcodeManagerSkill, Epic.Common.Barcode.Scanning.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"/Assets/Clinical/Common/Scripts/Barcode/BarcodeManagerSkill:BarcodeManagerSkill\"]},{\"nm\":\"DictionaryOfStringAndObject:#System.Collections.Generic\",\"nf\":[\"System.Collections.Generic.Dictionary`2[[System.String, mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089],[System.Object, mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089]], mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089\",\"\",\"\",\"\",\"Object:#System\"]},{\"nm\":\"Object:#System\",\"nf\":[\"System.Object, mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089\"]},{\"nm\":\"TrackableMapOfSubscription:#Epic.Core.Data\",\"nf\":[\"Epic.Core.Data.TrackableMap`1[[Epic.Core.Shell.Web.Subscription, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null]], Epic.Core.Data, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"/Assets/Core/Scripts/Data/Serialization/TrackableMap.js:TrackableMap\"],\"pr\":[{\"pn\":\"SyncDictionary\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"Collection\",\"st\":false,\"oop\":false,\"f\":\"d\"},{\"pn\":\"SerializedKeys\",\"st\":false,\"oop\":false,\"f\":\"r\"}]},{\"nm\":\"ListOf<Subscription:#Epic.Core.Shell.Web>\",\"nf\":[\"Epic.Core.Data.TrackableCollection`1[[Epic.Core.Shell.Web.Subscription, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null]], Epic.Core.Data, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"\",\"1\",\"\",\"Subscription:#Epic.Core.Shell.Web\"]},{\"nm\":\"Subscription:#Epic.Core.Shell.Web\",\"nf\":[\"Epic.Core.Shell.Web.Subscription, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\"],\"pr\":[{\"pn\":\"SignalRTopic\",\"st\":false,\"oop\":false},{\"pn\":\"DataEvent\",\"st\":false,\"oop\":false},{\"pn\":\"HandlingBehavior\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"SkillName\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"SkillAction\",\"st\":false,\"oop\":false,\"f\":\"r\"}]},{\"nm\":\"ShellViewModel:#Epic.Core.Shell.Views.Web\",\"nf\":[\"Epic.Core.Shell.Views.Web.ShellViewModel, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\"],\"pr\":[{\"pn\":\"ViewSets\",\"st\":false,\"oop\":false},{\"pn\":\"UserName\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"InactivityTimeoutValue\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"InactivityTimeoutAction\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"BarcodeListenerSettings\",\"st\":false,\"oop\":false},{\"pn\":\"BarcodeReceiverSettings\",\"st\":false,\"oop\":false},{\"pn\":\"IsReadOnly\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"OidEnvironmentType\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IsInternalEnvironment\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"HyperTraceBrowserSettings\",\"st\":false,\"oop\":false},{\"pn\":\"UserActionLogBrowserSettings\",\"st\":false,\"oop\":false},{\"pn\":\"InstrumentationSettings\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"SkinSessionData\",\"st\":false,\"oop\":false},{\"pn\":\"Skins\",\"st\":false,\"oop\":false},{\"pn\":\"IsUserLoggedIn\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"MaxRequestLengthInKB\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IsCommunityUser\",\"st\":false,\"oop\":false,\"f\":\"r\"}]},{\"nm\":\"BarcodeSettings:#Epic.Core.Web\",\"nf\":[\"Epic.Core.Web.BarcodeSettings, Epic.Core.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\"],\"pr\":[{\"pn\":\"Prefix\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"Suffix\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"KeyTimeout\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"SuffixTimeout\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"MinDataLength\",\"st\":false,\"oop\":false,\"f\":\"r\"}]},{\"nm\":\"HyperTraceBrowserSettings:#Epic.Core.Performance\",\"nf\":[\"Epic.Core.Performance.HyperTraceBrowserSettings, Epic.Core.Performance.Data, Version=95.0.0.0, Culture=neutral, PublicKeyToken=null\"],\"pr\":[{\"pn\":\"RTTFlushSize\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"HSIFlushSize\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"FlushTimeout\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IgnoreStepThreshold\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"YellowExceptionThreshold\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"CollectChildElementCount\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IgnoreDataMethodList\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"EnableCPUMain\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IsDelayedTraceXDisabled\",\"st\":false,\"oop\":false,\"f\":\"r\"}]},{\"nm\":\"SessionBrowserSettings:#Epic.Core.UserActionLog\",\"nf\":[\"Epic.Core.UserActionLog.SessionBrowserSettings, Epic.Core.UserActionLog, Version=95.0.0.0, Culture=neutral, PublicKeyToken=null\"],\"pr\":[{\"pn\":\"Allow\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"AllowDebugFlush\",\"st\":false,\"oop\":false,\"f\":\"r\"}]},{\"nm\":\"SkinSessionData:#Epic.Core.Web\",\"nf\":[\"Epic.Core.Web.SkinSessionData, Epic.Core.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"\",\"\",\"1\"],\"pr\":[{\"pn\":\"Skin\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"Decoration\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"ShowOrnament\",\"st\":false,\"oop\":false,\"f\":\"r\"}]},{\"nm\":\"SkinDictionary:#Epic.Core.Web\",\"nf\":[\"Epic.Core.Web.SkinDictionary, Epic.Core.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"\",\"\",\"\",\"Skin:#Epic.Core.Web\"]},{\"nm\":\"Skin:#Epic.Core.Web\",\"nf\":[\"Epic.Core.Web.Skin, Epic.Core.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"\",\"\",\"1\"],\"pr\":[{\"pn\":\"Name\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IsDefaultSkin\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IsHighContrast\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IsLowLight\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IsIntense\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IsReducedLight\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"VBThemeFile\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"DefaultDecorationName\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"Type\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IsInternalOnly\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IsWebOnly\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"ArrayOfBackgroundSetting\",\"st\":false,\"oop\":false},{\"pn\":\"ArrayOfColorSetting\",\"st\":false,\"oop\":false},{\"pn\":\"ArrayOfSizeSetting\",\"st\":false,\"oop\":false},{\"pn\":\"Decorations\",\"st\":false,\"oop\":false}]},{\"nm\":\"SkinSettingsListOfSkinBackgroundSetting:#Epic.Core.Web\",\"nf\":[\"Epic.Core.Web.Skin+SkinSettingsList`1[[Epic.Core.Web.SkinBackgroundSetting, Epic.Core.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null]], Epic.Core.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"\",\"\",\"\",\"BackgroundSetting:#Epic.Core.Web\"]},{\"nm\":\"BackgroundSetting:#Epic.Core.Web\",\"nf\":[\"Epic.Core.Web.SkinBackgroundSetting, Epic.Core.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\"],\"pr\":[{\"pn\":\"Name\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"Value\",\"st\":false,\"oop\":false,\"f\":\"r\"}]},{\"nm\":\"SkinSettingsListOfSkinColorSetting:#Epic.Core.Web\",\"nf\":[\"Epic.Core.Web.Skin+SkinSettingsList`1[[Epic.Core.Web.SkinColorSetting, Epic.Core.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null]], Epic.Core.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"\",\"\",\"\",\"ColorSetting:#Epic.Core.Web\"]},{\"nm\":\"ColorSetting:#Epic.Core.Web\",\"nf\":[\"Epic.Core.Web.SkinColorSetting, Epic.Core.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\"],\"pr\":[{\"pn\":\"Name\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"Value\",\"st\":false,\"oop\":false,\"f\":\"r\"}]},{\"nm\":\"SkinSettingsListOfSkinSizeSetting:#Epic.Core.Web\",\"nf\":[\"Epic.Core.Web.Skin+SkinSettingsList`1[[Epic.Core.Web.SkinSizeSetting, Epic.Core.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null]], Epic.Core.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"\",\"\",\"\",\"SizeSetting:#Epic.Core.Web\"]},{\"nm\":\"SizeSetting:#Epic.Core.Web\",\"nf\":[\"Epic.Core.Web.SkinSizeSetting, Epic.Core.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\"],\"pr\":[{\"pn\":\"Name\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"Value\",\"st\":false,\"oop\":false,\"f\":\"r\"}]},{\"nm\":\"DictionaryOfStringAndISetOfString:#System.Collections.Generic\",\"nf\":[\"System.Collections.Generic.Dictionary`2[[System.String, mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089],[System.Collections.Generic.ISet`1[[System.String, mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089]], System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089]], mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089\",\"\",\"\",\"\",\"ISetOfString:#System.Collections.Generic\"]},{\"nm\":\"ISetOfString:#System.Collections.Generic\",\"nf\":[\"System.Collections.Generic.ISet`1[[System.String, mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089]], System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089\"]},{\"nm\":\"HashSetOfString:#System.Collections.Generic\",\"nf\":[\"System.Collections.Generic.HashSet`1[[System.String, mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089]], System.Core, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089\"]},{\"nm\":\"ListOfTimeZoneThresholdInfo:#System.Collections.Generic\",\"nf\":[\"System.Collections.Generic.List`1[[Epic.Core.TimeZone.TimeZoneThresholdInfo, Epic.Core.TimeZone, Version=95.0.0.0, Culture=neutral, PublicKeyToken=null]], mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089\",\"\",\"\",\"\",\"TimeZoneThresholdInfo:#Epic.Core.TimeZone\"]},{\"nm\":\"TimeZoneThresholdInfo:#Epic.Core.TimeZone\",\"nf\":[\"Epic.Core.TimeZone.TimeZoneThresholdInfo, Epic.Core.TimeZone, Version=95.0.0.0, Culture=neutral, PublicKeyToken=null\"],\"pr\":[{\"pn\":\"timeZoneId\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"timeZoneName\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"tzMarkerList\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"tzOffsetList\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"utc2LocalMInstants\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"utc2LocalTZMarkerIndex\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"local2UtcMInstants\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"local2UtcTZMarkerIndex\",\"st\":false,\"oop\":false,\"f\":\"r\"}]},{\"nm\":\"ShellSettings:#Epic.Core.Shell.Views.Web\",\"nf\":[\"Epic.Core.Shell.Views.Web.ShellSettings, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"\",\"\",\"1\"],\"pr\":[{\"pn\":\"DateFormatsMap\",\"st\":false,\"oop\":false},{\"pn\":\"TimeFormatsMap\",\"st\":false,\"oop\":false},{\"pn\":\"UseMetricUnitsOnly\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IconLibraries\",\"st\":false,\"oop\":false},{\"pn\":\"IconLibraryKeys\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"RedirectedIconKeys\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"DatabaseUTCMInstant\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"NormalizedCharactersMap\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"SystemTimeZoneId\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"SessionTimeZoneId\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"EnableJSDSTChecks\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IsDebuggerAttached\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"DateTimeSettings\",\"st\":false,\"oop\":false},{\"pn\":\"HasNumericNationalIdFormat\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"HasNumericZipCodeFormat\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"DecimalPoint\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"GroupSeparator\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"ListSeparator\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"RangeSeparator\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"RangeSpaces\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"DurationToCacheRecords\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"DurationToCacheCategories\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"NumberOfListsToCache\",\"st\":false,\"oop\":false,\"f\":\"r\"}]},{\"nm\":\"DictionaryOfDateFormatsAndString:#System.Collections.Generic\",\"nf\":[\"System.Collections.Generic.Dictionary`2[[Epic.Core.Extensions.DateFormats, Epic.Core, Version=95.0.0.0, Culture=neutral, PublicKeyToken=null],[System.String, mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089]], mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089\"]},{\"nm\":\"DictionaryOfTimeFormatsAndString:#System.Collections.Generic\",\"nf\":[\"System.Collections.Generic.Dictionary`2[[Epic.Core.Extensions.TimeFormats, Epic.Core, Version=95.0.0.0, Culture=neutral, PublicKeyToken=null],[System.String, mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089]], mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089\"]},{\"nm\":\"ListOfIconLibrary:#System.Collections.Generic\",\"nf\":[\"System.Collections.Generic.List`1[[Epic.Core.Controls.Web.IconLibrary, Epic.Core.Controls.Sprite.Web, Version=95.0.0.0, Culture=neutral, PublicKeyToken=null]], mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089\",\"\",\"\",\"\",\"IconLibrary:#Epic.Core.Controls.Web\"]},{\"nm\":\"IconLibrary:#Epic.Core.Controls.Web\",\"nf\":[\"Epic.Core.Controls.Web.IconLibrary, Epic.Core.Controls.Sprite.Web, Version=95.0.0.0, Culture=neutral, PublicKeyToken=null\"],\"pr\":[{\"pn\":\"Name\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IconWidth\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"IconHeight\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"HighlightColors\",\"st\":false,\"oop\":false,\"f\":\"r\"}]},{\"nm\":\"DateTimeSystemSettings:#Epic.Core.Shell.Views.Web\",\"nf\":[\"Epic.Core.Shell.Views.Web.ShellSettings+DateTimeSystemSettings, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\",\"\",\"\",\"1\"],\"pr\":[{\"pn\":\"Use24HourClock\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"FirstWeekendDay\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"SecondWeekendDay\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"TwoDigitYearMax\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"FirstDayOfTheWeek\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"DisplayWeekNumber\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"DisplayDateFormatGhostText\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"DateShortcutMap\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"TimeShortcutMap\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"TimeZoneAbbreviationMap\",\"st\":false,\"oop\":false},{\"pn\":\"DateSeparator\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"TimeSeparator\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"AMDesignator\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"ShortAMDesignator\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"PMDesignator\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"ShortPMDesignator\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"MonthNames\",\"st\":false,\"oop\":false},{\"pn\":\"GenitiveMonthNames\",\"st\":false,\"oop\":false},{\"pn\":\"ShortMonthNames\",\"st\":false,\"oop\":false},{\"pn\":\"DayNames\",\"st\":false,\"oop\":false},{\"pn\":\"ShortDayNames\",\"st\":false,\"oop\":false}]},{\"nm\":\"ListOf<ViewValidationError:#Epic.Core.Shell.Views.Web>\",\"nf\":[\"System.Collections.ObjectModel.ObservableCollection`1[[Epic.Core.Shell.Views.Web.ViewValidationError, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null]], System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089\",\"\",\"1\",\"\",\"ViewValidationError:#Epic.Core.Shell.Views.Web\"]},{\"nm\":\"ViewValidationError:#Epic.Core.Shell.Views.Web\",\"nf\":[\"Epic.Core.Shell.Views.Web.ViewValidationError, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\"],\"pr\":[{\"pn\":\"Level\",\"st\":false,\"oop\":false,\"f\":\"r\"},{\"pn\":\"Message\",\"st\":false,\"oop\":false,\"f\":\"r\"}]}],\"dm\":\"[{\\\"ctn\\\":\\\"Epic.Core.Shell.Web.Views.VBShellViewBehavior\\\",\\\"ims\\\":{\\\"StoreViews\\\":{\\\"pc\\\":7},\\\"UpdateInactivityTimeout\\\":{},\\\"GetSmartHelpContexts\\\":{\\\"pc\\\":1},\\\"AddTimeZoneData\\\":{\\\"pc\\\":1},\\\"SetTimeZoneDataLoaded\\\":{\\\"pc\\\":1},\\\"SetSidebarWidth\\\":{\\\"st\\\":1,\\\"pc\\\":1},\\\"ProcessTokenizedLaunch\\\":{\\\"mt\\\":1,\\\"st\\\":1,\\\"pc\\\":1,\\\"lo\\\":{\\\"launchType\\\":0,\\\"closeModalsPriorToLaunch\\\":true}},\\\"GetViewToolbarItems\\\":{\\\"st\\\":1,\\\"av\\\":[\\\"ws;false;FND_WS\\\"]},\\\"ObtainLaunchInformation\\\":{\\\"st\\\":1,\\\"pc\\\":3},\\\"GetFileExportParams\\\":{\\\"st\\\":1,\\\"pc\\\":2},\\\"GetFileExportParamsVB\\\":{\\\"st\\\":1,\\\"pc\\\":2},\\\"LaunchFileExportView\\\":{\\\"mt\\\":1,\\\"st\\\":1,\\\"pc\\\":3,\\\"lo\\\":{\\\"launchType\\\":1,\\\"closeModalsPriorToLaunch\\\":true}},\\\"LaunchFileExportViewVB\\\":{\\\"mt\\\":1,\\\"st\\\":1,\\\"pc\\\":3,\\\"lo\\\":{\\\"launchType\\\":1,\\\"closeModalsPriorToLaunch\\\":true}},\\\"GetFileExportInfo\\\":{\\\"st\\\":1,\\\"pc\\\":1},\\\"GetFileExportInfoVB\\\":{\\\"st\\\":1,\\\"pc\\\":1},\\\"SaveFileExport\\\":{\\\"st\\\":1,\\\"pc\\\":2},\\\"RemoveFileExportManagerCache\\\":{\\\"st\\\":1,\\\"pc\\\":1},\\\"UpdateLegacyParameters\\\":{\\\"st\\\":1,\\\"pc\\\":2},\\\"UpdateBindables\\\":{\\\"st\\\":1,\\\"pc\\\":2},\\\"AcquireDynamicInfo\\\":{\\\"mt\\\":1,\\\"st\\\":1,\\\"pc\\\":1,\\\"lo\\\":{\\\"launchType\\\":1,\\\"closeModalsPriorToLaunch\\\":true}},\\\"AcquireDynamicRecord\\\":{\\\"mt\\\":1,\\\"st\\\":1,\\\"pc\\\":2,\\\"lo\\\":{\\\"launchType\\\":1,\\\"closeModalsPriorToLaunch\\\":true}},\\\"GenerateDynamicInfoTicket\\\":{\\\"st\\\":1,\\\"pc\\\":2},\\\"RedeemDynamicInfoTicket\\\":{\\\"st\\\":1,\\\"pc\\\":2}},\\\"sts\\\":[\\\"Epic.Core.Shell.Views.Web.ShellViewBehavior, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\\\",\\\"Epic.Core.Shell.Views.Web.ViewBehaviorBase, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\\\"]},{\\\"ctn\\\":\\\"/Assets/Core/Scripts/Shell/Skill/SkillManagerBase:SkillManagerBase\\\",\\\"ims\\\":{\\\"ProcessEncryptedMessage\\\":{\\\"pc\\\":1},\\\"SubscriptionEventLaunch\\\":{\\\"mt\\\":1,\\\"pc\\\":3,\\\"lo\\\":{\\\"launchType\\\":0,\\\"closeModalsPriorToLaunch\\\":true}},\\\"SwitchContext\\\":{\\\"mt\\\":1,\\\"pc\\\":1,\\\"lo\\\":{\\\"launchType\\\":0,\\\"closeModalsPriorToLaunch\\\":true}}},\\\"sts\\\":[\\\"Epic.Core.Shell.Web.SkillManagerBase, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\\\"]},{\\\"ims\\\":{\\\"LaunchFileExportView\\\":{\\\"mt\\\":1,\\\"pc\\\":3,\\\"lo\\\":{\\\"launchType\\\":1,\\\"closeModalsPriorToLaunch\\\":true}},\\\"LaunchFileExportViewVB\\\":{\\\"mt\\\":1,\\\"pc\\\":3,\\\"lo\\\":{\\\"launchType\\\":1,\\\"closeModalsPriorToLaunch\\\":true}}},\\\"sts\\\":[\\\"Epic.Core.Shell.Web.Security.FileExport.FileExportManagerHelper, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\\\"]},{\\\"ctn\\\":\\\"/Assets/Core/Scripts/Shell/Skill/SkillManagerBase:SkillManagerBase\\\",\\\"ims\\\":{\\\"ProcessEncryptedMessage\\\":{\\\"pc\\\":1},\\\"SubscriptionEventLaunch\\\":{\\\"mt\\\":1,\\\"pc\\\":3,\\\"lo\\\":{\\\"launchType\\\":0,\\\"closeModalsPriorToLaunch\\\":true}},\\\"SwitchContext\\\":{\\\"mt\\\":1,\\\"pc\\\":1,\\\"lo\\\":{\\\"launchType\\\":0,\\\"closeModalsPriorToLaunch\\\":true}}},\\\"sts\\\":[\\\"Epic.Core.Shell.Web.SkillManagerBase, Epic.Core.Shell.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\\\"]},{\\\"ctn\\\":\\\"/Assets/Clinical/Common/Scripts/Barcode/BarcodeManagerSkill:BarcodeManagerSkill\\\",\\\"ims\\\":{\\\"GetMatchesForBarcode\\\":{\\\"pc\\\":1},\\\"LaunchHandlerForBarcodeMatch\\\":{\\\"mt\\\":1,\\\"pc\\\":1,\\\"lo\\\":{\\\"launchType\\\":0,\\\"closeModalsPriorToLaunch\\\":true}}},\\\"sts\\\":[\\\"Epic.Common.Barcode.Scanning.Web.BarcodeManagerSkill, Epic.Common.Barcode.Scanning.Web, Version=95.1.0.0, Culture=neutral, PublicKeyToken=null\\\"]}]\",\"seq\":1,\"rs\":null}");//]]>
</script>

<div class="vw vws" id="ctl_VBShellView_1" aria-label="" epic:datacontextpath="$viewUseBehavior"><span id="shellView_vsMain" style="display: none;"></span><div tabindex="-1" class="vw" id="ctl_RxAdminWorkspace_2" role="presentation" aria-label="" epic:datacontextpath="$viewUseBehavior"><span id="ctl_RxAdminWorkspace_2_vsMain" style="display: none;"></span><iframe class="vFr" role="region" aria-describedby="a11y-lbl-13" src="https://hsweb-nonprod.uchealth.com/HSWeb_tst_950-7/ViewNavigateHost.aspx?id=DispenseQueue_3&amp;eventId=65&amp;workflowStepId=2&amp;shieldId=vs14&amp;Epic.Core.Shell.Web.ServiceToken=2968539157&amp;Epic.Core.Shell.Web.AuthToken=3575352752" frameborder="0" style="display: block;" aria-label="Dispense Queue" _zIsViewFrame="true"></iframe></div></div></form><div class="nodisp" aria-hidden="true"><label id="a11y-lbl-13"></label></div>
<div class="offscrn" id="sojBTraps"><div class="clearLabel _reusable" id="ctl_9" aria-hidden="true" aria-label="" data-zfocuscatcher="1"></div>
</div>

<div class="sojFrm" style="visibility: hidden; z-index: 11001248;" unselectable="on" _usable="true"></div>

So I think the buttons are part of an additional piece that is inside what this is showing me. I am seeing alot of Javascript and VBshell references.

Link to post
Share on other sites
Posted (edited)

Yes it is kind of unexpected as all the buttons are not shown in the code.  Could you try _IEDocReadHTML instead of bodyRead.  See if we can get additional informations.

Edited by Nine
Link to post
Share on other sites

Ok So I had to look up the _IEFrameGetCollection and use the code correctly. It did find one frame and does list the All Dispenses in the list of information that it could find. However it only listed the Text of the Button All Dispenses and not the actual button ctl_DispenseQueue_3_togAllDispenses.

Link to post
Share on other sites

Thank you, Thank you everyone.

I have it working to where it selects the button

Here is the code I ended up with incase other have this same issue:

Local $hWND = WinGetHandle("[CLASS:ThunderRT6MDIForm]") ; handle of the Hlp window
Local $oIE = _IEAttach($hWND, "embedded") ; get reference to the embedded BrowserControl
$oFrame = _IEFrameGetCollection($oIE, 0)
Local $oButton1 = _IEGetObjById($oFrame, "ctl_DispenseQueue_3_togAllDispenses")
_IEAction($oButton1, "click")

This is the last piece I needed for some of our big boards at our hospitals.
