output format from console to editbox and consolewrite

[nicknuke]

I am creating a simple one liner command to ssh server so "normal" user can do one simple task from their windows machine
without command line, just a plain gui and a click of a button.
I've managed to get it work so far ( taking scripts from this awesome forum, tbh.. )
The problem is when i test it, it can dump the output just fine on output panel in autoit ( consolewrite ),
but when i redirect it to an editbox, the format is awfull...

Would anyone care to help me with how to format the output on editbox to be the same like consolewrite output ?
the script snippet is here :



$answer = _runSshCommand($unixUser, $unixHost, $sshCommand, $unixPassword)
            ConsoleWrite($answer)
            GUICtrlSetData($Edit1,$answer & @CRLF)

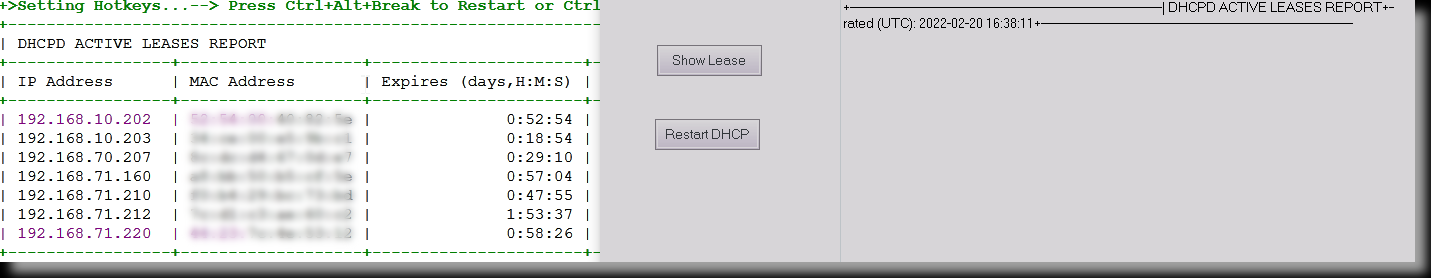

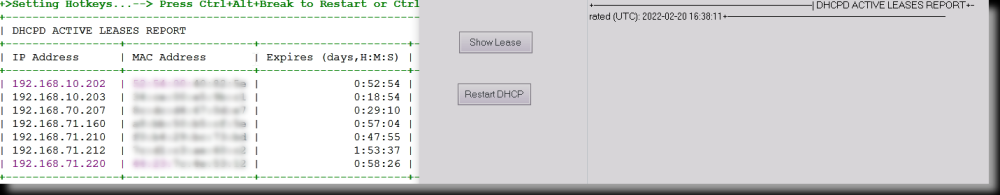

And the output is here, both consolewrite and editbox..


Thank you in advance ..






[Nine]

Just set the edit box to a fixed size font ?

[nicknuke]

20 minutes ago, Nine said:

Just set the edit box to a fixed size font ?

No go
I tried your suggestion right away, and set editbox font to fixedsys monospace font..
the output is still messed up ..

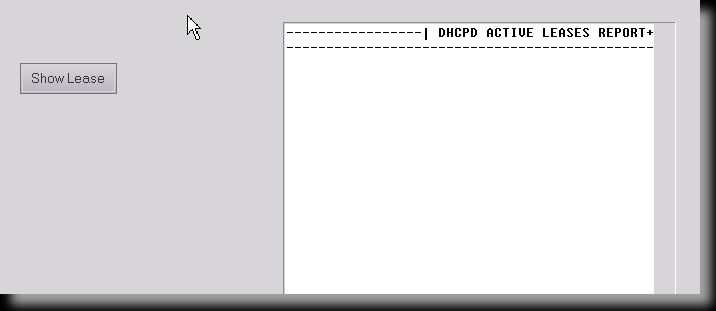

Koda's simple gui :



$Form1 = GUICreate("Form1", 826, 695, 571, 248)
$Edit1 = GUICtrlCreateEdit("", 368, 56, 393, 553, BitOR($ES_AUTOHSCROLL,$WS_HSCROLL,$WS_VSCROLL,$WS_BORDER), $WS_EX_STATICEDGE)
;GUICtrlSetData(-1, "Edit1")
GUICtrlSetFont(-1, 8, 400, 0, "Fixedsys")
$showleasebtn = GUICtrlCreateButton("Show Lease", 104, 96, 99, 33)
GUISetState(@SW_SHOW)



Edited February 20, 2022 by nicknuke

[Nine]

Copy the output to a notepad file and attach that file here.  Make a small snippet of your edit box so we can test it here, reading the file.

[Zedna]

I think that problem is LF as end of line in your output but for EditBox you need CRLF.

[nicknuke]

On 2/21/2022 at 12:53 AM, Nine said:

Copy the output to a notepad file and attach that file here.  Make a small snippet of your edit box so we can test it here, reading the file.

I changed the command to a simple "ls -l <directory> on linux machine, the result is pretty much the same..
It even has "quite right" display when it's being output to msgbox..

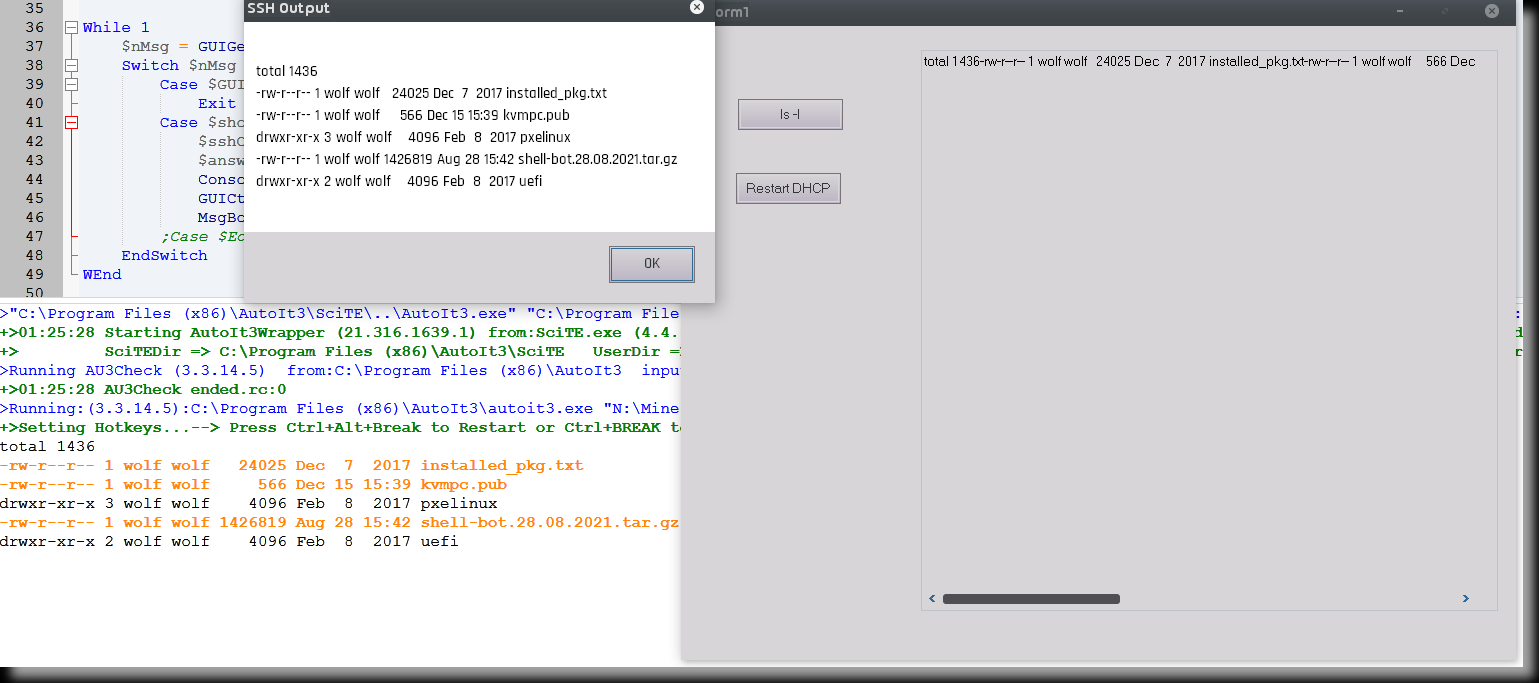

here are all the snip and snaps.. I dumped the output to editbox,msgbox, and consolewrite..


#Region ### START Koda GUI section ### Form=
$Form1 = GUICreate("Form1", 835, 634, 622, 236)
$Edit1 = GUICtrlCreateEdit("", 240, 24, 577, 561,BitOR( $ES_WANTRETURN, $WS_VSCROLL, $WS_HSCROLL, $ES_AUTOVSCROLL, $ES_AUTOHSCROLL, $ES_READONLY))
GUICtrlSetData(-1, "Edit1")
$showleasebtn = GUICtrlCreateButton("ls -l", 56, 72, 107, 33)
$restartbtn = GUICtrlCreateButton("Restart DHCP", 54, 146, 107, 33)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

Here is the main call :



While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $showleasebtn
            $sshCommand = "ls -l /home/wolf/"
            $answer = _runSshCommand($unixUser, $unixHost, $sshCommand, $unixPassword)
            ConsoleWrite($answer)
            GUICtrlSetData($Edit1,$answer & @CRLF)
            MsgBox(0,"SSH Output", $answer)
        ;Case $Edit1
    EndSwitch
WEnd



Thanks in advance...



21 hours ago, Zedna said:

I think that problem is LF as end of line in your output but for EditBox you need CRLF.

Could it be ? Because editbox expected DOS command output CRLF,  while the linux/unix ssh terminal output only produce LF ?
If that's true.. that's a bummer for me then 😐



output-autoit.txt

Edited February 22, 2022 by nicknuke

[Nine]

Well the data you gave me is probably not the one you get from.  Because it working fine with me...

#include <Constants.au3>
#include <GUIConstants.au3>
#include <FontConstants.au3>

$Form1 = GUICreate("Form1", 835, 634, 622, 236)
$Edit1 = GUICtrlCreateEdit("", 240, 24, 577, 561,BitOR( $ES_WANTRETURN, $WS_VSCROLL, $WS_HSCROLL, $ES_AUTOVSCROLL, $ES_AUTOHSCROLL, $ES_READONLY))
GUICtrlSetFont(-1, 10, $FW_NORMAL, $GUI_FONTNORMAL, "Lucida Console")
$showleasebtn = GUICtrlCreateButton("Read txt", 56, 72, 107, 33)
GUISetState(@SW_SHOW)

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $showleasebtn
            $answer = FileRead("output-autoit.txt")
            GUICtrlSetData($Edit1,$answer & @CRLF)
            MsgBox(0,"SSH Output", $answer)
    EndSwitch
WEnd

Try to put the data directly into a file with something like this :

FileWrite("Test.txt", _runSshCommand($unixUser, $unixHost, $sshCommand, $unixPassword))

So I can get the real data you obtain...

output-autoit.txt



Edited February 22, 2022 by Nine

[nicknuke]

8 hours ago, Nine said:

Well the data you gave me is probably not the one you get from.  Because it working fine with me...

#include <Constants.au3>
#include <GUIConstants.au3>
#include <FontConstants.au3>

$Form1 = GUICreate("Form1", 835, 634, 622, 236)
$Edit1 = GUICtrlCreateEdit("", 240, 24, 577, 561,BitOR( $ES_WANTRETURN, $WS_VSCROLL, $WS_HSCROLL, $ES_AUTOVSCROLL, $ES_AUTOHSCROLL, $ES_READONLY))
GUICtrlSetFont(-1, 10, $FW_NORMAL, $GUI_FONTNORMAL, "Lucida Console")
$showleasebtn = GUICtrlCreateButton("Read txt", 56, 72, 107, 33)
GUISetState(@SW_SHOW)

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $showleasebtn
            $answer = FileRead("output-autoit.txt")
            GUICtrlSetData($Edit1,$answer & @CRLF)
            MsgBox(0,"SSH Output", $answer)
    EndSwitch
WEnd

Try to put the data directly into a file with something like this :

FileWrite("Test.txt", _runSshCommand($unixUser, $unixHost, $sshCommand, $unixPassword))

So I can get the real data you obtain...

output-autoit.txt 307 B · 0 downloads



Yes.. your idea of send the output to file helps. ( Sorry i sent you the wrong text file before..  )
I finally managed to spot the problem, pretty much like what Zedna said..


On 2/22/2022 at 4:02 AM, Zedna said:

I think that problem is LF as end of line in your output but for EditBox you need CRLF.



the editbox expected CRLF'ed input.. while the output from ssh server is just LF..
If I dump the output like you said like this :



FileWrite("Test.txt", _runSshCommand($unixUser, $unixHost, $sshCommand, $unixPassword))

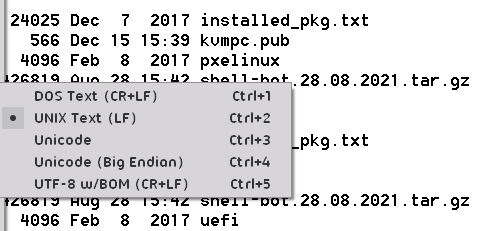

and check the Test.txt, the format detected as Unix Text (LF)..
I have to convert it to DOS Text (CRLF) first.., then re-read the file in to editbox..

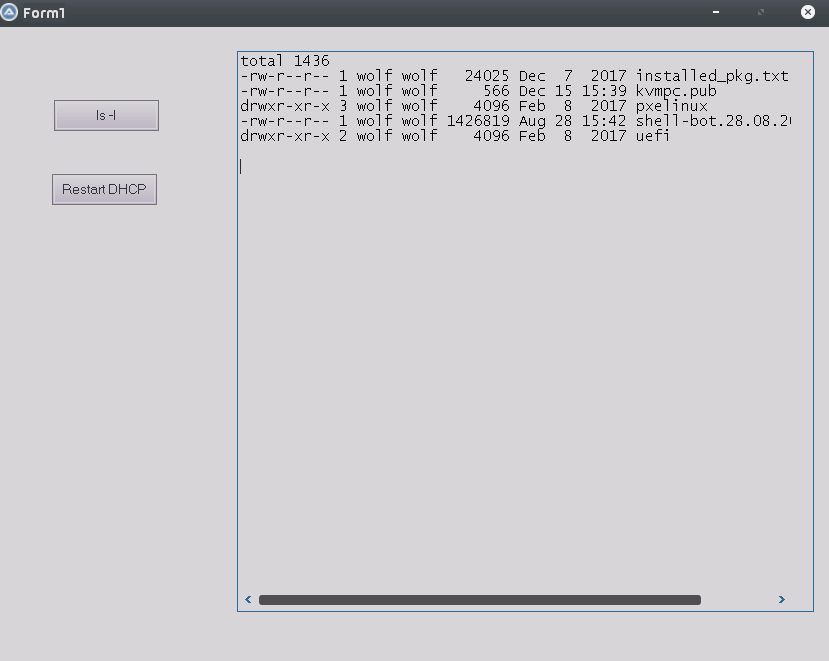

Then only after that i got perfect output..
I re-send you the original Unix text.. i hope it doesn't get converted automatically here...
It supposed to show you the same garbled text on editbox.


Thank you very much for the clues...
So next question is..
What should I do to make the editbox receive the output in realtime , without putting it to a file and convert first ?





Test-UnixText.txt

[Nine]

Just convert your @LF with @CRLF :

$answer = StringReplace(FileRead("Test-UnixText.txt"), @LF, @CRLF)

Working for me

[nicknuke]

2 hours ago, Nine said:

Just convert your @LF with @CRLF :

$answer = StringReplace(FileRead("Test-UnixText.txt"), @LF, @CRLF)

Working for me

Yes it is.. I was using


StringRegExpReplace(FileRead("Test-UnixText.txt"), '\R', @CRLF)

But yours are more simple and obvious...
Thank you very much for the helps, sir...
