need advice with "if not equal"


Recommended Posts

hello all,

my overall goal is to be able to be able to run a script, then it go threw all the panes that it needs to then take screenshots of the pages, that are of value

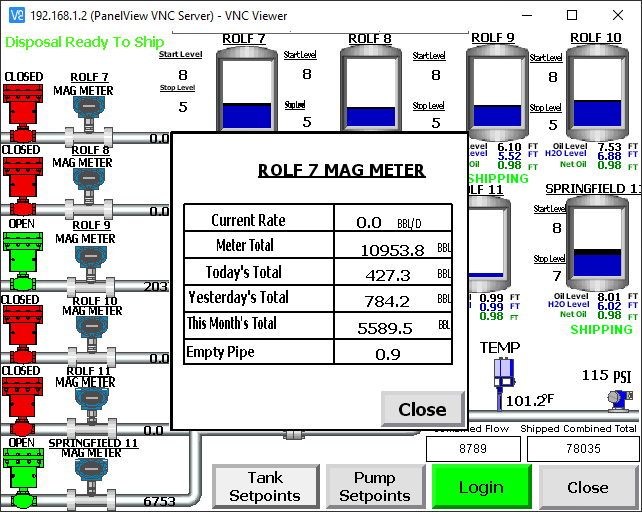

my targeted program is towards vnc viewer, (this is work related, i work flowback in the oil industry)

my issue is when im 2-3 pages deep into the vnc i want it to back out to the main screen then go into the next category but my code will keep clicking, causing it to go past the main screen and open up another options pane that will throw the rest of the code off.

my code:

#include <MsgBoxConstants.au3>

HotKeySet("e", "EndProgram")
func EndProgram()
    Exit
EndFunc

WinWait ( '192.168.1.2 (PanelView VNC Server) - VNC Viewer', '' )
WinActivate ( '192.168.1.2 (PanelView VNC Server) - VNC Viewer', '' )
Sleep(1000)
WinMove ( '192.168.1.2 (PanelView VNC Server) - VNC Viewer', '', '', '', 710, 710 )
$_WinPos = WinGetPos ( '192.168.1.2 (PanelView VNC Server) - VNC Viewer', '' )
$gold = PixelGetColor($_WinPos[0]+$_WinPos[2]/2.13, $_WinPos[1]+$_WinPos[3]/5.30) ;returns 15446573
;MsgBox("","gold",$gold)
$gold2 = 15446573



;button locations
;middle- MouseClick ( 'Left', $_WinPos[0]+$_WinPos[2]/2, $_WinPos[1]+$_WinPos[3]/2, 1 )
;goldpixel- MouseClick ( 'Left', $_WinPos[0]+$_WinPos[2]/2.13, $_WinPos[1]+$_WinPos[3]/5.30, 1 )
;saltwater button- MouseClick ( 'Left', $_WinPos[0]+$_WinPos[2]/2.5, $_WinPos[1]+$_WinPos[3]/1.07, 1 )
;main button- MouseClick ( 'Left', $_WinPos[0]+$_WinPos[2]/1.1, $_WinPos[1]+$_WinPos[3]/1.07, 1 )
;rolf7 button- ;MouseClick ( 'Left', $_WinPos[0]+$_WinPos[2]/4, $_WinPos[1]+$_WinPos[3]/2, 1 )




;rolf 7
backout()
;;Sleep(1000)
;MouseClick ( 'Left', $_WinPos[0]+$_WinPos[2]/4, $_WinPos[1]+$_WinPos[3]/2, 1 )
;print()
;MouseClick ( 'Left', $_WinPos[0]+$_WinPos[2]/6.8, $_WinPos[1]+$_WinPos[3]/5, 1 )
;sleep(1000)
;send("{PRINTSCREEN}")
;sleep(1000)
;Backout()
;Sleep(1000)









;--------------------------------------------------------functions---------------------------------------------------------

Func print()
    Sleep(1000)
    send("{PRINTSCREEN}")
    sleep(1000)
    MouseClick ( 'Left', $_WinPos[0]+$_WinPos[2]/2.5, $_WinPos[1]+$_WinPos[3]/1.07, 1 )
    sleep(1000)
EndFunc


;back out to main screen
Func Backout()
    IF $gold <> $gold2 then MouseClick ( 'Left', $_WinPos[0]+$_WinPos[2]/1.1, $_WinPos[1]+$_WinPos[3]/1.07, 1 )
    sleep(1000)
    IF $gold <> $gold2 then MouseClick ( 'Left', $_WinPos[0]+$_WinPos[2]/1.1, $_WinPos[1]+$_WinPos[3]/1.07, 1 )
    ;sleep(1000)
    ;IF $gold <> $gold2 then MouseClick ( 'Left', $_WinPos[0]+$_WinPos[2]/1.1, $_WinPos[1]+$_WinPos[3]/1.07, 1 )
EndFunc

This line of code, that pulls a pixel is a static pixel, no where else in the vnc, that pixel is static and never changes. all ways returns the same variable.

$gold = PixelGetColor($_WinPos[0]+$_WinPos[2]/2.13, $_WinPos[1]+$_WinPos[3]/5.30) ;returns 15446573

thank you for your time, if you decided to help, if you cant, thanks for reading.

I hope i gave you all enough info and dont confuse anyone.

Link to comment
Share on other sites

MouseClick and PixelGetColor are the worst way to automate an application.  You should truly consider using a control-based approach.

Since we do not have your specific application, it is hard for us to help you efficiently.  But at first glance, the issue could be that you do not update the $gold variable after each click.

If you are interested to use a better approach, you should try using au3info.exe tool to see if controls are readable this way.  Also post a printscreen of the application so we can see what it looks like.
