Hide taskbar icon of App - but with still GUICreate element visible

LukasChury

By LukasChury,
in AutoIt GUI Help and Support

 Share
Go to solution Solved by LukasChury,

Recommended Posts

LukasChury Seeker

LukasChury

Posted
Posted (edited)

Hi,

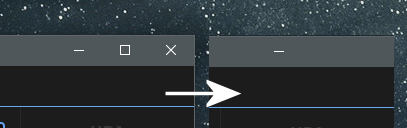

I have the code, that create an element, which hide (overlay) Close a Minimalize buttons of the Chromium App.
(Because I need that users close the App on the Web in Chromium, because beforeunload dont work already in these days and I need make some clear things before App exit...).

I found an solution that hide the buttons (overlay them) and works fine (if is better solution, maybe without overlay, happy to listen! 🙂 )


But I need run my AutoIt program without taskbar icon - only in tray, if needed.


All that I tried and found on this forum do not work 😞

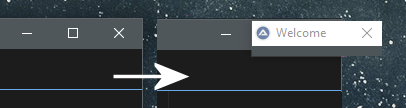

If I use @SW_HIDE, element that overlay the close buttons will disappears too.

My code:

#NoTrayIcon
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <WinAPISysWin.au3>
#include <ColorConstants.au3>
#include <WinAPISys.au3>
#include <Constants.au3>

Local $ySize=_WinAPI_GetSystemMetrics ( 31 ) + 8 ;~ SM_CYSIZE
Local $xSize=_WinAPI_GetSystemMetrics ( 30 ) + 56 ;~ SM_CXSIZE

Local $sizeBlock=86
Local $adjustment=$sizeBlock+ 8 + 6

Local $hGui=GUICreate("Welcome", $xSize, $ySize, 100, 100, BitOR($WS_SYSMENU,$WS_POPUP), 0)

GUISetBkColor($COLOR_WHITE,$hGui)
; Display the GUI.
$hwndActive=wingethandle("My App", "")
GUISetState(@SW_SHOW, $hGUI)
WinActivate($hwndActive)

; Loop until the user exits.
While 1
    $hwndActive=wingethandle("My App", "")
    if ($hWndActive <> $hGui) Then
        $hwndPrevious=$hwndActive
        $aPos = WinGetPos("My App")
        $newColor=pixelgetcolor($apos[0] + $aPos[2] - 106, $aPos[1] + 14)
        GUISetBkColor($newColor,$hGui)
    EndIf

    ;~  WinMove($hGui,"",$apos[0], $aPos[1])

     ; Apply the style
    _WinAPI_SetWindowPos($hGui, $HWND_TOPMOST, $apos[0] + $aPos[2] - $adjustment, $apos[1]+1, 0, 0, BitOR($SWP_FRAMECHANGED, $SWP_NOSIZE))

WEnd

Is there a way to OTHER SOLUTION FOR HIDE CLOSE/MINIMALIZE BUTTON or HIDE ICON OF AUTOIT COMPILED EXE SCRIPT IN TASKBAR (with the overlay show on)?

Thanks a lot.

Edited by LukasChury
Link to comment
Share on other sites
ioa747 Universalist

ioa747

Posted
Posted

one way i know is with $WS_EX_TOOLWINDOW

#NoTrayIcon
#include <WindowsConstants.au3>

$xSize = 200
$ySize = 200
Local $hGui=GUICreate("Welcome", $xSize, $ySize, 100, 100, $WS_SYSMENU, $WS_EX_TOOLWINDOW)
GUISetState(@SW_SHOW)

;**********************************
While 1
    Switch GUIGetMsg()
        Case -3 ;$GUI_EVENT_CLOSE
            ExitLoop
    EndSwitch
WEnd
;**********************************



I know that I know nothing

Link to comment
Share on other sites
LukasChury Seeker

LukasChury

Posted
  • Author
Posted
15 minutes ago, ioa747 said:

one way i know is with $WS_EX_TOOLWINDOW

#NoTrayIcon
#include <WindowsConstants.au3>

$xSize = 200
$ySize = 200
Local $hGui=GUICreate("Welcome", $xSize, $ySize, 100, 100, $WS_SYSMENU, $WS_EX_TOOLWINDOW)
GUISetState(@SW_SHOW)

;**********************************
While 1
    Switch GUIGetMsg()
        Case -3 ;$GUI_EVENT_CLOSE
            ExitLoop
    EndSwitch
WEnd
;**********************************



It doesnt work as I need to.


Link to comment
Share on other sites
LukasChury Seeker

LukasChury

Posted
  • Author
Posted

But i finally found the solution (thanks to ChatGPT 🙂 ).

#include <WinAPI.au3>

;Just for where the $hGui variable is:
;Local $hGui=GUICreate("Welcome", $xSize, $ySize, 100, 100, BitOR($WS_SYSMENU,$WS_POPUP), 0)

_WinAPI_ShowWindow($hGui, @SW_HIDE) ; Hide the window
_WinAPI_SetWindowLong($hGui, $GWL_EXSTYLE, BitOR(_WinAPI_GetWindowLong($hGui, $GWL_EXSTYLE), $WS_EX_TOOLWINDOW)) ; Set the window as a tool window
WinSetState($hGui, "", @SW_HIDE) ; Hide the window from the taskbar

Iam so happy 🙂

Link to comment
Share on other sites
Nine Universalist

Nine

Posted
Posted

Another approach, that allows to move the window and change z-order of windows :

#NoTrayIcon
#include <WinAPI.au3>
#include <GUIConstants.au3>

Run("Notepad")
Local $hApp = WinWait("[CLASS:Notepad]")

Local $iHeight = _WinAPI_GetSystemMetrics($SM_CYCAPTION)
Local $iWidth = 100

Local $aPos = WinGetPos($hApp), $aPosPrev = $aPos

Local $hOver = GUICreate("Over", $iWidth - 8, $iHeight, $aPos[0] + $aPos[2] - $iWidth, $aPos[1] + 1, $WS_POPUP, $WS_EX_TOOLWINDOW)
GUISetBkColor(0xFFFFFF)
GUISetState(@SW_SHOWNOACTIVATE)

_WinAPI_SetWindowLong($hOver, $GWL_HWNDPARENT, $hApp)

While WinExists($hApp)
  Sleep(10)
  $aPos = WinGetPos($hApp)
  If $aPos[0] = $aPosPrev[0] And $aPos[1] = $aPosPrev[1] Then ContinueLoop
  WinMove($hOver, "", $aPos[0] + $aPos[2] - $iWidth, $aPos[1] + 1)
WEnd



“They did not know it was impossible, so they did it” ― Mark Twain

Spoiler

Block all input without UAC

Save/Retrieve Images to/from Text

 Monitor Management (VCP commands)

Tool to search in text (au3) files

Date Range Picker

 Virtual Desktop Manager

Sudoku Game 2020

Overlapped Named Pipe IPC

 HotString 2.0 - Hot keys with string

x64 Bitwise Operations

Multi-keyboards HotKeySet

 Recursive Array Display

Fast and simple WCD IPC

Multiple Folders Selector

 Printer Manager

GIF Animation (cached)

Screen Scraping

 Multi-Threading Made Easy



Link to comment
Share on other sites
  • Solution
LukasChury Seeker

LukasChury

Posted
  • Author
  • Solution
Posted
6 hours ago, Nine said:

Another approach, that allows to move the window and change z-order of windows :

#NoTrayIcon
#include <WinAPI.au3>
#include <GUIConstants.au3>

Run("Notepad")
Local $hApp = WinWait("[CLASS:Notepad]")

Local $iHeight = _WinAPI_GetSystemMetrics($SM_CYCAPTION)
Local $iWidth = 100

Local $aPos = WinGetPos($hApp), $aPosPrev = $aPos

Local $hOver = GUICreate("Over", $iWidth - 8, $iHeight, $aPos[0] + $aPos[2] - $iWidth, $aPos[1] + 1, $WS_POPUP, $WS_EX_TOOLWINDOW)
GUISetBkColor(0xFFFFFF)
GUISetState(@SW_SHOWNOACTIVATE)

_WinAPI_SetWindowLong($hOver, $GWL_HWNDPARENT, $hApp)

While WinExists($hApp)
  Sleep(10)
  $aPos = WinGetPos($hApp)
  If $aPos[0] = $aPosPrev[0] And $aPos[1] = $aPosPrev[1] Then ContinueLoop
  WinMove($hOver, "", $aPos[0] + $aPos[2] - $iWidth, $aPos[1] + 1)
WEnd



Thank you! I add the changing the background of the overlay, and now it works nicely! 🙂

The final code:

#NoTrayIcon
#include <WinAPI.au3>
#include <GUIConstants.au3>

Local $hApp = WinWait("My App")

Local $iHeight = _WinAPI_GetSystemMetrics($SM_CYCAPTION)
Local $iWidth = 100

Local $aPos = WinGetPos($hApp), $aPosPrev = $aPos

Local $hOver = GUICreate("Over", $iWidth - 8, $iHeight+7, $aPos[0] + $aPos[2] - $iWidth, $aPos[1]+1, $WS_POPUP, $WS_EX_TOOLWINDOW)
GUISetBkColor(0xFFFFFF)
GUISetState(@SW_SHOWNOACTIVATE)

$newColor=pixelgetcolor($apos[0] + $aPos[2] - 106, $aPos[1] + 14)
GUISetBkColor($newColor,$hOver)

_WinAPI_SetWindowLong($hOver, $GWL_HWNDPARENT, $hApp)

While WinExists($hApp)
  Sleep(10)
  $newColor=pixelgetcolor($apos[0] + $aPos[2] - 106, $aPos[1] + 14)
  GUISetBkColor($newColor,$hOver)
  $aPos = WinGetPos($hApp)
  If $aPos[0] = $aPosPrev[0] And $aPos[1] = $aPosPrev[1] Then ContinueLoop
  WinMove($hOver, "", $aPos[0] + $aPos[2] - $iWidth, $aPos[1] + 1)
WEnd



Link to comment
Share on other sites
Nine Universalist

Nine

Posted
Posted

Man you don't seem to understand the principle of "Solution".  Maybe you should take a moment to reflect on it....

“They did not know it was impossible, so they did it” ― Mark Twain

Spoiler

Block all input without UAC

Save/Retrieve Images to/from Text

 Monitor Management (VCP commands)

Tool to search in text (au3) files

Date Range Picker

 Virtual Desktop Manager

Sudoku Game 2020

Overlapped Named Pipe IPC

 HotString 2.0 - Hot keys with string

x64 Bitwise Operations

Multi-keyboards HotKeySet

 Recursive Array Display

Fast and simple WCD IPC

Multiple Folders Selector

 Printer Manager

GIF Animation (cached)

Screen Scraping

 Multi-Threading Made Easy



Link to comment
Share on other sites
ioa747 Universalist

ioa747

Posted
Posted



#NoTrayIcon
#include <WinAPI.au3>
#include <GUIConstants.au3>

Local $hApp = WinWait("My App")

Local $iHeight = _WinAPI_GetSystemMetrics($SM_CYCAPTION)
Local $iWidth = 100

Local $aPos = WinGetPos($hApp), $aPosPrev = $aPos

Local $hOver = GUICreate("Over", $iWidth - 8, $iHeight + 7, $aPos[0] + $aPos[2] - $iWidth, $aPos[1] + 1, $WS_POPUP, $WS_EX_TOOLWINDOW, $hApp) ; * <- 1
;~ GUISetBkColor(0xFFFFFF)
GUISetState(@SW_SHOWNOACTIVATE)

WinActivate($hApp) ; * <- 2
$newColor = PixelGetColor($aPos[0] + $aPos[2] - 106, $aPos[1] + 14)
GUISetBkColor($newColor, $hOver)

;~ _WinAPI_SetWindowLong($hOver, $GWL_HWNDPARENT, $hApp)

While WinExists($hApp)
    Sleep(10)
;~  $newColor = PixelGetColor($aPos[0] + $aPos[2] - 106, $aPos[1] + 14)
;~  GUISetBkColor($newColor, $hOver)
    If WinActive($hOver) Then WinActivate($hApp) ; * <- 3
    $aPos = WinGetPos($hApp)
    If @error Then Exit  ConsoleWrite('-> unexpected exit' & @CRLF)  ; * <- 4
    If $aPos[0] = $aPosPrev[0] And $aPos[1] = $aPosPrev[1] Then ContinueLoop
    $aPosPrev = $aPos  ; * <- 5
    WinMove($hOver, "", $aPos[0] + $aPos[2] - $iWidth, $aPos[1] + 1)
WEnd



I know that I know nothing

Link to comment
Share on other sites
LukasChury Seeker

LukasChury

Posted
  • Author
Posted (edited)
1 hour ago, ioa747 said:



#NoTrayIcon
#include <WinAPI.au3>
#include <GUIConstants.au3>

Local $hApp = WinWait("My App")

Local $iHeight = _WinAPI_GetSystemMetrics($SM_CYCAPTION)
Local $iWidth = 100

Local $aPos = WinGetPos($hApp), $aPosPrev = $aPos

Local $hOver = GUICreate("Over", $iWidth - 8, $iHeight + 7, $aPos[0] + $aPos[2] - $iWidth, $aPos[1] + 1, $WS_POPUP, $WS_EX_TOOLWINDOW, $hApp) ; * <- 1
;~ GUISetBkColor(0xFFFFFF)
GUISetState(@SW_SHOWNOACTIVATE)

WinActivate($hApp) ; * <- 2
$newColor = PixelGetColor($aPos[0] + $aPos[2] - 106, $aPos[1] + 14)
GUISetBkColor($newColor, $hOver)

;~ _WinAPI_SetWindowLong($hOver, $GWL_HWNDPARENT, $hApp)

While WinExists($hApp)
    Sleep(10)
;~  $newColor = PixelGetColor($aPos[0] + $aPos[2] - 106, $aPos[1] + 14)
;~  GUISetBkColor($newColor, $hOver)
    If WinActive($hOver) Then WinActivate($hApp) ; * <- 3
    $aPos = WinGetPos($hApp)
    If @error Then Exit  ConsoleWrite('-> unexpected exit' & @CRLF)  ; * <- 4
    If $aPos[0] = $aPosPrev[0] And $aPos[1] = $aPosPrev[1] Then ContinueLoop
    $aPosPrev = $aPos  ; * <- 5
    WinMove($hOver, "", $aPos[0] + $aPos[2] - $iWidth, $aPos[1] + 1)
WEnd



Thank you! 🙂
But if you remove this two lines inside While:

$newColor = PixelGetColor($aPos[0] + $aPos[2] - 106, $aPos[1] + 14)
GUISetBkColor($newColor, $hOver)

Then the background of "Over" is no updated while the window is active/unactive.
(because the background of Title window has different color when Window is active/unactive)

Is there a better solution with this?

Edited by LukasChury
