#1 ·  Posted (edited)

Good day,

just wondering if there is another way to click or select on a certain cell??

I tried to use Controlclick it always click on ranged O21

#include <MsgBoxConstants.au3>
#include <Excel.au3>





Local $oAppl = _Excel_Open()
If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_BookOpen Example", "Error creating the Excel application object." & @CRLF & "@error = " & @error & ", @extended = " & @extended)

_Excel_BookNew($oAppl, 1)
If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_BookNew Example 1", "Error creating new workbook." & @CRLF & "@error = " & @error & ", @extended = " & @extended)
MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_BookNew Example 1", "Workbook has been created successfully with only 1 worksheets.")
$_iExcel = WinGetTitle("[CLASS:XLMAIN]")

If $_iExcel Then _iData()

WinMove("[CLASS:XLMAIN]", "", 0,0, 1920, 1080)

Func _iData()
    ControlClick($_iExcel, "", "[CLASS:EXCEL7; INSTANCE:1]")
    MsgBox(64, "", "You Clicked on Random Ranged: O21")
EndFunc   ;==>_iData



Where is the autoit code tag??? Its not showing in my browser...





Edited by 232showtime

ill get to that... i still need to learn and understand a lot of codes graduated.gif

Correct answer, learn to walk before you take on that marathon.

Share this post


Link to post
Share on other sites



Why do you want to mix COM and GUI automation?


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2017-04-18 - Version 1.4.8.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2017-02-27 - Version 1.3.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

BTW: The AutoIt code tag ist the "<>" button in the editor.


My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2017-04-18 - Version 1.4.8.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2017-02-27 - Version 1.3.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

#4 ·  Posted (edited)

@water I just want to click Range B14 before I start my Script.

dont have any idea at all that im mixing COM and GUI, all im trying to do is to automate click or select range B14, but still cant figure it out.

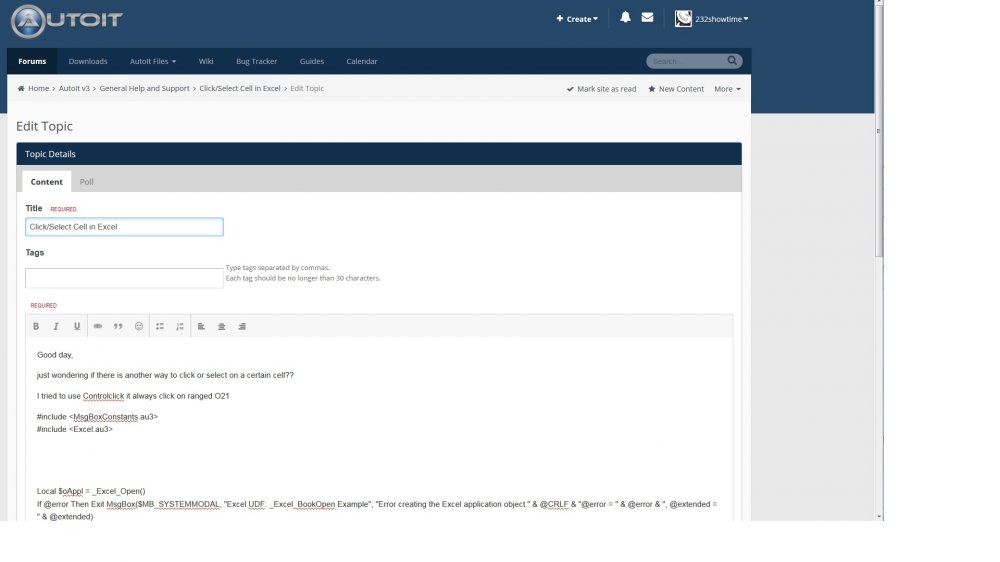

I can see Autoit code Tag before, now option is missing, kindly check attachment. is it just me???




Edited by 232showtime

ill get to that... i still need to learn and understand a lot of codes graduated.gif

Correct answer, learn to walk before you take on that marathon.

Share this post


Link to post
Share on other sites

To select a range I would use the following code:

Local $oAppl = _Excel_Open()
If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_BookOpen Example", "Error creating the Excel application object." & @CRLF & "@error = " & @error & ", @extended = " & @extended)

$oWorkBook = _Excel_BookNew($oAppl, 1)
If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_BookNew Example 1", "Error creating new workbook." & @CRLF & "@error = " & @error & ", @extended = " & @extended)
MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_BookNew Example 1", "Workbook has been created successfully with only 1 worksheets.")

$oWorkBook.ActiveSheet.Range("B14").Select



1 person likes this

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2017-04-18 - Version 1.4.8.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2017-02-27 - Version 1.3.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

#6 ·  Posted (edited)

I can see Autoit code Tag before, now option is missing, kindly check attachment. is it just me???

Might be a problem with the new forum software. Does cleaning the Browser Cache help?

Edited by water

My UDFs and Tutorials:

Spoiler

UDFs:
Active Directory (NEW 2017-04-18 - Version 1.4.8.0) - Download - General Help & Support - Example Scripts - Wiki
OutlookEX (NEW 2017-02-27 - Version 1.3.1.0) - Download - General Help & Support - Example Scripts - Wiki
ExcelChart (2015-04-01 - Version 0.4.0.0) - Download - General Help & Support - Example Scripts
Excel - Example Scripts - Wiki
Word - Wiki
PowerPoint (2015-06-06 - Version 0.0.5.0) - Download - General Help & Support

Tutorials:
ADO - Wiki



Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

$oWorkBook.ActiveSheet.Range("B14").Select



​wow it worked... thanks problem solved...



but for the browser,

I cleared the cache for mozilla and i.e. still cant see the autoit code tag option...



Edited by 232showtime

ill get to that... i still need to learn and understand a lot of codes graduated.gif

Correct answer, learn to walk before you take on that marathon.

Share this post


Link to post
Share on other sites

Not only the code button is missing ... I suggest to post on the New Forum: Issues and Feedback thread
