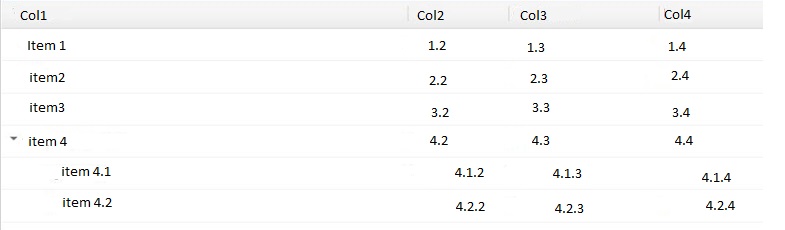

When i think about a subitem, i think about the item in the columns to the right.

So for me, what you're saying is that you need to be able to hide / show the columns to the right of the first item.

Is that what you mean? If it is, im not sure i can help.


Renamer - Rename files and folders, remove portions of text from the filename etc.

GPO Tool - Export/Import Group policy settings.

MirrorDir - Synchronize/Backup/Mirror Folders

BeatsPlayer - Music player.

Params Tool - Right click an exe to see it's parameters or execute them.

String Trigger - Triggers pasting text or applications or internet links on specific strings.

Inconspicuous - Hide files in plain sight, not fully encrypted.

Regedit Control - Registry browsing history, quickly jump into any saved key.

Time4Shutdown - Write the time for shutdown in minutes.

Power Profiles Tool - Set a profile as active, delete, duplicate, export and import.

Finished Task Shutdown - Shuts down pc when specified window/Wndl/process closes.

NetworkSpeedShutdown - Shuts down pc if download speed goes under "X" Kb/s.

IUIAutomation - Topic with framework and examples


Share this post

Link to post
Share on other sites

First off, is this in a listview you have created, or an external application? If it is something you created, how about showing your code? If it is external, what is the app?

"Profanity is the last vestige of the feeble mind. For the man who cannot express himself forcibly through intellect must do so through shock and awe" - Spencer W. Kimball

How to get your question answered on this forum!

Share this post

Link to post
Share on other sites
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <Constants.au3>
#include <Array.au3>
#include <GuiListView.au3>
#include <WindowsConstants.au3>


Func Example()
    Local $listview, $button, $item1, $item2, $item3, $msg

    GUICreate("listview items", 220, 250, 100, 200, -1, $WS_EX_ACCEPTFILES)
    GUISetBkColor(0x00E0FFFF) ; will change background color
   Local $aArray1[4][3]
   For $i = 0 To 3
      For $j = 0 to 2
         $aArray1[$i][$j] = ($i+1)+ ($j+1)
   _ArrayDisplay($aArray1 , "$aArray1")
    $idListviewP = GUICtrlCreateListView("", 10, 10, 200, 150,-1, $WS_EX_CLIENTEDGE)
    $button = GUICtrlCreateButton("Value?", 75, 170, 70, 20)

     _GUICtrlListView_InsertColumn($idListviewP, 0, "", 50)
     _GUICtrlListView_InsertColumn($idListviewP, 1, "Col1", 50)
     _GUICtrlListView_InsertColumn($idListviewP, 2, "Col2", 50)
     _GUICtrlListView_InsertColumn($idListviewP, 3, "Col3", 50)
   Local $ValueRow0 = "|" , $ValueRow1 = "|" , $ValueRow2 = "|" , $ValueRow3 = "|"
   For $i = 0 To 3
      For $j = 0 to 2
         if $i == 0 Then
            If $j < 2 Then
               $ValueRow0 &= $aArray1[$i][$j] & "|"
               $ValueRow0 &= $aArray1[$i][$j]
         if $i == 1 Then
            If $j < 2 Then
               $ValueRow1 &= $aArray1[$i][$j] & "|"
               $ValueRow1 &= $aArray1[$i][$j]
         if $i == 2 Then
            If $j < 2 Then
               $ValueRow2 &= $aArray1[$i][$j] & "|"
               $ValueRow2 &= $aArray1[$i][$j]
         if $i == 3 Then
            If $j < 2 Then
               $ValueRow3 &= $aArray1[$i][$j] & "|"
               $ValueRow3 &= $aArray1[$i][$j]
    $item1 = GUICtrlCreateListViewItem($ValueRow0, $idListviewP)
    $item2 = GUICtrlCreateListViewItem($ValueRow1, $idListviewP)
    $item3 = GUICtrlCreateListViewItem($ValueRow2, $idListviewP)
    $item4 = GUICtrlCreateListViewItem($ValueRow3, $idListviewP)
    $item41 = _GUICtrlListView_AddSubItem($idListviewP, 1, $ValueRow0, 1, 1)   ;
    $item42 = _GUICtrlListView_AddSubItem($idListviewP, 1, $ValueRow3, 2, 2)     ;

     GUICtrlSetState($item2, 0x00000020)

    $item5 = GUICtrlCreateListViewItem($ValueRow0, $idListviewP)
    $item6 = GUICtrlCreateListViewItem($ValueRow1, $idListviewP)
    $item7 = GUICtrlCreateListViewItem($ValueRow2, $idListviewP)
    $item8 = GUICtrlCreateListViewItem($ValueRow3, $idListviewP)

    GUICtrlCreateInput("", 20, 200, 150)
    GUICtrlSetState(-1, $GUI_DROPACCEPTED)
        $msg = GUIGetMsg()

            Case $msg = $button
                MsgBox($MB_SYSTEMMODAL, "listview item", GUICtrlRead(GUICtrlRead($idListviewP)), 2)
            ;Case $msg = $listview
                ;MsgBox($MB_SYSTEMMODAL, "listview", "clicked=" & GUICtrlGetState($idListviewP), 2)
    Until $msg = $GUI_EVENT_CLOSE
EndFunc ;==>Example


Edited by Melba23
Added code tags

Share this post

Link to post
Share on other sites


How about using groups within the ListView:

#include <GUIConstantsEx.au3>
#include <GuiImageList.au3>
#include <GuiListView.au3>


Func Example()
    Local $aInfo, $hImage, $idListview

    GUICreate("ListView Set Group Info", 400, 300)

    $idListview = GUICtrlCreateListView("", 2, 2, 394, 268)

    ; Add columns
    _GUICtrlListView_AddColumn($idListview, "Column 1", 100)
    _GUICtrlListView_AddColumn($idListview, "Column 2", 100)
    _GUICtrlListView_AddColumn($idListview, "Column 3", 100)

    ; Add items
    _GUICtrlListView_AddItem($idListview, "Row 1: Col 1", 0)
    _GUICtrlListView_AddSubItem($idListview, 0, "Row 1: Col 2", 1)
    _GUICtrlListView_AddSubItem($idListview, 0, "Row 1: Col 3", 2)
    _GUICtrlListView_AddItem($idListview, "Row 2: Col 1", 1)
    _GUICtrlListView_AddSubItem($idListview, 1, "Row 2: Col 2", 1)
    _GUICtrlListView_AddItem($idListview, "Row 3: Col 1", 2)

    ; Build groups
    _GUICtrlListView_InsertGroup($idListview, -1, 1, "Group 1")
    _GUICtrlListView_InsertGroup($idListview, -1, 2, "Group 2")
    _GUICtrlListView_SetItemGroupID($idListview, 0, 1)
    _GUICtrlListView_SetItemGroupID($idListview, 1, 2)
    _GUICtrlListView_SetItemGroupID($idListview, 2, 2)

    _GUICtrlListView_SetGroupInfo($idListview, 2, "Group 2", 0, $LVGS_COLLAPSIBLE)

    ; Loop until the user exits.
    Until GUIGetMsg() = $GUI_EVENT_CLOSE

EndFunc   ;==>Example

As you can see, group 2 can be expanded and collapsed as required.
