Translating Encryption funtion to Autoit

Recommended Posts

rshad

Hi! I'm pretty new into Autoit, yet I wanted to translate a code from Delphi to Autoit but no luck :/



This is the Original working Delphi code


function EnDeCrypt(const Value, Key: ansistring): ansistring;
var
  i: Integer;
  KeyAlt: Integer;
begin

  KeyAlt := Length(Key);

  for i := 1 to Length(Key) do
    KeyAlt := KeyAlt xor Ord(Key[i]);

  Result := Value;
  for i := 1 to Length(Value) do
  begin
    Result[i] := ansichar(not (ord(Value[i]) xor Ord(KeyAlt)));
  end

end;



This is my failed try :P


MsgBox(0,_Encrypt('test','password'),'',0);

Func _Encrypt($Value, $Key)
    Local $i, $KeyAlt, $s_Encrypted,$xValue
    $KeyAlt = StringLen($Key)
   $xValue = $Value

  For $i = 1 To StringLen($Key)
     $s_Encrypted &= Chr(BitNOT (Asc(StringMid($xValue,$i,1)) BitXOR Asc($KeyAlt)))
  Next

    Return $s_Encrypted
EndFunc



Any help would be nice, thanks!

Share this post


Link to post
Share on other sites
spudw2k

Here's my stab and the issue.  The AutoIt code failed because of the syntax.  The usage of the BitXOR function has you put the values in as parameters rather than doing a XOR operation in between two values as the Delphi code shows.

I'm not sure what the output you are expecting is, but here is "my" corrected BitXOR function call.

MsgBox(0,"",_Encrypt('test','password'),0);

Func _Encrypt($Value, $Key)
    Local $i, $KeyAlt, $s_Encrypted,$xValue
    $KeyAlt = StringLen($Key)
    $xValue = $Value

    For $i = 1 To StringLen($Key)
        $s_Encrypted &= Chr(BitNot(BitXOR(Asc(StringMid($xValue,$i,1)),Asc($KeyAlt))))
    Next

    Return $s_Encrypted
EndFunc



Share this post


Link to post
Share on other sites
rshad
41 minutes ago, spudw2k said:

Here's my stab and the issue.  The AutoIt code failed because of the syntax.  The usage of the BitXOR function has you put the values in as parameters rather than doing a XOR operation in between two values as the Delphi code shows.

I'm not sure what the output you are expecting is, but here is "my" corrected BitXOR function call.

MsgBox(0,"",_Encrypt('test','password'),0);

Func _Encrypt($Value, $Key)
    Local $i, $KeyAlt, $s_Encrypted,$xValue
    $KeyAlt = StringLen($Key)
    $xValue = $Value

    For $i = 1 To StringLen($Key)
        $s_Encrypted &= Chr(BitNot(BitXOR(Asc(StringMid($xValue,$i,1)),Asc($KeyAlt))))
    Next

    Return $s_Encrypted
EndFunc



Hi! Following your example I've completed the rest of the code, but it returns corrupted data somehow.

Local $valtest
$valtest = _Encrypt('test','password'); EnCrypt string

MsgBox(0,"",_Encrypt($valtest,'password'),0); Decrypt string

Func _Encrypt($Value, $Key)
    Local $i, $KeyAlt, $s_Encrypted,$xValue
    $KeyAlt = StringLen($Key)
    $xValue = $Value

  for $i = 1 to StringLen($Key)
    $KeyAlt = BitXOR(Asc(StringMid($Key,$i,1)),Asc($KeyAlt))
  Next

    For $i = 1 To StringLen($Key)
        $s_Encrypted &= Chr(BitNot(BitXOR(Asc(StringMid($xValue,$i,1)),Asc($KeyAlt))))
    Next

    Return $s_Encrypted
EndFunc



Share this post


Link to post
Share on other sites
rshad

Nvm

Replaced all Asc by AscW

and Chr by ChrW and now is working :)

Share this post


Link to post
Share on other sites
rshad

:think: Well my mission was to make an encryption/decryption Delphi <-> Autoit but I'm seeing Autoit is handling data in a "weird way" so it can't work







Any ideas about it? :think:

Share this post


Link to post
Share on other sites
Bilgus

Couple Things..

First is ANSI string means a single byte per character string thus Chr() and Asc() were correct

Unicode strings use ChrW() and Ascw()

Next BinaryMid and BinaryLen is a bit easier to use in this context

Finally Did you know you can use DllStructSetData for data type conversions?

its return is the actual set value so its perfect for this use that was the final piece of this puzzle as this Xor Cipher used the overflow of 8-Bits to get the value

So when the number was < 0 it was actually 256 - num and > 255 it was actually 0+num

Local $valtest
;
$valtest = _Encrypt('test', 'password') ; EnCrypt string
ConsoleWrite("Crypt'd = " & StringToBinary($valtest) & @CRLF)
MsgBox(0, "", _Encrypt($valtest, 'password'), 0) ; Decrypt string

Func _Encrypt($vValue, $sKey)
    $tByte = DllStructCreate("BYTE") ;Unsigned 8 bit
    Local $s_Encrypted ;'$i' Doesn't need declared as it is local to the For
    Local $iKeyAlt = BinaryLen($sKey)

    For $i = 1 To $iKeyAlt
        $iKeyAlt = BitXOR(BinaryMid($sKey, $i, 1), $iKeyAlt)
    Next

    For $i = 1 To BinaryLen($vValue)
        ;(Ab) Using DllStructSetData to convert value to Unsigned Char
        $s_Encrypted &= Chr(DllStructSetData($tByte, 1, _
                BitNOT(BitXOR(BinaryMid($vValue, $i, 1), $iKeyAlt)))) ;
    Next

    Return $s_Encrypted
EndFunc   ;==>_Encrypt



Edited by Bilgus
Updated to fixed function

Share this post


Link to post
Share on other sites
rshad
7 hours ago, Bilgus said:

Couple Things..

First is ANSI string means a single byte per character string thus Chr() and Asc() were correct

Unicode strings use ChrW() and Ascw()

Next BinaryMid and BinaryLen is a bit easier to use in this context

Finally Did you know you can use DllStructSetData for data type conversions?

its return is the actual set value so its perfect for this use that was the final piece of this puzzle as this Xor Cipher used the overflow of 8-Bits to get the value

So when the number was < 0 it was actually 255 - num and > 255 it was actually 0+num

Local $valtest
$valtest = _Encrypt('test', 'password') ; EnCrypt string
ConsoleWrite ("Crypt'd = " & StringToBinary($valtest) & @CRLF)
MsgBox(0, "", _Encrypt($valtest, 'password'), 0) ; Decrypt string

Func _Encrypt($vValue, $sKey)
    $tByte = DllStructCreate("BYTE") ;Unsigned 8 bit
    Local $iKeyAlt, $s_Encrypted, $xValue ;'$i' Doesn't need declared as it is local to the For
    $iKeyAlt = BinaryLen($sKey)
    $xValue = $vValue

    For $i = 1 To $iKeyAlt
        $iKeyAlt = BitXOR(BinaryMid($sKey, $i, 1), $iKeyAlt)
    Next

    For $i = 1 To BinaryLen($vValue)
        ;(Ab) Using DllStructSetDAta to convert valut to Unsigned Char
        $s_Encrypted &= Chr(DllStructSetData($tByte, 1, BitNOT(BitXOR(BinaryMid($xValue, $i, 1), Asc($iKeyAlt))))) ;
    Next

    Return $s_Encrypted
EndFunc   ;==>_Encrypt



The unicode problem is fixed, thanks!

But still the function returns different data in Autoit <-> Delphi so is not compatible :think:

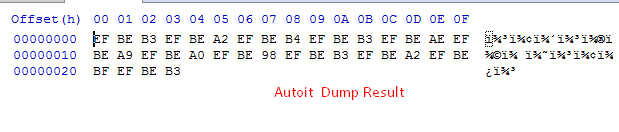

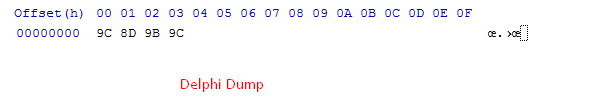

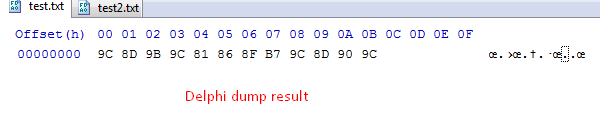

Results Encrypting "test" with same "password"





Share this post


Link to post
Share on other sites
Bilgus

Nah, Just an error on my part but having the same string between the two made it easy to spot, I was converting $iKeyAlt to asc() but its already an integer

Edited first post with updated function

Edited by Bilgus

Share this post


Link to post
Share on other sites
rshad
2 hours ago, Bilgus said:

Nah, Just an error on my part but having the same string between the two made it easy to spot, I was converting $iKeyAlt to asc() but its already an integer

Local $valtest
;
$valtest = _Encrypt('test', 'password') ; EnCrypt string
ConsoleWrite ("Crypt'd = " & StringToBinary($valtest) & @CRLF)
MsgBox(0, "", _Encrypt($valtest, 'password'), 0) ; Decrypt string

Func _Encrypt($vValue, $sKey)
    $tByte = DllStructCreate("BYTE") ;Unsigned 8 bit
    Local $iKeyAlt, $s_Encrypted, $xValue ;'$i' Doesn't need declared as it is local to the For
    $iKeyAlt = StringLen($sKey)

    For $i = 1 To $iKeyAlt
        $iKeyAlt = BitXOR(BinaryMid($sKey, $i, 1), $iKeyAlt)
    Next

    For $i = 1 To BinaryLen($vValue)
        ;(Ab) Using DllStructSetDAta to convert valut to Unsigned Char
        $s_Encrypted &= Chr(DllStructSetData($tByte, 1, BitNOT(BitXOR(BinaryMid($vValue, $i, 1), $iKeyAlt)))) ;
    Next

    Return $s_Encrypted
EndFunc   ;==>_Encrypt



Now is working perfectly :D I wouldn't be able to do that without your help, thank you sir!
