SlackerAl

Excel.au3 _Excel_RangeFind problem

Recommended Posts

Running the first example of _Excel_RangeFind from the help file (note I have added the version MsgBox and changed the path to _Excel1.xls)

#include <Array.au3>
#include <Excel.au3>
#include <MsgBoxConstants.au3>

MsgBox(0, "Version", @AutoItVersion)

; Create application object and open an example workbook
Local $oExcel = _Excel_Open()
If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_RangeFind Example", "Error creating the Excel application object." & @CRLF & "@error = " & @error & ", @extended = " & @extended)
Local $oWorkbook = _Excel_BookOpen($oExcel, @ScriptDir & "\_Excel1.xls")
If @error Then
    MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_RangeFind Example", "Error opening workbook '" & @ScriptDir & "\_Excel1.xls'." & @CRLF & "@error = " & @error & ", @extended = " & @extended)
    _Excel_Close($oExcel)
    Exit
EndIf

; *****************************************************************************
; Find all occurrences of value "37000" (partial match)
; *****************************************************************************
Local $aResult = _Excel_RangeFind($oWorkbook, "37000")
If @error Then Exit MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_RangeFind Example 1", "Error searching the range." & @CRLF & "@error = " & @error & ", @extended = " & @extended)
MsgBox($MB_SYSTEMMODAL, "Excel UDF: _Excel_RangeFind Example 1", "Find all occurrences of value '37000' (partial match)." & @CRLF & "Data successfully searched.")
_ArrayDisplay($aResult, "Excel UDF: _Excel_RangeFind Example 1", "", 0, "|", "Sheet|Name|Cell|Value|Formula|Comment")

I have also created a simple new Excel file "_Excel1.xls" in my script area and added "37000" to one cell.

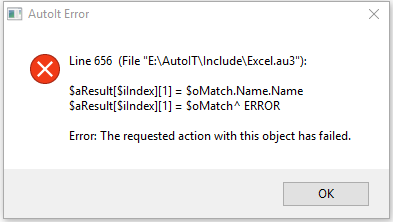

I generate the error:


I arrived at this after generating the same error within my code. I'm using AutoIt version 3.3.14.2

Any thoughts?








Problem solving step 1: Write a simple, self-contained, running, replicator of your problem.

Share this post


Link to post
Share on other sites

I think your first step would be to upgrade to 3.3.14.5.  I don't know if it will solve your problem, but at least we will know it is not your version that causing it...

Share this post


Link to post
Share on other sites
