Using OutlookEX with PSTs

[geoffnoakes]

Water, I've been using AutoIT and OutlookEX for about 10 years, and I thank you for creating that UDF.  I'm using AutoIT3 on a PC running Windows 10 and Outlook 2016.  I've been able to write scripts using OutlookEX which work with the the primary email account (i.e., the OST), but not with PSTs.  Here is what I am trying to do, for hundreds of PSTs:

1.  I want to access a PST, lookup a Contact in that PST (by what Outlook calls the FullName).

2.  I want to copy that Contact into a different PST.

I'm confused about use of (and interplay between) _OL_PSTAccess, _OL_ItemCopy, _OL_FolderTree, and maybe other functions.  For the 2 steps above, may I ask you to send me some pseudocode that will help guide me?  I am guessing that this will be no more that a handful of functions.  All I need to know is the sequence of functions to use -- I am certain I'll be able to figure out what parameters to pass to each function and how to process whatever is returned from the function.

Thanks...

Geoff

[water]

This thread explains how to use _OL_PSTAccess and _OL_FolderAccess etc.

[geoffnoakes]

Thanks Water.  When I run this code:

#include <Array.au3>
#include <OutlookEX.au3>
#Include <OutlookEX_Base.au3> ; base functions and constants uses by OutlookEX

Global Const $PSTFileName = "F:\Outlook Backups\NewGroup1\NewGroup1-Source PSTs\From Done\20121231-EA.pst"
$oOutlook = _OL_Open()
If @error <> 0 Then Exit -1

$oPSTRoot = _OL_PSTAccess($oOutlook, $PSTFileName)
If @error <> 0 Then Exit -2

$aFolder = _OL_FolderAccess($oOutlook, Default, $olFolderContacts)
If @error <> 0 Then Exit -3

$aItems = _OL_ItemFind($oOutlook, $aFolder[1], $olFolderContacts, '[FullName] = "Arthur Landerholm"', '', '', 'EntryID', '', 1)
ConsoleWrite ("#4 : OL_ItemFind: @Error=" & @Error & ", @Extended=" & @Extended & @CRLF)
 _ArrayDisplay ($aItems, "#4")
ConsoleWrite (_ArrayToString ($aItems) & @CRLF)
If @error <> 0 Then Exit -4

; close the PST
_OL_PSTClose ($oOutlook, $oPSTRoot)
If @error <> 0 Then Exit -5

; end this Outlook session
_OL_Close($oOutlook)
If @error <> 0 Then Exit -5
Exit 0

The Console only shows this:

>"C:\Program Files (x86)\AutoIt3\SciTE\..\autoit3.exe" /ErrorStdOut "C:\Users\geoffrey_noakes\Documents\MySystem\Source\ExtractContacts\idea1.au3"
#4 : OL_ItemFind: @Error=0, @Extended=0
0
>Exit code: 0    Time: 3.052

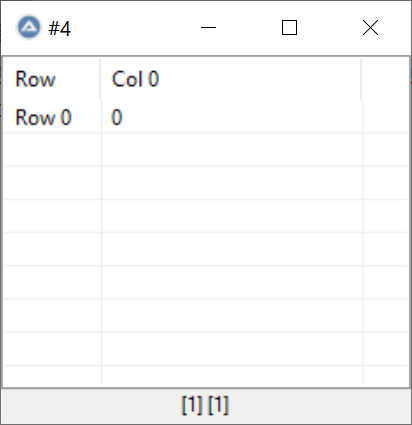

... and the _ArrayDisplay of $aItems (from the call to OL_ItemFind)  only has Row 0 (with a value of 0) -- see the screen shot.   The script is not finding my contact (which I know is in the PST's Contact folder).



[water]

You do not provide a store in _OL_FolderAccess, hence it accesses your primary store.
Use something like this as described in the thread I linked you to in the above post.

$oPSTRoot = _OL_PSTAccess($oOutlook, $PSTFileName, "EA")
$aFolder = _OL_FolderAccess($oOutlook, "EA", $olFolderContacts)



[geoffnoakes]

Thanks Water, that helped.  My modified code is this:

#include <Array.au3>
#include <OutlookEX.au3>
#Include <OutlookEX_Base.au3> ; base functions and constants uses by OutlookEX
Global Const $SourcePSTFileName = @DesktopDir & "\Test-20121231-EA.pst"
Global Const $SourcePSTDisplayName = "Test-20121231-EA"
$oOutlook = _OL_Open ()
$aSourceFolder = _OL_FolderAccess ($oOutlook, $SourcePSTDisplayName, $olFolderContacts)
$aSourceTree = _OL_FolderTree ($oOutlook, $aSourceFolder [1])
_ArrayDisplay ($aSourceTree)
For $i = 0 to UBound ($aSourceTree) - 1
   ConsoleWrite (@Tab & $i & @Tab &  $aSourceTree [$i] & @CRLF)
Next
$aSourceItems = _OL_ItemFind ($oOutlook, $aSourceFolder [1], Default, '[FullName] = "Arthur Landerholm"', '', '', 'EntryID', '', 0)
If @Error = 0 Then
   ConsoleWrite ("Items found..." & @CRLF)
   _ArrayDisplay ($aSourceItems, "_OL_ItemFind array")
   ConsoleWrite (_ArrayToString ($aSourceItems) & @CRLF)
Else
   ConsoleWrite ("_OL_ItemFind: @Error=" & @Error & ", @Extended=" & @Extended & @CRLF)
   Exit 4
EndIf
_OL_Close ($oOutlook)
Exit 0

The console results are:

>"C:\Program Files (x86)\AutoIt3\SciTE\..\autoit3.exe" /ErrorStdOut "C:\Users\geoffrey_noakes\Documents\MySystem\Source\ExtractContacts\Question2.au3"
    0    \\Test-20121231-EA
    1    \\Test-20121231-EA\Deleted Items
    2    \\Test-20121231-EA\Contacts
    3    \\Test-20121231-EA\Drafts
_OL_ItemFind: @Error=5, @Extended=-2147352567
>Exit code: 4    Time: 59.87

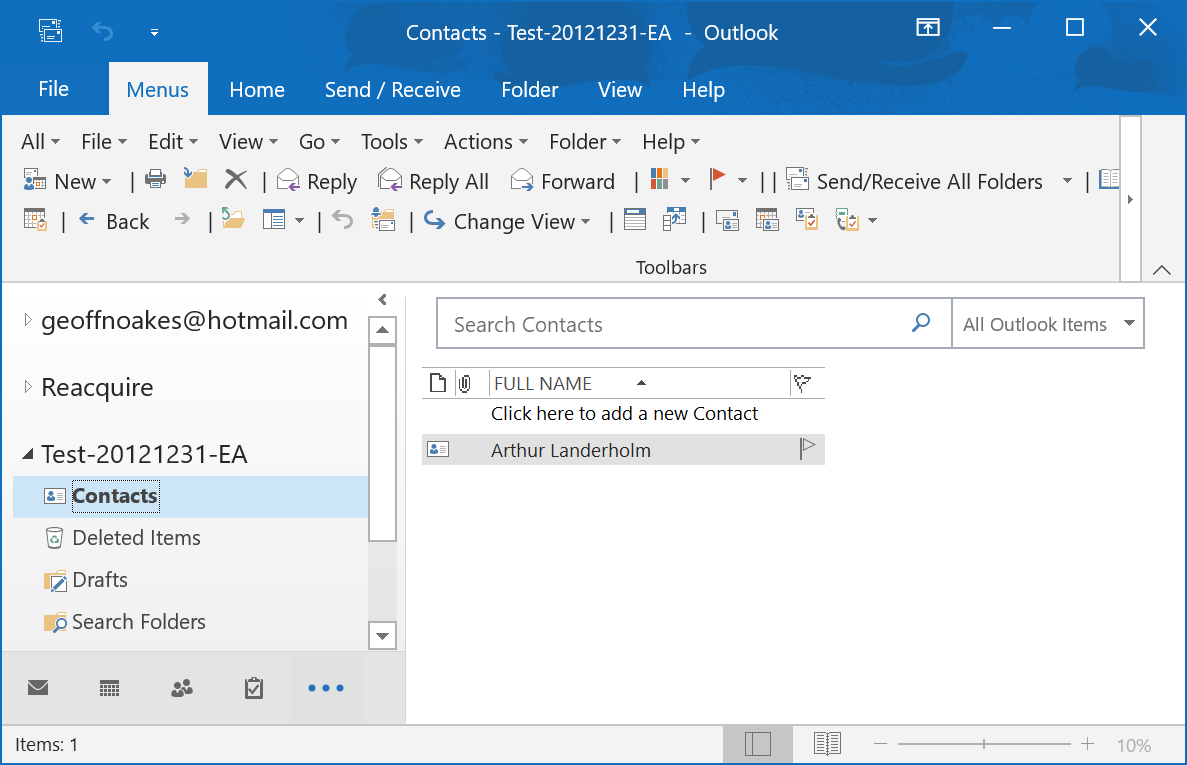

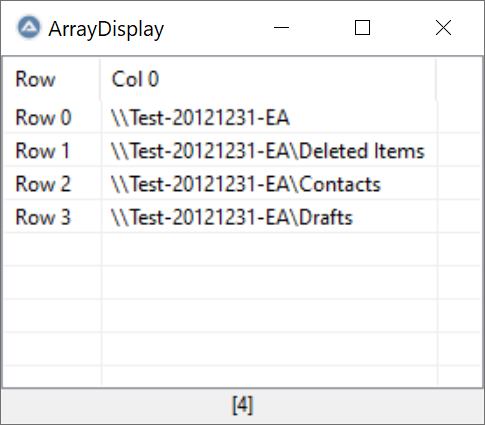

I used the Outlook client for the first screen shot -- it shows the PST in question and the Contact in question, and the second screen shot is after the _OL_FolderAccess command -- so my script idefinitely accessing the correct PST.  But after the _OL_ItemFind command, I get an @Error of 5 ("Error filtering items. @extended is set to the COM error") and an @Extended value of -2147352567.  What am I doing wrong here?

Thanks...

Geoff

[water]

I had to change two things:

_OL_FolderAccess needs the full path to the folder (I need to investigate why this only works for the "primary" store)
_OL_ItemFind needs the FullName in reverse order: Lastname Firstname

#include <Array.au3>
#include <OutlookEX.au3>
; #Include <OutlookEX_Base.au3> ==> No need to include. Gets included by OutlookEX.au3

Global Const $SourcePSTDisplayName = "Test"
Global Const $SourceContactsFolderName = "Test-Contacts"
$oOutlook = _OL_Open ()
If @error Then Exit ConsoleWrite("_OL_Open: @error: " & @error & ", @extended: " & @extended & @CRLF)

$aSourceFolder = _OL_FolderAccess ($oOutlook, $SourcePSTDisplayName & "\" & $SourceContactsFolderName)
If @error Then Exit ConsoleWrite("_OL_FolderAccess: @error: " & @error & ", @extended: " & @extended & @CRLF)

$aSourceTree = _OL_FolderTree ($oOutlook, $aSourceFolder [1])
If @error Then Exit ConsoleWrite("_OL_FolderTree: @error: " & @error & ", @extended: " & @extended & @CRLF)
_ArrayDisplay ($aSourceTree)

$aSourceItems = _OL_ItemFind ($oOutlook, $aSourceFolder [1], Default, '[FullName] = "Doe John"', '', '', "EntryID,FullName", '', 0)
If @Error = 0 Then
   _ArrayDisplay ($aSourceItems, "_OL_ItemFind array")
Else
   ConsoleWrite ("_OL_ItemFind: @Error=" & @Error & ", @Extended=" & @Extended & @CRLF)
EndIf
_OL_Close ($oOutlook)



[geoffnoakes]

Water, that worked great, thanks very much.  I've also discovered the OutlookTools UDF -- I'm learning about it now.

Many thanks...

Geoff
