Hi, i created this after i was trying to clone a disk and it kept giving me errors from bad sector, i ran CHKDSK on the offending drive multiple times, not finding anything, then i learned that there are hidden partitions on which chkdsk can run on, but i need to supply the partition GUID.

This tool is the simple and easy way to chkdsk /R those partitions, it retrieves a list of all, with and without assigned letter, and then the user can use the context menu on them to run chkdsk /r command.

#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_AU3Check_Parameters=-d -w 1 -w 2 -w 3 -w- 4 -w 5 -w 6 -w- 7
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****
#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <GUIListBox.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#include <Array.au3>
#include <GuiListView.au3>
Opt("GUIOnEventMode", 1)
Opt("GUIEventOptions", 0)
Opt("WinTitleMatchMode", 2) ;1=start, 2=subStr, 3=exact, 4=advanced, -1 to -4=Nocase
Opt("TrayMenuMode", 3)
Opt("TrayIconHide", 0)
Opt("TrayIconDebug", 1)
Opt("TrayAutoPause", 0)
Opt("TrayOnEventMode", 1)
Local $Form1, $DSK, $Str, $Read, $List, $Letter, $VolSplit, $GUID, $cListView, $ContextMenu, $Selection, $GetItemPos, $ExitItem
$Form1 = GUICreate("CheckDisk Tool", 600, 360, 190, 125)
GUISetOnEvent($GUI_EVENT_CLOSE, "Close")
$cListView = GUICtrlCreateListView("Drive Letter|GUID", 10, 10, 580, 300)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 0, 175)
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 1, 400)
$List = GUICtrlCreateButton("List Drives", 10, 320, 75, 25)
GUICtrlSetOnEvent($List, "List")
$ContextMenu = GUICtrlCreateContextMenu($cListView)
$Selection = GUICtrlCreateMenuItem("CHKDSK", $ContextMenu, 1)
GUICtrlSetOnEvent(-1, "CHKDSK")
GUICtrlSetTip(-1, "CHKDSK the volume with this GUID", 'CHKDSK')
$ExitItem = TrayCreateItem("Close")
TrayItemSetOnEvent(-1, "Close")
Func List()
    WinSetTitle($Form1, "", "Reading Volumes...")
    $DSK = Run('mountvol', '', @SW_HIDE, $STDOUT_CHILD) ;@SW_HIDE
    WinWaitActive('[CLASS:ConsoleWindowClass]', '', 2)
        $Read = StdoutRead($DSK, True, False)
        $Str = StringInStr($Read, ':\')
    Until $Str <> 0
    $VolSplit = StringSplit($Read, '\\?\Volume{', 1)
    For $v = 2 To $VolSplit[0]
        $Letter = StringStripWS(StringTrimLeft($VolSplit[$v], 48), 8)
        $GUID = '\\?\Volume{' & StringLeft($VolSplit[$v], 37)
        If $Letter = '***NOMOUNTPOINTS***' Then
            $Letter = 'No Letter'
        GUICtrlCreateListViewItem($Letter & '|' & $GUID, $cListView)
    WinSetTitle($Form1, "", "CheckDisk Tool")
EndFunc   ;==>List
    $GetItemPos = _GUICtrlListView_GetNextItem($cListView, -1, 0, 8)
    $GUID = _GUICtrlListView_GetItemText($cListView, $GetItemPos, 1)
    ConsoleWrite($GUID & @CRLF)
    $DSK = ShellExecute('chkdsk', $GUID & ' /r', '', '', @SW_SHOW)
    WinWaitActive('[CLASS:ConsoleWindowClass]', '', 2)
EndFunc   ;==>CHKDSK
Func Close()
EndFunc   ;==>Close
Until $Form1 = 0

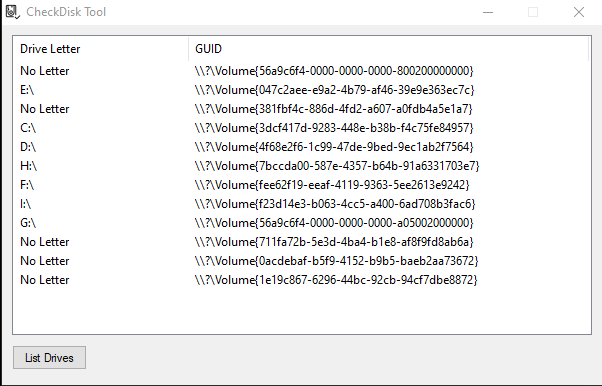

Screenshot 2021-11-25 023928.png
